Optex OA-Edge Swing Door Safety Sensor

Name: Optex OA-Edge Swing Door Safety Sensor
Brand: Optex
SKU: OA-EDGE
Availability: InStock

From : Optex

Price range: £120.00 through £185.00 ex vat

Trade Customer?

Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Length

Clear

Part code: OA-EDGE Category: Safety Sensors Brand: Optex

Easy Installation

The sensor is easy to install by simply clicking the master and slave modules into the profile, the master and slave modules are connected by a communication cable with connector. Altenative power supply connector on the master module makes installation more flexible and quicker.

Design

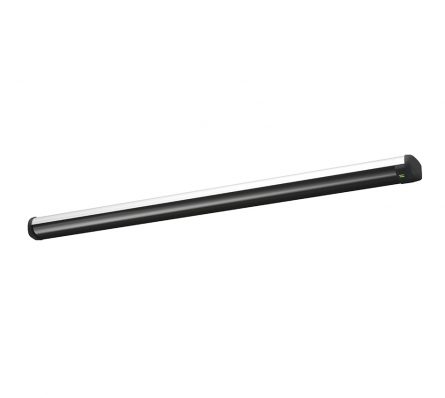

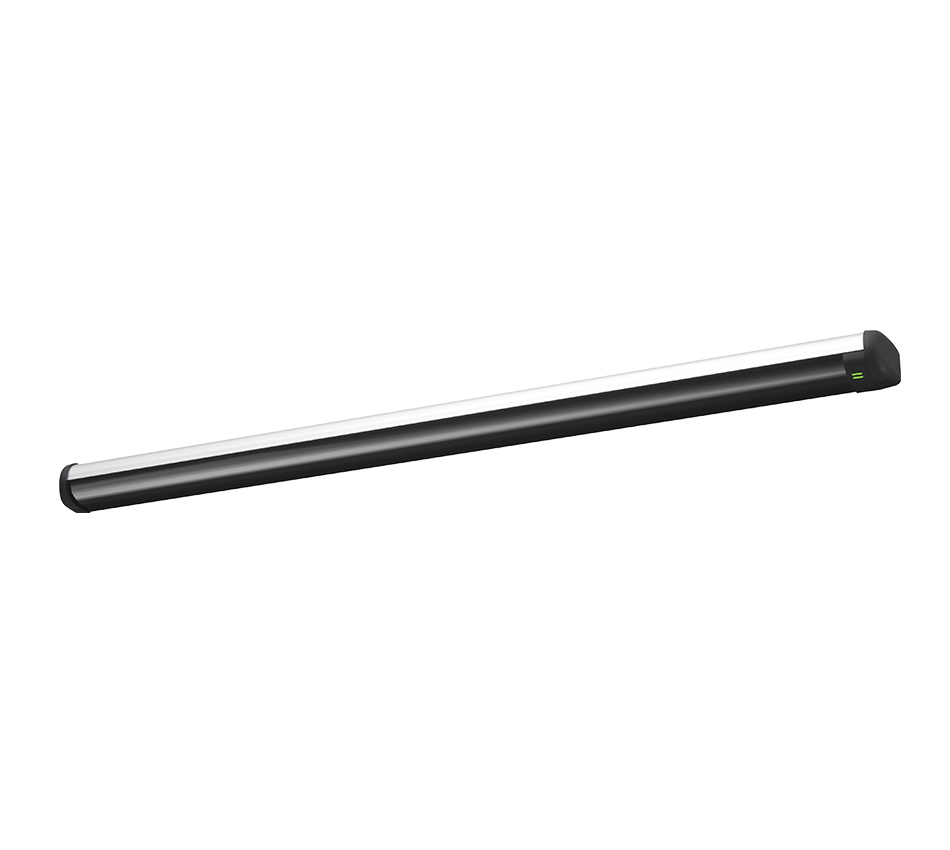

The sensor has a very slim design in order to fit on many different types of swing doors. The sensor is available in a silver or black profile completed with a black lens.

Safety

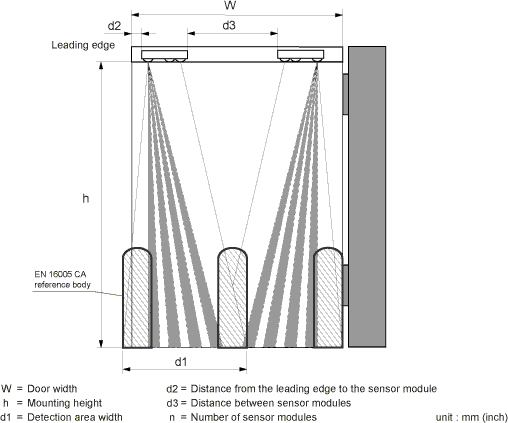

The wide detection area of each module secures a high level of safety around the door and will prevent the door leaf from hitting an object or person near the door. The Optex OA-Edge T is tested and approved by the German test organization TÜV and in compliance with the EN 16005.

Module

The sensor can be assembled using master and slave modules according to the required safety level and the width of the swing door. For a standard configuration of 1 sensor one master module is required. Depending on the door width, a maximum of 3 slave modules can be connected to this master module.

Quick Adjustment

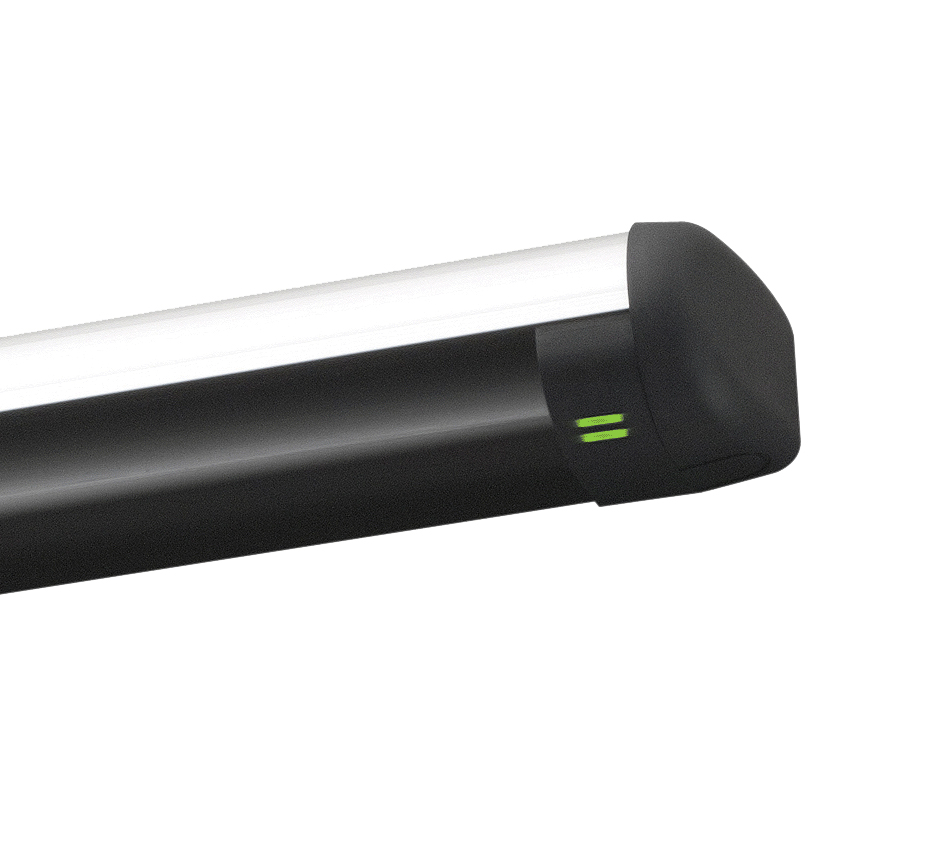

Adjustments to the sensor are done by the use of dipswitches and a levelling screw. When the sensor is set up an easy push on the function switch will start the initialization and learning cycle. After installation the sensor status can be easily checked by the visible LED.

Quality

Optex automatic door sensors guarantee premium performance and include a 3-year full replacement warranty.

Specifications

Model	OA-Edge T
Profile colour	Silver / black
Mounting height	1.5 (4’11”) to 3.0 m (9’10”)
Detection method	Triangulation
Detection spots	4 detection spots per module
Min. configuration	1 master module + 1 LED module
Max. configuration	4 sensor modules + 2 LED modules
Depth angle adjustment	0ºC – +25ºC
Power supply	12 – 24 VAC ±10% (50 /60 Hz) 12 – 30 VDC ±10%
Power consumption	< 1.3W ( < 2VA at AC) at min. configuration < 3.5W ( < 4.5VA at AC) at max. configuration
Test input	Opto coupler 10 – 30 VDC Current / 6mA max.
Safety/Test output 1	Form C relay
Safety/Test output 2	Voltage / 42 VDC Current / 0.3mA max.(resistance load)
Output hold time	Approx. 0.5 sec.
Response time	< 75m sec.
Operating temperature	-20ºC – +55ºC (-4ºF – +131ºF)
Operating humidity	80%
IP rate	IP54
Noise level	< 70dBA
Tested in compliance with	EN ISO 13849-1:2008 EN ISO 12978:2003 +A1:2009 DIN 18650-1:2010 Chapter 5.7.4 ESPE
Category	2 (EN ISO13849-1 : 2008)
Performance level	d (EN ISO13849-1 : 2008)
Dimensions	various lengths x 44,3 x 50,7 mm (l x h x d)
