| Traffic C | Traffic CM | |
|---|---|---|

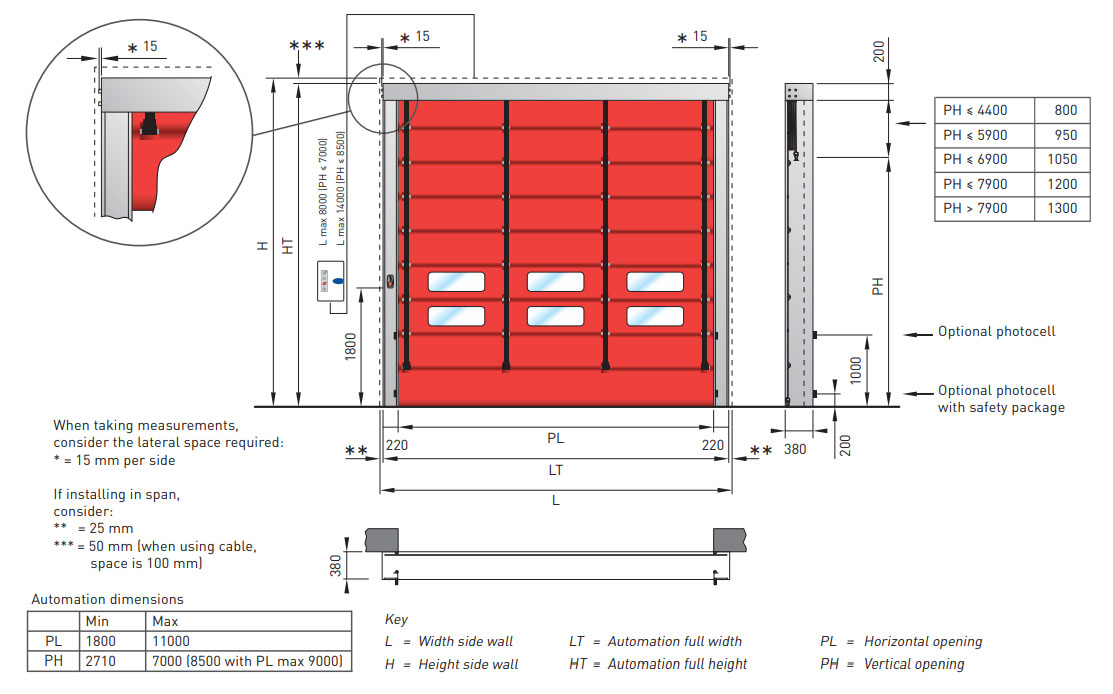

| Dimensions | Max. PL 6000 x PH 5400 mm Min. PL 1500 x PH 2000 mm | Max. PL 11000 x PH 7000 mm or PL 9000 x PH 8500 mm Min. PL 4500 x PH 3000 mm |
| Power supply | 400 V 3-phase 10 A for single speed version 230 V single-phase 16 A for INVERTERmotion | 400 V 3-phase 10 A for single speed version |
| Power of motor | 0,9 kW | 0,9 kW for 1x K10 1,8 kW for 2x K10 0,55 kW for 1x K21 1,1 kW for 2x K21 |
| Maximum speed | 3-phase version: opening and closing at 1,0 m/s for doors ≤ 4500 x PH 4500 mm and at 0,7 m/s for doors > 4500 x PH 4500 mm 230 V version : opening up to 1,3 m/s - closing up to 0,9 m/s | Opening and closing at 0,7 m/s |
| Life cycles | 1.000.000 - very heavy duty | |
| Number of operations: | 600 cycles/day - max 75 cycles/hour | |
| Extra features | Manual opening : semi-automatic by counterweights operated from ground by release lever; available on both sides (optional). Frame: standard in hot galvanised steel. Optional smooth finish oven-baked epoxy coating | |
| Recommended operating temperature | Motor + control board: - 5°C ÷ + 50°C Curtain: - 5°C ÷ + 50°C The limit of - 5°C is related to the PVC transparent windows and/or modular sections. For further details on the use in cold environments, please contact our technical support. | |
| Curtain material | Polyester fabric PVC coated on both sides. Availability of transparent PVC windows. | |
| Polyester thickness & weight | Curtain: 0,7 mm - 900 g/m² | |
| Modular sections | 900 g/m² polyester and/or clear PVC 2 mm thick | N/A |
| Thermal resistance coefficient | 5,8 W/m²K | |
| Noise reduction | ~ 12dB. | |
| Windows | clear PVC 1 mm, 980 x H 300 mm. | |
| Horizontal reinforcements | For full curtain: galvanised steel pipes with different configuration for higher wind resistance. For modular sections: anodized aluminum profiles + steel pipes. | Galvanised steel pipes with different configuration for higher wind resistance. |
| Available colours standard curtain | Similar to: Red RAL 3000 Blue RAL 5010 Orange RAL 2004 Grey RAL 7038 Yellow RAL 1021 Green RAL 6026 Cream RAL 1014 White RAL 9010 Light blue RAL 5012 Black RAL 9005 | |
The TRAFFIC C fast action door is Ditec’s safest and most technologically advanced high-speed fold-up door.
With the motor built-in to the casing, counterweighted balancing system, a choice of full or modular-sectional curtain and a range of safety options, the TRAFFIC C can be tailored to suit any specification.
The hot-galvanised steel frame houses and protects the whole traction unit, and as with all Ditec automations is available in versions with oven-baked epoxy coating with a smooth finish, or in stainless steel.
The canopy which houses the gearmotor has a height of just 190mm (200mm for TRAFFIC CM), so it can be fitted in areas where head room is restricted.
With the addition of a selection of safety and activation accessories, covers, a wide choice of curtain colours and thicknesses and window sections, the TRAFFIC C can be tailored to suit your needs.
As the TRAFFIC C has a counterweight, semi-automatic emergency opening can be achieved with the addition of an optional release handle.
The TRAFFIC C also boasts very high wind resistance, which can be upgraded further with the addition of wind bars.
For larger doors, the TRAFFIC CM is capable of a maximum opening dimension of 11 metres wide by 7 metres high, or up to 9 metres wide by 8.5 metres high.
IMPROVED WORKING CONDITIONS
OPTIMIZED PROCESS FLOW
The 400V motor, combined with counterweights, allows the door to open and close fast. With the INVERTERmotion, speed can be differentiated and increased up to 1.3 m/s.
ENERGY SAVINGS
The high operating speed avoids the doors remaining open longer than needed. Thus, the working environment remains stable and energy can be saved.

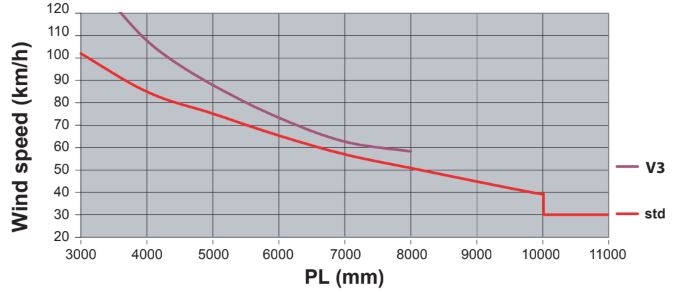

WIND RESISTANCE
Thanks to the reinforcement bars in the curtain, the Ditec Traffic C/CM withstands wind loads up to class 2. The fold-up principle makes sure doors can close even under heavy wind load.
SAFETY ASSURED
PROTECTION OF PEOPLE & GOODS
The self-testing, sensible bottom edge and the photocells or a light curtain detect possible obstacles and reopen the door when needed.
EMERGENCY OPENING
In case of emergency, a red handle can be turned to release the counterweight and open the door.
SMART & NICE DESIGN
ITALIAN LOOKS
A Ditec Traffic C/CM door has a nicely finished doorframe. On the Traffic C, fully transparent sections are available for maximum visibility.
LOW MAINTENANCE
The Ditec Traffic C/CM, with its most accessible operating system, requires little maintenance.
SPACE SAVING
The Ditec Traffic C/CM requires limited installation space. Its self-supporting frame and the absence of a side-motor allows for installation in a corridor or any other limited space.

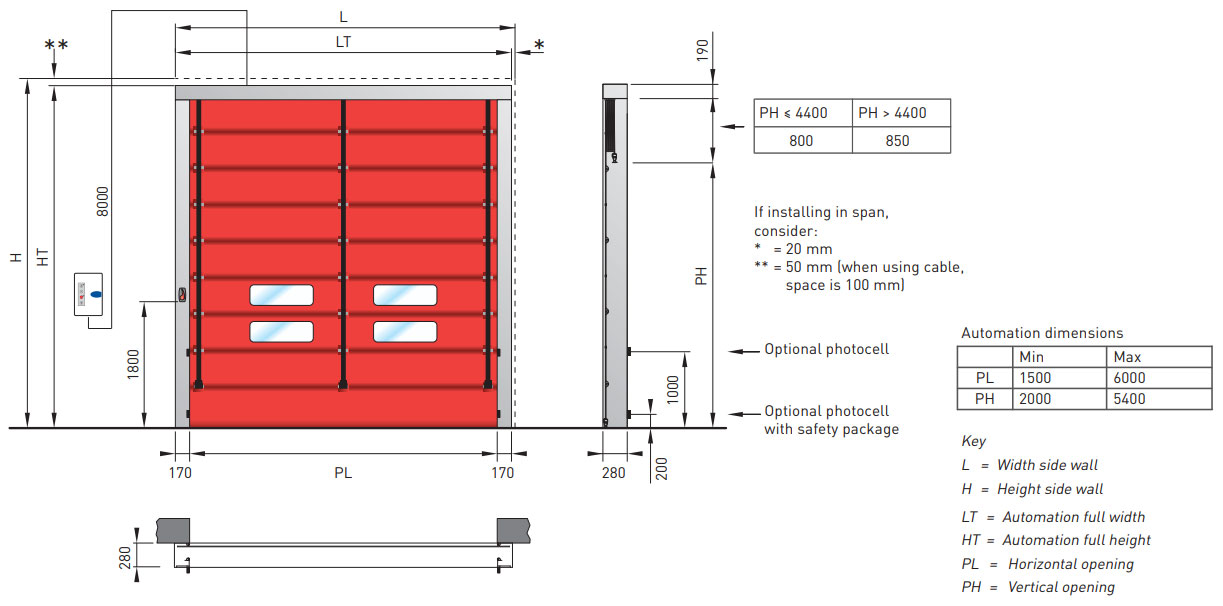

Traffic C
Traffic CM
Traffic C
Traffic CM

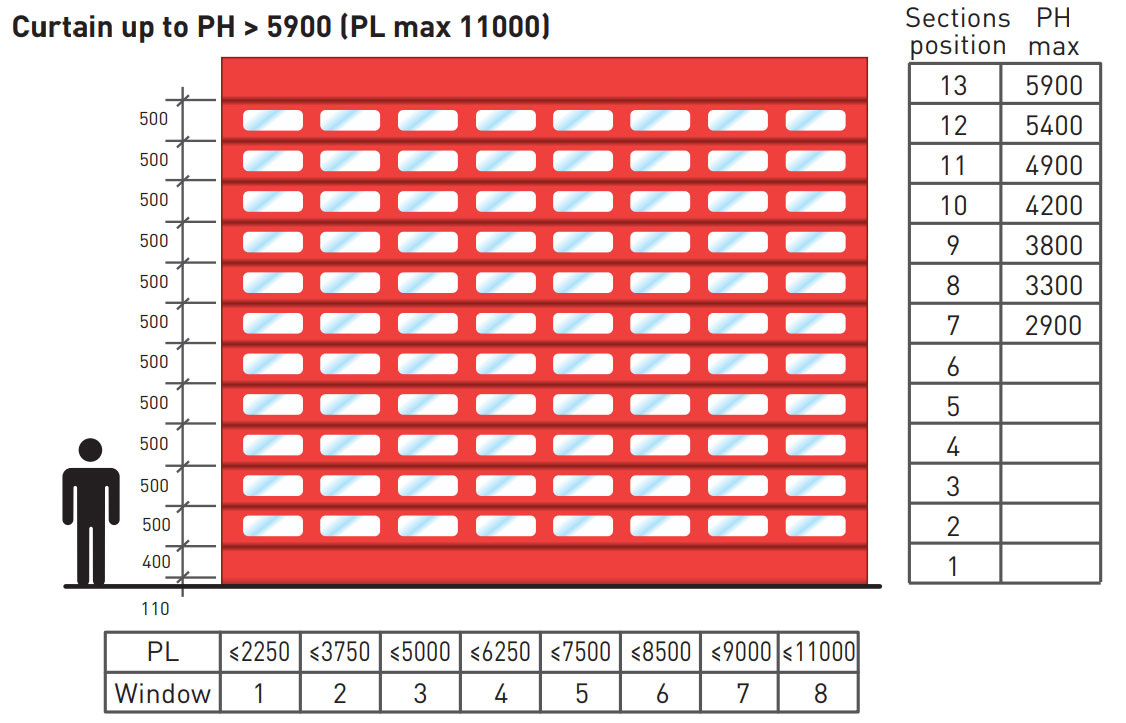

up to 5900mm tall
Traffic CM

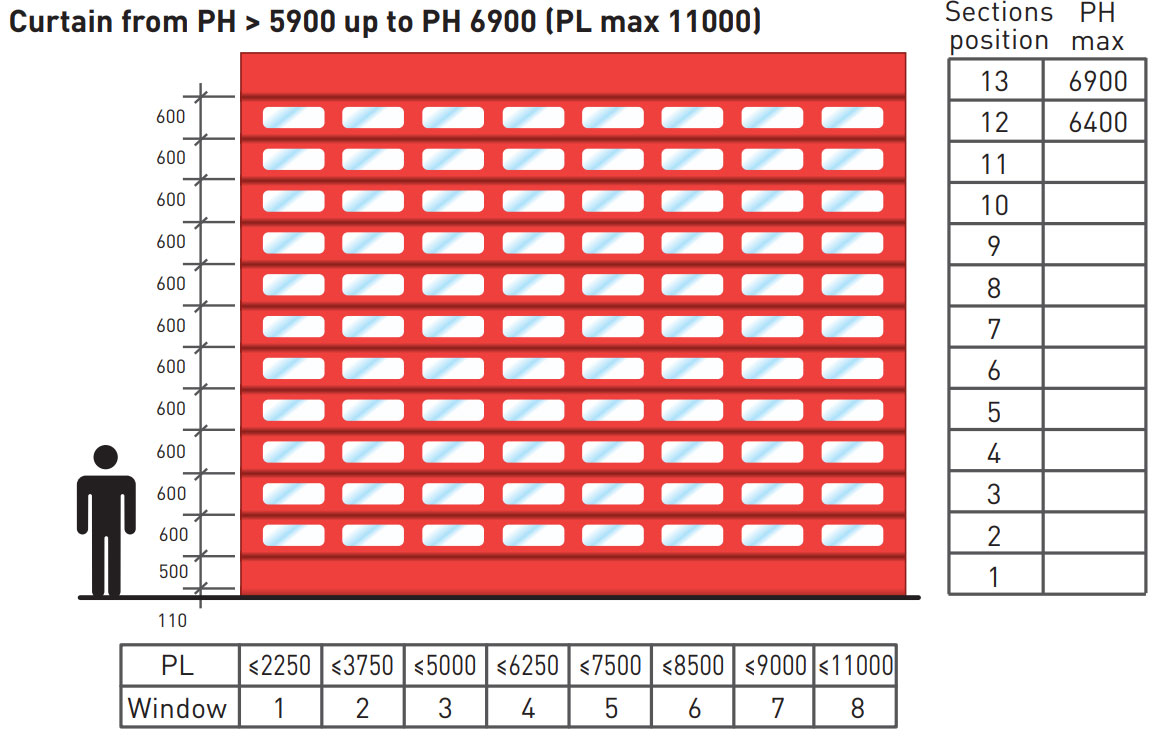

between 5900 & 6900mm tall

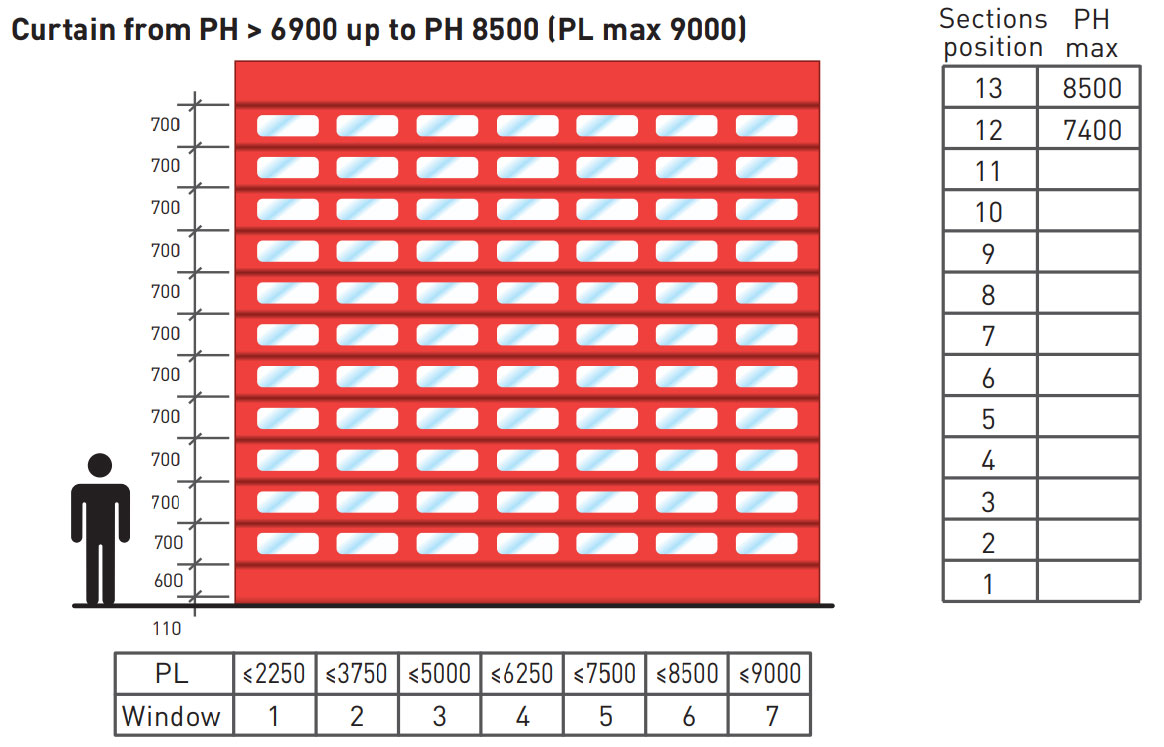

Traffic CM
between 6900 & 8500mm tall

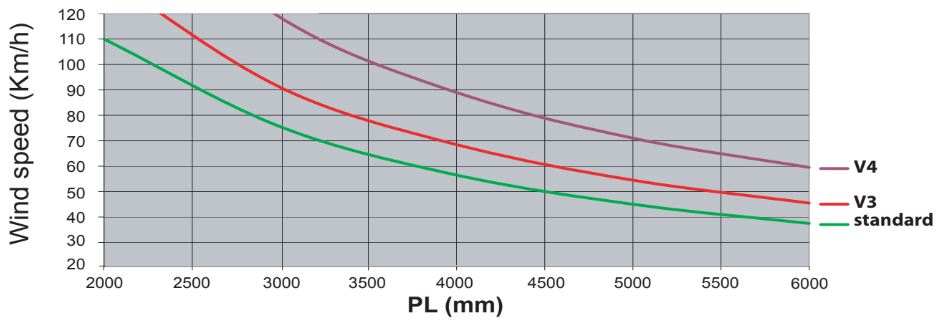

Traffic C Wind Limitations
