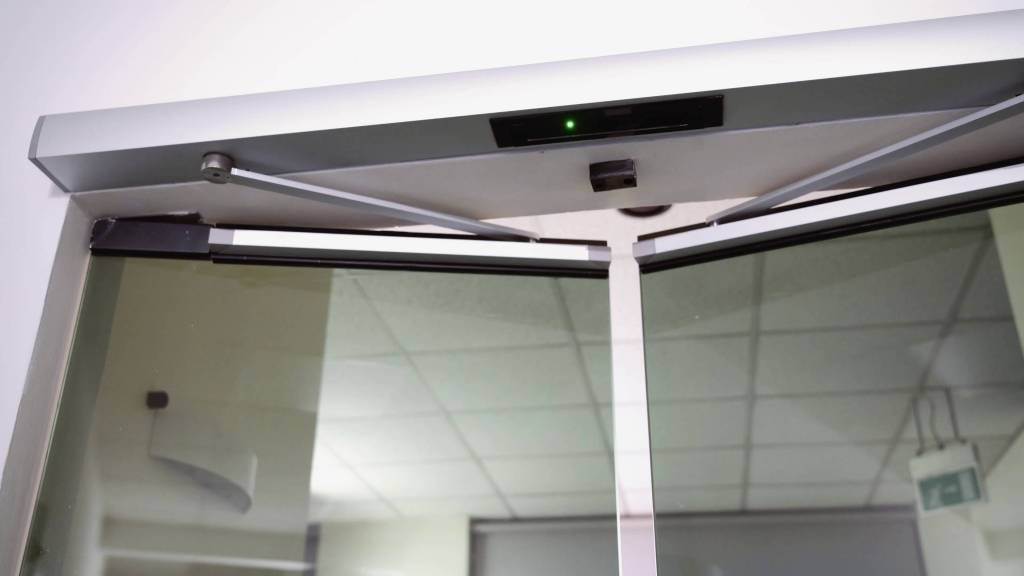

The LABEL NEXT range of swing door operators are the latest operator from Label SpA. Featuring the same characteristics as the NEPTIS range, yet being the most compact model on the market at only 420/520 (L) x 60 (H) x 74 (D) mm.
Available in three different versions, with doors weights up to 150Kg, the LABEL NEXT is undoubtedly one of the most powerful operators of it’s size.
The NEXT range has been designed to control the opening and closing of internal, external and fire rated swinging doors up to 150kg in weight wide, offering maximum safety for the user and complies with the European standard EN 16005.

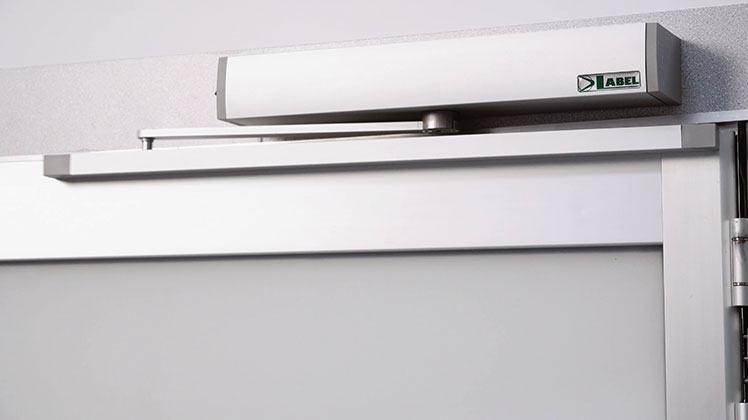

The covering guard is made of anodized aluminium that enhances the look of the automation, the extremely small dimensions (only 60 mm of height for mounting on the door transom) make NEXT range suitable for most types of environments.
The arms which control the motion of the leaf are of two types, pull-type with sliding track and push-type (articulated), both featuring a slim and elegant design.
The new slimline function selector from LABEL allows the end user to modify the work program with a simple touch. Work programs that aren’t required can now be disabled easily allowing simpler control for your customers.
Programming can also be carried out via this slimline selector, either via the LCD screen or by an NFC-equipped android device, allowing for quick and easy adjustments and diagnostics.
Once the settings have been input using your mobile device, the data is uploaded into the memory of the automation control unit in a rapid and completely secure fashion, simply by bringing the device into proximity with the NFC selector.

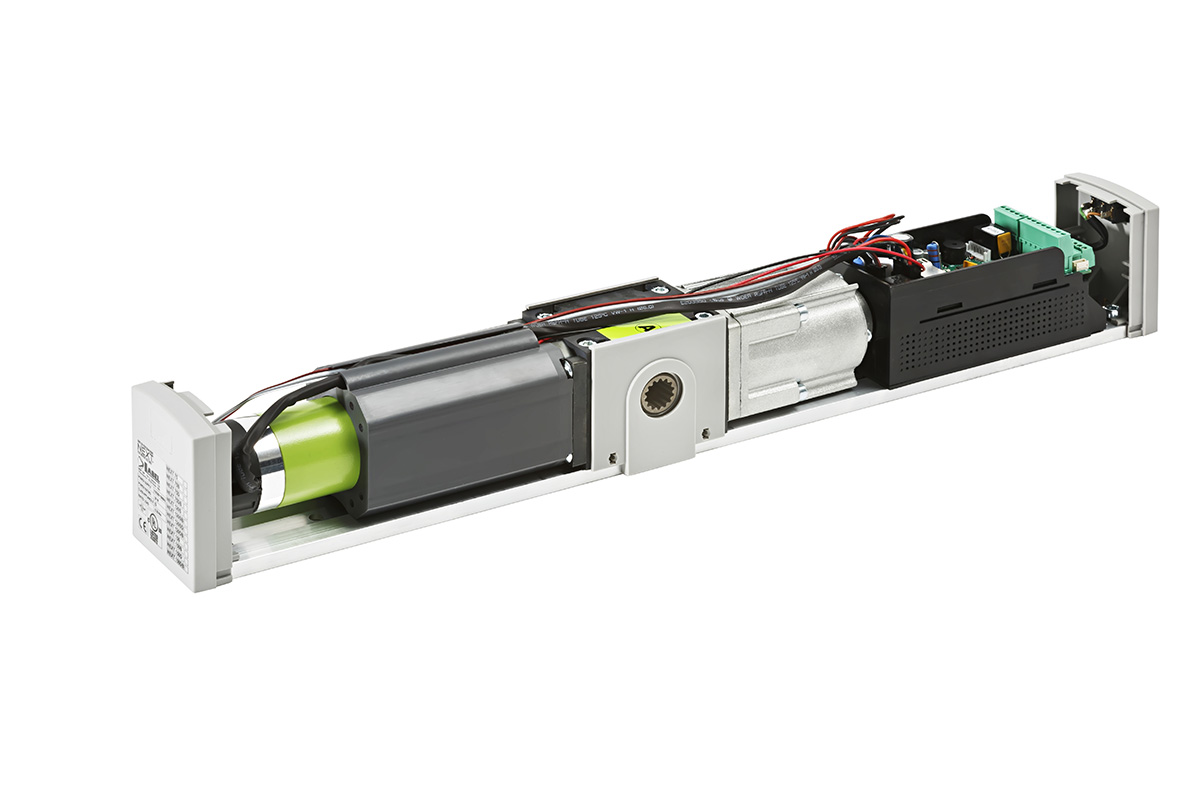

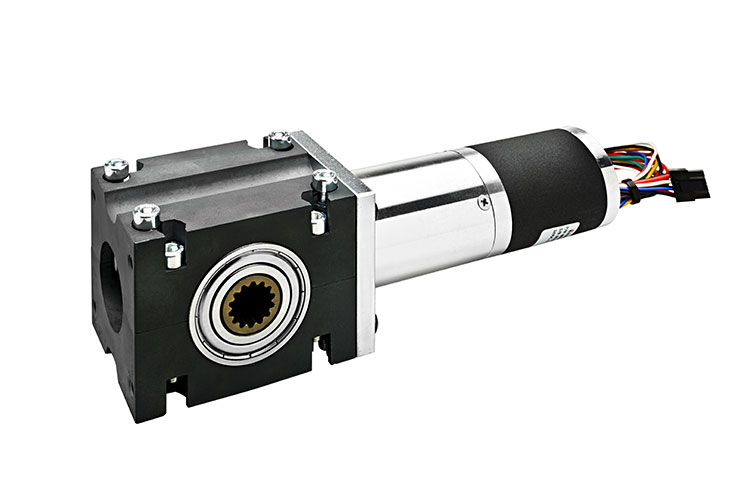

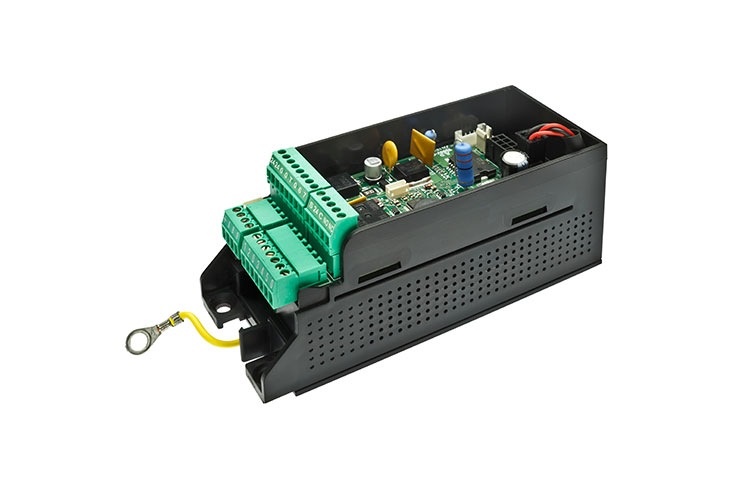

Inside the automation NEXT range there is a brushless motor with encoder that ensures very low wear due to the absence of brushes and durability over time, an electronic control unit with latest generation components, to provide excellent performance and reliability and a switching power supply to ensure efficiency and low power consumption.
Door opening can be controlled by sensors, radio control, or by a simple touch in push & go mode. The door can also be used manually with the possibility of reclosing thanks to the virtual spring function. Door motion is safe thanks to the encoder which detects with precision the position of the door and immediately reverses the motion of the door in the event of an obstacle.
The safety sensors to be installed on the leaf are monitored by the electronic control unit at the beginning of each cycle, as required by the standard EN 16005.
For automation commissioning, the installer must use the digital programmer; Alternatively, it is possible to setup NEXT range by means of the new NFC digital keyboard that allows interfacing and data exchange via a smartphone using the new Label App.
In a few simple steps you can setup the automation and select the desired functions.
At the heart of the system is the new digital brushless motor, offering far superior durability, reliability and efficiency when compared to a standard motor. For this reason, LABEL are offering 6 year warranty for the gearmotor assembly.
Available in three versions depending on needs
BDT Sliding PULL Arm

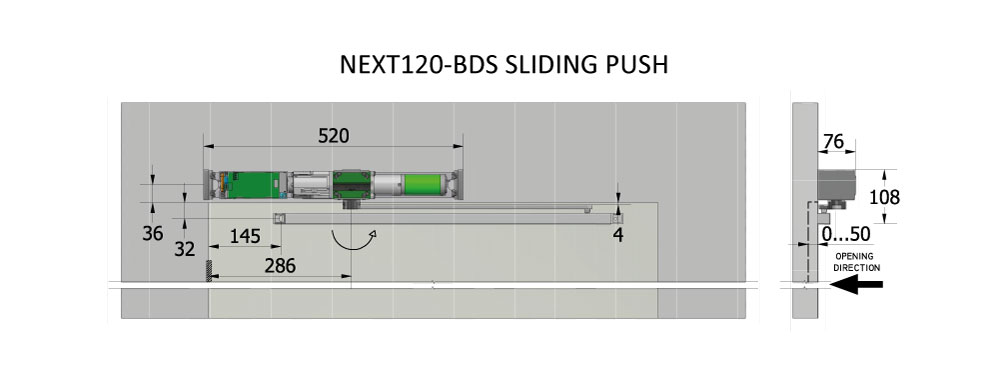

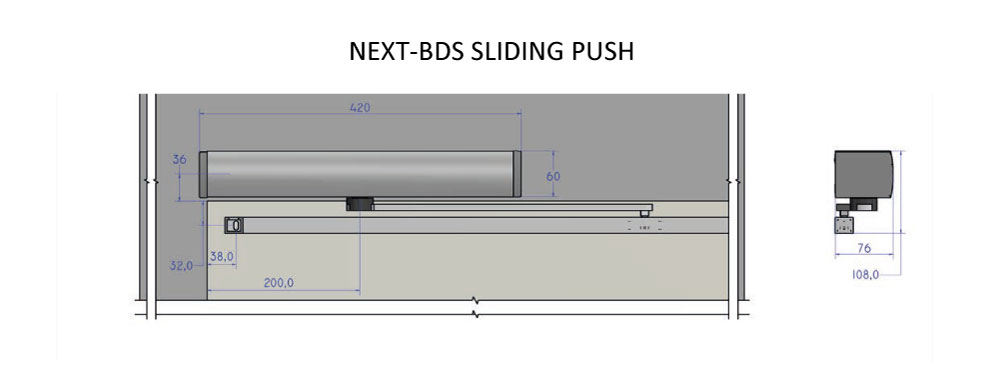

BDS Sliding PUSH Arm

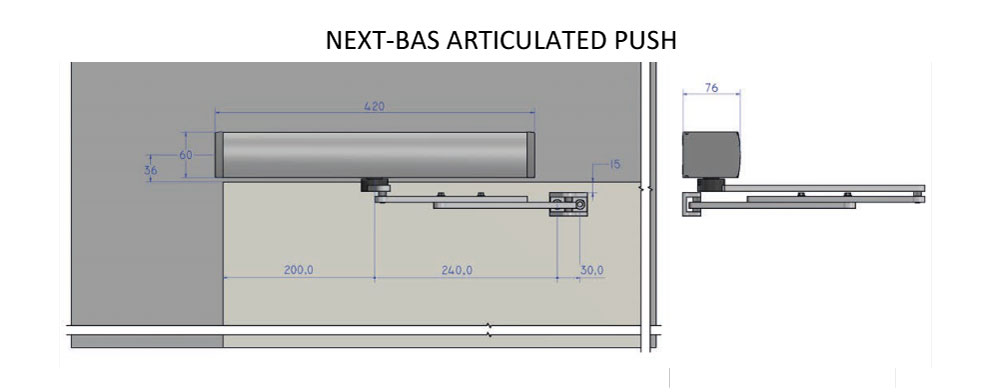

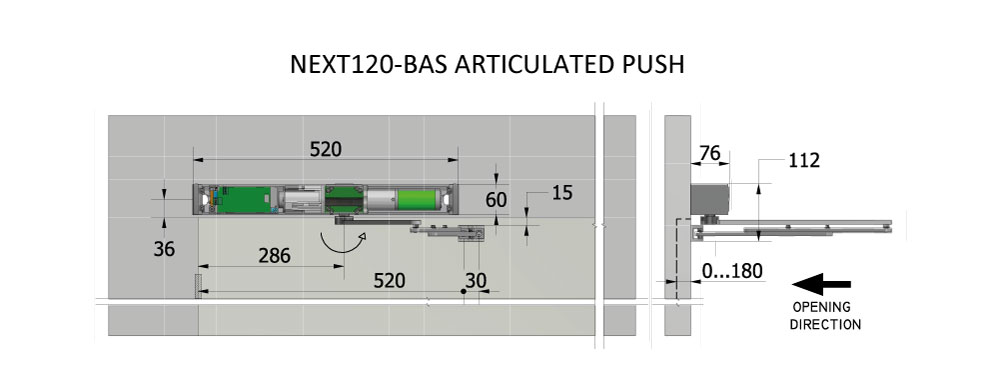

BAS Articulated PUSH Arm

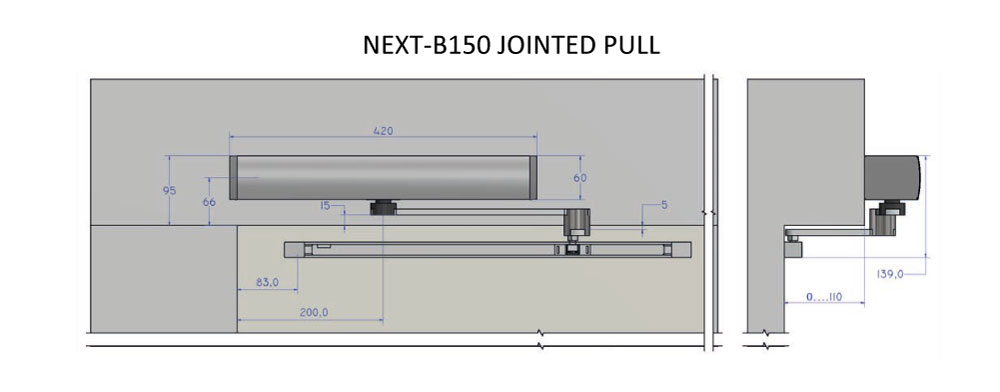

B150 Jointed Sliding PULL Arm

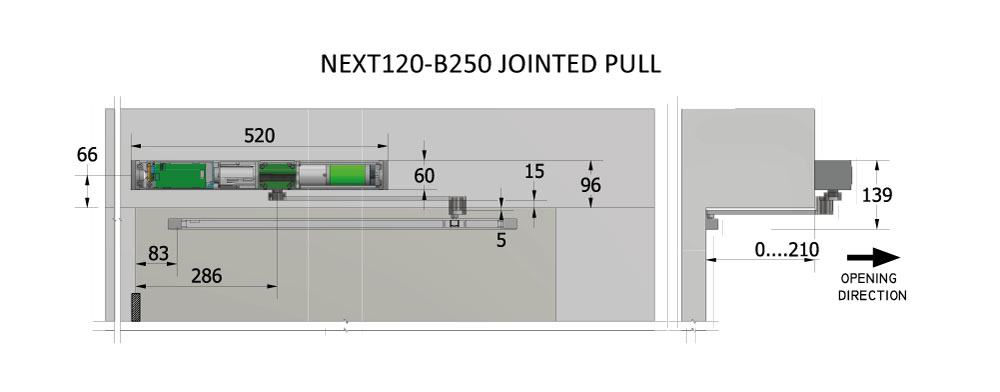

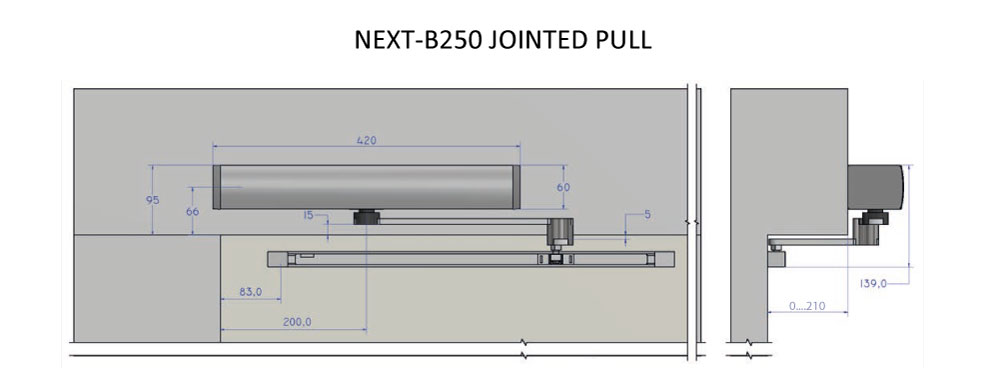

B250 Jointed Sliding PULL Arm
NEXT75 | NEXT120S | NEXT150 | |
---|---|---|---|

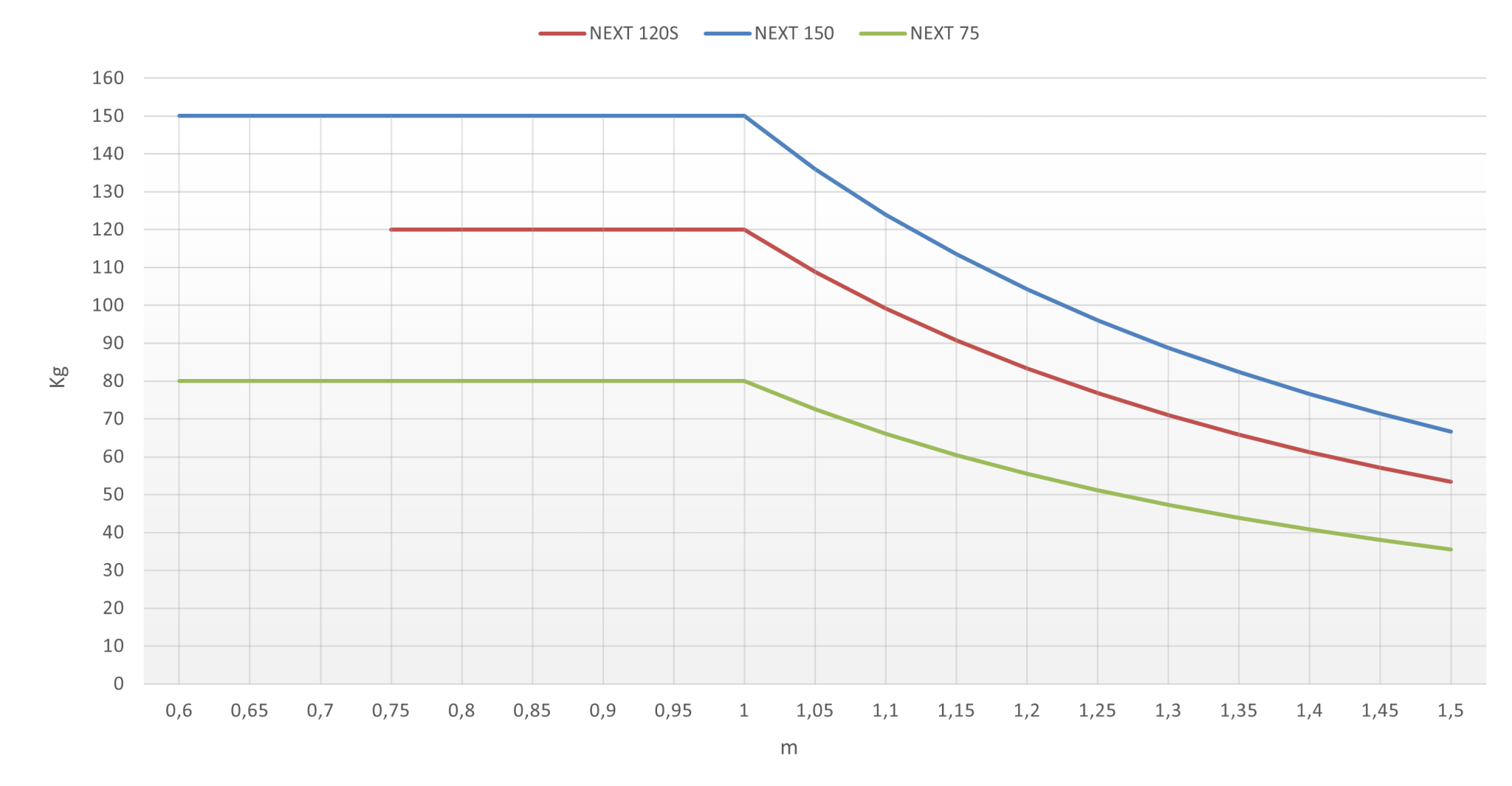

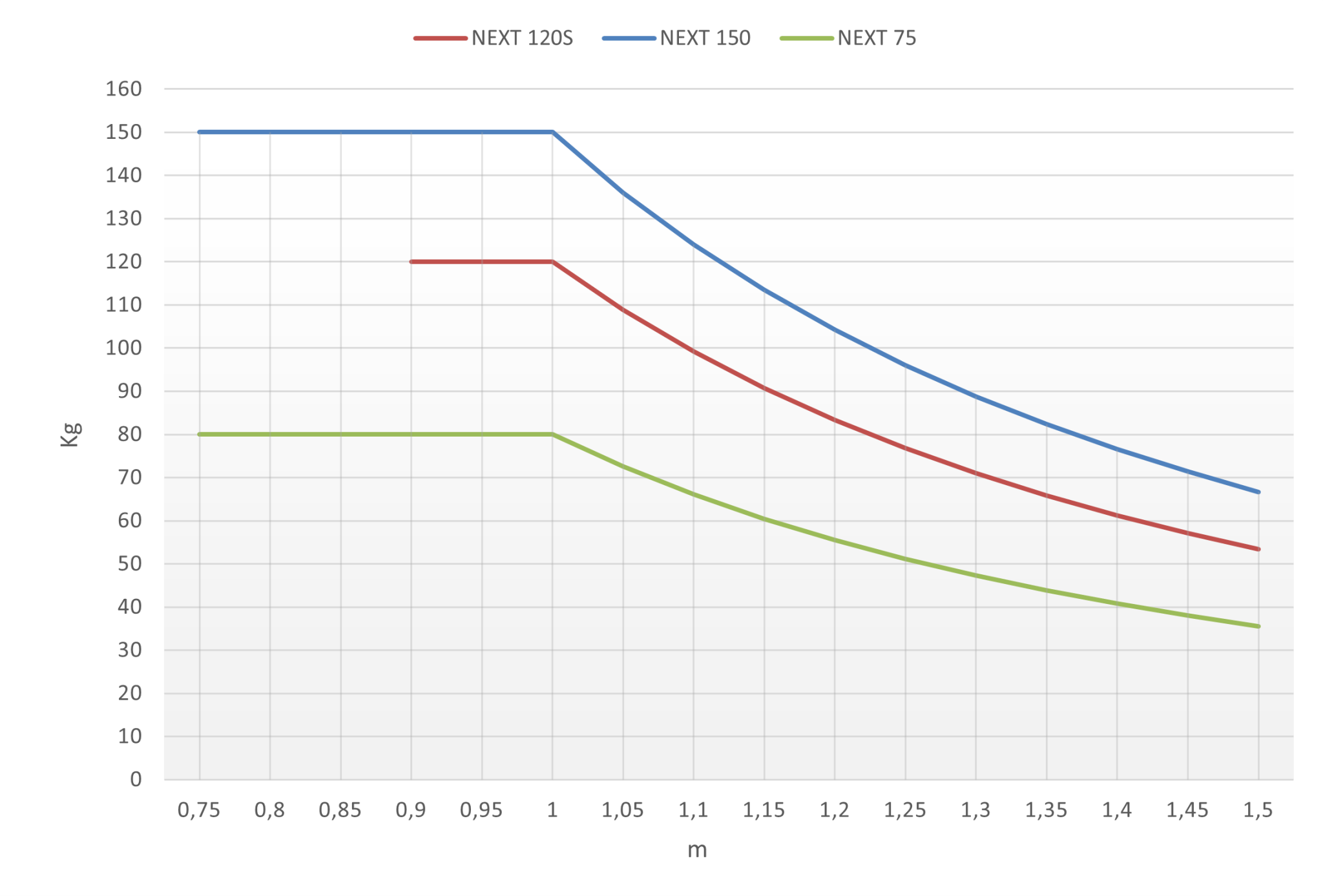

Max weight of the leaf | 75 kg | 120 kg | 150 kg |
Max width of the leaf | 1500mm | ||
Drive system | Motor Open Motor Close | Motor Open Spring Close | Motor Open Motor Close |
Fire Rating | 120 mins using the BDT or BDS arm systems | ||
Built in battery | Provided as standard | Optional (NEXT120SB can be supplied with battery built-in) | Provided as standard |
Dimensions (HxDxW) | 60 x 74 x 420 mm | 60 x 74 x 520 mm | 60 x 74 x 420 mm |
Dimensions with built-in battery (HxDxW) | 60 x 74 x 420 mm Battery does not take up any extra space | 60 x 74 x 520 mm Battery does not take up any extra space | 60 x 74 x 420 mm Battery does not take up any extra space |
Power supply | 115/230 Vac 50-60Hz | ||
Max. Power consumption | 40W | ||
Standby consumption | 5W | ||
Power output for accessories | 24 Vdc @ 1.0A | 24 Vdc @ 0.8A | |
Electric Lock supply | Clean contact or 24Vdc (shared with accessory supply) | ||
Motor | 24Vdc brushless motor with hall effect encoder | ||
Protection rating | IP32 | ||
Frequency of use | 100% continuous | ||
Operating temperature | -15° C + 50° C | ||
Opening speed | 2 - 12secs adjustable | ||
Closing speed | 4 - 12secs adjustable |
