| Sector Reset | |
|---|---|

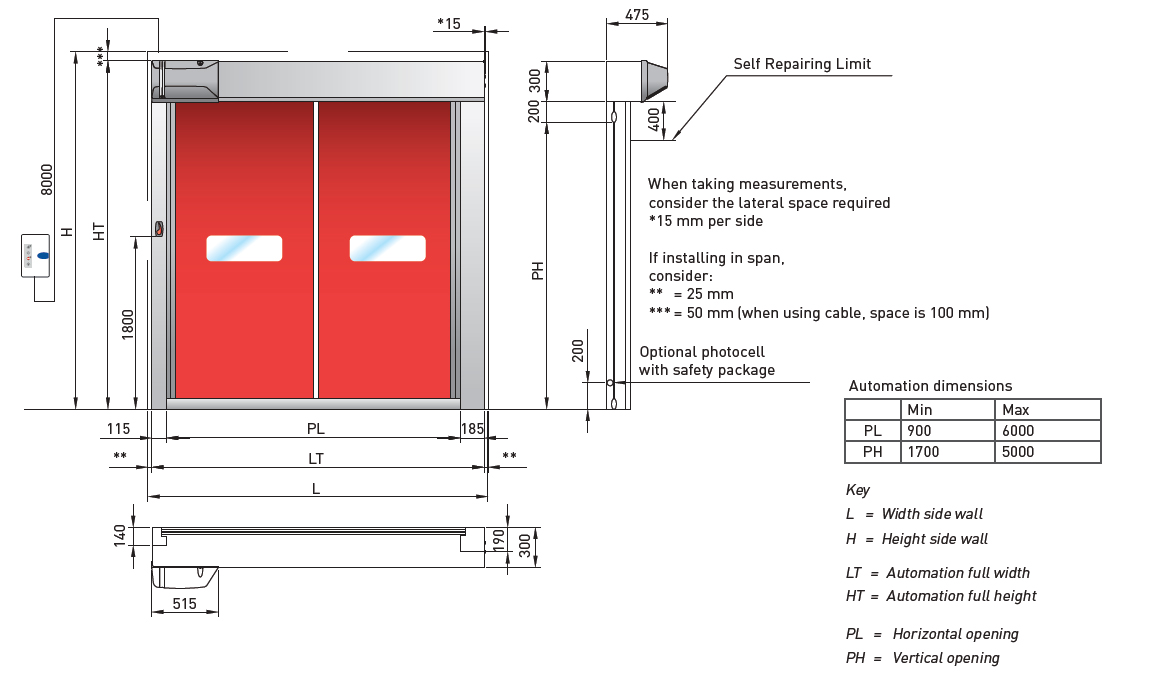

| Dimensions | Max. PL 6000 x PH 5000 mm Min. PL 900 x PH 1700 mm |
| Power supply | 400 V 3-phase 10 A for single speed version 230 V single-phase 16 A for INVERTERmotion |
| Power of motor | 0,9 kW |
| Maximum speed | Single speed version: opening and closing at 1,0 m/s INVERTERmotion version : opening up to 3 m/s - closing up to 0,8 m/s |
| Life cycles | 1.000.000 - heavy duty |
| Number of operations: | 600 cycles/day - max 120 cycles/hour |
| Extra features | Manual opening : semi-automatic by counterweights operated from ground by release lever; available on both sides (optional). Frame: standard in hot galvanised steel. Optional AISI 304 stainless steel bright finishing or smooth finish oven-baked epoxy coating |
| Recommended operating temperature | Motor + control board: - 5°C ÷ + 50°C Curtain: - 5°C ÷ + 50°C The limit of - 5°C is related to the PVC transparent windows and/or modular sections. For further details on the use in cold environments, please contact our technical support. |
| Curtain material | Polyester fabric PVC coated on both sides. Insulated curtain by polyester fabric PVC coated on one side and foamed on the other. |
| Polyester thickness & weight | Standard curtain: 0,7 mm - 900 g/m2 Optional 1,0 mm - 1300 g/m2. Insulated: 3,5 mm - 1300 g/m2 |
| Vertical reinforcement strips | Clear PVC Not applicable on insulated curtain. |
| Thermal resistance coefficient | 5,8 W/m2K - optional 5,5 W/m2K Insulated: 4,0 W/m2K |
| Noise reduction | ~ 12dB. Insulated: 17,5 dB |
| Windows | clear PVC 1 mm, available: - 980 x H 300 - 920 x H 1600 mm - complete section H 920 mm |
| Available colours standard curtain | Similar to: Red RAL 3000 Blue RAL 5010 Orange RAL 2004 Grey RAL 7038 Yellow RAL 1021 Green RAL 6026 Cream RAL 1014 White RAL 9010 Light blue RAL 5012 Black RAL 9005 |
| Available colours optional curtain | Similar to: Yellow RAL 1004 Grey RAL 7046 |
| Available colours insulated curtain | Similar to: Blue RAL 5002 Grey RAL 7038 |

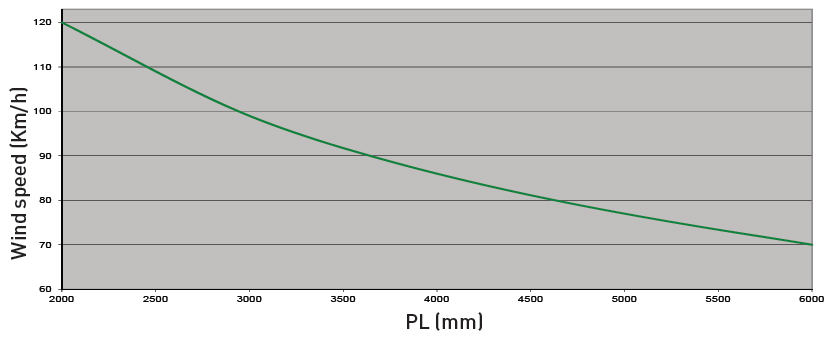

| Wind resistance class | EN 12424 (test EN 12444) : class 3 with optional SOW for all dimensions class 2 : PL ≤ 3000 mm x PH 5000 mm class 1 : 3000 mm < PL ≤ 4750 mm x PH 5000 mm class 0 : 4750 < PL ≤ 6000 mm x PH 5000 mm |
| Air permeability | EN 12426 (test EN 12427) : NPD |
| Water permeability | EN 12425 (test EN 12489) : NPD |
| Closing door safety devices | EN 12453 (test EN 12445) : TOP Safety Pack: Self-testing SLE Safety Linear Encoder* + built-in IP67 photocells TOP T Safety Pack: Self-testing SLE Safety Linear Encoder* + IP65 sequential infra-red light barrier |
| Available Certifications | certificate n° DE/3627/10, Notified Laboratory n° 0497 |
The SECTOR RESET is Ditec’s flagship self-repairing door.
With the SECTOR RESET, the motor is built into the casing with a cover in black ABS, while the vertical guides have self-lubricating sliding guides installed on a shock-absorbing spring system.
The standard opening speed is up to 1 metre per second, but this can be increased to up to 2 metres per second by choosing the inverter version, which also gives progressive control over the acceleration and deceleration of the door.
The curtain can be supplied in one piece with see-through PVC windows added in, or it can be supplied in modular sections with full width PVC strips added in as vision panels.
The counterweight not only reduces the load on the motor allowing faster speeds, but it also allows for an optional emergency release handle to be added, giving a semi-automatic re-opening of the door in case of emergency.
The level of safety devices supplied with the door can be chosen to suit the requirements on site, including safety photocells and Ditec’s patented Safety Linear Encoder, up to a full sequential light grid.
The SECTOR RESET is a versatile, modular door which can be adapted to suit a wide range of environments and types of use.
IMPROVED WORKING CONDITIONS
OPTIMIZED PROCESS FLOW
The fully flexible curtain without rigid bars allows the door to open and close fast. With the INVERTERmotion, speed can be differentiated and increased up to 3 m/s. The self-reinserting function of the curtain reduces the risk of downtime in case of accidental hit.
ENERGY SAVINGS
The high operating speed avoids the doors remaining open longer than needed. Thus, the working environment remains stable and energy can be saved.
SEALING AND WIND RESISTANCE

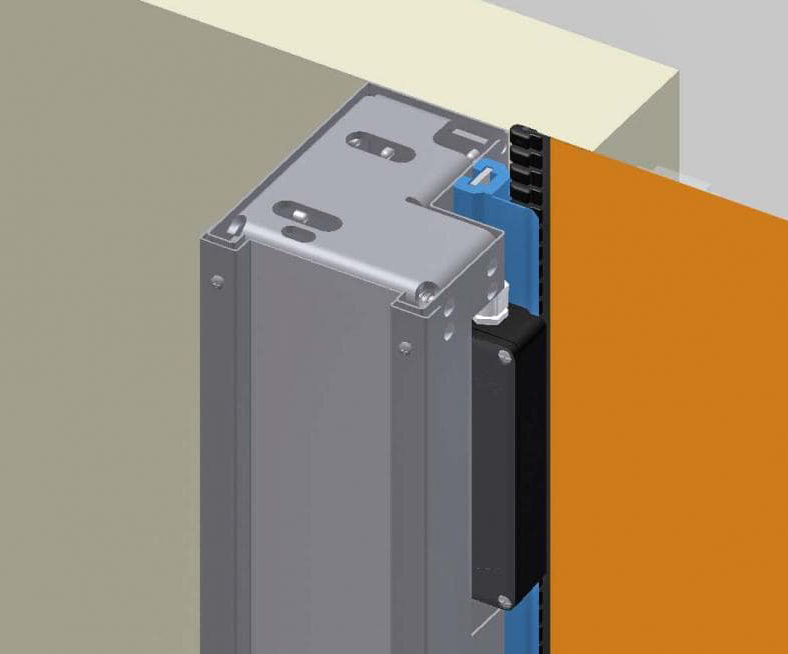

The curtain is retained in the side guides by means of zippers that provide excellent seal. This minimizes the transfer of air and the infiltration of dust. On doors with INVERTERmotion, the step-by-step closing feature (SBS) makes sure doors can close even under windy conditions.
LOW NOISE
Thanks to the specially designed side guides and the continuous zippers, the door operates silently.
SAFETY ASSURED
PROTECTION OF PEOPLE & GOODS
The unique, self-testing Safety Linear Encoder and the photocells detect possible obstacles and reopen the door when needed. The curtain itself is intrinsically safe, as it has a soft bottom and contains no rigid bars.
EMERGENCY OPENING
In case of emergency, a red handle can be turned to release the counterweight and open the door.
SMART AND NICE DESIGN
ITALIAN LOOKS
A Ditec door has a streamlined design. Large windows are available for maximum visibility. The curtain can also be printed with your own design.
LOW MAINTENANCE
The Ditec Sector Reset, with few moving parts and a specially designed side guide, requires little maintenance. Thanks to the self-reintroduction of the curtain and the absence of rigid bars, repair costs are limited in case of an accidental crash. Counterweights reduce the efforts required by the motor, resulting in a longer lifetime and less maintenance costs.
SPACE SAVING
The small columns of the Ditec Sector Reset reduce its footprint and make it the ideal door for applications with limited space. The self-supporting frame and the absence of a side-motor allows for installation in a corridor or any other limited space.
Sector Reset
