CROSS 18 | CROSS 18E | CROSS 18VE | CROSS 19V | |
---|---|---|---|---|
Electromechanical actuator | for sliding gates up to 1800 kg | |||
Stroke control | rotary limit switch | lever-operated mechanical stop | magnetic limit switch | |
Capacity | 1800 kg | |||
Maximum opening width | 11 m | 20 m | ||
Service index | 4 - intensive | |||
Intermittent operation | S2 = 30 min S3 = 50% | |||
Power supply | 230 V AC / 50 Hz | 400 V AC 50 Hz | ||
Power input | 3 A | 3 A | 3 A | 1.2 A |
Thrust | 1200 N | 1500 N | ||
Opening and closing speed | 0.2 m/s | |||
Release system for manual opening | key operated | |||
Operating temperature | -20°C / +55°C (-35°C / +55°C with NIO enabled) | |||
Protection level | IP 24D | |||
Product dimensions (mm) | 440x205x375 | |||
Control panel | E1A LOGIC M | E1A (built-in) | LOGIC M (built-in) | E1T |
The automation system designed to last

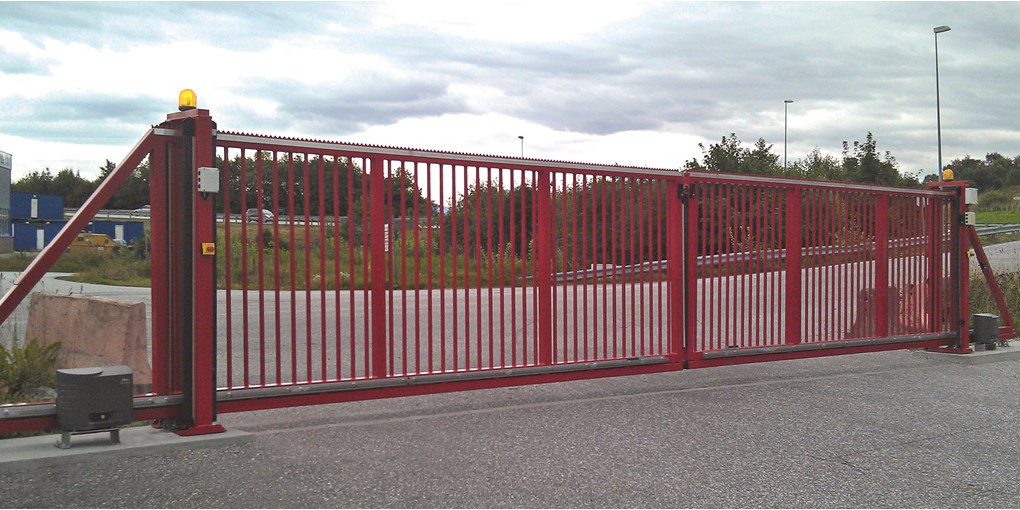

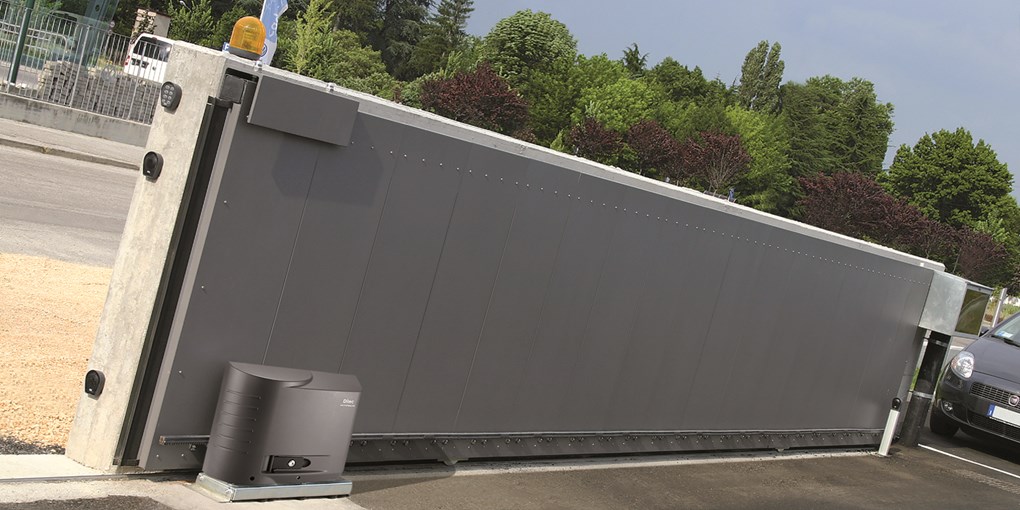

Strong and sturdy for commercial and industrial applications, they can move gates of up to 20 m wide, weighing up to 1800 kg. The best choice for heavy-duty use, available in four different versions: 3 single phase and one three-phase. Versions with control panel integrated in the cabinet and varied limit switch options (rotary, lever-operated, magnetic) are also available.
For sliding gates up to 1800 Kg. Ideal for intensive use.
Reliable and sturdy
- lubricating grease suitable for temperatures ranging from -35°C to +55°C
- high-reliability control panels with sturdy contacts
- irreversible geared motor to avoid installation of electro-mechanical locks
- Safety-Test function electric brake and electronic clutch to guarantee irreversibility and precise stopping points
- key-protected handle release system for manual opening and closing of the gate in the case of a blackout
- vertical levelling screws and horizontal adjustment slots to adjust the automation system to the surface below and the gate rack.
Three-phase electronics from 230 V – 400 V guarantee maximum performance even under adverse conditions, thanks to greater dynamic thrust during the initial phase of operation.
Complete range
- two 1800 kg versions without control panel, one single-phase and one three-phase
- two 1800 kg versions with control panel, single-phase.

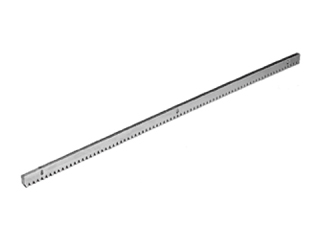

CROSSCRI
galvanised steel rack, module 4, complete with mountings and screws
