Silent, yet Intelligent
- Ideal for silent applications
- High intelligent functionality
- Ideal choice for doors in healthcare, residential, office and public service environments
- Complies with European safety standards including EN16005
- Very low power consumption
Low energy

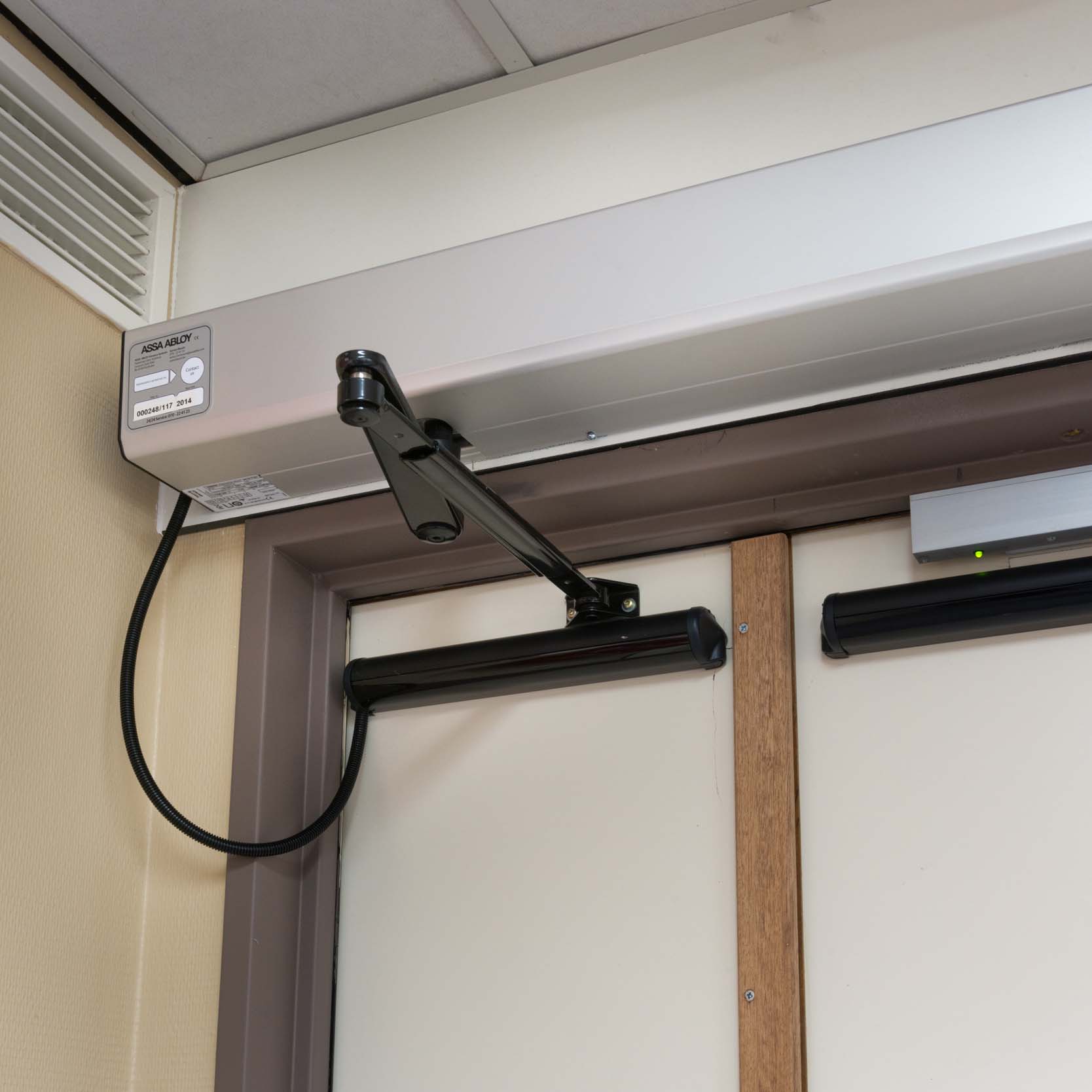

The ASSA ABLOY SW100 is an electromechanical operator and has been developed to comply with North American and European standards and requirements for low-energy power operated doors.
Silent and smart
The ASSA ABLOY SW100 is designed for silent applications with high intelligent functions. Safe, reliable and quiet operation make it the ideal choice for doors in healthcare, residential, office and public service environments where both low noise and ease of access are important.
It includes smart functions such as “Push-and- go”, which opens the door automatically when manually pushed from the closed position, and “Power Assist”, providing motorized assistance when the door is pulled opened by hand. The smart control unit offers added-value features like double-door controls and monitored battery backup for convenience. Other added-value features are smart lock functions for security, monitored sensors and low-energy consumption.
Design
The operator works electromechanically. It opens with motor and closes with motor and spring.
The opening and closing speeds can be varied individually. The motor, control unit, gear box and spring are combined into a compact unit and mounted within the cover. The operator is connected to the door leaf with either a pushing or a pulling arm system.
Arm systems
PUSH – Pushing arm system. The operator is installed on the wall on the opposite side of the door swing. Door opening angle adjustable up to 110°.
PULL – Pulling arm system. The operator is installed on the wall on the same side as the door swing.
Door opening angle adjustable up to 110°.
ST-V/H – Pulling arm system. Used in windy conditions when the operator is installed on the wall on the same side as the door swing. Door opening angle adjustable up to 95°.
Shaft extensions – Allow the operator to be fitted higher on the wall or the arm lower on the door leaf.
Models
Single operator – one drive unit and one control unit fitted under a cover
Double operator – two drive units with control units fitted under the same cover for operation of two doors
SW100 | |
---|---|
Power V | 100-240Vac +10/-15% 50/60 Hz |
Power W | Max. 75W |
Accessory Voltage | 24Vdc @ 400mA (max. 1000mA including lock) |
Mains fuse F1, F2 | 2x T6.3 AH/250V |
Max. door weight | 210 Kg |
Max. door width | 1400mm |
Door Size | PUSH arm system; size 4 PULL arm system; size 1 |
Max. Inertia J | for PUSH = 45 kgm2 for PULL = 16 kgm2 Inertia = Door weight x (Door width)2 / 3 The ASSA ABLOY SW100 complies with the door weights/widths stated in the: Controlled door closing, EN 1154 Table I, size 4 |
Electro-mechanical locking device | 12Vdc; max 500 mA 24Vdc; max 250 mA |
Door opening angle | PUSH: 80° - 110°, with reveal 0-305mm PULL: 80° - 110°, with reveal -20-130mm |
Opening time (0° - 80°) | Variable between 3 - 6 secs |
Closing time (90° - 10°) | Variable between 3 - 6 secs |
HOLD open time | 1.5 - 30 secs |
temperature | -20°C max +45°C |
Relative humidity | Max. 85% |
Drive unit weight | 7.1 kg |
Class of protection | IP20 |
Degree of protection, control actuators | IP54 |
