Cubic 6 | Cubic 6H | Cubic 6HV | |
---|---|---|---|
Electromechanical actuator | irreversible for up to 4 m wide wing | irreversible for up to 4 m wide wing | irreversible for up to 2.5 m wide wing |
Stroke control | magnetic limit switch (optional) | ||
Maximum capacity | 800 kg x 2 m 350 kg x 4 m | 350 kg x 1 m 200 kg x 2.5 m | |
Service index | 3 - frequent | 4 - intensive | |
Intermittent operation | S2 = 15 min S3 = 25% | S2 = 30 min S3 = 50% | |
Power supply | 230 V AC / 50 Hz | 24 V DC | |
Power input | 1.5 A | 12 A | |
Torque | 340 Nm | 220 Nm | |
Opening time | 18 s/90° | 12÷45 s/90° with CUBIC6L 15÷55 s/90° with CUBIC6LG | 6÷25 s/90° with CUBIC6L 8÷30 s/90° with CUBIC6LG |
Actuator maximum opening | 110° or 180° | 110° | |
Release system for manual opening | key-operated | ||
Operating temperature | -20°C / +55°C (-35°C / +55°C with NIO enabled) | ||
Protection degree | IP 67 | ||
Control panel | E2 LOGIC M | LCU40H |
The CUBIC is Ditec’s underground range of swing gate operators, offering an unobtrusive solution to gate automation. This means you can have fully automatic gates without the operator interfering with the look or style of the gate.
The CUBIC is available in both 24V and 230V models, and can be used on gates with a width of up to 3.5 metres or weighing up to 600kg (CUBIC6 or 6H).
The CUBIC can achieve a maximum opening angle of 180° when paired with the large lever system. The levers have built-in mechanical stops to simplify the set-up of the gates. There is a choice of stainless steel or galvanised steel foundation cases. A built-in release system ensures the gates can be opened in case of emergency.
Insight Automation supplies all versions of the CUBIC in either individual parts or kit form. The kits provide a pair of operators and essential accessories.
The 24V versions have the option of a battery back-up to ensure continued use in the event of a power failure.

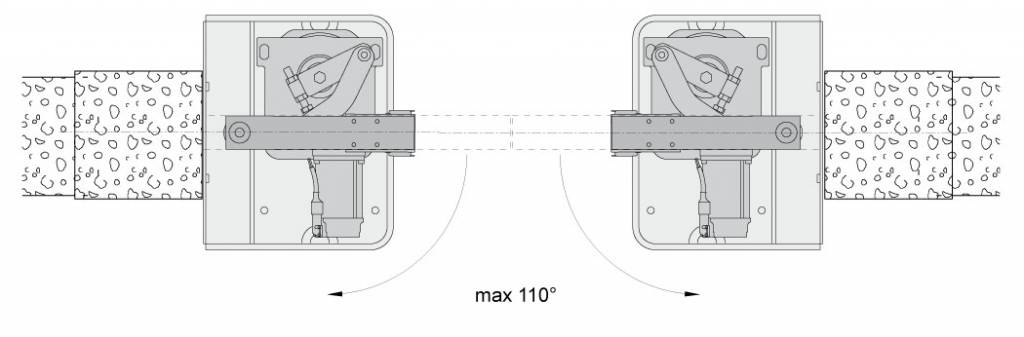

CUBIC L

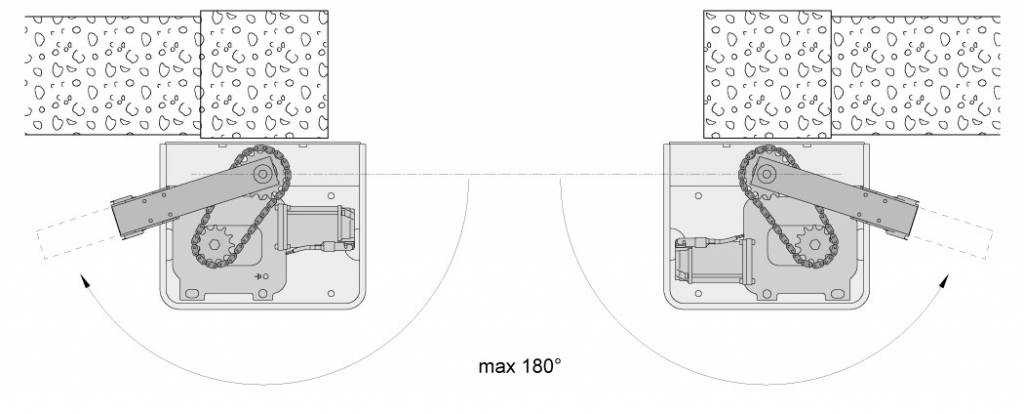

CUBIC TC
CUBIC TIG
CUBIC6SBL

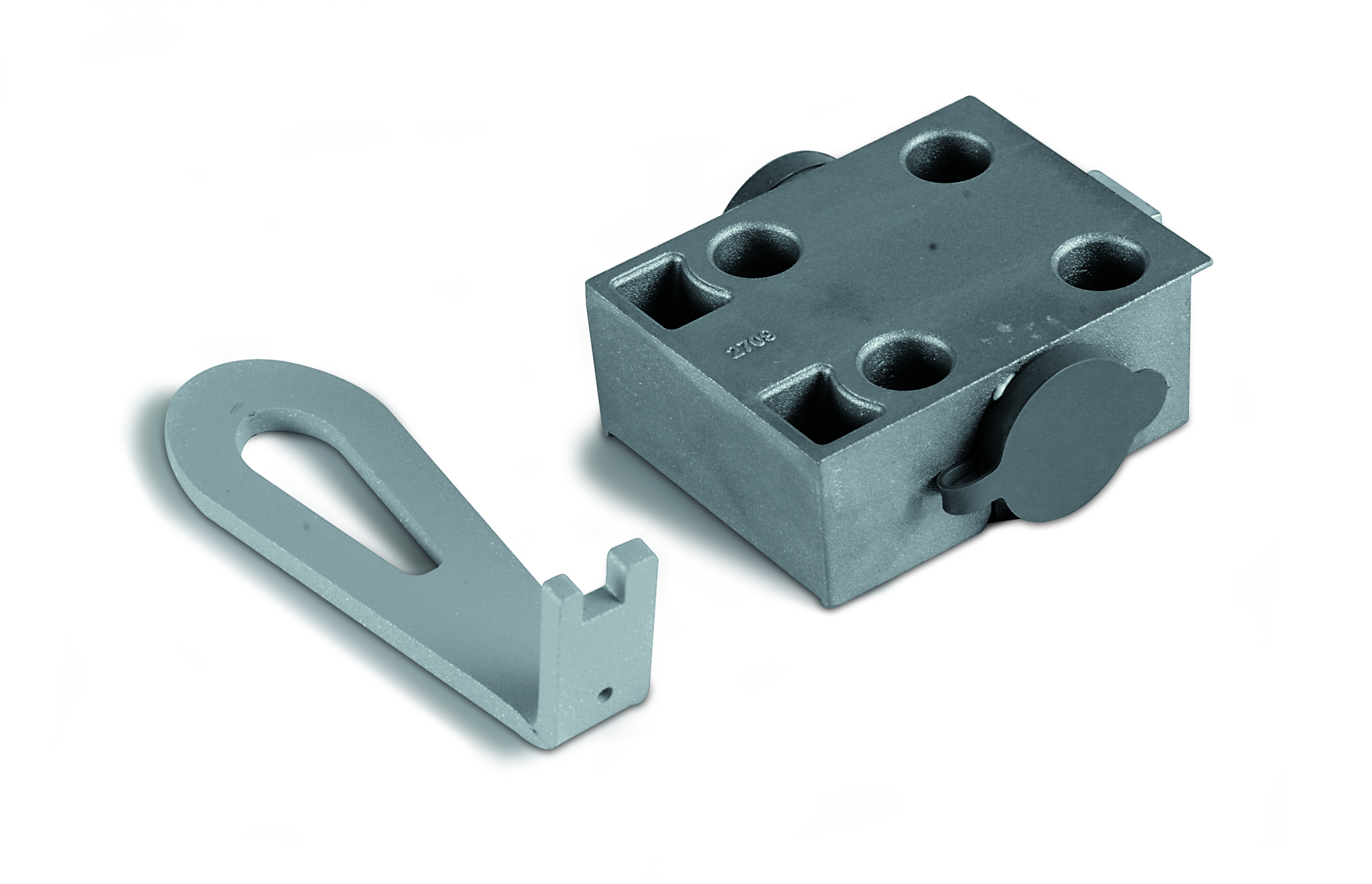

lever operated release system.
CUBIC6SBD1

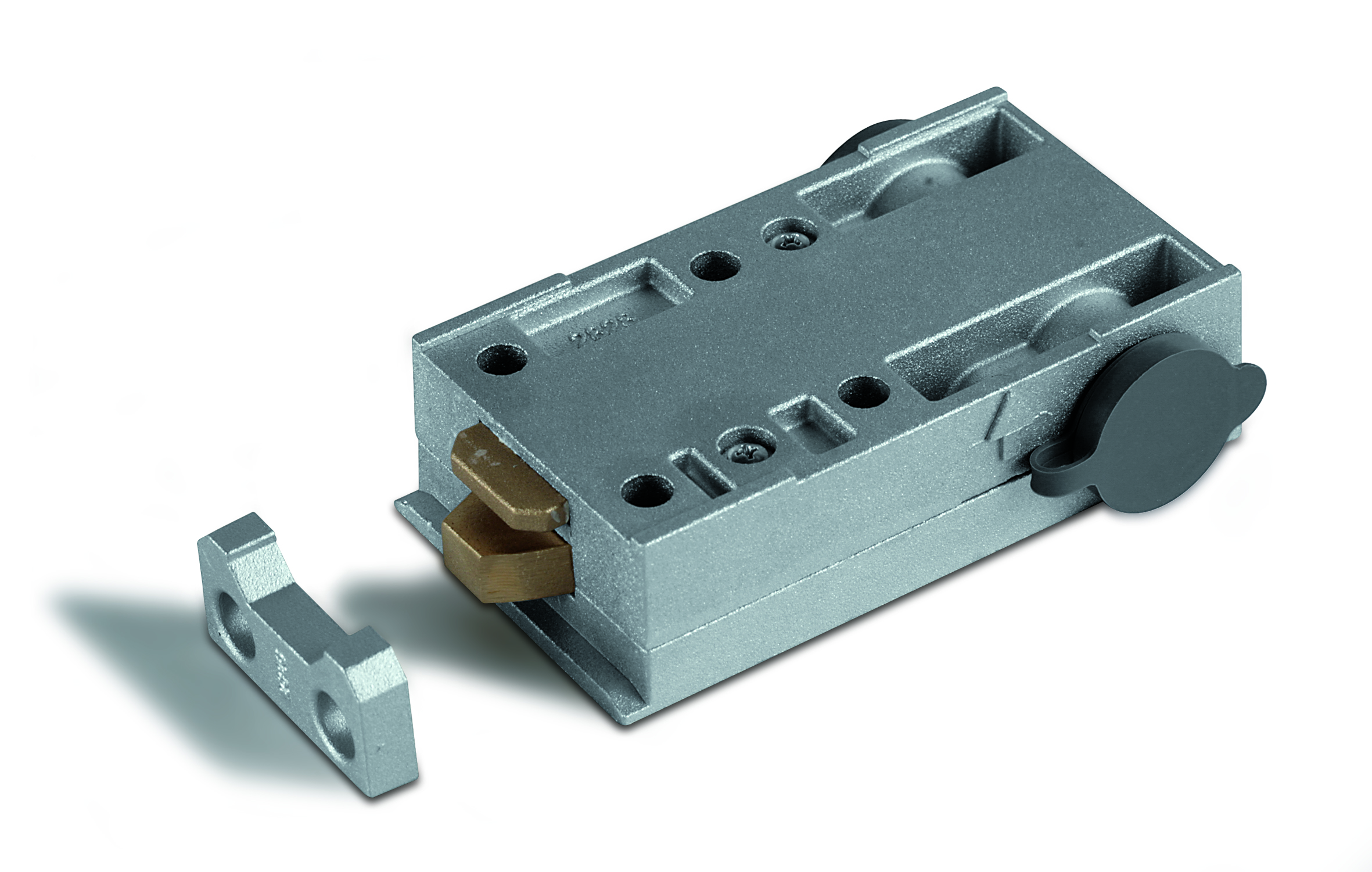

DIN key-operated release system.
CUBIC6FM

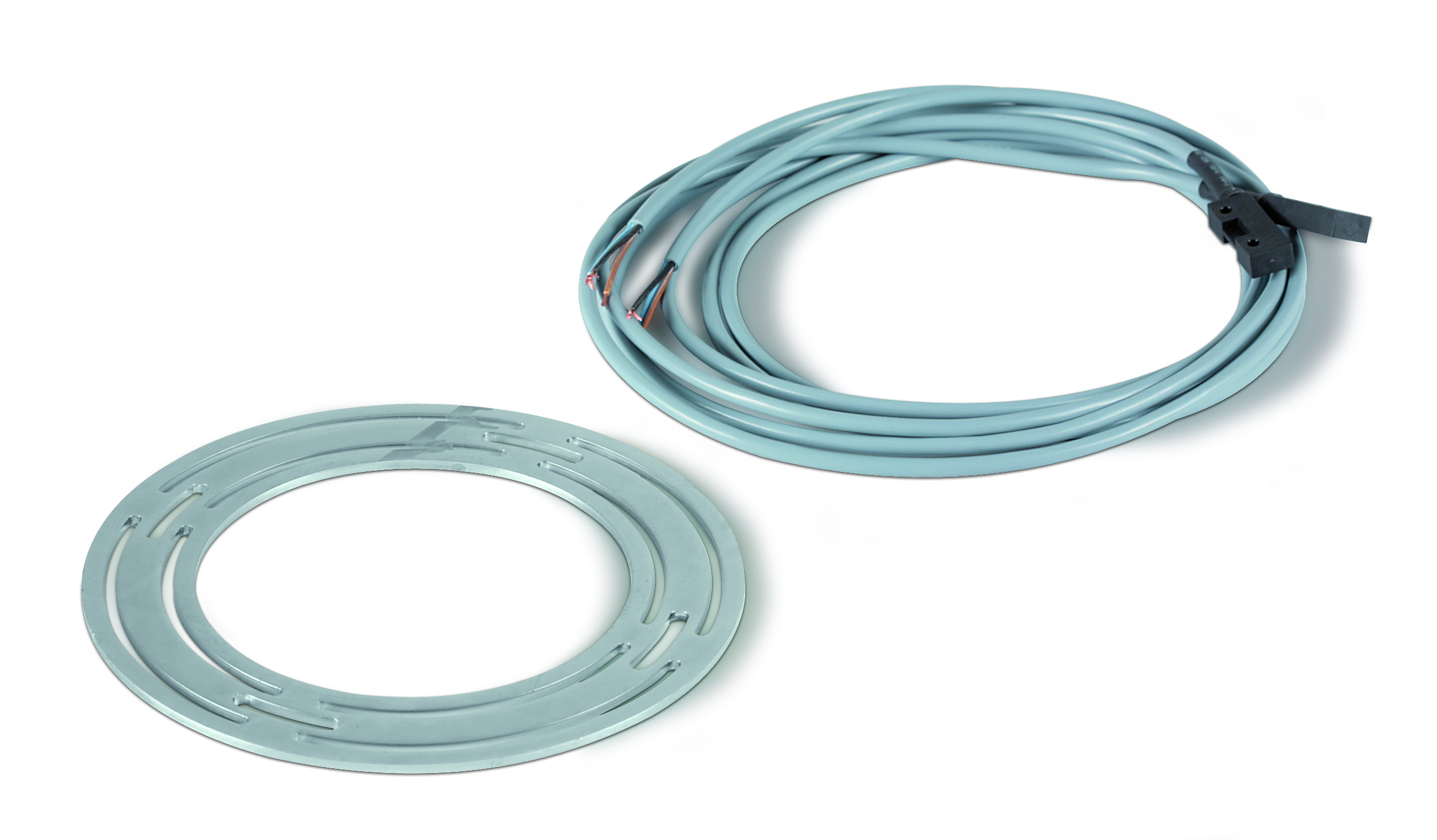

magnetic limit switches.
