An accomplished and versatile range of operators, the NEPTIS PLUS is configurable to suit a variety of applications, for single and double leaf doors, with spring or motorised closure, emergency battery, can be used on doors manufactured with aluminium, wood or metal and is the ideal choice for persons with disabilities, for offices and public buildings, meaning they can be used in all fields of application.

The NEPTIS PLUS series provides functions for the disabled, electric strike or electromagnetic management and interlock functionality between two automatic doors.

Automatic swinging doors of the NEPTIS PLUS series are equipped with the most advanced hardware and software solutions, ensuring maximum reliability and safety.

The NEPTIS PLUS LET and SLT both have fire certification from EXOVA Warringtonfire which guarantees the protection against the spread of fire for at least 120 minutes*

The NEPTIS PLUS range was updated in 2020 to include BRUSHLESS motor, making it even more reliable, durable and silent.

Label Logo

NFC Slimline Selector

The new slimline function selector from LABEL allows the end user to modify the work program with a simple touch. Work programs that aren’t required can now be disabled easily allowing simpler control for your customers.

Programming can also be carried out via this slimline selector, either via the LCD screen or by an NFC-equipped android device, allowing for quick and easy adjustments and diagnostics.

Once the settings have been input using your mobile device, the data is uploaded into the memory of the automation control unit in a rapid and completely secure fashion, simply by bringing the device into proximity with the NFC selector.

NFC Slimline Selector

The new slimline function selector from LABEL allows the end user to modify the work program with a simple touch. Work programs that aren’t required can now be disabled easily allowing simpler control for your customers.

Programming can also be carried out via this slimline selector, either via the LCD screen or by an NFC-equipped android device, allowing for quick and easy adjustments and diagnostics.

Once the settings have been input using your mobile device, the data is uploaded into the memory of the automation control unit in a rapid and completely secure fashion, simply by bringing the device into proximity with the NFC selector.

The APP can be downloaded from the Google Play store.
* Apple iOS version due end of 2022

With it’s advanced digital programmer it possible to perform a complete diagnostic of the system, with the ability to access the information area and the history of detected errors.

Management of the safety sensors, control of the moving forces and inversion of movement in the presence of obstacles make the automatic doors of the LABEL NEPTIS PLUS series extremely safe.

The LABEL NEPTIS PLUS automation system has successfully passed all the lab tests required by the standard EN13849, with particular reference to the testing of electronic safety components, is TÜV certified and fully complies with new European Standard EN16005.

All the programming of the operator is done using a separate digital interface with a large LCD screen. This enables the set-up of the operator to be done at ground level, as opposed to up a step-ladder.

Through the digital programmer, the operator can be adapted to suit a wide variety of installation types including demanding locations such as in hospitals, healthcare facilities, retail stores, airports and hotels.

A range of accessories including neck extensions, a battery back-up, in-swing recess arm, maximise the suitability of this range of operators for even the trickiest of installations..

Advanced Digital Programming

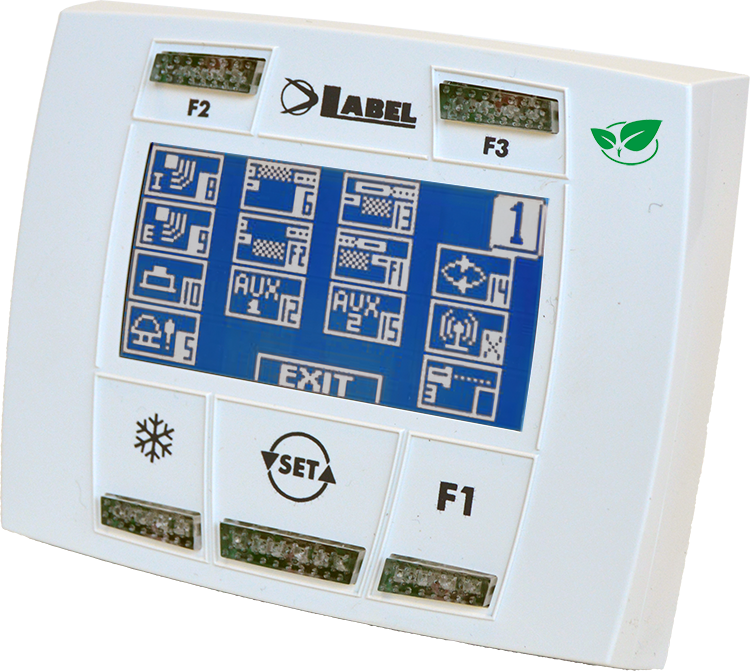

The LABEL D-SEL is one of the most advanced selectors on the market. Not only does it allow you to program the NEPTIS range, but also provides diagnostics with input indication so you can see instantly what is happening. Not only that, the D-SEL provides the ability to control the function of the door for the end user, with password control to prevent unauthorised changes.

Advanced Digital Programming

The LABEL ET-DSEL is one of the most advanced selectors on the market. Not only does it allow you to program the NEPTIS PLUS range, but also provides diagnostics with input indication so you can see instantly what is happening. Not only that, the ET-DSEL provides the ability to control the function of the door for the end user, with password control to prevent unauthorised changes.

The ET-DSEL is universally used across the LABEL range, so can be used along side the NEPTIS, ETERNA or NEXT automations.

Models

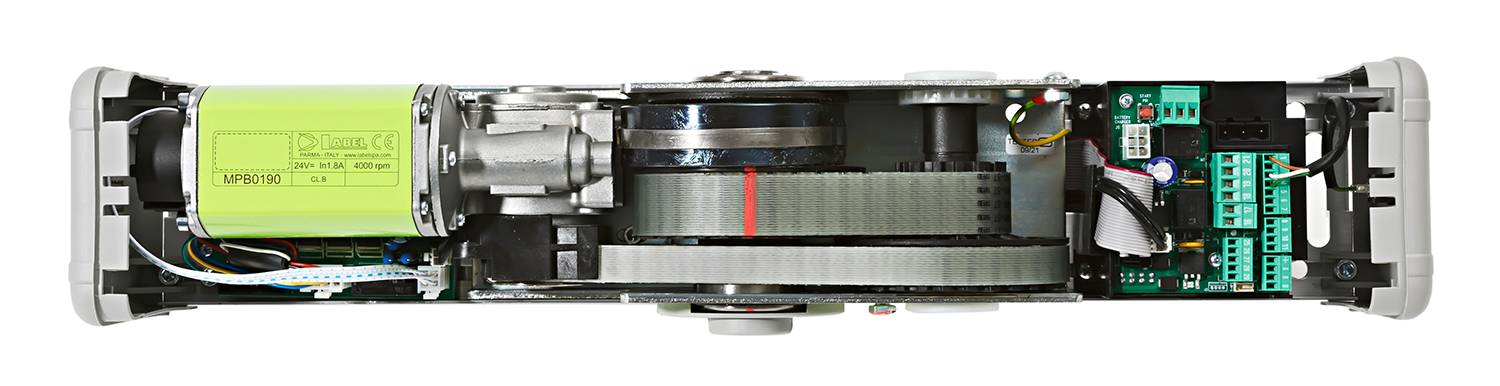

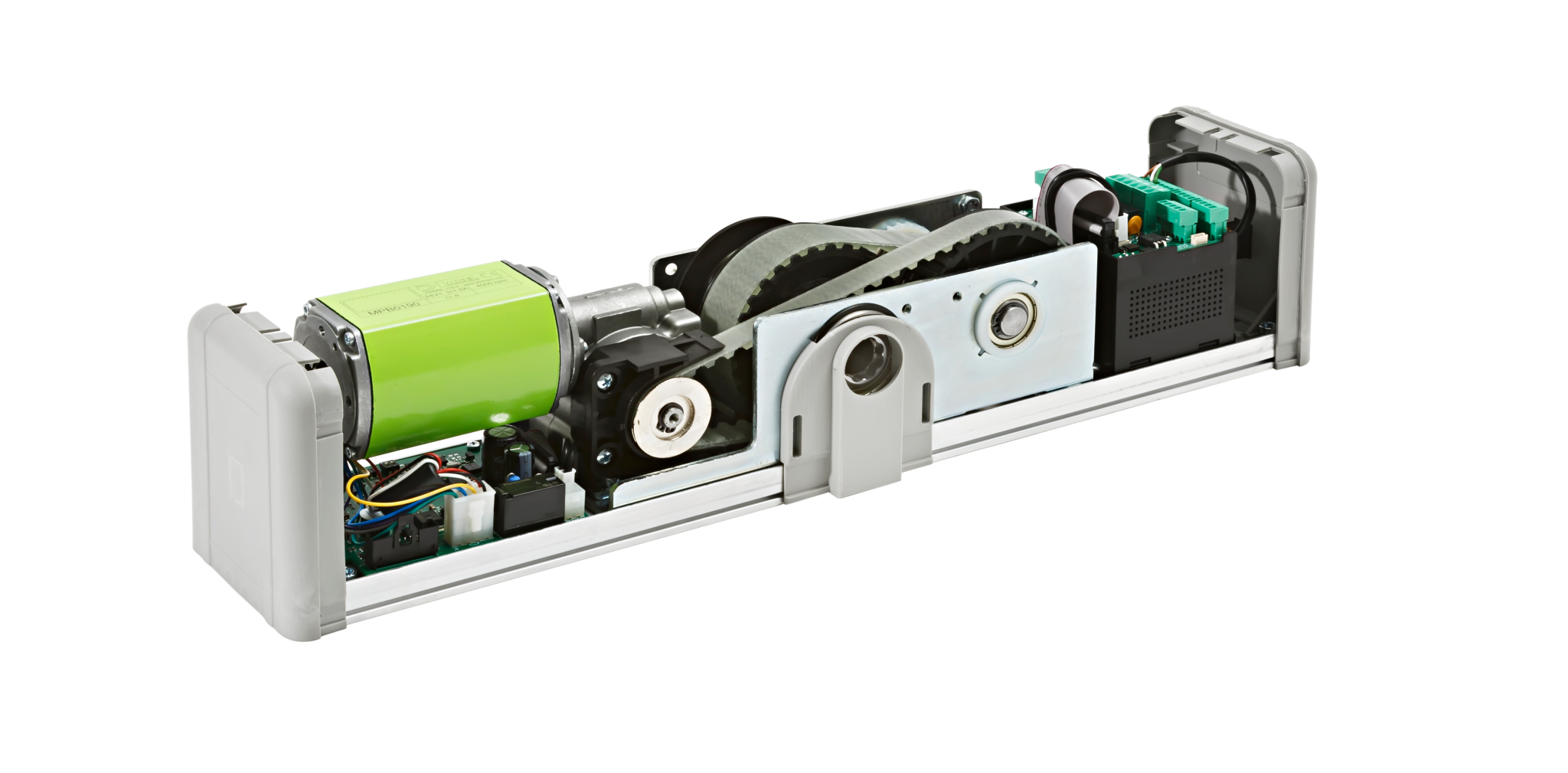

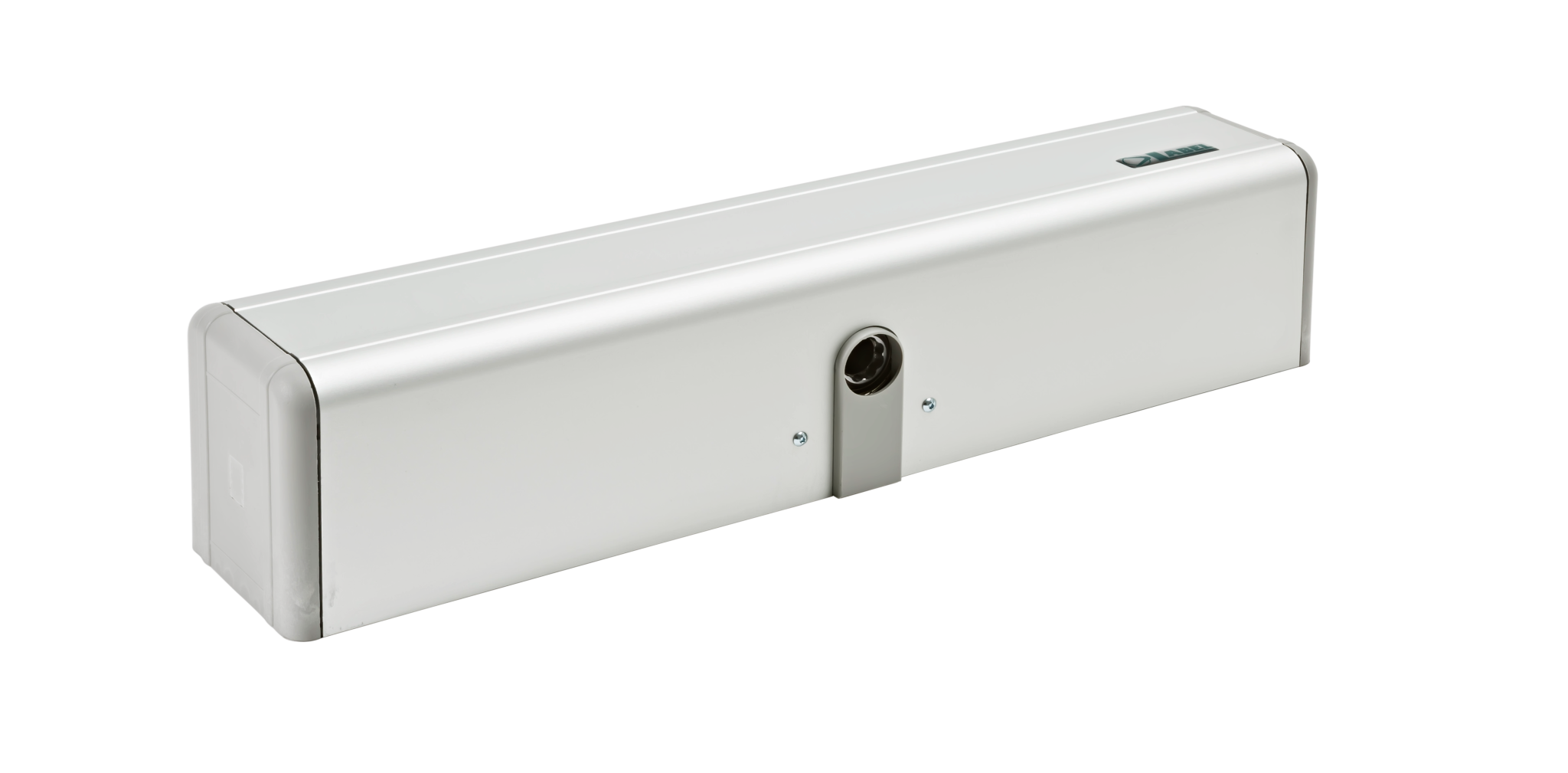

  • NB-LET spring closure, motor open, 120 kg max loading capacity per leaf, automation dimensions 550 x 110 x 120 mm
  • NB-LETB spring closure, motor open, 120 kg max loading capacity per leaf, automation dimensions 730 x 110 x 120 mm, with built-in battery
  • NB-SLT spring closure, motor open, 250 kg max loading capacity per leaf, automation dimensions 550 x 110 x 120 mm
  • NB-SLTB spring closure, motor open, 250 kg max loading capacity per leaf, automation dimensions 730 x 110 x 120 mm, with built-in battery
  • NB-SMT motorised closure, motor open, 250 kg max loading capacity per leaf, automation dimensions 550 x 110 x 120 mm
  • NB-SMTB motorised closure,motor open, 250 kg max loading capacity per leaf, automation dimensions 730 x 110 x 120 mm, with built-in battery

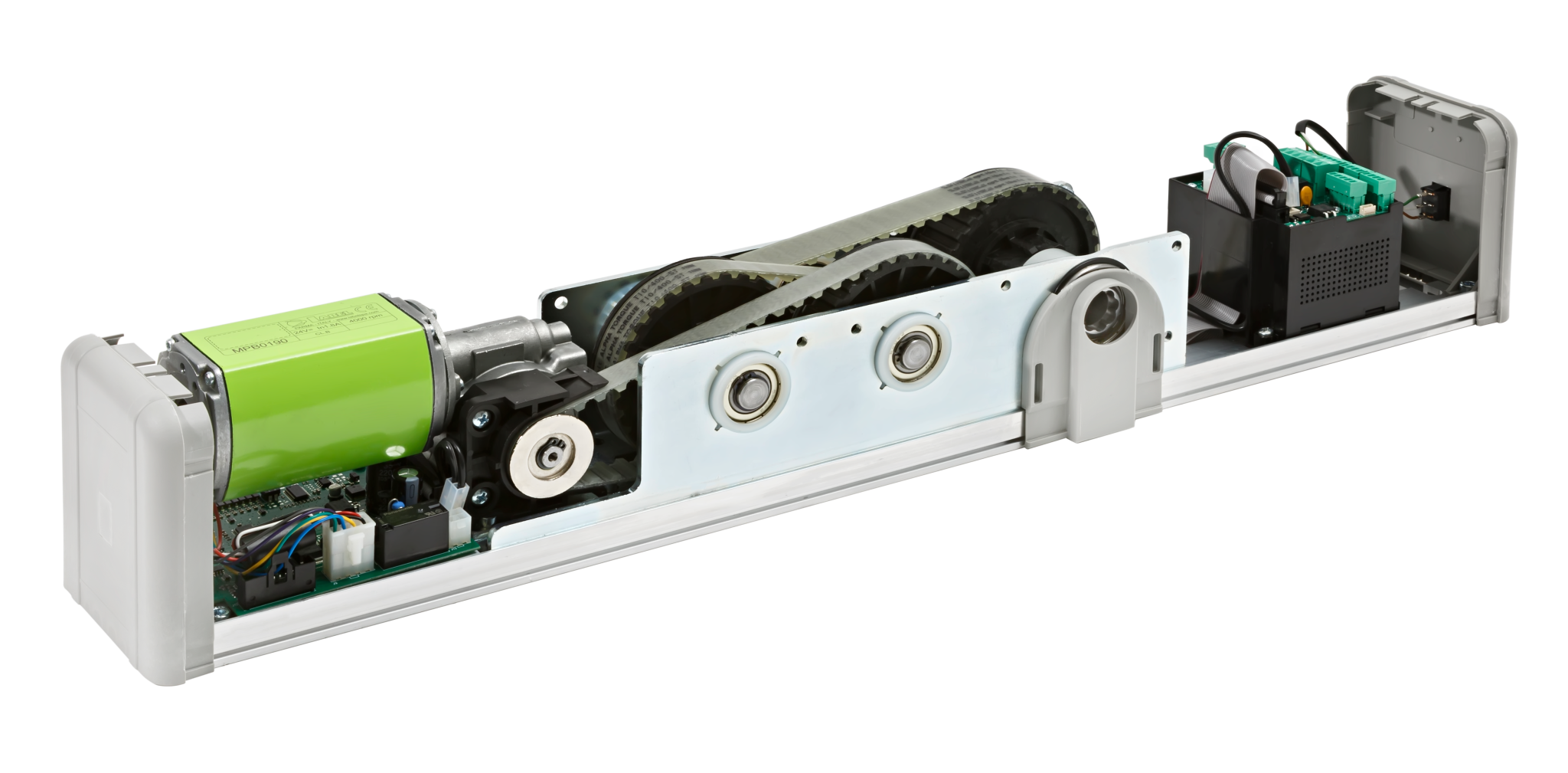

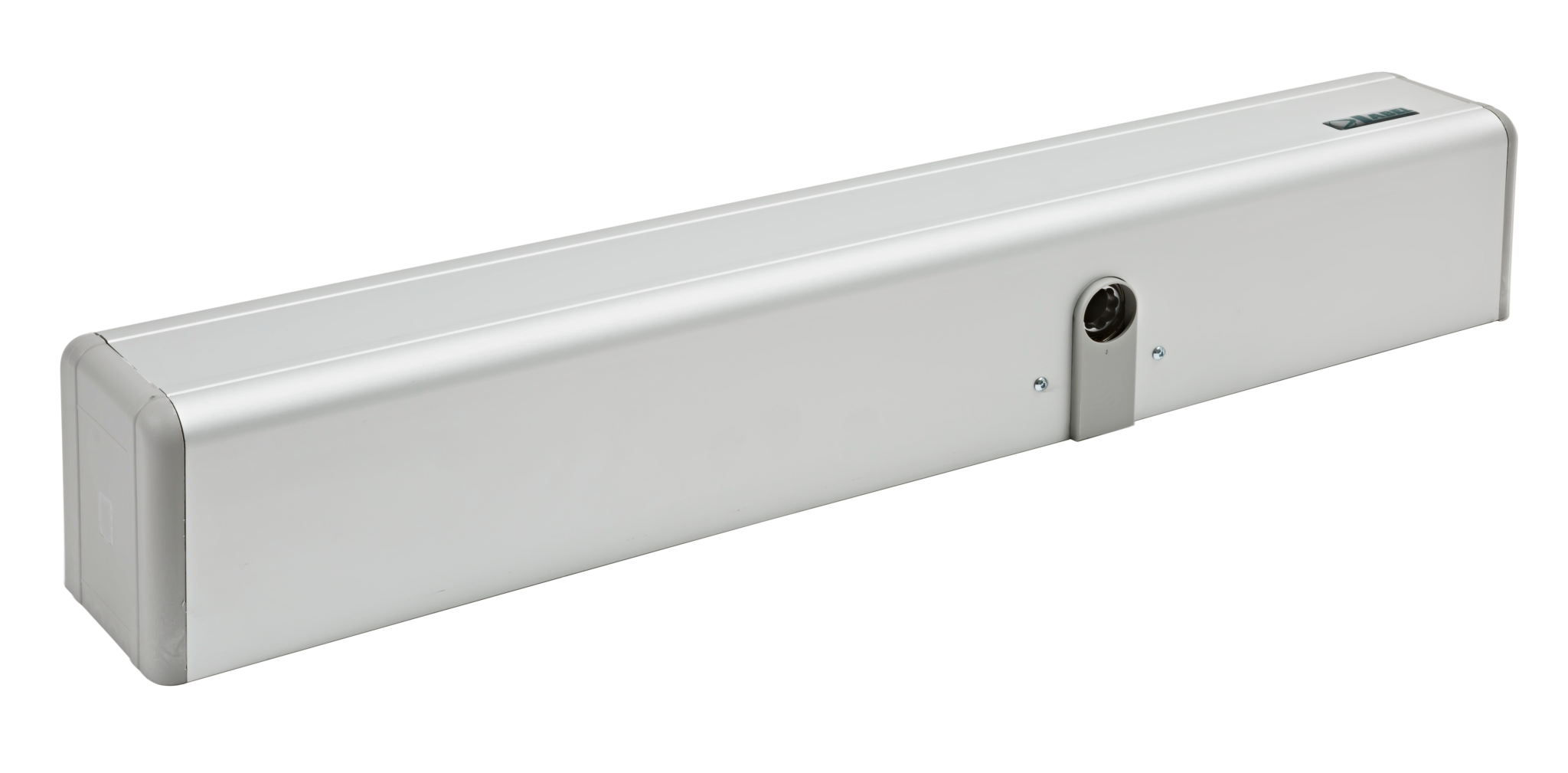

  • NB-SMP motorised closure, motor open, 300 kg max loading capacity per leaf, automation dimensions 730 x 110 x 120 mm
  • NB-INVERS motorised closure, spring open, 250 kg max loading capacity per leaf,  automation dimensions 550 x 110 x 120 mm
  • NB-INVERSB motorised closure, spring open, 250 kg max loading capacity per leaf,  automation dimensions 730 x 110 x 120 mm, with built-in battery

Brushless Technology

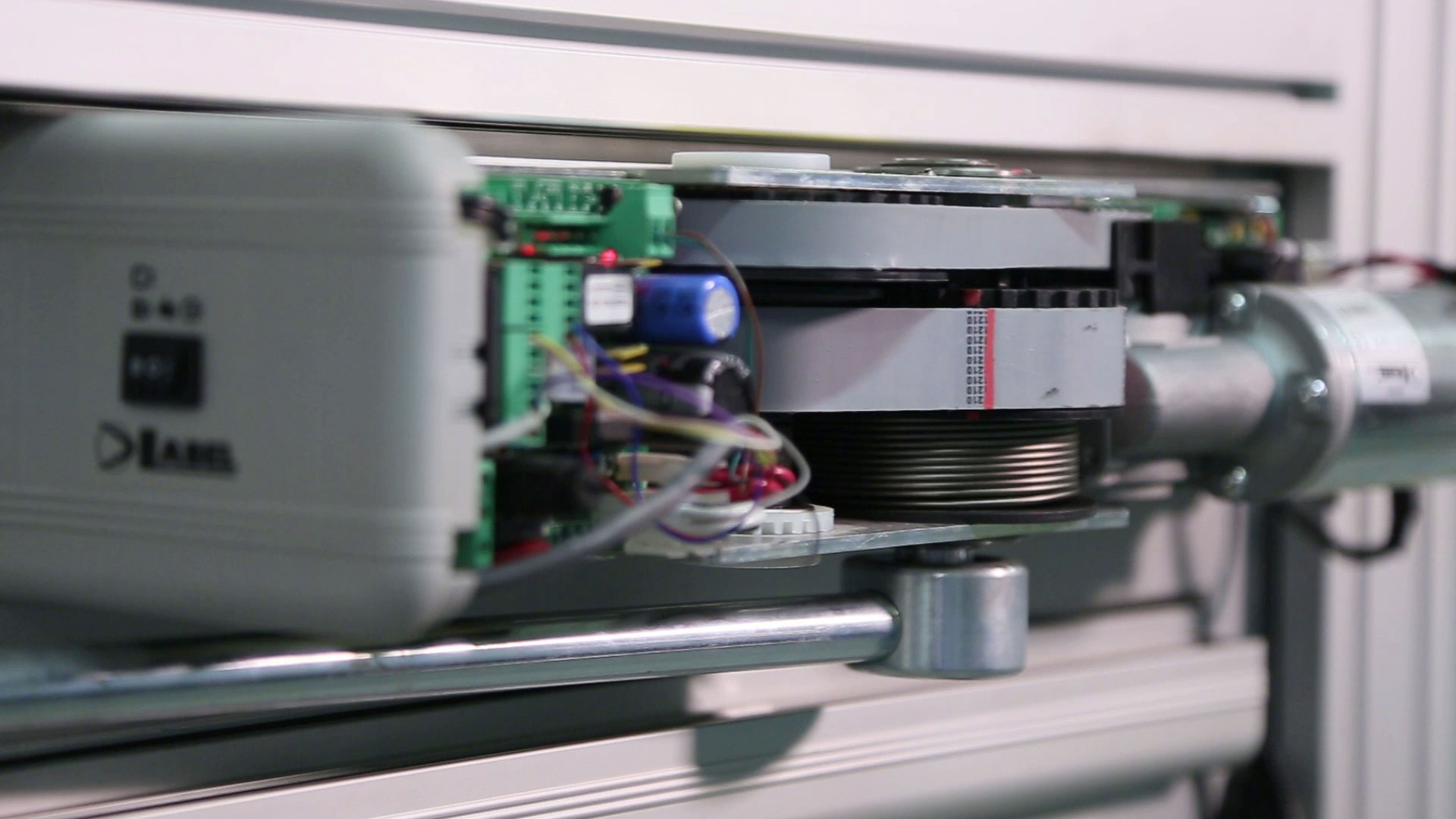

At the heart of the system is the new digital brushless motor, offering far superior durability, reliability and efficiency when compared to a standard motor. For this reason, LABEL are offering 6 year warranty for the gearmotor assembly.

Brushless Technology

At the heart of the system is the new digital brushless motor, offering far superior durability, reliability and efficiency when compared to a standard motor.

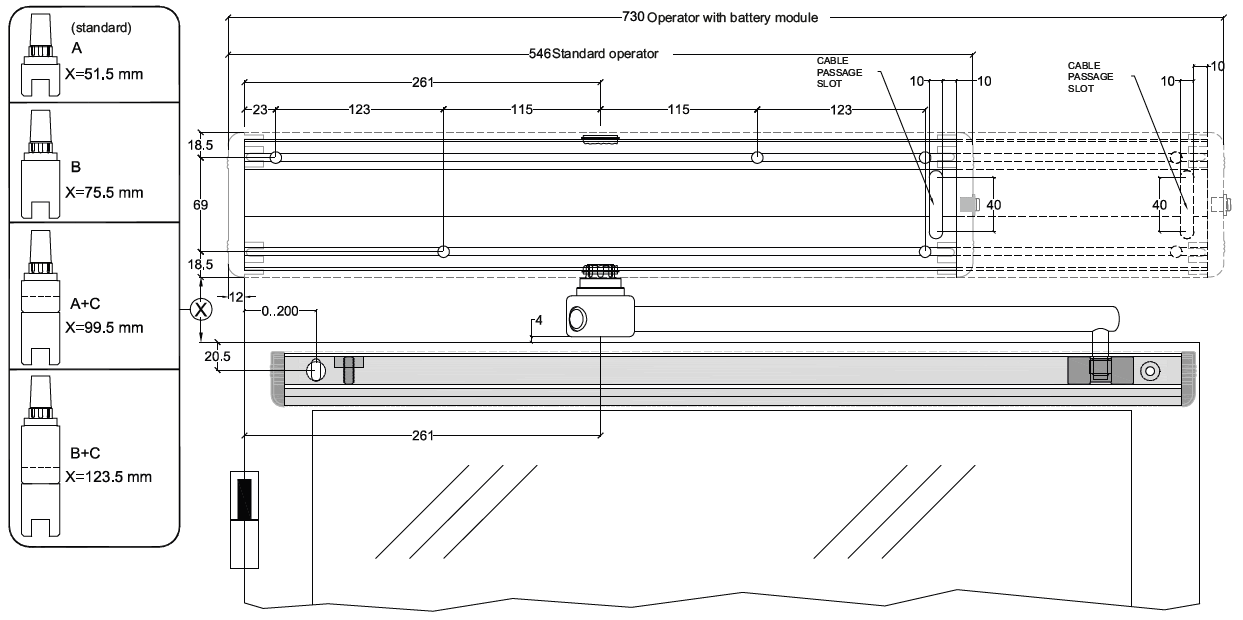

BDT2FE ARM

Sliding Pull Arm

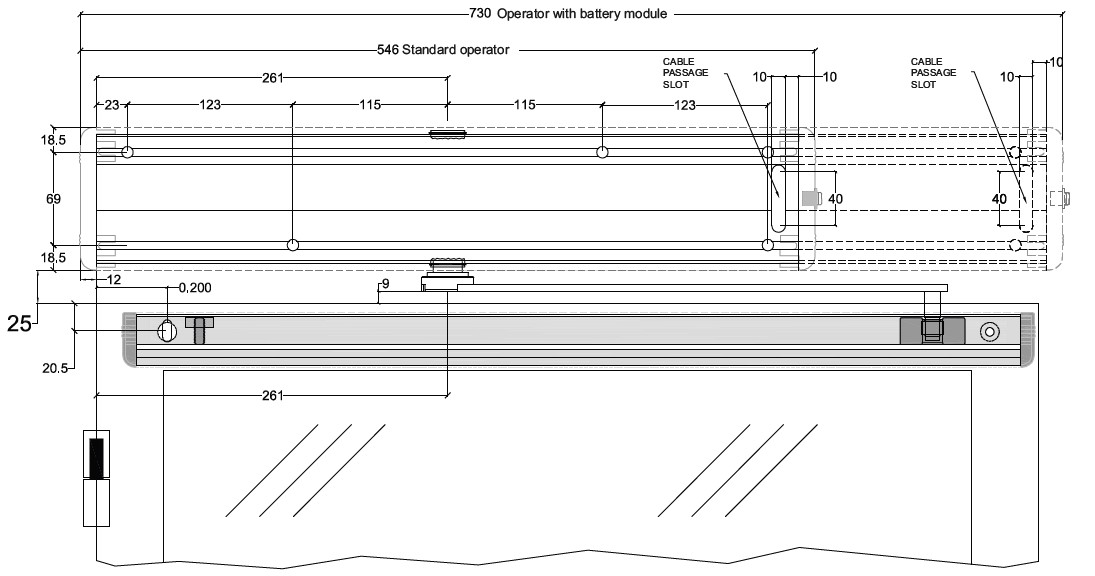

BDT2R55 ARM

Slim Sliding Pull Arm



BSG150/250 ARM

Sliding Jointed Pull Arm (recess arm)



BSS2FE ARM

Articulated Push Arm



BDS2FE ARM

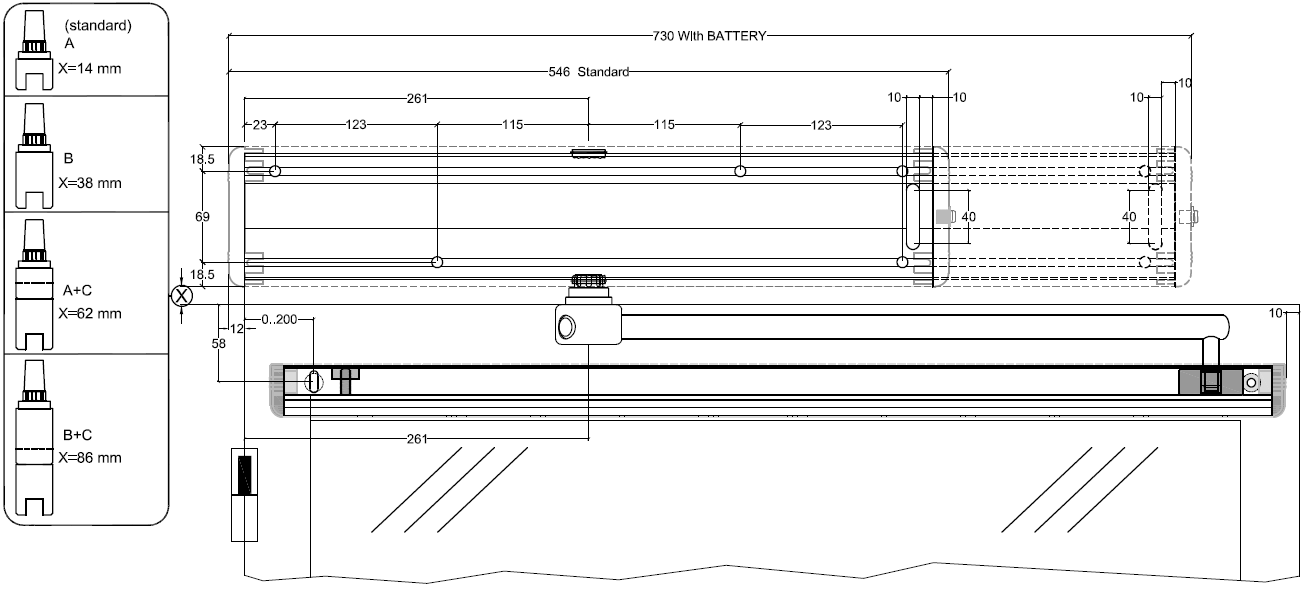

Sliding Push Arm



BDS2FE ARM

Slim Sliding Push Arm

Icon
Icon
Icon
Icon
Icon
     NB-LETNB-SLTNB-SMTNB-SMPNB-INVERS
    Max loading capacity120 kg250 kg300 kg250 kg
    Drive systemMotor Open
    Spring Close
    Motor Open
    Motor Close
    Spring Open
    Motor Close
    Fire rating120 mins EXOVA Warringtonfire---
    Built in batteryAvailable built-in or in separate housingAvailable in separate housingAvailable built-in or in separate housing
    Dimensions
    (HxDxW)
    550x110x120mm730x110x120mm550x110x120mm
    Dimensions with built-in battery
    (HxDxW)
    730x110x120mmN/A730x110x120mm
    Power supply115/230 Vac 50-60Hz
    Power consumption10W
    Standby consumption6W
    Power output for accessories24 Vdc @ 1A
    Electric Lock supplyClean contact or 24Vdc
    Protection ratingIP31
    Operating temperature-15° C + 50° C
    Type of useIntensive use 100%
    Opening speed4 - 12secs adjustable3 - 8secs adjustable
    Closing speed5 - 15secs adjustable6 - 15secs adjustable
    Interlock systemConfiguration for two Label automatic doors with interlock system

    *requires fire rated door and equipment to meet requirements
