PWR25H | PWR35H | PWR50H | PWR50HV | PWR50HR | |
---|---|---|---|---|---|
Electromechanical Actuator | irreversible for wings up to 2.5 m | irreversible for wings up to 3.5 m | irreversible for wings up to 5.0 m | irreversible for wings up to 5.0 m | reversible for wings up to 5.0 m |
Stroke control | mechanical stop | mechanical stop magnetic limit switch (optional) | mechanical stop | magnetic limit switch | mechanical stop |
Maximum capacity | 400 kg x 1.5 m 200 kg x 2.5 m | 600 kg x 1.75 m 250 kg x 3.5 m | 800 kg x 1.75 m 280 kg x 5 m | 800 kg x 1.75 m 280 kg x 5 m | 800 kg x 1.75 m 280 kg x 5 m |
Power supply | 24 V DC | ||||
Maximum power | 5 A | 5.5 A | 12 A | ||
Absorbed power | 55 W nom. / 120 W max | 65 W nom. / 132 W max | 65 W nom. / 288 W max | ||
Thrust | 2000 N | 3000 N | 6000 N | ||
Opening Time | 10-60 s / 90° | 14-80 s / 90° | |||
Max working travel | 350 mm | 450 mm | 500 mm | ||
Power output for accessories | 24 Vdc @ 1A | ||||
Actuator maximum opening | 110° | 120° | |||
Intermittance | 30 consecutive cycles at 20°C | 50 consecutive cycles at 20°C | 60 consecutive cycles at 20°C | ||
Duty cycle | Frequent Up to 150,000 cycles | Intensive Up to 300,000 cycles | Very Intensive Up to 450,000 cycles | Heavy duty Up to 600,000 cycles | |
Release system for manual opening | key-operated | ||||
Operating temperature | -20°C / +55°C (-35°C / +55°C with NIO enabled) | ||||
Protection level | IP44 | ||||
Weight (Kg) | 7.8 | 9 | 10.5 | ||
Control panel | LCU30H or LCU40H | LCU40H |

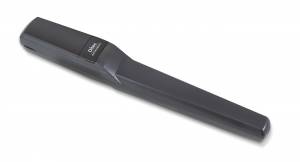

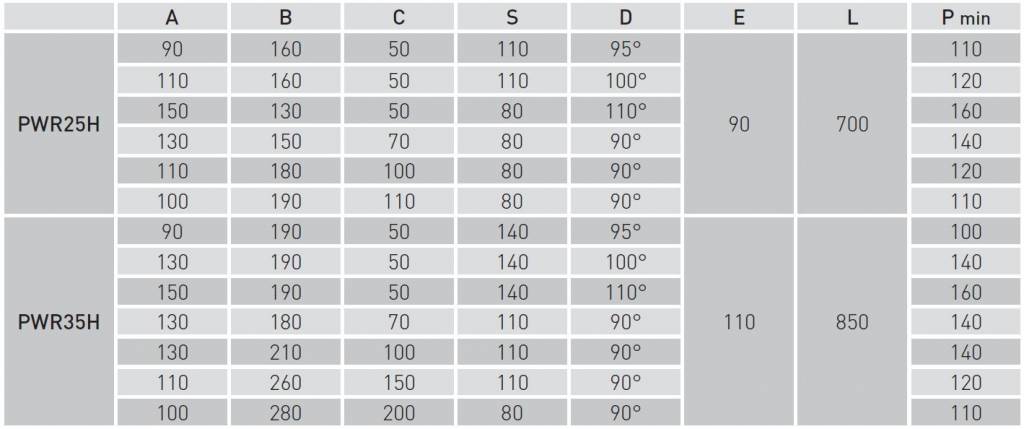

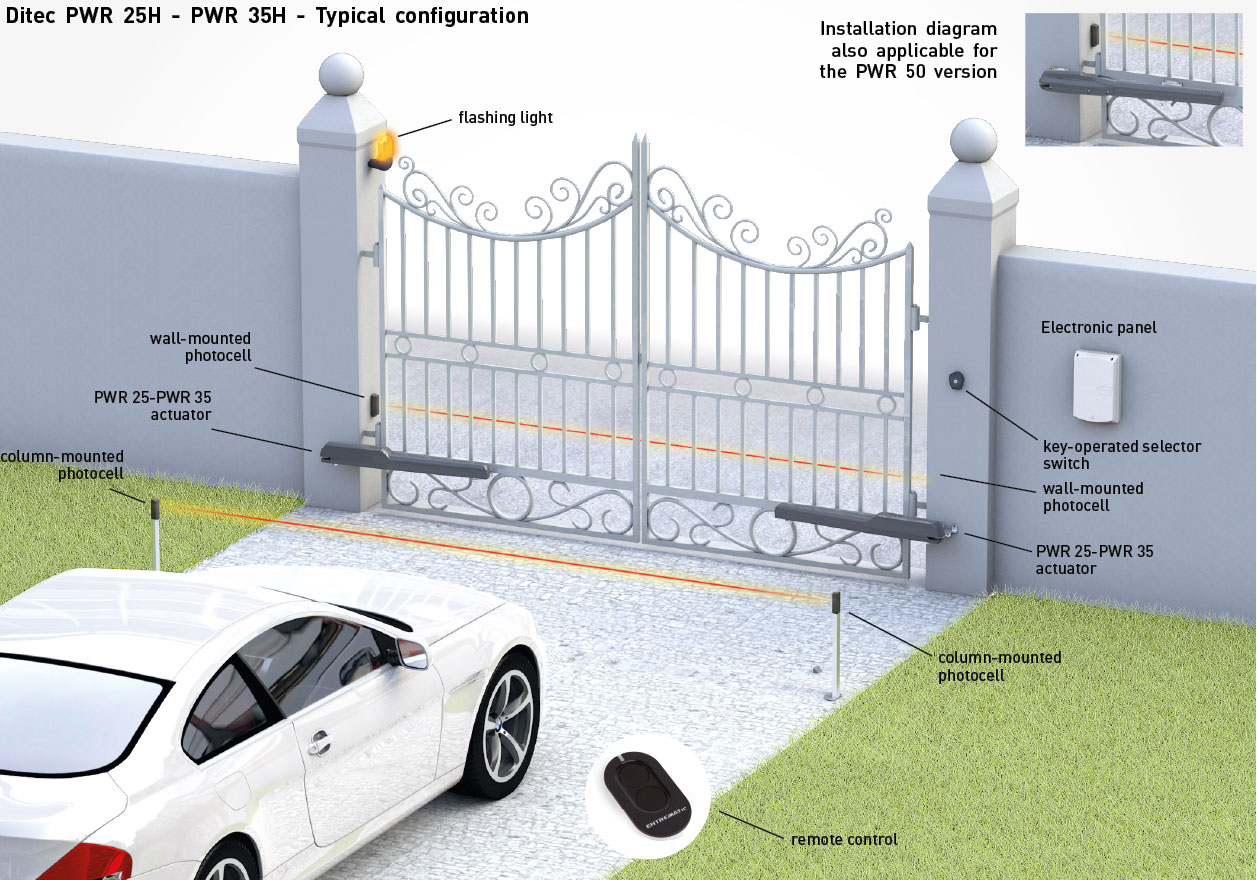

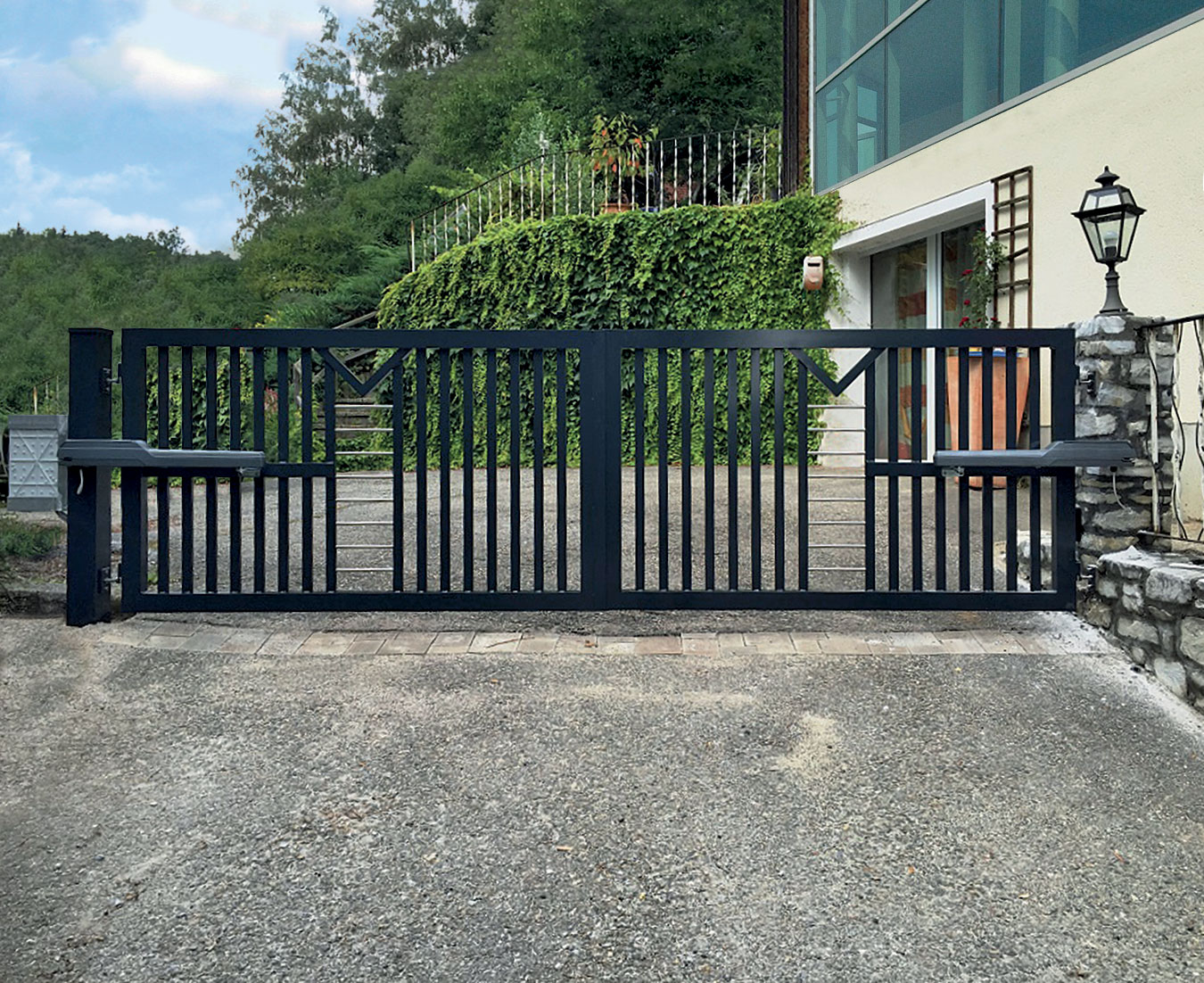

PWR25H – For wings up to 2.5 m
- Simply loosen a single screw to remove the plastic cover and access the electrical wire terminals
- Key-operated manual release
- Actuator consisting of two robust aluminium die castings which guarantee optimum protection against shearing forces and torsion
PWR35H – For wings up to 3.5 m
- Simply loosen a single screw to remove the plastic cover and access the electrical wire terminals
- Key-operated manual release
- Actuator consisting of two robust aluminium die castings which guarantee optimum protection against shearing forces and torsion
- Removable cover to access the screw without removing the actuator from the wing
- Loading valve to inject EP1 universal grease
- Notches to adjust magnetic limit switches (optional) during opening and closing and supports for cable stop clamps

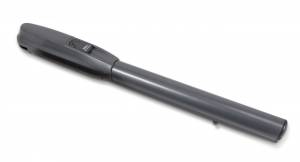

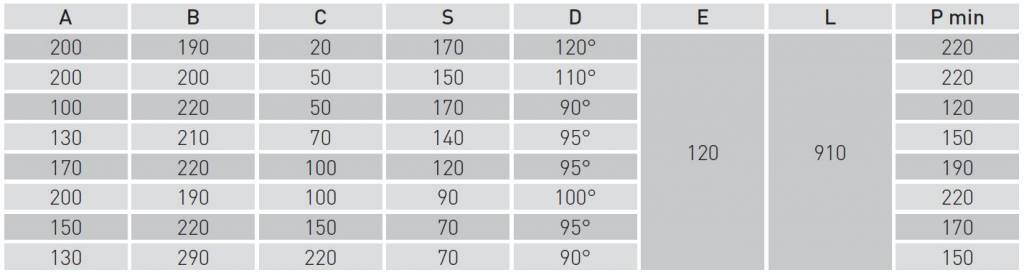

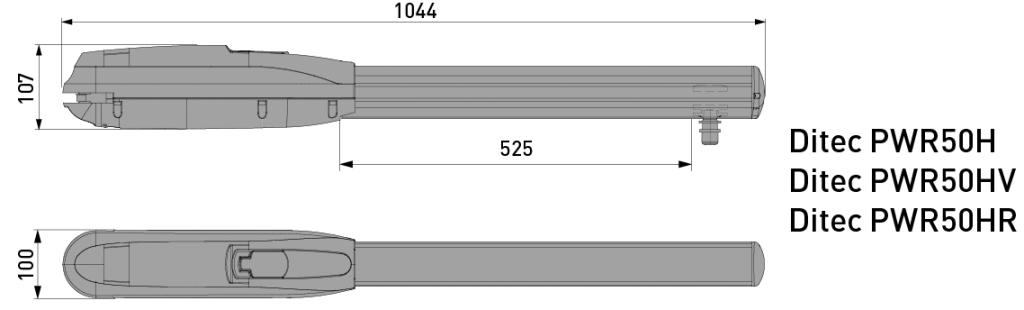

PWR50H – For wings up to 5 m
- Irreversible with limit stops up to 450,000 cycles
- Manual release designed to guarantee opening with minimal effort
- Removable cover for easy access to the screw for adjustment and maintenance
- Mechanical limit stops already assembled both in opening and closing (magnetic limit switches on PWR50HV)
- Dustproof brushes to protect the screw
PWR50HV – For wings up to 5 m
- Irreversible with magnetic limit switches up to 450,000 cycles
- Manual release designed to guarantee opening with minimal effort
- Removable cover for easy access to the screw for adjustment and maintenance
- Mechanical limit stops already assembled both in opening and closing (magnetic limit switches on PWR50HV)
- Dustproof brushes to protect the screw
PWR50HR – For wings up to 5 m
- Reversible with limit stops up to 600,000 cycles
- Manual release designed to guarantee opening with minimal effort
- Removable cover for easy access to the screw for adjustment and maintenance
- Mechanical limit stops already assembled both in opening and closing (magnetic limit switches on PWR50HV)
- Dustproof brushes to protect the screw
