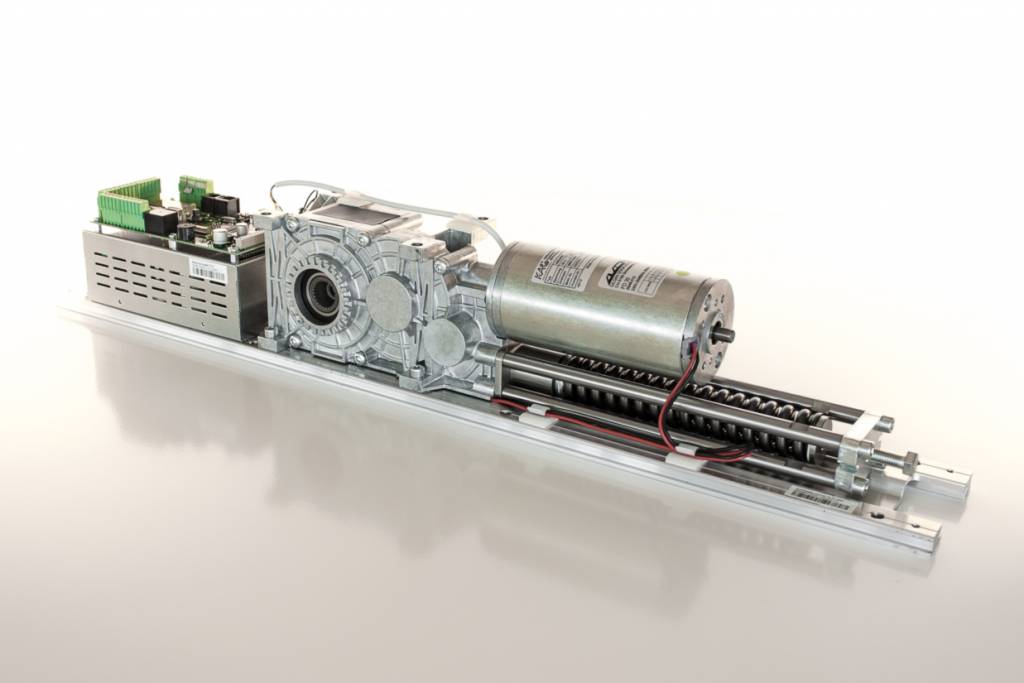

The Gilgen FD20 makes doors significantly easier to operate, and is highly consistent when it comes to performance, long service life and quiet running. From Light internal doors to heavyweight external doors designed to withstand high winds, the FD20 is adaptable to any situation.

A truly modern operator, the FD20 is designed to be easy to use. It can be programmed either directly on the control panel with its built in digital display, or with a separate programming unit called the BEDIX. It can be configured as low-energy or full-power, and has built-in functions for doors that are exposed to the wind.

Two operators can easily be paired together in a master / slave configuration, or as an interlock.

As you would expect with a quality swing door operator, a full range of accessories is available enabling you to adapt the FD20 to suit any environment or tricky installation. A choice of drive arms, mounting plates, neck extensions or space savers, and of course it can work with all modern safety sensors for EN16005 compliance.

  • Suitable for use on doors weighing up to 250kg, even with a wind load
  • Fully automatic or manual operation
  • Built-in Inverse function for fail open operation (smoke evacuation)
  • Choice of programming on the control panel or with a separate programmer
  • Multiple lock management options and easy master / slave configuration
  • EN16005 compliant

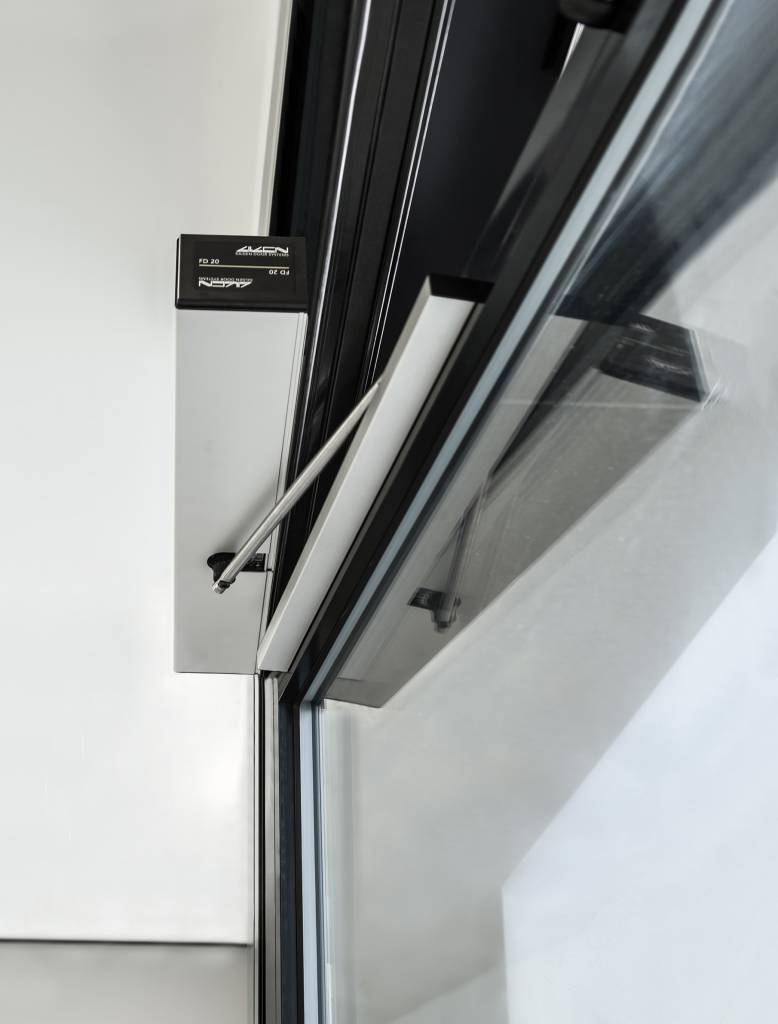

Articulated Pushing Arm

Sliding Pulling Arm

Sliding Pushing Arm

Articulated Pushing Arm

Sliding Pulling Arm

Sliding Pushing Arm

 FD20
Power V230Vac +10/-15% 50 Hz
Power WMax. 560W
Accessory Voltage24Vdc @ 2A
Door Sizes EN3-7850 - 1600 mm
Door sizes fire doors EN 4-6950 - 1400 mm
Electro-mechanical locking deviceclean contacts C-N/O-N/C
or
24Vdc max 800 mA
Door opening angle105°
Opening speed2.4 - 20 sec (max. 40°/s)
Closing speed2.4 - 20 sec (max. 40°/s)
HOLD open time0 - 60 secs
Ambient temperature-15°C max +50°C
Relative humidityMax. 85%
May only be used in dry rooms
Drive unit weight10.5 kg
Class of protectionIP40
