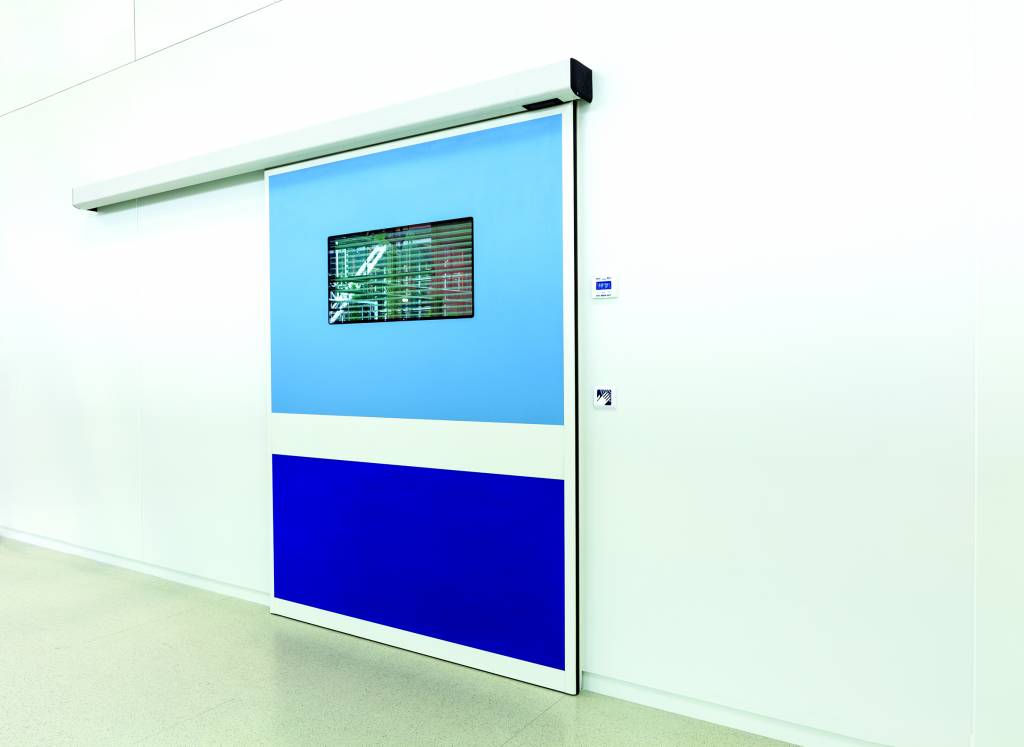

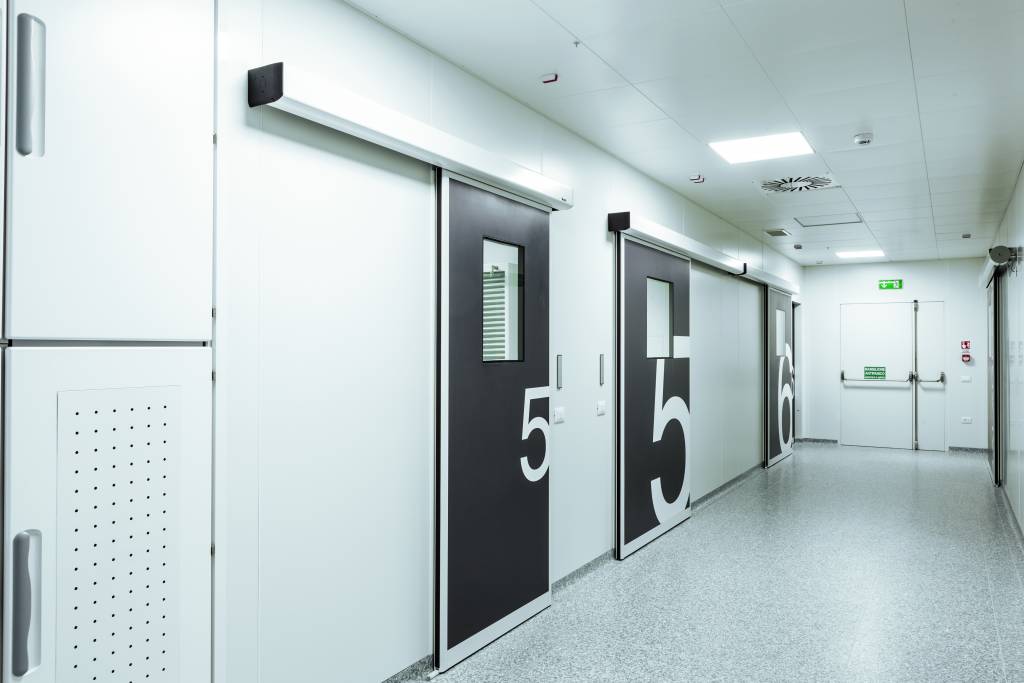

LABEL hospital doors are designed to meet the most stringent application requirements. Their loading capacities of up to 360 kg make it possible to mount panels for radiology environments. EVH is equipped with specific safety systems to control the clear passage. All of the automations in the EVH series are to be used with LB-H series profile systems and panels in laminate and stainless steel.

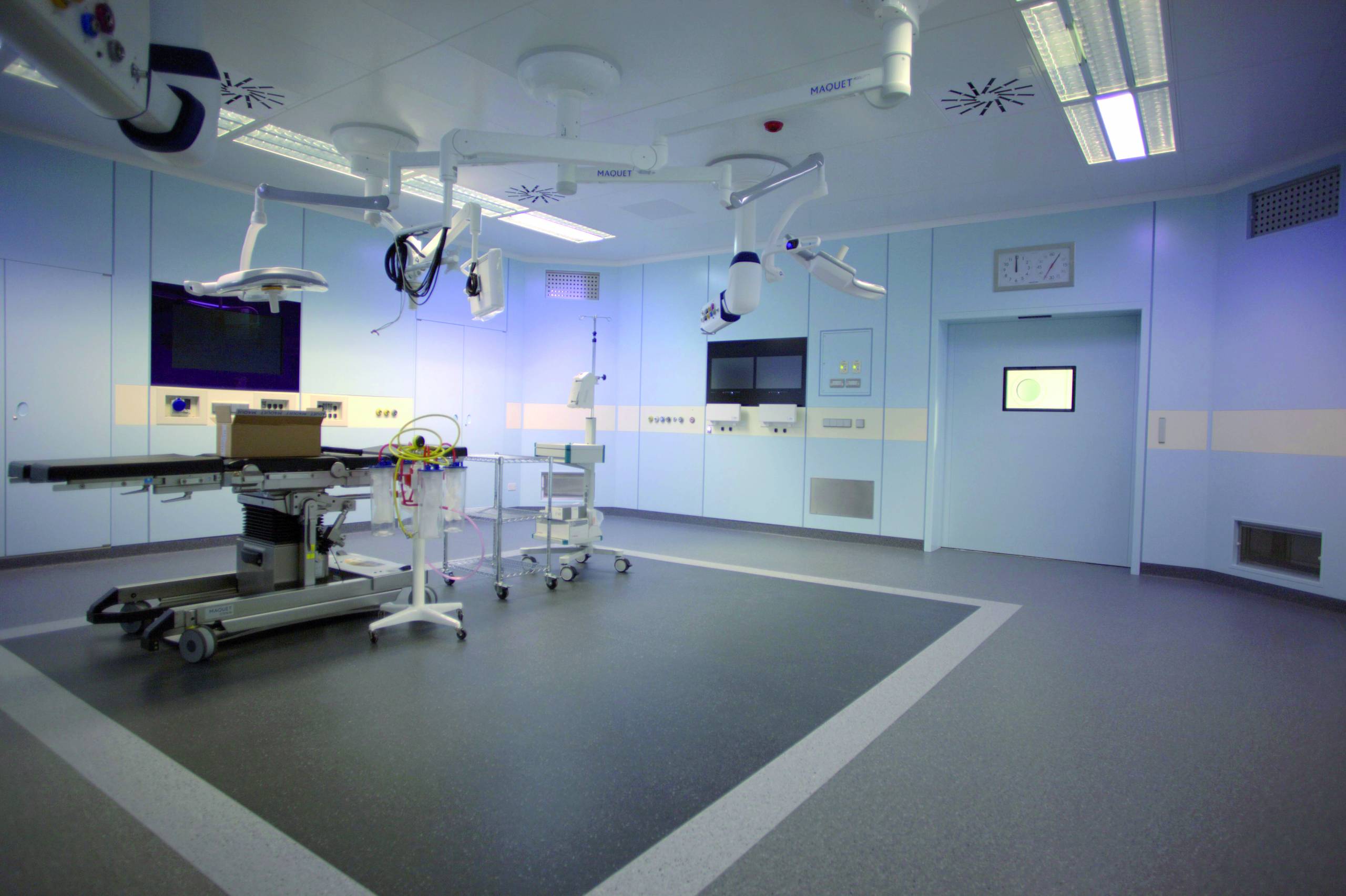

The hospital door range from LABEL is available in a multitude of options including swing or sliding doors, manual or automatic opening, HPL or stainless steel panels, simple or hermetically sealing. Lead lining, vision panels with the possibility for electric curtains for X-RAY rooms.

Models Available

Manual Doors

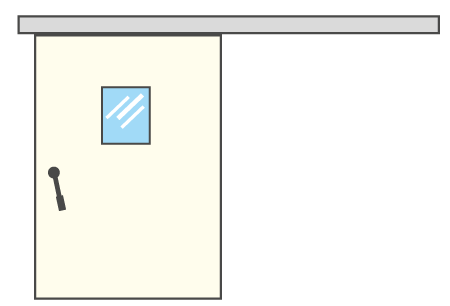

• Manual Control

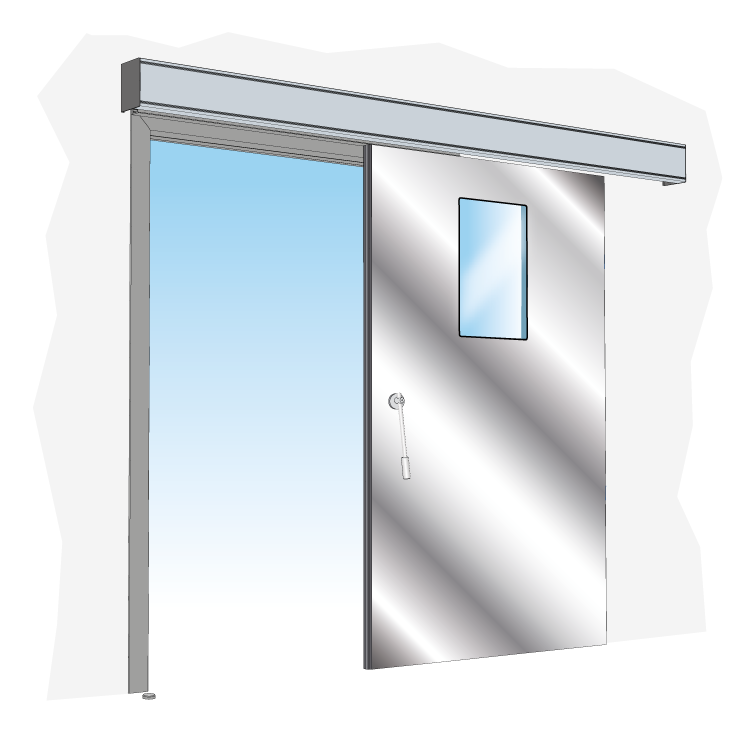

• Single Sliding Leaf
• Hermetically Sealing
• Stainless Steel or HPL Panels

• Manual Control

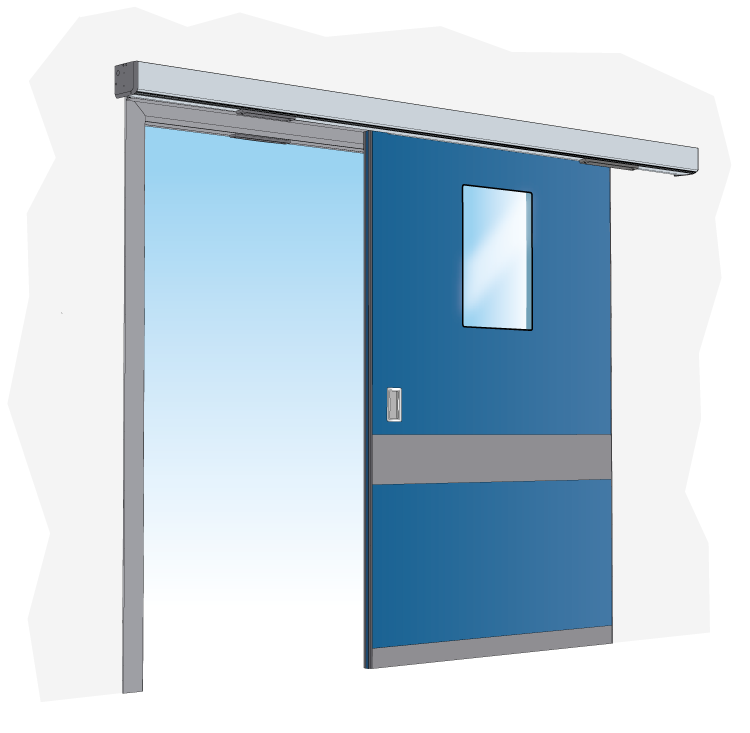

• Single Sliding Leaf
• Simply Sealing
• Stainless Steel or HPL Panels

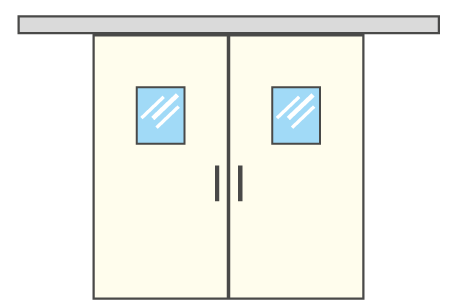

• Manual Control
• Double Sliding Leaf
• Simply Sealing
• Stainless Steel or HPL Panels

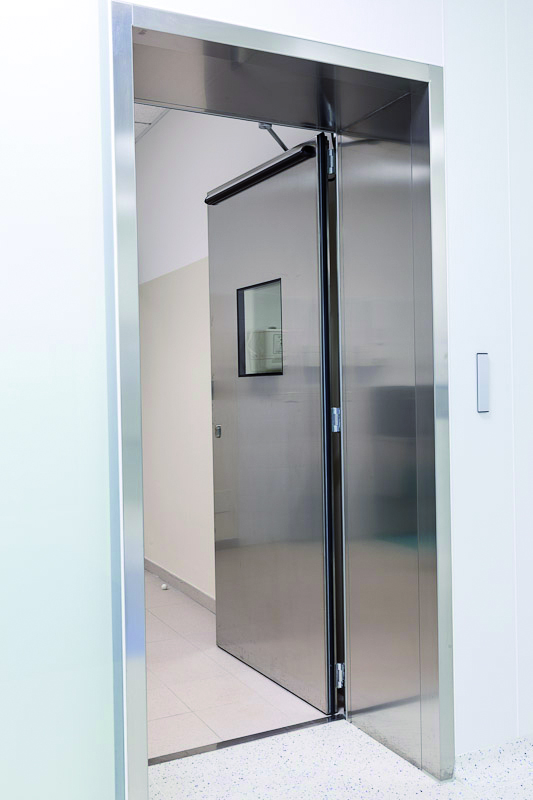

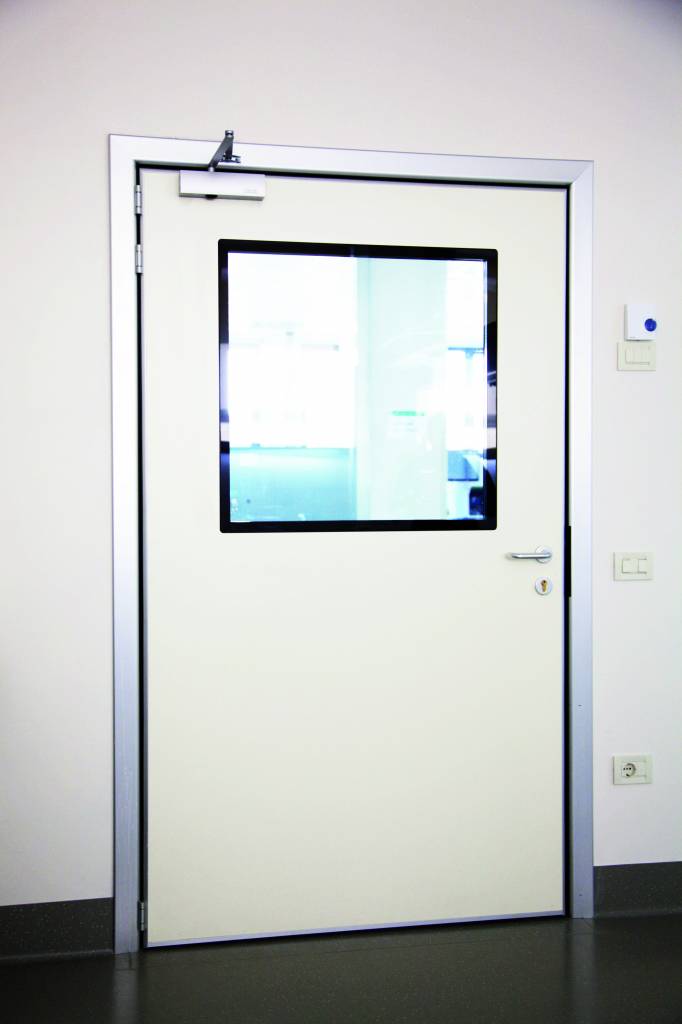

• Manual Control
• Single Swing Door
• Simply Sealing
• Stainless Steel or HPL Panels
• Special “Hermetic Seal Kit” available

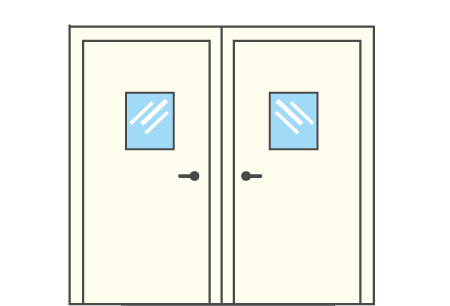

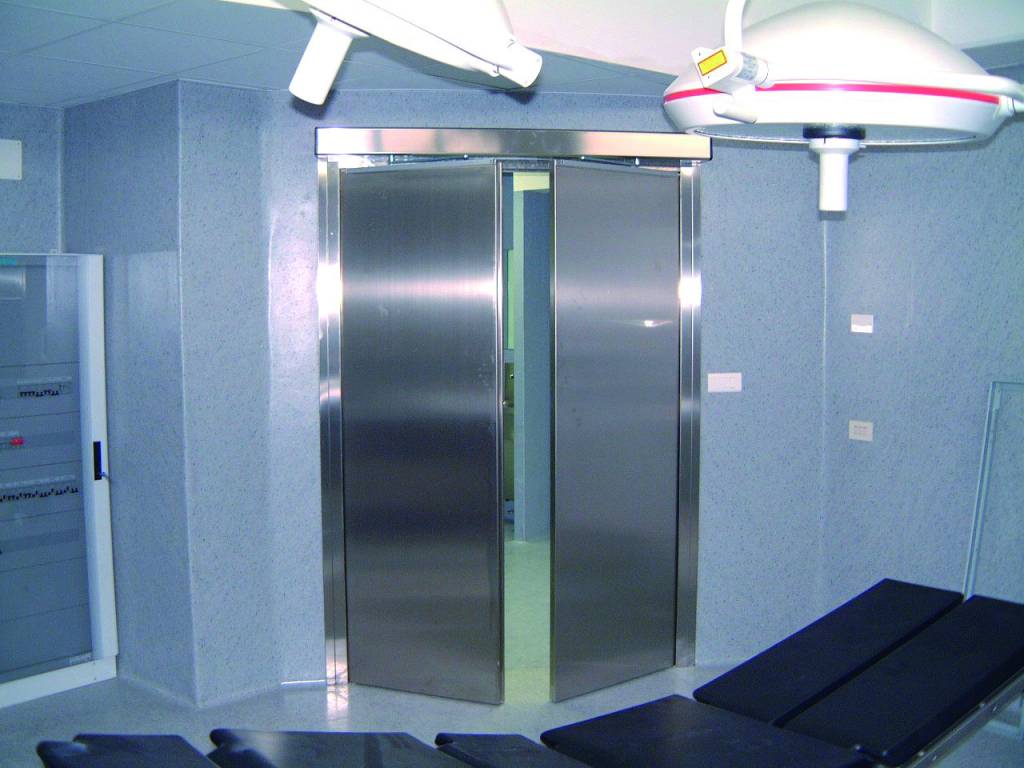

• Manual Control

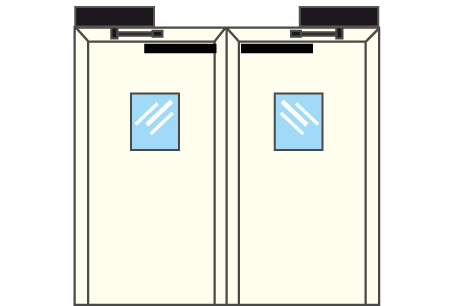

• Double Swing Door
• Simply Sealing
• Stainless Steel or HPL Panels
• Special “Hermetic Seal Kit” available

Automatic Doors

• Automatic Control
• Single Sliding Leaf
• Hermetically Sealing
• Stainless Steel or HPL Panels

• Automatic Control
• Single Sliding Leaf
• Simply Sealing
• Stainless Steel or HPL Panels

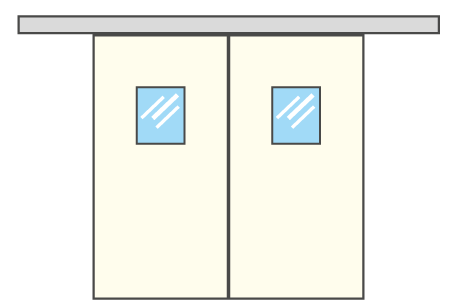

• Automatic Control
• Double Sliding Leaf
• Simply Sealing
• Stainless Steel or HPL Panels

• Automatic Control
• Single Swing Door
• Simply Sealing
• Stainless Steel or HPL Panels
• Special “Hermetic Seal Kit” available

• Automatic Control
• Double Swing Door
• Simply Sealing
• Stainless Steel or HPL Panels
• Special “Hermetic Seal Kit” available

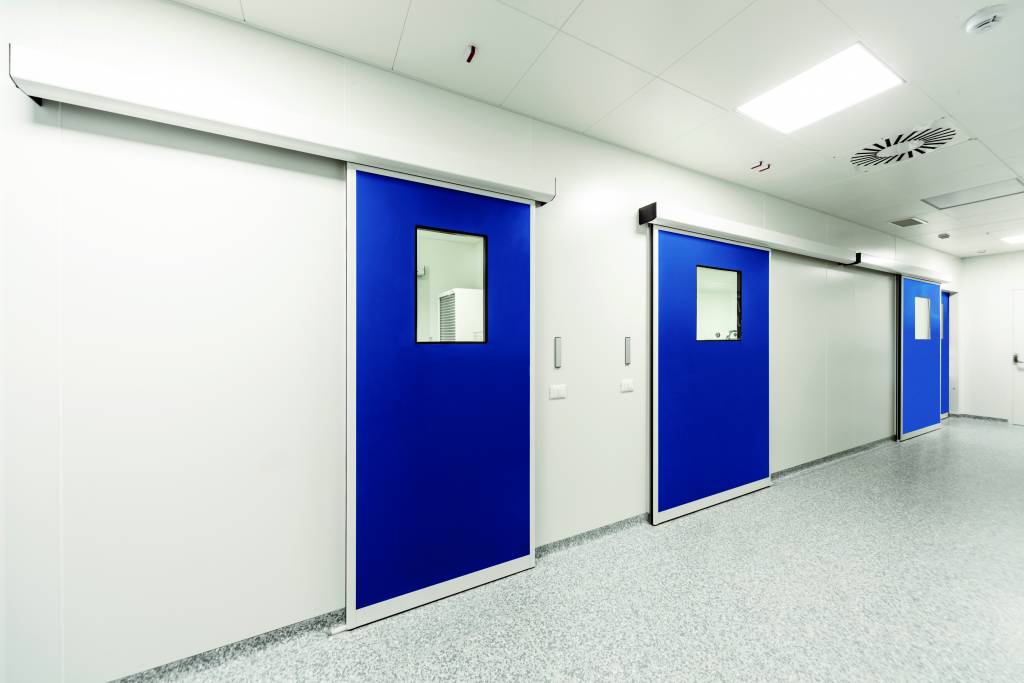

For the automation, EVH-E are the new automatic doors by Label of the Hospital range. Coupled with the new dedicated line of profiles LB-H, the EVH and EVH-E automatisms provide a seal and hermetic seal closing system realized to meet any specific requirement. EVH-E has been designed to operate in hospital environments where low noise, safety and hygiene are essential. EVH-E has undergone hermeticity testing according to the EN 1026 standards, achieving class 2 in positive pressure and class 4 in negative pressure conditions.

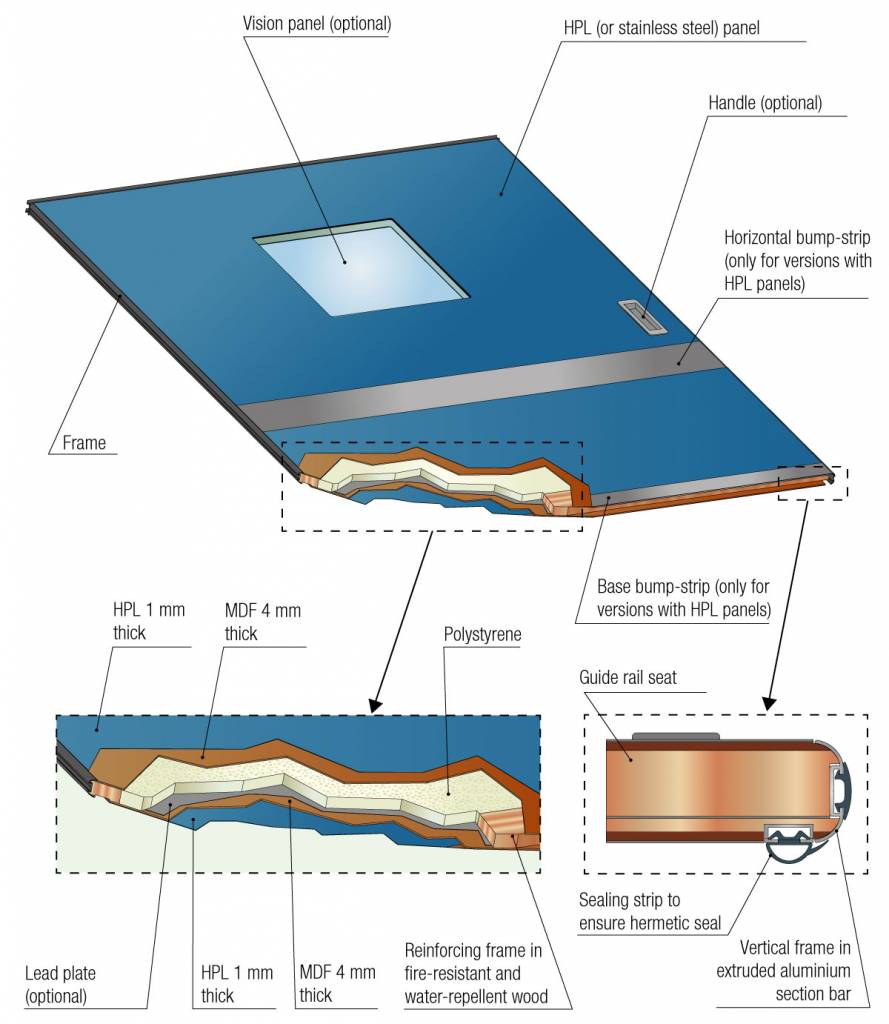

Hospital Door Construction

Version with HPL panels

The doors are 47 mm thick and consists of an internal solid-wood structure sandwiched between two sheets of FLAME-RETARDANT MDF and coated on both sides with HPL
The core is normally composed of high-density self-extinguishing polystyrene, which can be substituted with more specific materials on request in order to dampen noise and/or make it eco-friendly.
The frame along the sides of the door is composed of rounded extruded aluminium profiles that are perfectly coplanar with the panels, where the extruded rubber screw-covering seals are located. The hermetic sealing strips are located on special invisible guides embedded in the panel.

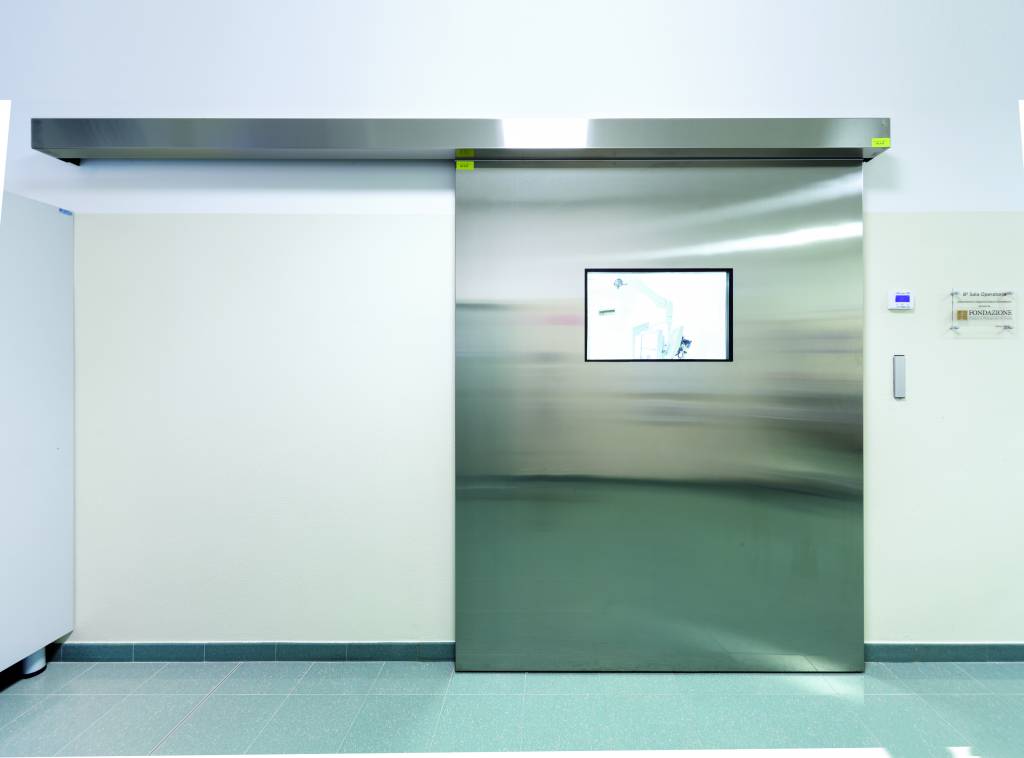

Version with STEEL panels

The doors are 47 mm thick and consists of an internal solid-wood structure sandwiched between two sheets of FLAME-RETARDANT MDF and coated on both sides with AISI 304 stainless steel sheeting with a Scotch-Brite finish. The core is normally composed of high-density self-extinguishing polystyrene, which can be substituted with more specific materials on request in order to dampen noise and/or make it eco-friendly.
The frame along the sides of the door is composed of rounded extruded aluminium profiles that are perfectly coplanar with the panels, where the extruded rubber screw-covering seals are located. The hermetic sealing strips are located on special invisible guides embedded in the panel.

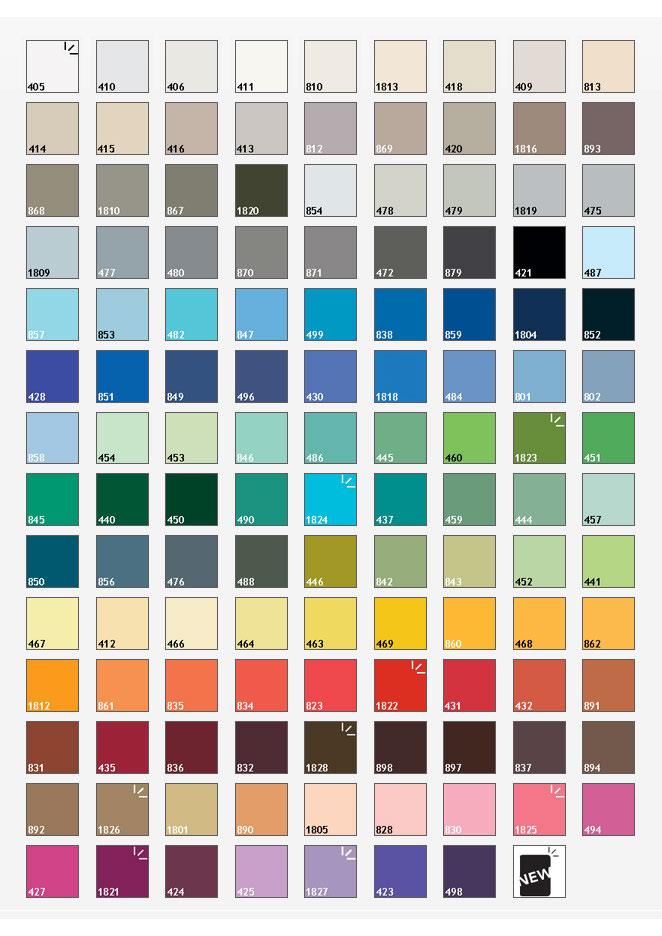

The colours in this chart, which correspond to the colours series on ABET HPL with SEI finishes, are intended to be illustrative and may vary *
