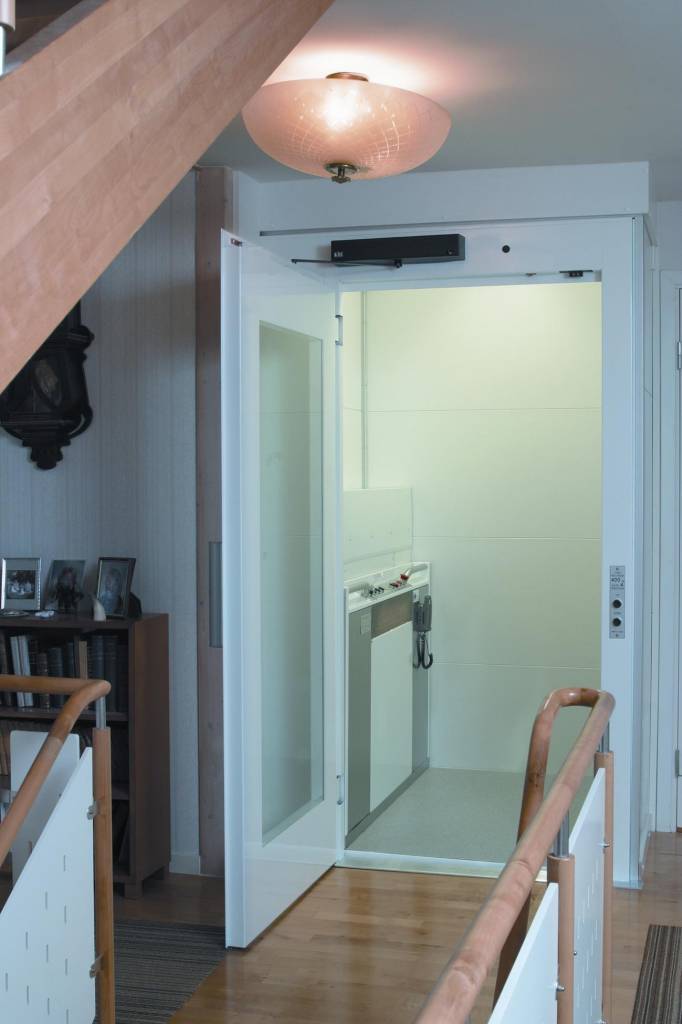

Ideal for the domestic environment and designed for use on internal doors, the Sprint has recently been revamped and a new range of options are available so you get the right version to suit your requirements.
Still available with a light grey plastic cover, there is now the option of an aluminium cover for a more elegant appearance.
The battery is now an optional item rather than always being included, so where it is not needed you can make a saving.
There is also a version available without transformer, so you can power it directly from a 24VDC power supply.
Suitable for use on internal doors weighing up to 80kg, Sprint is the ideal choice for domestic applications.
- Ideal for domestic environments or other light duty applications
- Easy to install and quick to set up
- Choice of plastic or aluminium cover
- Battery back-up options
- 230V AC or 24V DC versions
| SPRINT PN - P - V | SPRINT LN - L - LV | |
|---|---|---|
| Power V | 230Vac~ 50/60 Hz | 24Vdc (to be protected with an external fuse) |
| Power A | 0.5 A | 3 A |
| Power W | 120W | |
| Torque | 25 Nm | |
| Insulation class | Class 2 | / |
| Opening time | min 3s /90° max 6s /90° | |
| Closing time | min 4s /90° max 7s /90° | |
| Service class | 5 - VERY INTENSE | |
| Intermittence | S3 = 80% | |
| Type of operation | Motor opening Motor closing | |
| Max load (door wing 90cm) | 110kg (PUSH) 100kg (PULL) | |
| Max load (door wing 1.2m) | 70kg (PUSH) 55kg (PULL) | |
| Temperature | min -20°C max +55°C | |
| Temperature with batteries | min -10°C max +50°C | |
| Degree of protection | IP30 | |
| Control panel | EL38 | |
| Power supply | AL05 | / |
| F1 fuse | F1A | / |
| Motor output | 24Vdc 3.5 A | |
| Power supply for accessories | 24Vdc 0.3 A | |
