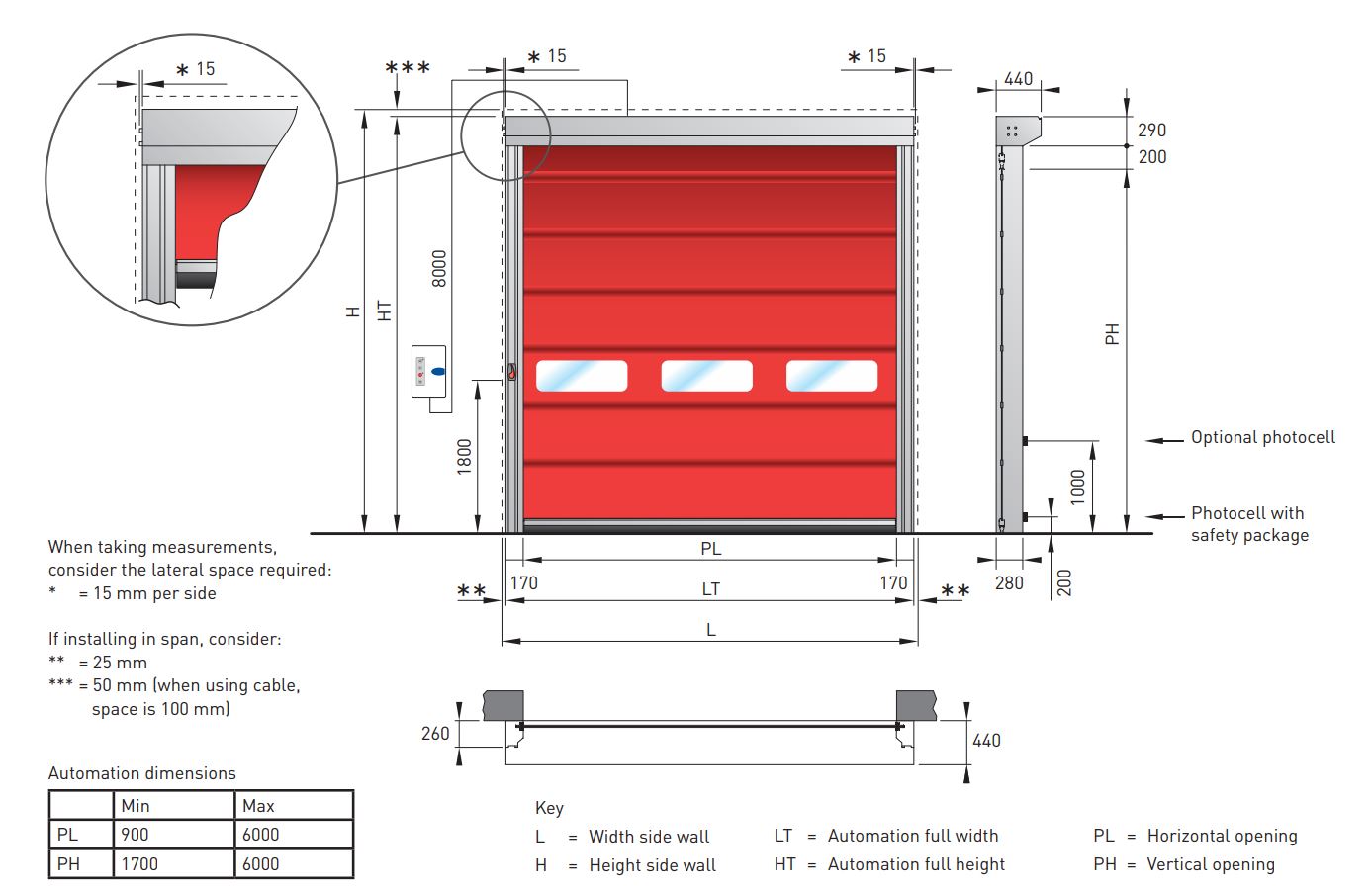

|Dimensions||Max. PL 6000 x PH 6000 mm|
Min. PL 900 x PH 1700 mm
|Power supply||400 V 3-phase 10 A for single speed version|
230 V single-phase 16 A for INVERTERmotion
|Power of motor||0,9 kW|
|Maximum speed||Single speed version: opening and closing at 1,0 m/s|
INVERTERmotion version : opening up to 1.15 m/s - closing up to 0,8 m/s
|Life cycles||1.000.000 - very heavy duty|
|Number of operations:||600 cycles/day - max 120 cycles/hour|
|Extra features||Manual opening : semi-automatic by counterweights operated from ground by release lever; available on both sides (optional).|
Frame: standard in hot galvanised steel.
Optional AISI 304 stainless steel bright finishing or smooth finish oven-baked epoxy coating
|Recommended operating temperature||Motor + control board: - 5°C ÷ + 50°C|
Curtain: - 5°C ÷ + 50°C
The limit of - 5°C is related to the PVC transparent windows and/or modular sections.
For further details on the use in cold environments, please contact our technical support.
|Curtain material||Polyester fabric PVC coated on both sides.|
Availability of transparent PVC windows
|Polyester thickness & weight||Standard curtain: 0,7 mm - 900 g/m2|
Optional 1,0 mm - 1300 g/m2.
Insulated: 3,5 mm - 1300 g/m2
|Modular sections||900 g/m2 polyester and/or clear PVC 2 mm thick|
|Horizontal reinforcements||For full curtain: galvanised steel pipes.|
For modular sections: anodized aluminum profiles.
|Thermal resistance coefficient||5,8 W/m2K - optional 5,5 W/m2K|
|Noise reduction||~ 12dB.|
|Windows||Clear PVC 1 mm, 980 x H 300 mm, in a single or double row on a full curtain|
|Available colours standard curtain & modular sections||Similar to:|
Red RAL 3000
Blue RAL 5010
Orange RAL 2004
Grey RAL 7038
Yellow RAL 1021
Green RAL 6026
Cream RAL 1014
White RAL 9010
Light blue RAL 5012
Black RAL 9005
|Available colours optional curtain||Similar to:|
Yellow RAL 1004
Grey RAL 7046
|Wind resistance class||EN 12424 (test EN 12444) :|
For full curtain:
class 2 : PL ≤ 2250 x PH 5200 mm
class 1 : 2250 mm < PL ≤ 2750 mm x PH 5200 mm
class 0 : PL > 2750 mm x PH ≤ 6000 mm
|Air permeability||EN 12426 (test EN 12427) : NPD|
|Water permeability||EN 12425 (test EN 12489) : NPD|
|Closing door safety devices||EN 12453 (test EN 12445) :|
TOP Safety Pack: Self-testing SOF safety bottom edge + IP55 photocells
TOP T Safety Pack: IP67 sequential infra-red light barrier
|Available Certifications||Certificate n° DE/3627/10, Notified Laboratory n° 0497|
The SECTOR PLUS is Ditec’s advanced counterbalanced high-speed roll-up door. Compared to the SMART, the SECTOR’s counterweight allows greater movement speed, reduces wear of the gearmotor due to less load, and it gives the option of an emergency opening release handle as opposed to a crank.
The compact frame allows the SECTOR to be fitted in areas with limited head room, as the height of the canopy is just 290mm.
Different safety devices can be selected depending on who will be using the door. You can choose to add photocells, an electromechanical bottom edge, a self-testing safety rib with conductive rubber, or a full sequential light grid to protect the users of the door from impacts.
Furthermore, you can change the drive unit and control panel to the “INVERTERmotion” version, which allows an opening speed of up to an incredible 2 metres per second.
As with all of Ditec’s range of high-speed doors, various curtain colours and thicknesses can be specified, as well as different finishes for the frames.
The Ditec SECTOR PLUS is the ideal choice for a roll-up door where safety and reliability are paramount.
IMPROVED WORKING CONDITIONS
OPTIMIZED PROCESS FLOW
The counterweight allows the door to open and close fast. With the INVERTERmotion, speed can be differentiated and increased up to 1.5 m/s.
The high operating speed avoids the doors remaining open longer than needed. Thus, the working environment remains stable and energy can be saved.
Aluminum or steel bars reinforce the curtain against wind loads.
PROTECTION OF PEOPLE & GOODS
The self-testing, sensible bottom edge and the photocells detect possible obstacles and reopen the door when needed.

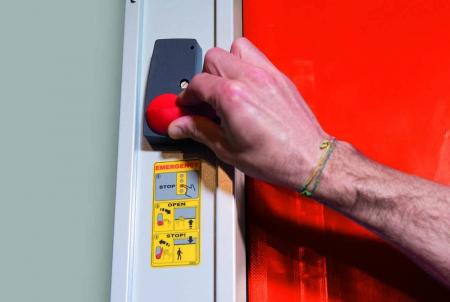

In case of emergency, a red handle can be turned to release the counterweight and open the door.
SMART AND NICE DESIGN
Sector Plus doors offer the possibility of a modular curtain, which allows for full transparency. Reinforcement bars ensure that the curtain is nicely stretched. The compact columns provide an elegant appearance.

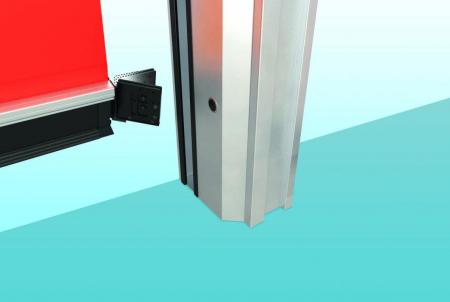

Counterweights reduce the efforts required by the motor, resulting in a longer lifetime and less maintenance costs. The Ditec original ACS break-away system avoids further damage to the aluminum bottom bar and steel columns in case of crash. It features so-called safety shoes that can easily be replaced by a non-specialised engineer. With a modular curtain, damaged sections can easily be substituted, without changing the entire curtain.
The Ditec Sector Plus is a compact door, with built-in counterweights and motor. The self-supporting frame and the absence of a side-motor allows for installation in a corridor or any other limited space.
