Important notice

The LABEL EVOLUS range has now been discontinued and replaced with the ETERNA range.
Click the link below to find out more.

A versatile and highly advanced sliding door operator, the Evolus can be adapted to suit almost any automatic sliding door installation.

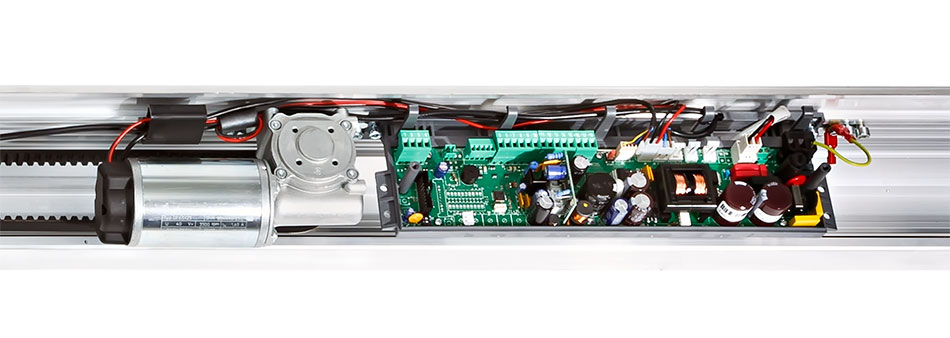

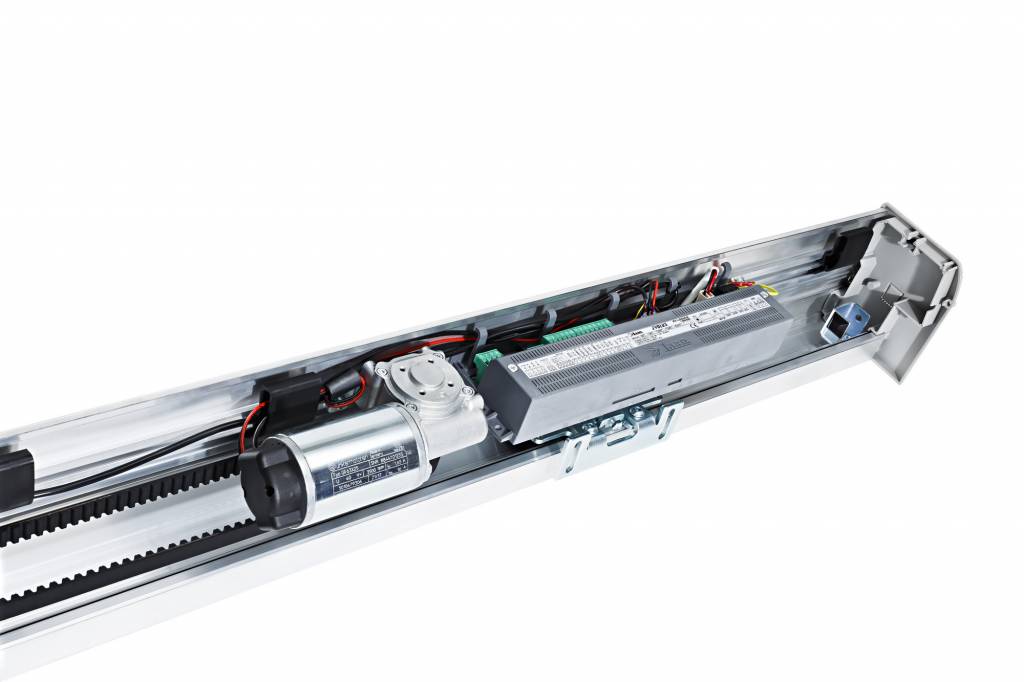

It is a compact yet powerful operator. Fitted with a Dünker gearmotor, it is suitable for continuous, intensive use. The standard version is suitable for a single door weighing up to 130kg, or a pair of doors weighing 90kg each. Alternatively, the heavier duty version is suitable for a single door weighing up to 200kg or a pair of doors weighing 150kg each. Conveniently, the only component that changes between the two versions is the gearmotor.

Furthermore, two telescopic versions are available using the same standard components. The telescopic profile is simply an add-on to the standard profile, so it really is a simple solution for telescopic doors.

Advanced Digital Programming

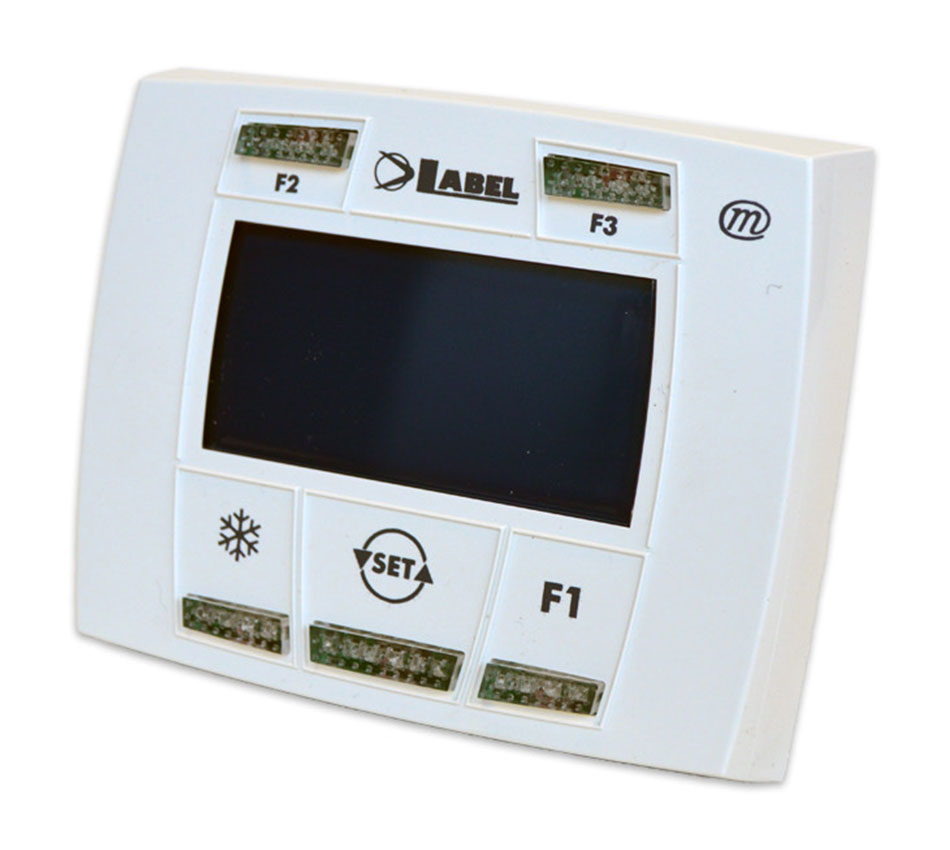

The LABEL D-SEL is one of the most advanced selectors on the market. Not only does it allow you to program the NEPTIS range, but also provides diagnostics with input indication so you can see instantly what is happening. Not only that, the D-SEL provides the ability to control the function of the door for the end user, with password control to prevent unauthorised changes.

Advanced Digital Programming

The LABEL D-SEL is one of the most advanced selectors on the market. Not only does it allow you to program the EVOLUS range, but also provides diagnostics with input indication so you can see instantly what is happening. Not only that, the D-SEL provides the ability to control the function of the door for the end user, with password control to prevent unauthorised changes.

All the programming of the operator is done using a separate digital interface with a large LCD screen. This enables the set-up of the operator to be done at ground level, as opposed to up a step-ladder. The hand-held digital interface helps simplify the set-up and commissioning of the installation, allowing parameters to be changed quickly, and circuits to be bypassed when not in use instead of needing to wire loops into unused terminals.

Through the digital programmer, the operator can be adapted to suit a wide variety of installation types including demanding locations such as in airports, hospitals, hotels and retail stores.

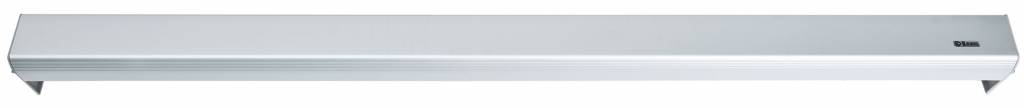

LABEL EVOLUS

standard sliding door profile

LABEL EVOLUS-T

telescopic sliding door profile

 EVOLUS 90/1
1leaf
EVOLUS 90/2
2leaves
EVOLUS 150/1
1leaf
EVOLUS 150/2
2leaves

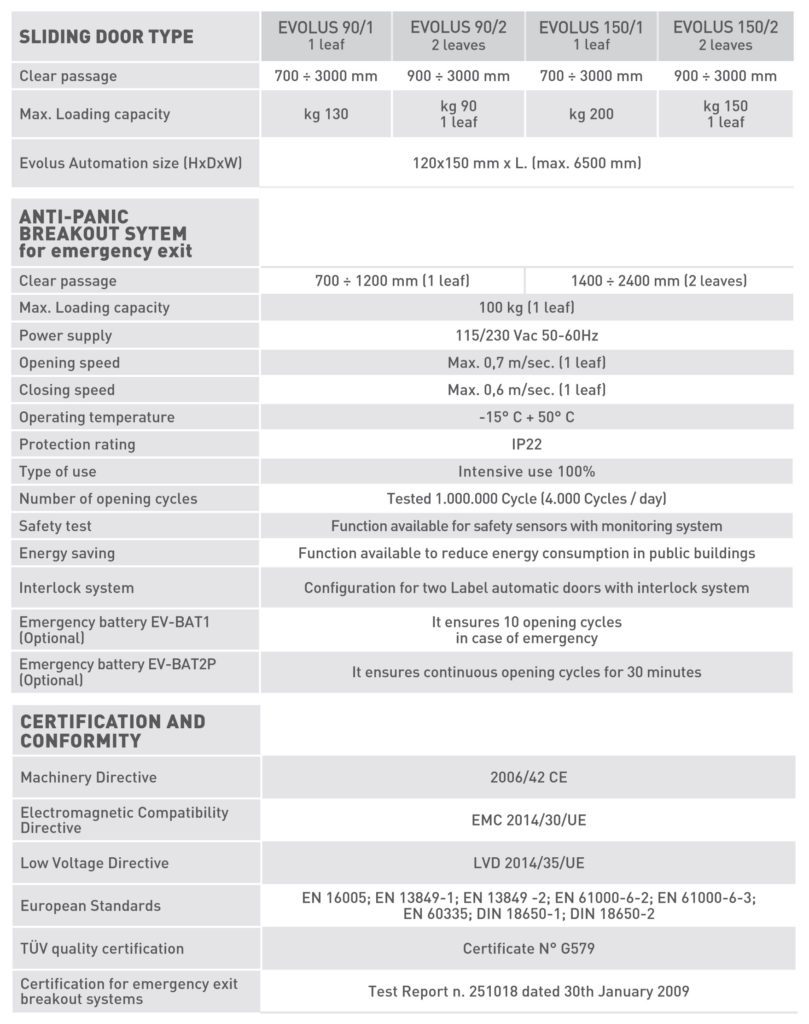

Automation TypeStraight Sliding
Clear passage700-3000mm900-3000mm700-3000mm900-3000mm
Max. loading capacity
per leaf.
130 kg90 kg200 kg150 kg

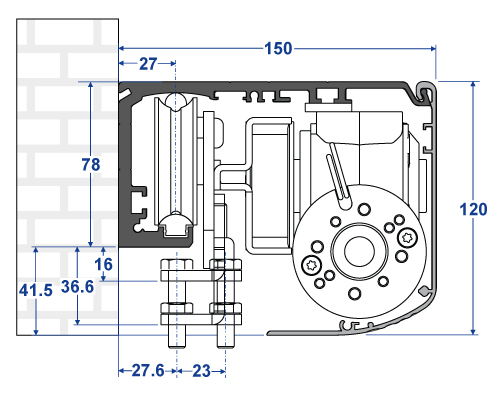

Automation size120 x 150 x L mm
(max 6500mm)
Power Supply115/230 Vac 50-60Hz
Opening speedMax. 0.7 m/sec. (1leaf)
Closing speedMax. 0.6 m/sec. (1leaf)
Operating temperature-15° C + 50° C
Protection ratingIP22
Type of useIntensive use 100%
Number of opening cyclesTested to 1,000,000 cycles (4,000 cycles per day)
Safety testFunction available for safety sensors with monitoring system
Energy savingFunction available to reduce energy consumption in public buildings
Interlock systemOptional - Configuration for two Label automatic doors with interlock system
Emergency batteryIt ensures 10 opening cycles in case of emergency
 EVOLUS-T200
2leaves
EVOLUS-T 200
4leaves
EVOLUS-T 300
2leaves
EVOLUS-T 300
4leaves
Automation TypeTelescopic Sliding
Clear passage800-4000mm1600-4000mm800-4000mm1600-4000mm
Max. loading capacity
per leaf.
100 kg50 kg150 kg75 kg
Automation size120 x 210 x L mm
(max 6500mm)
Power Supply115/230 Vac 50-60Hz
Opening speedMax. 0.7 m/sec. (1leaf)
Closing speedMax. 0.6 m/sec. (1leaf)
Operating temperature-15° C + 50° C
Protection ratingIP22
Type of useIntensive use 100%
Number of opening cyclesTested to 1,000,000 cycles (4,000 cycles per day)
Safety testFunction available for safety sensors with monitoring system
Energy savingFunction available to reduce energy consumption in public buildings
Interlock systemOptional - Configuration for two Label automatic doors with interlock system
Emergency batteryIt ensures 10 opening cycles in case of emergency
