EVOLUS-TF is a self contained system constructed with BLOXER 20/10 steel tubular bearing frame, Pilkington Pyrostop 30-10 15mm thick or 60-101 23mm thick glass and thermal expansion seals providing a brilliant solution for internal sliding fire doors.

The fire-rated version of the Evolus boasts all of the advanced features that makes the Evolus such an accomplished and versatile operator.

The doorset is constructed from a galvanised steel frame coated in a calcium silicate. This is then finished with either an anodised aluminium extrusion or in brushed stainless steel, giving an elegant finish to an extremely robust product.

All the programming of the operator is done using a separate digital interface with a large LCD screen. This enables the set-up of the operator to be carried out at ground level, as opposed to up a step-ladder. The hand-held digital interface helps simplify the set-up and commissioning of the installation, allowing parameters to be changed quickly, and circuits to be bypassed when not in use instead of needing to wire loops into unused terminals.

  • With One or Two Leaves with Fixed Screen built with galvanised steel frame.
  • Double insulation mass.
  • Cover Coatings in extruded aluminium or stainless steel.
  • Complete with Pilkington Pyrostop 30-10 (EI30) or 60-101 glass (EI60).
  • Thermal expansion seals.
  • Mobile leaves with Label Evolus 150TF automation, controlled by Microprocessor EV-Logic2TF c/w safety sensors & self closing system.
  • Door Closure is granted even in power failure.
  • Glazed Structure for the EI30 & EI60 is made up of load bearing, tubular frame in galvanised steel 20/10, protected on two faces with cement based silicate slabs, asbestos free, mechanically fixed to the structure.
  • Cover sections in UN3569 TA standard, 16 Alloy flush aluminium extrusion, shaped to create a ledge/rebate between the fixed screen and the mobile frame, housing for the smoke and heat expansion seals.
  • Total Thickness 70mm.

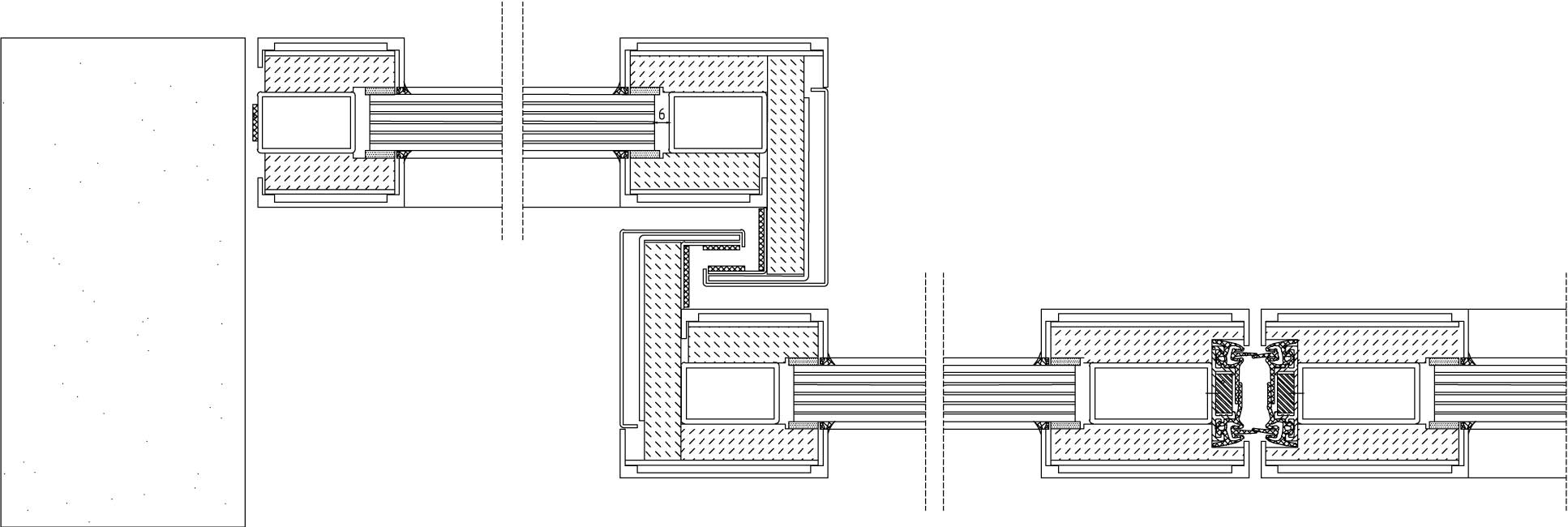

LABEL-TF Top View

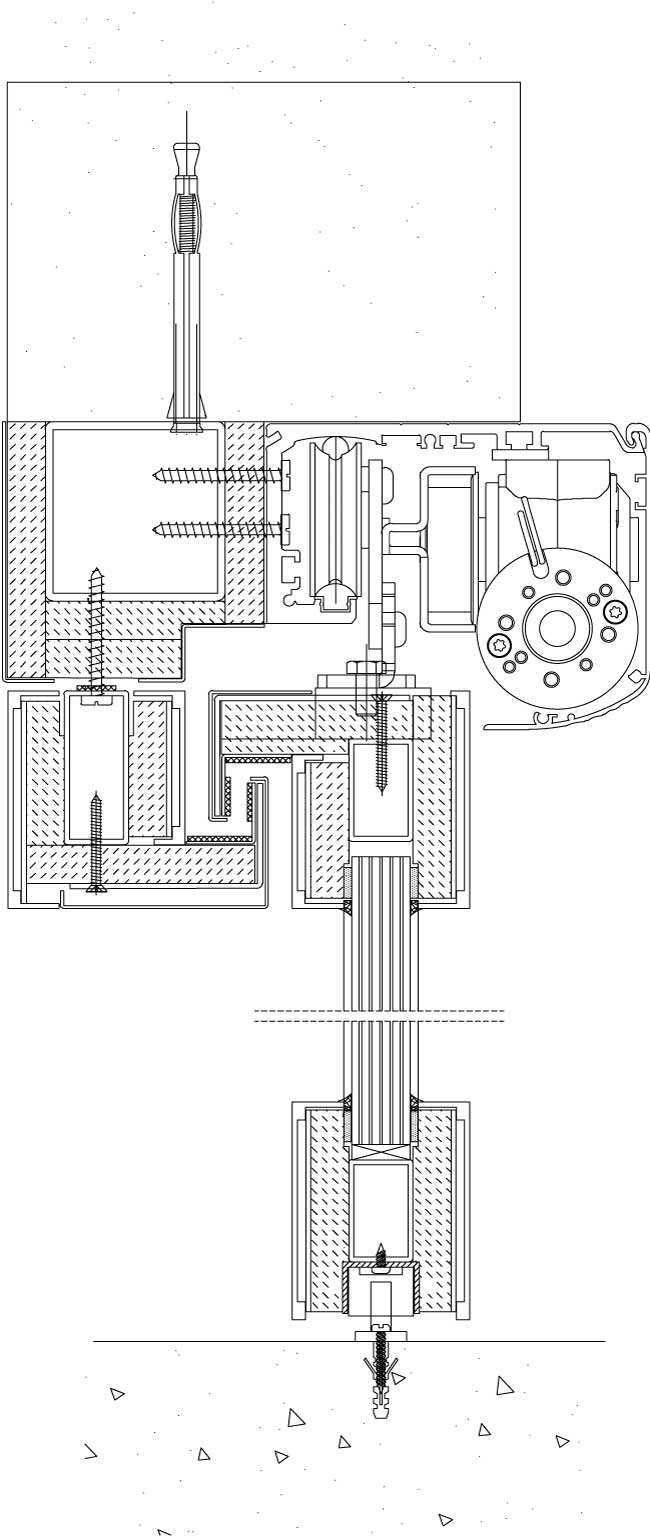

LABEL-TF Side View

 EVOLUS 90/1
1leaf
EVOLUS 90/2
2leaves
EVOLUS 150/1
1leaf
EVOLUS 150/2
2leaves
Automation TypeStraight Sliding
Clear passage700-3000mm900-3000mm700-3000mm900-3000mm
Max. loading capacity
per leaf.
130 kg90 kg200 kg150 kg
Automation size120 x 150 x L mm
(max 6500mm)
Power Supply115/230 Vac 50-60Hz
Opening speedMax. 0.7 m/sec. (1leaf)
Closing speedMax. 0.6 m/sec. (1leaf)
Operating temperature-15° C + 50° C
Protection ratingIP22
Type of useIntensive use 100%
Number of opening cyclesTested to 1,000,000 cycles (4,000 cycles per day)
Safety testFunction available for safety sensors with monitoring system
Energy savingFunction available to reduce energy consumption in public buildings
Interlock systemOptional - Configuration for two Label automatic doors with interlock system
Emergency batteryIt ensures 10 opening cycles in case of emergency
