Redundant Systems for automatic doors are required to ensure opening of doors located along emergency exit routes. The system includes a second component that guarantees these doors’ proper opening/closing even in the event of a malfunction in the main mechanism.

This solution is highly recommended in cases in which forcibly opening the door by pushing could pose a danger to nearby persons or property.

REVOLUS, manufactured by Label, is the redundant system with two brushless motors.

REVOLUS and REVOLUS-T is the ideal automation system for sliding doors in emergency escape routes. Equipped with a dual brushless motor, guaranteed for 6 years, and the most advanced hardware and software solutions, the REVOLUS automation system ensures maximum reliability and safety.

Label Logo

Brushless Technology

At the heart of the system is the new digital brushless motor, offering far superior durability, reliability and efficiency when compared to a standard motor. For this reason, LABEL are offering 6 year warranty for the gearmotor assembly.

Brushless Technology

At the heart of the system is the new digital brushless motor, offering far superior durability, reliability and efficiency when compared to a standard motor. For this reason, LABEL are offering 6 year warranty for the gearmotor assembly.

Available in single or double-leaf versions and in a telescopic versions, REVOLUS provides a clear passage that ranges from 700 mm to a maximum of 3000 mm.

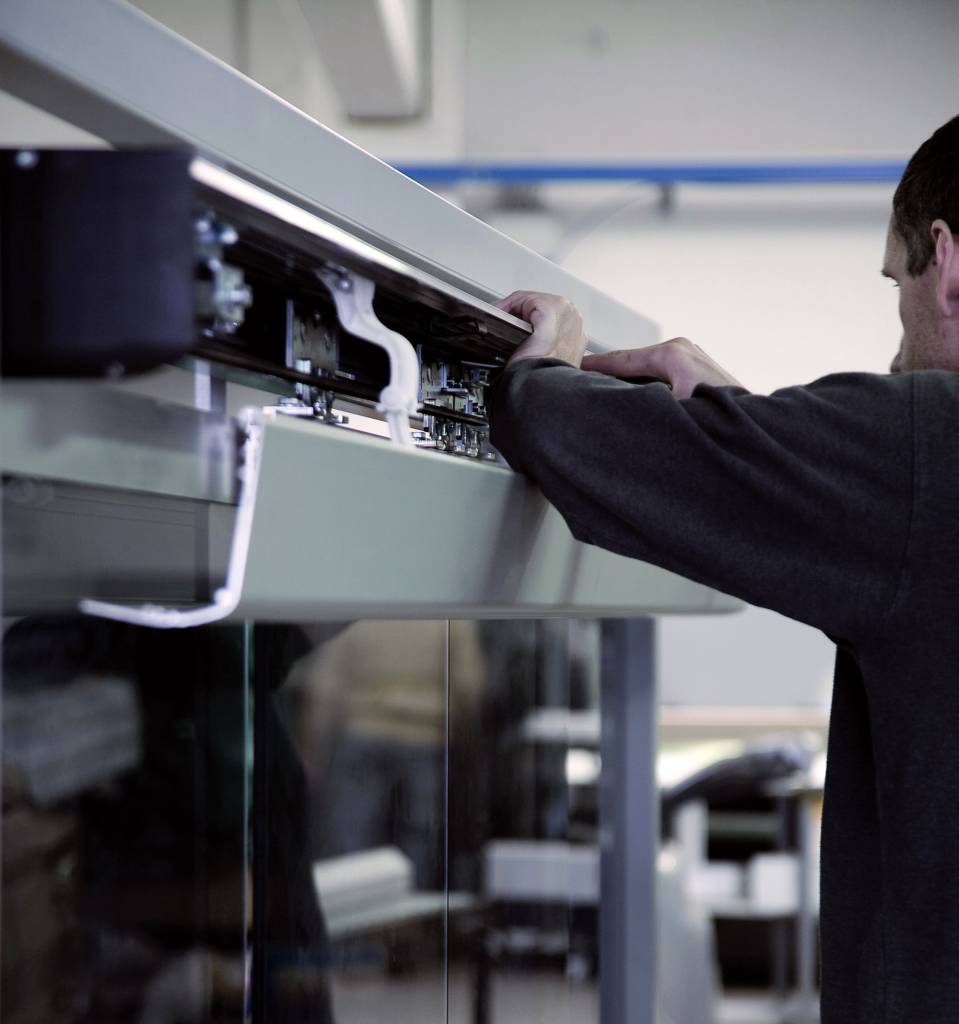

Designed to be installed in emergency escape routes, REVOLUS automatic doors are extremely safe, reliable and easy to install.

REVOLUS automatic doors have exceeded 1,000,000 cycles (4,000 cycles/day) in durability tests, in an environment with a temperature range of between -15° C and +50° C, and guarantees a degree of protection rating of IP22

The “redundant” system ensures that, should any part of the main automation system fail, the secondary system will take over to perform emergency opening of the automatic door, while the incorporated emergency battery ensures that the door will open in emergency mode within 5 seconds, in the event of a malfunction

Models for REVOLUS automatic sliding doors

REVOLUS90

  • REV90 1 leaf, with a load capacity up to 130 kg per leaf, and a clear opening width of 700 ÷ 3000 mm
  • REV90 2 leaves, with a load capacity up to 90 kg per leaf, and a clear opening width of 900 ÷ 3000 mm

REVOLUS150

  • REV150 1 leaf, with a load capacity up to 200 kg per leaf, and a clear opening width of 700 ÷ 3000 mm
  • REV150 2 leaves, with a load capacity up to 150 kg per leaf, and a clear opening width of 900 ÷ 3000 mm

REVOLUS-T

  • REVTEL 2 leaves, with a load capacity up to 150 kg per leaf, and a clear opening width of 800 ÷ 4000 mm
  • REVTEL 4 leaves, with a load capacity up to 75 kg per leaf, and a clear opening width of 1600 ÷ 4000 mm

LABEL REVOLUS, certifications and safety

The REVOLUS automation system complies with the Machinery Directive: 2006/42 EC; the Electromagnetic Compatibility Directive: EMC 2014/30/EU;Low Voltage Directive: LVD 2014/35/EU, and has obtained TÜV SÜD Quality Certification(Certificate number G623).
The REVOLUS automation system is equipped with a double brushless motor housed in a single casing, making it more reliable than a system with two separate motors.The control unit is equipped with a switching power supply, with a double independent power circuit for motor piloting and with two constantly synchronised microprocessors to manage the inputs and outputs in complete safety.

REVOLUS 90

redundant sliding door profile

REVOLUS 150

redundant sliding door profile

REVOLUS-T

redundant telescopic sliding door profile

REVOLUS 90/1
1leaf
REVOLUS 90/2
2leaves
REVOLUS 150/1
1leaf
REVOLUS 150/2
2leaves
Automation TypeRedundant Straight Sliding
Clear passage700-3000mm900-3000mm700-3000mm900-3000mm
Max. loading capacity
per leaf.
130 kg90 kg200 kg150 kg
Automation size100 x 135 x L mm
(max 6500mm)
120 x 150 x L mm
(max 6500mm)
Power Supply230 Vac 50-60Hz
Max. power100 W
Power absorption in stand-by mode6 W
Brushless motor24 Vdc with built-in hall effect sensors
Power supply for accessories24 Vdc / 0.5 A
Opening speedMax. 0.8 m/sec. (1leaf)
Closing speedMax. 0.6 m/sec. (1leaf)
Operating temperature-15°C + 50°C
Protection ratingIP22
Type of useIntensive use 100%
Number of opening cyclesTested to 1,000,000 cycles (4,000 cycles per day)
Emergency
battery
Incorporated. It grants the door opening in case of power failure or in case of fault
Safety testFunction available for safety and activation sensors with monitoring system
Energy savingUseful function to reduce energy consumption in public buildings
Fault safety
system
According to performance level “d” of EN 13849-1
REVOLUS-T 300
2leaves
REVOLUS-T 300
4leaves
Automation TypeRedundant Telescopic Sliding
Clear passage800-4000mm1600-4000mm
Max. loading capacity
per leaf.
150 kg75 kg
Automation size120 x 150 x L mm
(max 6500mm)
Power Supply230 Vac 50-60Hz
Max. power100 W
Power absorption in stand-by mode6 W
Brushless motor24 Vdc with built-in hall effect sensors
Power supply for accessories24 Vdc / 0.5 A
Opening speedMax. 0.8 m/sec. (1leaf)
Closing speedMax. 0.6 m/sec. (1leaf)
Operating temperature-15°C + 50°C
Protection ratingIP22
Type of useIntensive use 100%
Number of opening cyclesTested to 1,000,000 cycles (4,000 cycles per day)
Safety testFunction available for safety and activation sensors with monitoring system
Energy savingUseful function to reduce energy consumption in public buildings
Emergency
battery
Incorporated. It grants the door opening in case of power failure or in case of fault
Fault safety
system
According to performance level “d” of EN 13849-1
