BEA Flatscan 3D On-Door Safety Sensor

Name: BEA Flatscan 3D On-Door Safety Sensor
SKU: FLATSCAN-3D
Availability: InStock

From : BEA

£850.00 - £899.00

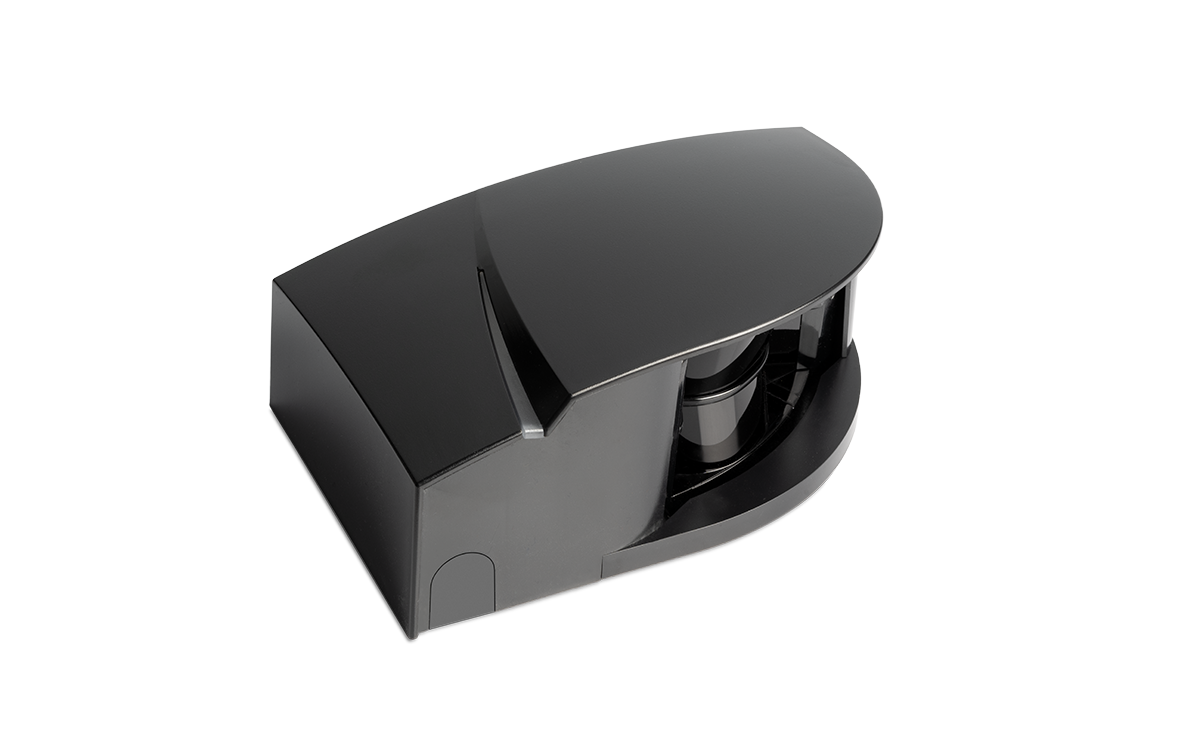

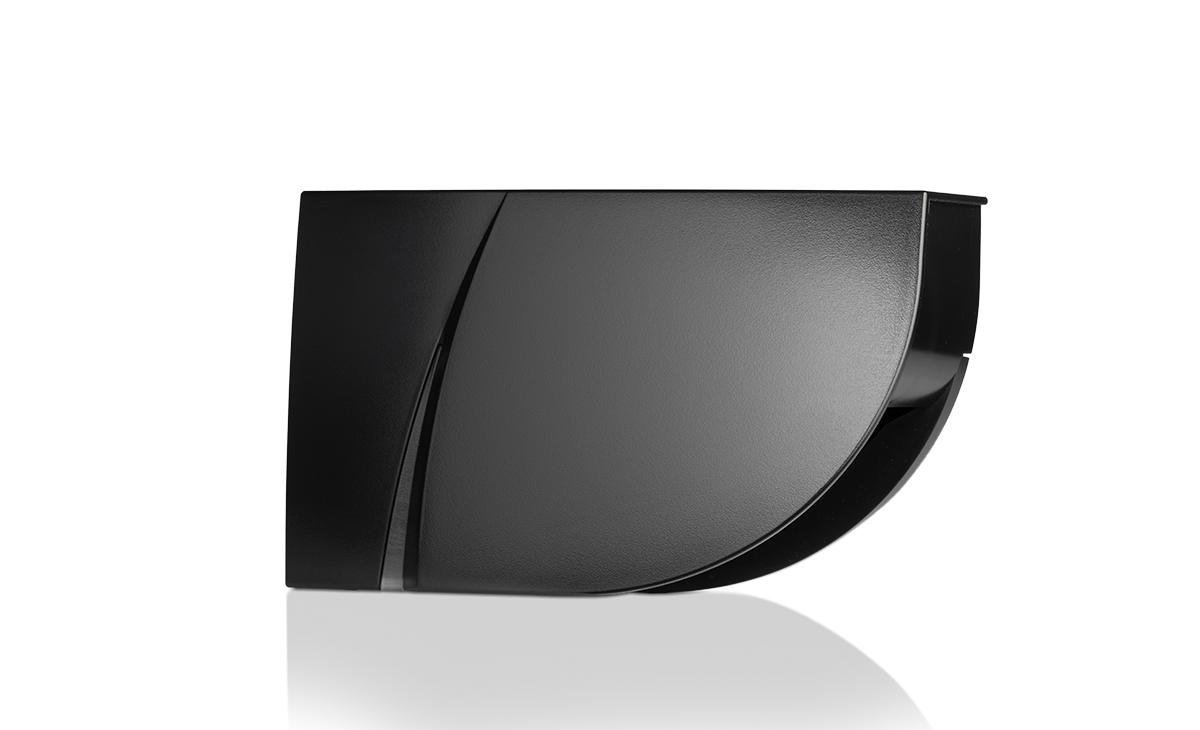

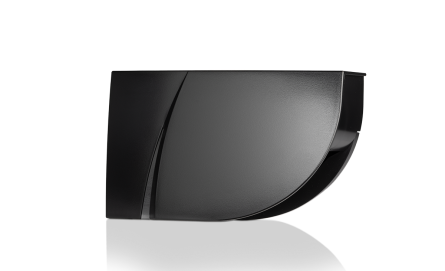

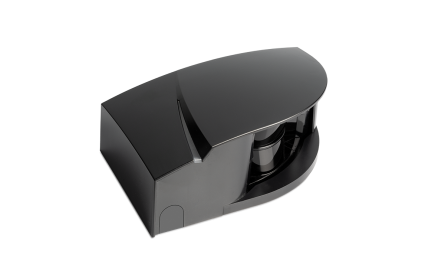

The LZR®-FLATSCAN 3D SW is a safety sensor designed for swing doors. Using laser time-of-flight technology, its volumetric detection field covers the complete opening area of the door, guaranteeing more comfort and safety to the users.

Trade Customer?

Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Part code: FLATSCAN-3D Category: Safety Sensors Tags: Laser Technology, For Swing Doors

For more information on this sensor, please click here.

Product Type	Safety Sensor, Swing Door Sensors

Technical

Technology	LASER scanner, time-of-flight measurement
Detection mode	Presence
Max. detection range	4 m (diagonal) with reflectivity of 2% (i.e. : at W = 1.5m -> max. H = 3.7 m)
Opening angle	Door wing safety: 90° / Pinch zone safety: 16°
Angular resolution	Door wing safety: 1.3°/ Pinch zone safety: 0.2°
Typ. min. object size	Door wing safety: 10 cm @ 4m (in proportion to object distance, DIP 2 = ON) Pinch zone safety: 2 cm @ 4m (in proportion to object distance, DIP 2 = ON
Testbody	700 mm × 300 mm × 200 mm (testbody CA according to EN 16005 & DIN 18650)
Emission characteristics	IR LASER: Wavelength 905 nm; max. output pulse power 25 W; Class 1
Supply voltage	12 – 24 V DC ± 15 %
Power consumption	≤ 2 W
Response time	Door wing safety: max. 50 ms / Pinch zone safety: max. 90 ms
Output Max. switching voltage Max. switching current	2 electronic relays (galvanic isolation – polarity free) 42V AC/DC 100 mA
LED-signals	1 bi-coloured LED: detection/output status
Dimensions	142 mm (L) × 85 mm (H) × 33 mm (D) ( mounting bracket + 7 mm )
Material – Colour	PC/ASA – Black – Aluminium – White
Tilt angles	+2° à +10° (without mounting bracket)
Protection degree	IP54 (EN 60529)
Temperature range	-30°C to +60°C if powered
Humidity	0-95 % non-condensing
Vibrations	< 2 G
Min. door wing speed	2°/sec
Norm conformity	EN 12978; EN ISO 13849-1 Pl “d”/ CAT2; IEC 60825-1; EN 60950-1; EN 61000-6-2; EN 61000-6-3; EN 62061 SIL 2; DIN 18650-1 Chapter 5.7.4 (testbody CA); EN 16005 Chapter 4.6.8 (testbody CA)
