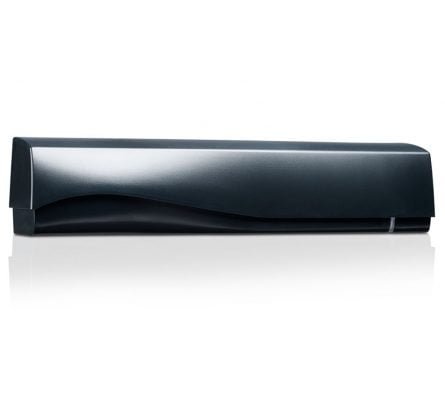

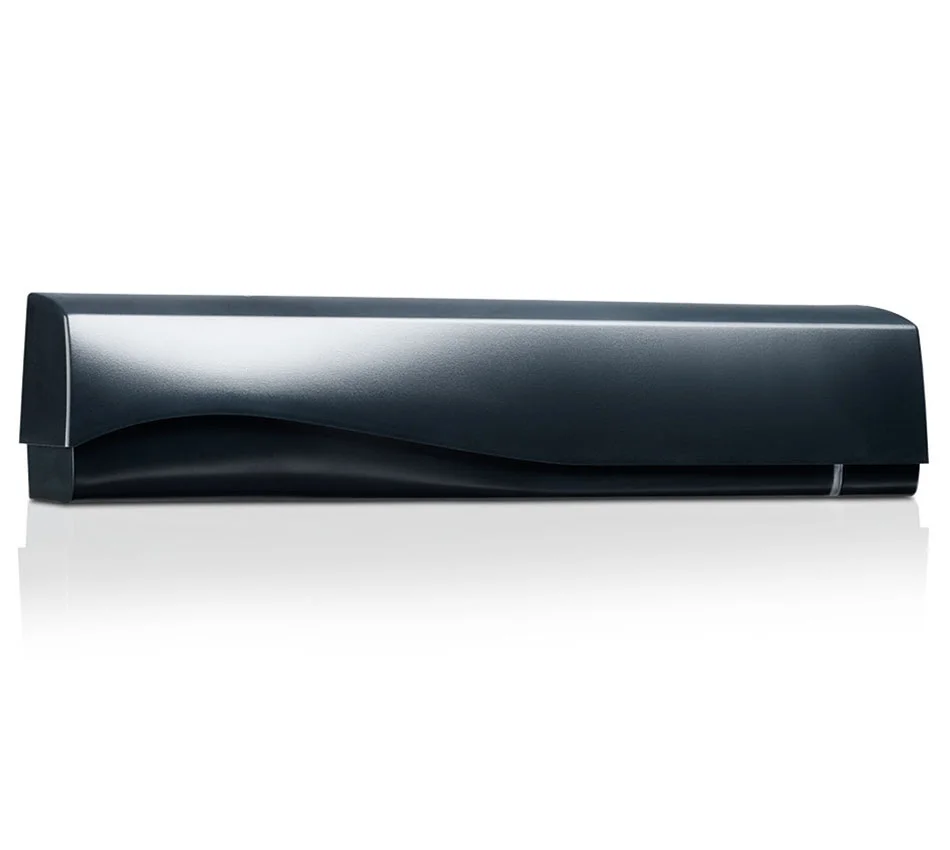

BEA VIO Activation & Safety Sensor

Name: BEA VIO Activation & Safety Sensor
SKU: VIO-DT

From BEA

£125.00 - £135.00

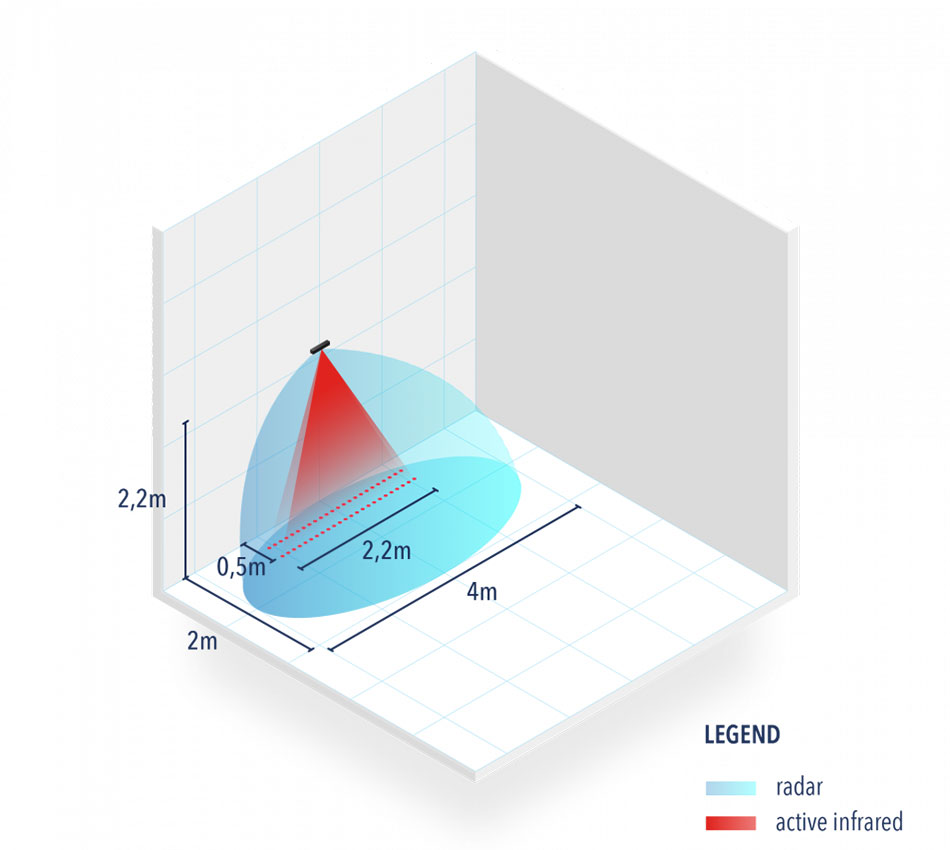

The VIO-D combines a motion radar sensor for opening the door with a double fail safe active infrared curtain for the protection of users, in accordance with the EN 16005 standard. Opening and closing the door is controlled by a unidirectional radar and safety is ensured by the two 24-infrared spot fail safe curtains.

Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Part code: VIO-DT Categories: Activation Sensors, Safety Sensors Tags: BEA Safety Sensor, Infrared, For Sliding Doors

Description
Additional information
Technical
Downloads

Product Type	Safety Sensor, Activation Sensor, Sliding Door Sensors

Technical

Supply voltage:	12 V – 30 V DC -5%/+10% (to be operated from SELV compatible power supplies only)
Power consumption:	< 2.2 W
Mounting height:	1.8 m to 3 m
Sensitivity of the test input:	< 1 V : Log. L; > 10 V: Log. H (max. 30 V)
Temperature range:	-25 °C to +55 °C
Degree of protection:	IP54
Noise:	< 70 dB
Expected lifetime:	20 years
Norm conformity:	EN 12978:2009; EN IEC 62061:2005 SIL2, EN 61496-1:2012 ESPE Type 2; EN ISO 13849-1:2008; Pl «c» CAT.2 (under the condition that the door control system monitors the sensor at least once per door cycle); EN 16005:2012
Detection mode:	Motion Min. detection speed: 5 cm/s	Presence Typical response time: <256 ms
Technology:	Microwave doppler radar Transmitter frequency: 24.150 GHz Transmitter radiated power: < 20 dBm EIRP Transmitter power density: < 5 mW/cm2	Active infrared with background analysis Spot diameter: 0.1 m (typ) Number of spots: 24 Number of curtains: 2
Angle:	From 15 ° to 50 ° vertical (adjustable)	From -4 ° to +4 ° (adjustable)
Output:	Solid-state-relay (free of potential, free of polarity) Max. contact current: 100 mA Max. contact voltage: 42 V AC/DC	Solid-state-relay (free of potential, free of polarity) Max. contact current: 100 mA Max. contact voltage: 42 V AC/DC
Hold time output signal:	0.5 s	0.3 s to 1 s (not adjustable)
Response time on test request:		Typical: < 5 ms
