Ditec Qik is a high performance automatic barrier, the synonym of durability: tested for over 1 million cycles, it has an opening speed of up to 2 seconds (to 90°) and blends in perfectly in any setting.

It is available in 3 versions: a 230 V AC version of 3.5 metres and two 24 V DC versions for through passages of up to 5.8 and 7.6 m respectively. The encoder system on the 24 V DC models ensure fully safe use, allowing speed control and continuous adjustment of the impact force, as well as immediate detection of obstacles and slowdowns. The Ditec Qik range is fully compliant with European Directives.

Clean look and attention to details for heavy duty applications

All rivets are made of stainless steel and have no welding to ensure long life and maintain their features unaltered. The monobloc aluminium die-cast reduction unit ensures easy installation, longer life and easy cleaning.



Tested to over a million operating cycles

The low stress reduction unit ensures a very high number of operations. The test carried out on the unit has achieved with ease a staggeringly high number of operations, over 1,500,000.



Access system built with safety in mind

The Ditec Qik barriers, when matched to the LAN control systems, solve all access problems and are very easy to use.

To allow employees and key customers to operate the barrier, a wide range of solutions are available: a remote control, a traditional key or keypad operated selector switch, a “LAN transponder” system or a “coin” system, which allows the barrier to be operated only once. This is a great solution for hotels, sport centres, shops and restaurants, visited by users who need temporary, quick and simple access.

Furthermore, the “magnetic loop” system is inherently very practical and simple to use.

The detector, when installed on the pavement, allows the exit barrier to be automatically operated when a vehicle goes over it, thus ensuring a regular flow of vehicles and avoiding unwelcome queues.

 Qik 4EQik 7EHQik 80EH
Barriersup to 3.5 m longup to 5.8 m longup to 7.6 m long
Stroke controllever-type limit switchencoderencoder + limit switch
Arm length up to3.7 m6 m7.95 m
Armellipticround
Service index4 - intensive5 - heavy duty4 - intensive
Intermittent operationS2 = 15 min
S3 = 30%
S2 = 60 min
S3 = 60%
S2 = 50 min
S3 = 50%
Power supply230 V AC / 50 Hz230 V AC / 50-60 Hz230 V AC / 50-60 Hz
Input1.2 A1 A1.2 A
Torque90 Nm70 Nm200 Nm
Opening and closing time4 s/90°2-6 s/90°6-12 s/90°
Release system for manual openingkey operated
Operating temperature-20°C / +55°C
(-35°C / +55°C
with NIO enabled)
-20°C / +55°C
(-35°C / +55°C with NIO enabled)
(-10°C / +50°C with battery)
Protection levelIP 24DIP 24DIP 24D
Product dimensions (mm)300x320x1050405x525x1180
Control panel E1A (built-in) EL31R (built-in) EL34R (built-in)

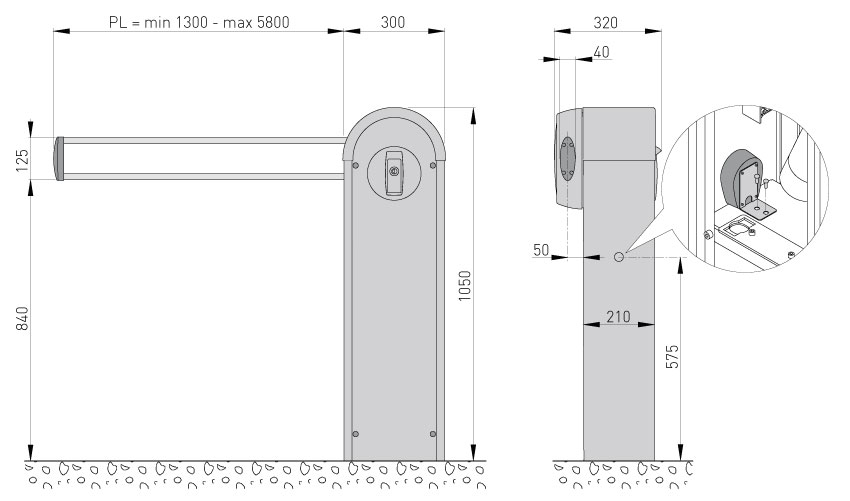

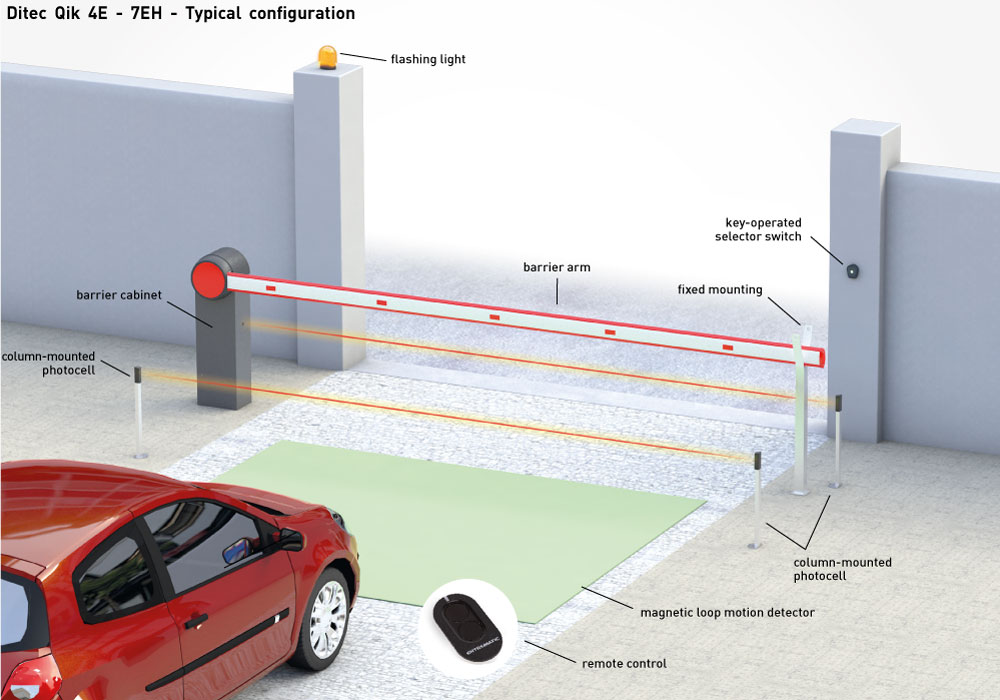

QIK 4-7

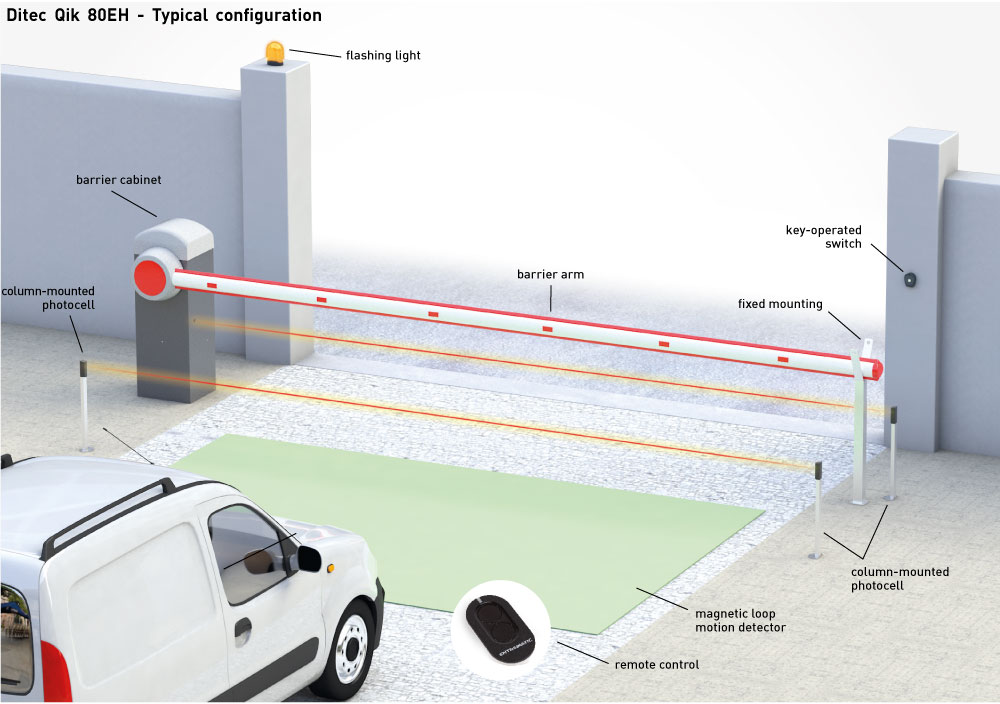

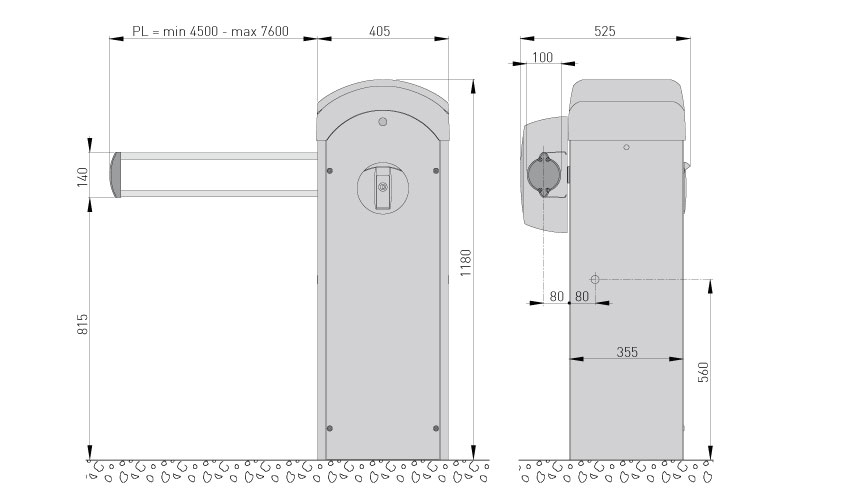

QIK 80

QIK Arm Coupling

QIKCG

joint for round arm (Qik 80)

QIKBG

joint for elliptic arm (Qik 4/7).

Qik Internal Spring

QIKM5

blue spring (Qik 80)

QIKM1 – QIKM2 – QIKM3 – QIKM4

springs (Qik 4/7)

QIK Base Plate with Support Feet

QIK80Z

base plate with support feet (Qik 80)

QIKZ

base plate with support feet (Qik 4/7)

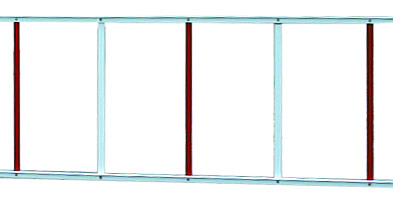

QIKGR

aluminium skirting L = 2000 mm, red/white painted.

QIK Pivot for Arm

QIKSN

articulation for elliptic arm (Qik 4/7).

SBU

electronic board for the management of battery charging and photovoltaic panels (Qik 4/7).

QIK Lighting Kit

QIKLUX

kit of lights.

QIKC

10 reflective strips kit

QIK Fixed Arm Support

QIKAF

fixed mounting – to be fixed to the ground.

QIK Fixed Arm Support With Electromagnetic Lock

QIKAFE

fixed mounting with electromagnetic lock.

QIK Mobile Arm

QIKAM

moving mounting – to be fixed to the arm.

QIK Fixed Support Feet

QIKAFZ

fixing support feet for QIK AF mounting

M1QKC7

memory module for special parking functions

Battery Kit - VIVAH

BATKH

battery kit for 24 V DC barrier (Qik 80).

MD2

display module for diagnostics and enhanced control system (Qik 80).
