- Operating voltage 12Vdc
- Fail-Safe/Fail-Secure (Selectable)
- Supplied with long and short plate

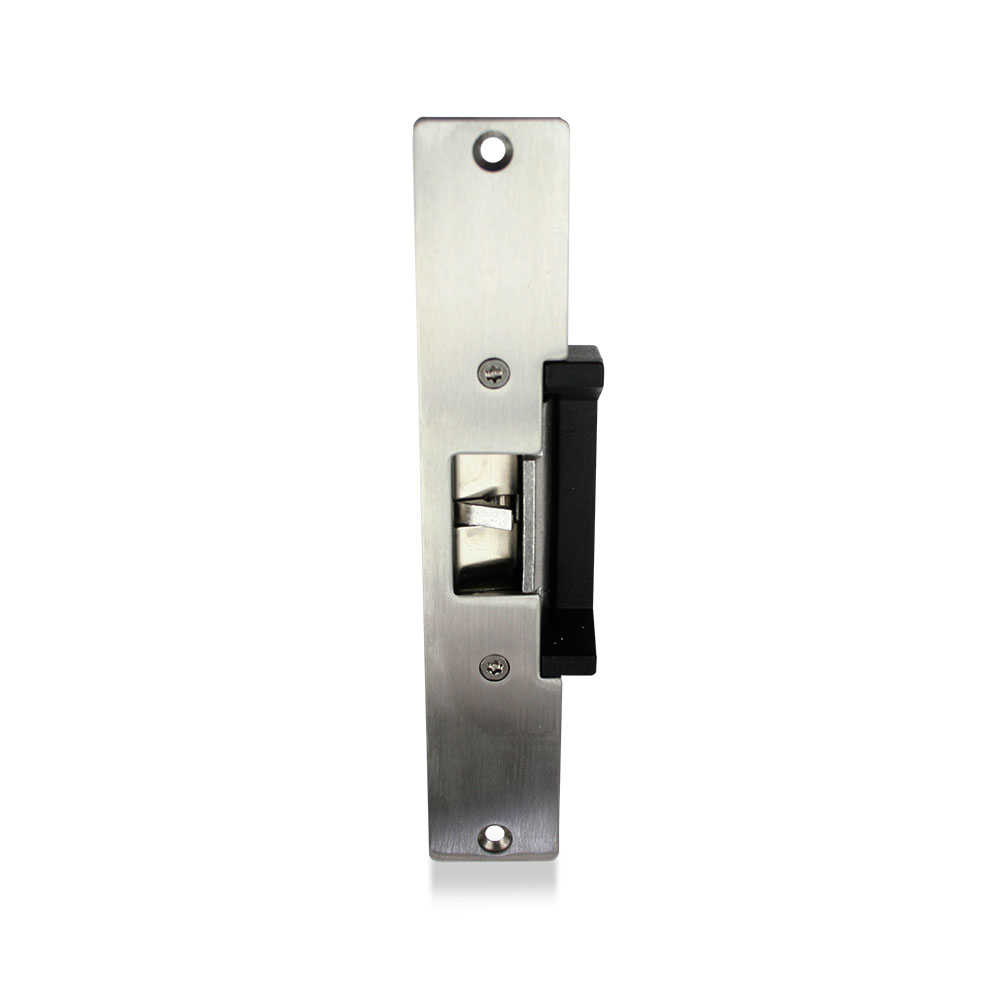

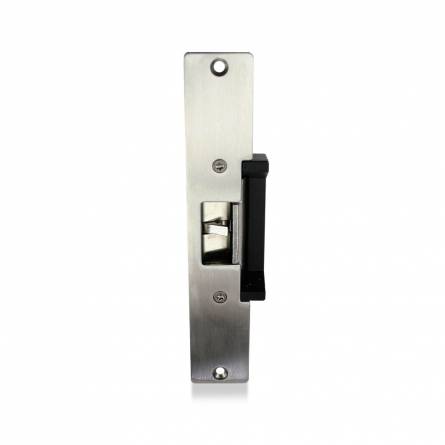

- ANSI style electric release
- Voltage tolerance: ±15%.
- Current draw: 0.25A at 12Vdc, 0.15A at 24Vdc (at temperature 20°C).
- Operating temperature: -10~45°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Sensor switch monitored output indicates lockset locked or unlocked status (SPDT rated 2A at 125Vdc).
- Humidity: 0~95% non-condensing.
- Horizontal or vertical installation.
- Tested to 1,000,000 cycles.
- 2000lbs jaw strength pull testing.
- Dimensions 202 × 36.5 × 17 mm
