BEA FALCON Industrial Activation Sensor

Name: BEA FALCON Industrial Activation Sensor
SKU: Falcon-sensor
Price: 274.73 GBP
Availability: InStock

From : BEA

£274.73 ex vat

The high performance motion detector FALCON allows a precise opening by filtering pedestrians and cross traffic.

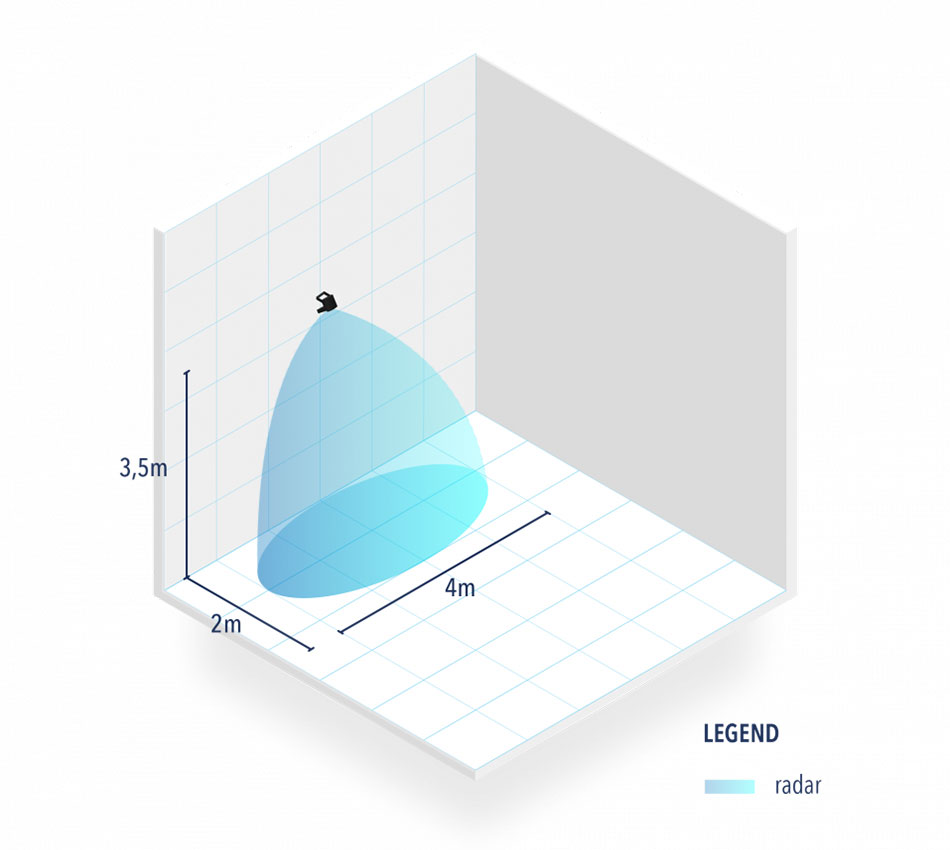

Mounted at 7 m the FALCON has a detection field of 4 x 5 m. At 3.5 m, the FALCON XL detects in an area of 4 x 2 m.

Trade Customer?

Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Part code: Falcon-sensor Category: Activation Sensors

Product Type	Activation Sensor, Industrial Sensors

Technical

Technology:	microwave doppler radar
Transmitter frequency:	24.150 GHz
Transmitter radiated power:	< 20 dBm EIRP
Transmitter power density:	< 5 mW/cm²
Detection mode:	motion
Detection zone:	FALCON: 4 x 5 m ; FALCON XL: 4 x 2 m (typical at 30° and fi eld size 9)
Min. detection speed:	5 cm/s
Supply voltage:	12V to 24V AC ±10%; 12V to 24V DC +30% / -10%
Mains frequency:	50 to 60 Hz
Max power consumption:	< 2 W
Output:	relay (free of potential change-over contact)
Max. contact voltage:	42V AC/DC
Max. contact current:	1A (resistive)
Max. switching power:	30W (DC) / 60VA (AC)
LED-signal:	red: detection state, parameter indication; green: value indication
Mounting height:	FALCON: 3.5 m – 7m; FALCON XL: 2 m – 3.5 m
Degree of protection:	IP65
Temperature range:	from -30 °C to + 60 °C
Dimensions:	127 mm (L) x 102 mm (H) x 96 mm (W)
Tilt angles:	0° to 180° vertical
Materials:	ABS and polycarbonate
Weight:	400 g
Cable length:	10 or 15 m
Norm conformity:	EN 300 440-2 V1.4.1, EN 301 489-1 V1.9.2, EN 301 489-3 V1.6.1, EN 62311, EN 62479
