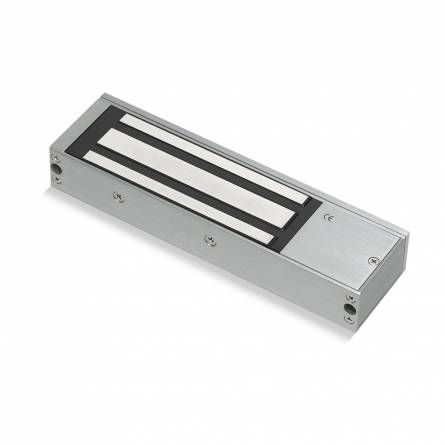

12-24Vdc, 1200lbs, Single Magnet – Unmonitored

• Operating voltage 12~24Vdc
• Aluminium
• Unmonitored
• Fail-Safe (Power to Lock)
• Holding force up to 1,200lbs x 2 (545Kg)
• Voltage tolerance: ±15%.
• Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20°C).
• Operating temperature: -10~55°C (14 to 131°F).
• Lock’s surface temperature: Current temperature ± 20% (when power is on).
• Humidity: 0~95% non-condensing.
• Special Zinc finishes for magnet and armature plate.
• Weight: 5.0kg (approx).
• Dimensions 265 × 67 × 40 mm
