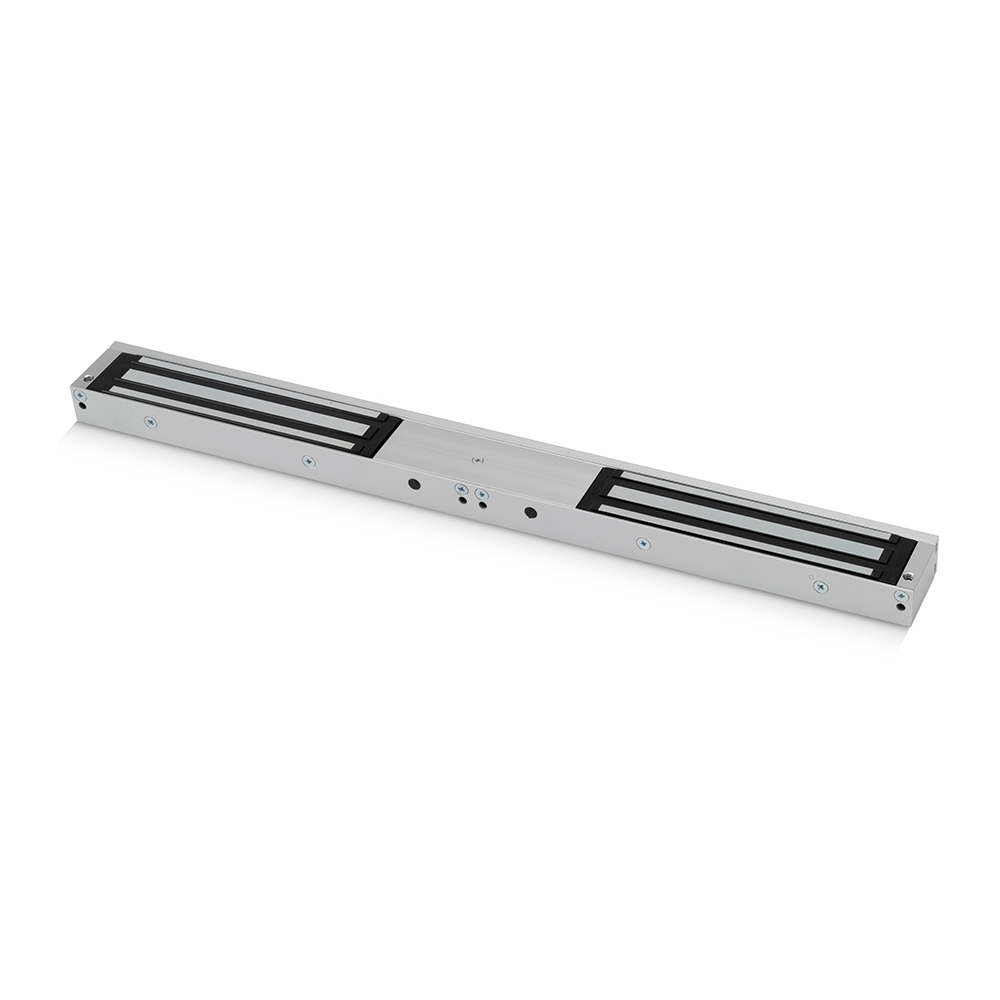

12-24Vdc, 600lbs, Fire Rated Double Mini Magnet – Unmonitored

£96.89 ex vat

For accessories relating to this product, please Click Here.

Trade Customer?

Register today and you'll gain access to savings of up to 50% off listed price.

Register Now
Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Contact Us
Part code: FR-U10004 Category:
  • FD30 + FD60 Rated
  • Operating voltage 12~24Vdc (Selectable)
  • Aluminium housing
  • Safety bolts fitted
  • Fire tested: BS EN1634:1
  • Holding force up to 2 x 600lbs (272Kg)
  • Electro-less nickel plated armature
  • 1 Hour UK fire certificate
  • Fail-Safe
  • Voltage tolerance: ±10%.
  • Current draw: 480mA at 12Vdc, 240mA at 24Vdc (at temperature 20°C).
  • Operating temperature: -10~55°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Humidity: 0~95% non-condensing.
  • Aluminum housing, nickel plated armature.
  • Weight: 3.7kg (approx).
  • Dimensions 500 × 42 × 26 mm

For accessories relating to this product, please Click Here.

Fire Rated

Yes

Hold Force

600lbs (272Kg)

Units

Double

Size

Mini

Monitoring

Unmonitored

Door Status

Without Door Status

Input Voltage

12Vdc, 24Vdc
