PWR50H – Automatic Swing Gate Actuator, 5m

From : Ditec Entrematic

£427.05 ex vat

The easy to install and maintain PWR50H electromechanical actuator is designed for frequent and intensive use on swing gates up to 5 meters. Idea for residential and industrial applications.

Trade Customer?

Register today and you'll gain access to savings of up to 50% off listed price.

Register Now
Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Contact Us
Part code: PWR50H Category:
  • Irreversible
  • Designed for very intensive use.
  • 24 V DC motor.
  • For wing up to 5 m.
  • Complete with brackets.
  • Mechanical limit stops (PWRFM) and screw-protecting dustproof brushes.

Downloads

No downloads found!

    Technical

    DescriptionPWR50H
    Electromechanical actuator:Irreversible for up to 5 m wide wing
    Stroke Control:Mechanical Stop

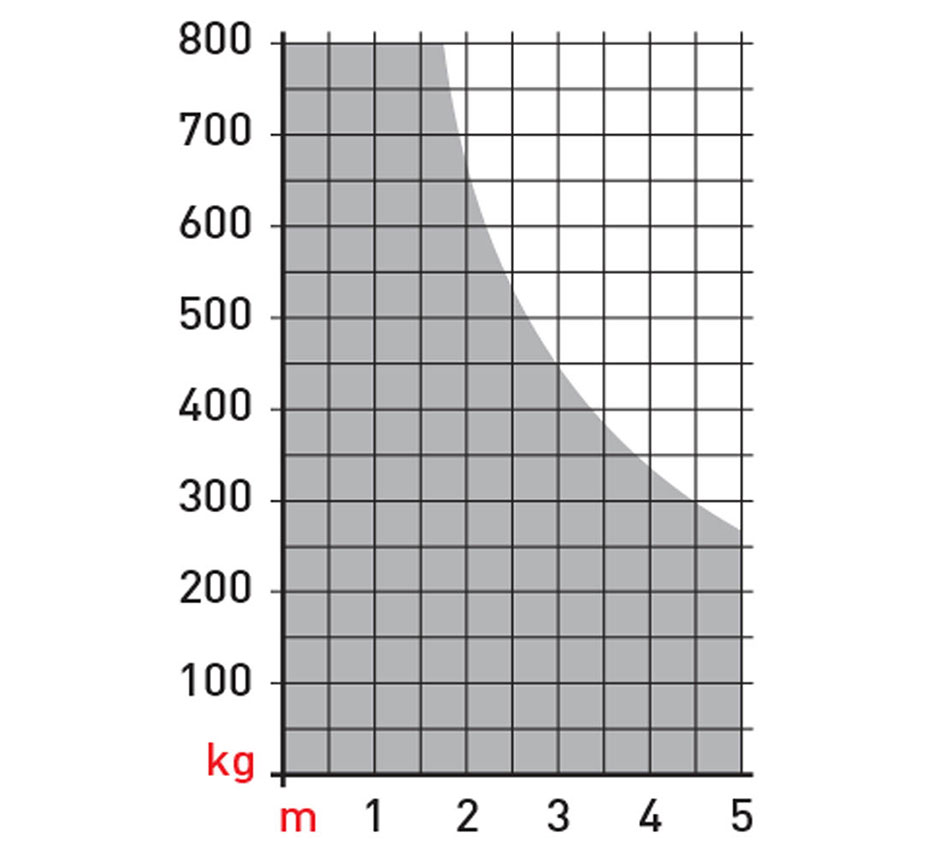

    Maximum Capacity:800 kg x 1.75 m 280 kg x 5 m
    Power Absorption:24 V DC;
    Maximum Power:12 A
    Power Input:65 W nom. / 288 W max
    Thrust:6000 N
    Opening Time:14 ÷ 80 s / 90°
    Max Travel:500 mm
    Actuator Maximum Opening:120°
    Intermittent Operation:60 consecutive cycles at 20°C
    Service Index:Very Intensive. Tested up to 450,000 cycles
    Release System for manual opening:key-operated
    Operating Temperature:-20°C / +55°C (-35°C / +55°C with NIO enabled)
    Protection Level:IP44
    Weight (kg):10.5
    Control panel:LCU40H
