- Irreversible for frequent use.
- 24 V DC motor for wing up to 2.5 m.
- Complete with brackets.
- Mechanical limit stops and plastic screw protection.
PWR25H – Automatic Swing Gate Actuator, 2.5m
From : Ditec Entrematic
£238.55 ex vat
Part code: PWR25H
Category: Motors
Technical
Description | PWR25H |
Electromechanical actuator: | Irreversible for up to 2.5 m wide wing |
Stroke Control: | Mechanical Stop |

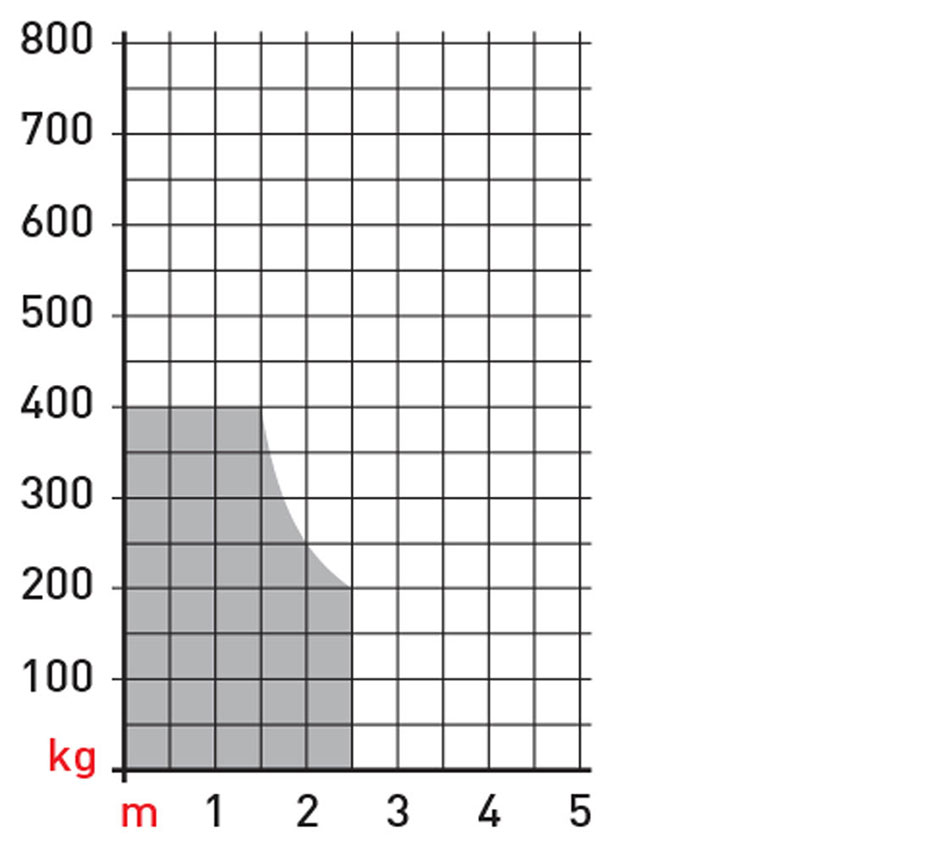

Maximum Capacity: | 400 kg x 1.5 m 200 kg x 2.5 m |
Power Absorption: | 24 V DC; |
Maximum Power: | 5 A |
Power Input: | 55 W nom. / 120 W max |
Thrust: | 2000 N |
Opening Time: | 10÷60 s / 90° |
Max Travel: | 350 mm |
Actuator Maximum Opening: | 110° |
Intermittent Operation: | 30 consecutive cycles at 20°C |
Service Index: | Frequent tested up to 150,000 cycles |
Release System for manual opening: | key-operated |
Operating Temperature: | -20°C / +55°C (-35°C / +55°C with NIO enabled) |
Protection Level: | IP44 |
Weight (kg): | 7.8 |
Control panel: | LCU30H or LCU40H |
