- Irreversible for intensive use.
- 24 V DC motor
- For wing up to 3.5 m.
- Complete with brackets. mechanical limit stops and plastic screw protection.
PWR35H – Automatic Swing Gate Actuator, 3.5m
From : Ditec Entrematic
£306.80 ex vat
Part code: PWR35H
Category: Motors
Technical
Description | PWR35H |
Electromechanical actuator: | Irreversible for up to 3.5 m wide wing |
Stroke Control: | Limit switch, magnetic limit switch (optional) |

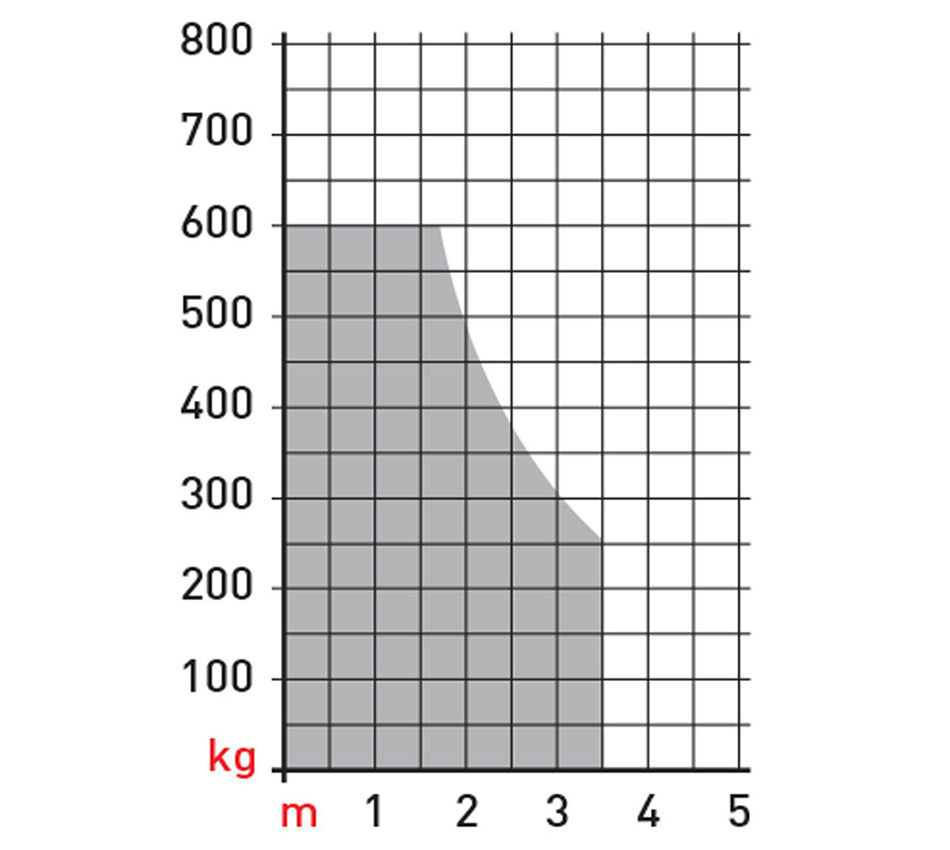

Maximum Capacity: | 600 kg x 1.75 m 250 kg x 3.5 m |
Power Absorption: | 24 V DC; |
Maximum Power: | 5.5 A |
Power Input: | 65 W nom. / 132 W max |
Thrust: | 3000 N |
Opening Time: | 14÷80 s / 90° |
Max Travel: | 450 mm |
Actuator Maximum Opening: | 110° |
Intermittent Operation: | 50 consecutive cycles at 20°C |
Service Index: | Intensive: tested up to 300,000 cycles |
Release System for manual opening: | key-operated |
Operating Temperature: | -20°C / +55°C (-35°C / +55°C with NIO enabled) |
Protection Level: | IP44 |
Weight (kg): | 9 |
Control panel: | LCU30H or LCU40H |
