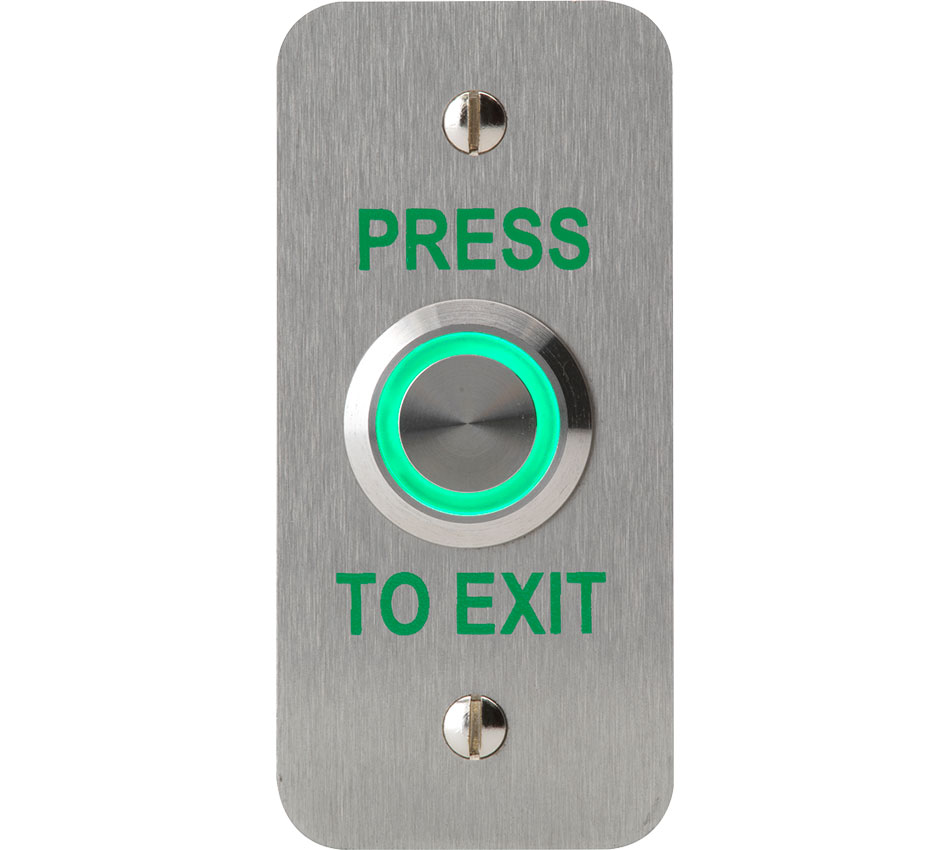

Press To Exit Vandal Resistant Illuminated Button - Single Pole - Jamb

Press To Exit Vandal Resistant Illuminated Button – Single Pole – Jamb

From : Insight Automation

£46.62 ex vat

  • IP67 Ingress protection as per IEC 60529
  • 12-24Vdc halo illumination
  • Momentary contact
  • 1 x Normally Open, 1 x Normally Closed & 1 x Common Circuit
  • -30 Deg. C to +70 Deg. C operating range
  • IK10 Impact resistance as per IEC62262
  • Silver contacts
  • 2mm protrusion from panel
  • CE Declaration of conformity
  • CB, UL, C UL, CCC Approbations
Trade Customer?

Register today and you'll gain access to savings of up to 50% off listed price.

Register Now
Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Contact Us
Part code: 0658G-1NS-PTE Categories: , , Brand:
Contact

Momentary

Motif

Press to Exit

Poles

Single Pole

Size

Jamb

Illuminated

Yes

Technical

Electrical
Electrical strength2500 VAC, 50 Hz 1 min. between life terminals and ground,1000 VAC, 50Hz 1 min. between life terminals
Contact Resistance (initial)<50mΩ
Switch rating DC service categorie DC-130.7A @ 24Vdc
Insulation Resistance500 VDC at min. 10Ω according to IEC 60512-2
Life100,000 cycles of operation
Illumination10mA @ 24Vdc
Mechanical
Travel2.5mm
Operating Force6N
Life (nominal)1 Mio. cycles of operation
Environmental
Shockmax. 500m/s2 according to IEC 60068-2-27
Operating Temperature Range-30°C to +70°C
Ingress ProtectionIP67, as per IEC 60529
Impact RatingIK 10, as per IEC 62262
Contact MaterialSilver alloy
Terminal HousingPolyamide 66 (PA66)
HousingStainless steel polished or brushed
Material
Plate materialGrade 304 DP1 stainless steel (2mm)

Related products

Push to Exit Vandal Resistant Button – Double Pole

Part Code: 0658NDP-1PTE
£62.88 ex vat
Discontinued

Gate Release Vandal Resistant Illuminated Button – Single Pole

Part Code: 0659NI-1-E-GR
£105.84 ex vat

Door Release Vandal Resistant Button

Part Code: 0658N-1DR
£28.36 ex vat
Discontinued

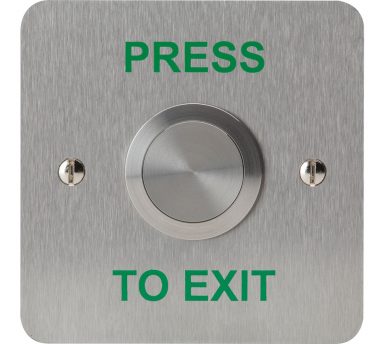

Push to Exit Vandal Resistant Button
