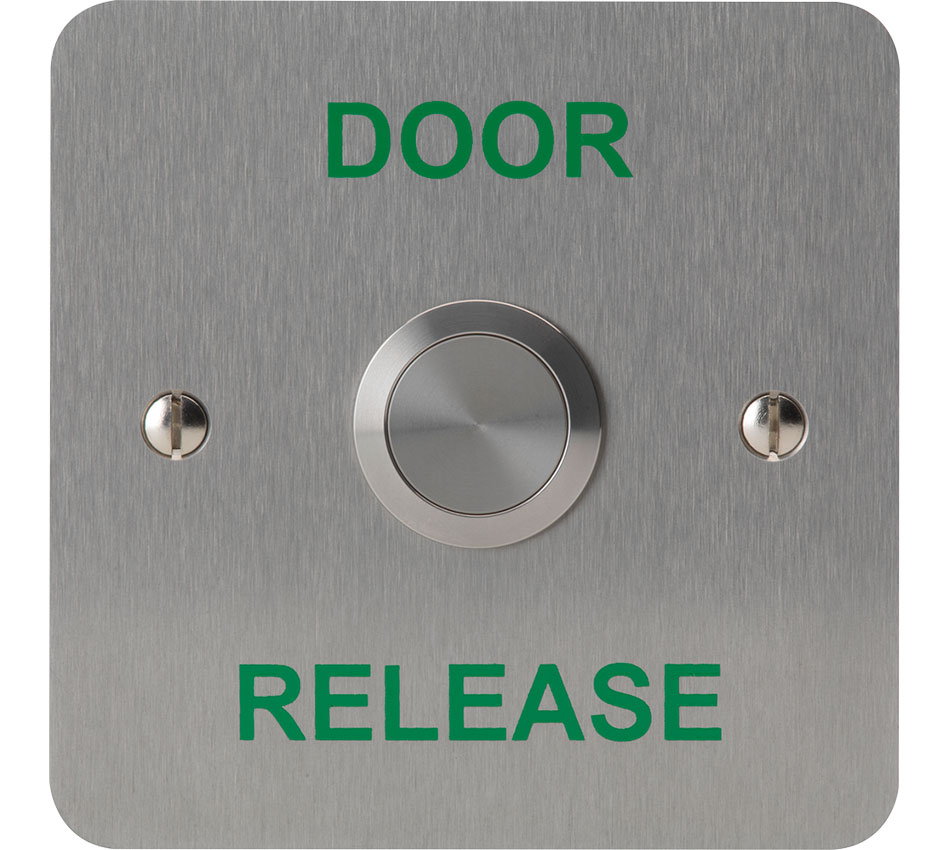

The 3E0688-1PTE vandal resistant button is highly suitable for applications in harsh environments. Panel sealed to IP67 (front side actuation area) and IK 07 shock resistance. Both switch body and switch actuator are machined precisely
from quality stainless steel to stringent tolerances. The switch has a machined return which accommodates the neoprene “o” ring to seal the unit to the panel without visible signs of the washer.

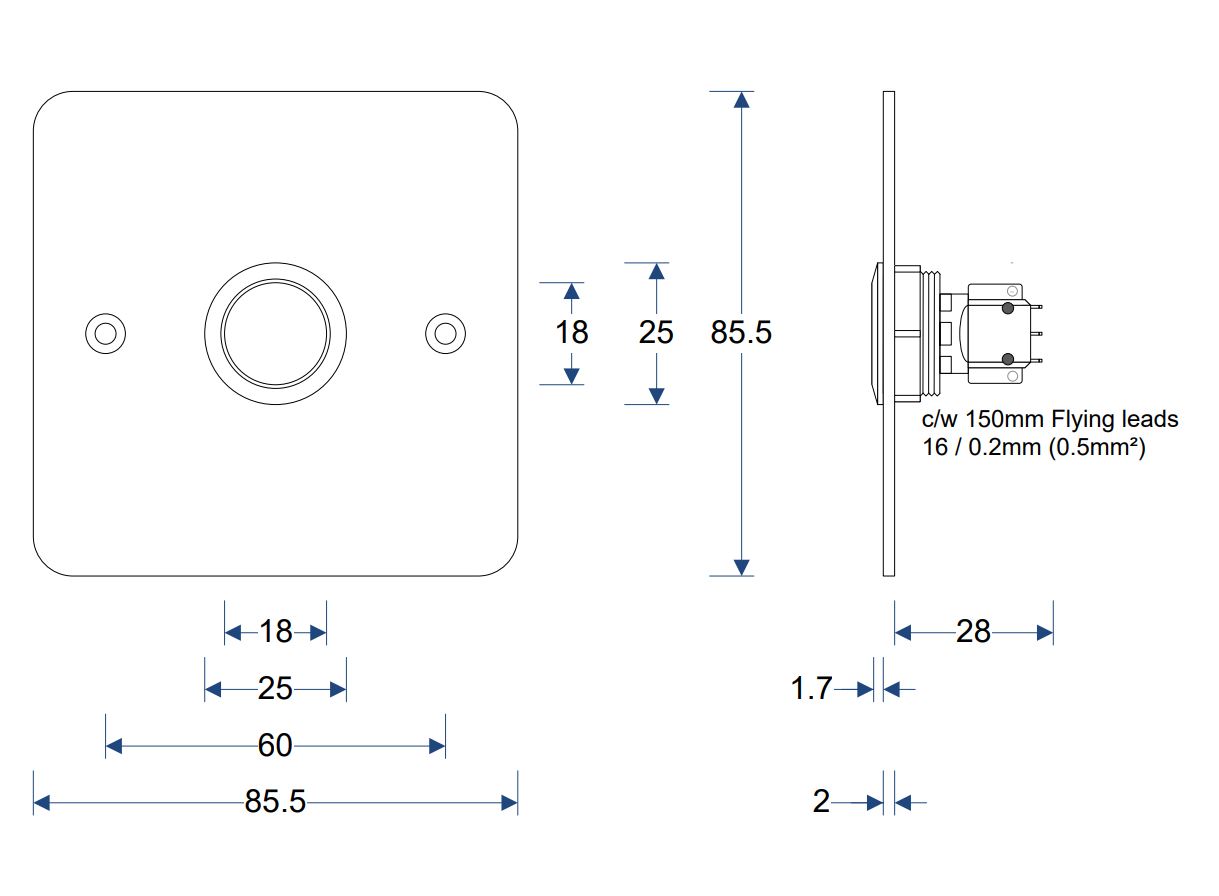

A panel projection of just 1.7mm increases the resistance to attack.
The switch has a momentary contact providing one normally open, one normally closed and one common terminal (terminals are soldered with 16/0.2mm and then a chloroprene sleeve is positioned to increase protection).
Product is supplied flush mount, complete with fixings and a single gang, 35mm galvanised steel electrical backbox.
