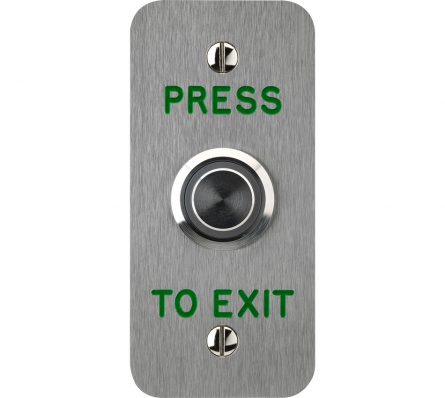

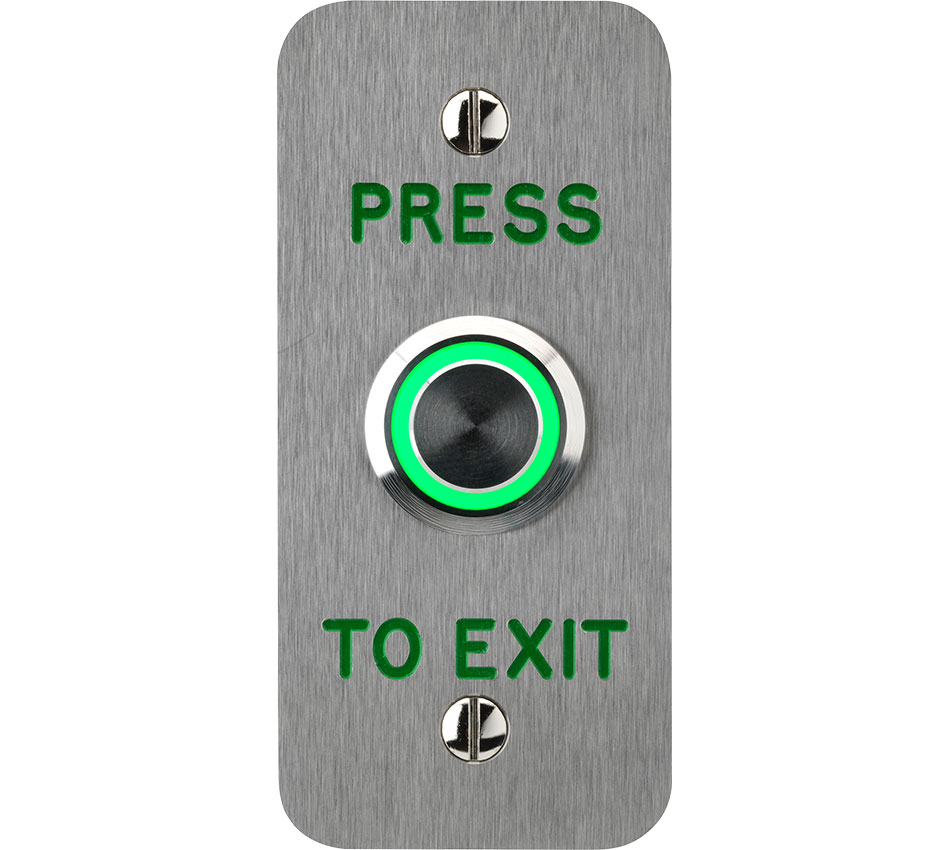

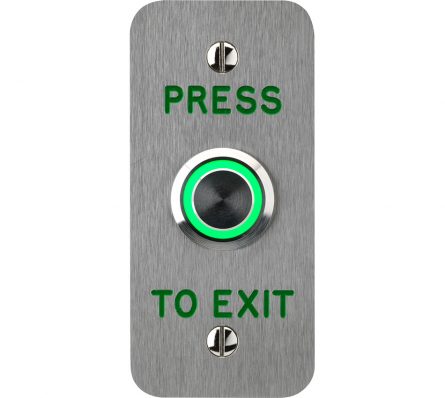

Press to Exit Vandal Resistant Illuminated Button – Single Pole – Jamb

From : Insight Automation

£46.62 ex vat

  • IP67 Ingress protection as per IEC 60529
  • 12-24Vdc halo independent illumination
  • Momentary contact
  • 1 x Normally Open, 1 x Normally Closed & 1 x Common Circuit
  • Raised actuator
  • -30 Deg. C to +70 Deg. C operating range
  • IK10 Impact resistance as per IEC62262
  • Silver contacts
  • CE Declaration of conformity
  • CB, UL, C UL, CCC Approbations
Trade Customer?

Register today and you'll gain access to savings of up to 50% off listed price.

Register Now
Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Contact Us
Part code: 0658G-P-1NS-E-PTE Categories: , ,
Contact

Momentary

Motif

Press to Exit

Poles

Single Pole

Size

Jamb

Illuminated

Yes

Technical

Electrical
Contact Resistance (initial)<50mΩ
Life100,000 cycles of operation
Electrical strength2500 VAC, 50 Hz 1 min. between life terminals and ground,1000 VAC, 50Hz 1 min. between life terminals
Insulation Resistance500 VDC at min. 10Ω according to IEC 60512-2
Illumination10mA @ 24Vdc
Switch rating DC service categorie DC-130.7A @ 24Vdc
Mechanical
Life (nominal)1 Mio. cycles of operation
Operating Force6N
Travel2.5mm
Environmental
Contact MaterialSilver alloy
Terminal HousingPolyamide 66 (PA66)
HousingStainless steel polished or brushed
Shockmax. 500m/s2 according to IEC 60068-2-27
Operating Temperature Range-30°C to +70°C
Ingress ProtectionIP67, as per IEC 60529
Impact RatingIK 10, as per IEC 62262
Material
Plate materialGrade 304 DP1 stainless steel (2mm)
