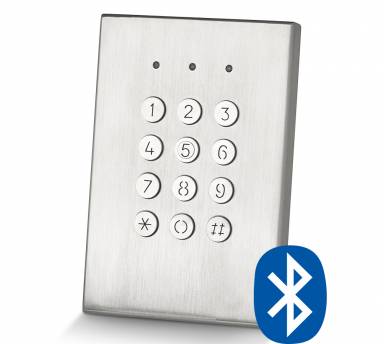

- Operating voltage 12~24Vdc
- Die-cast metal
- Bluetooth
- Backlit keypad
- Built in tamper alarm and buzzer (85dB)
- Weather resistant: IP65
- Vandal resistant
- 2 LED displays: Red and Green
- With audible indication
- Current draw: Pull in: 100mA/12Vdc; Holding: 70mA/12Vdc.
- Pull in: 50mA/24Vdc; Holding: 35mA/24Vdc.
- Input: Request-to-Exit, timeout reed switch contact.
- Output: Dual relays, N.O./N.C/Com.
- Relays rating: 2A MAX@30Vdc., 0.6A@120Vac.
- Programmable 4 digit code.
- RF frequency: EM 125 KHz.
- Relay strike time: 01~99 seconds or toggle mode (00).
- Read range: 5cm. (In noise -free environment).
- Dimensions 120 × 76 × 21 mm
