- Operating voltage 12~24Vdc

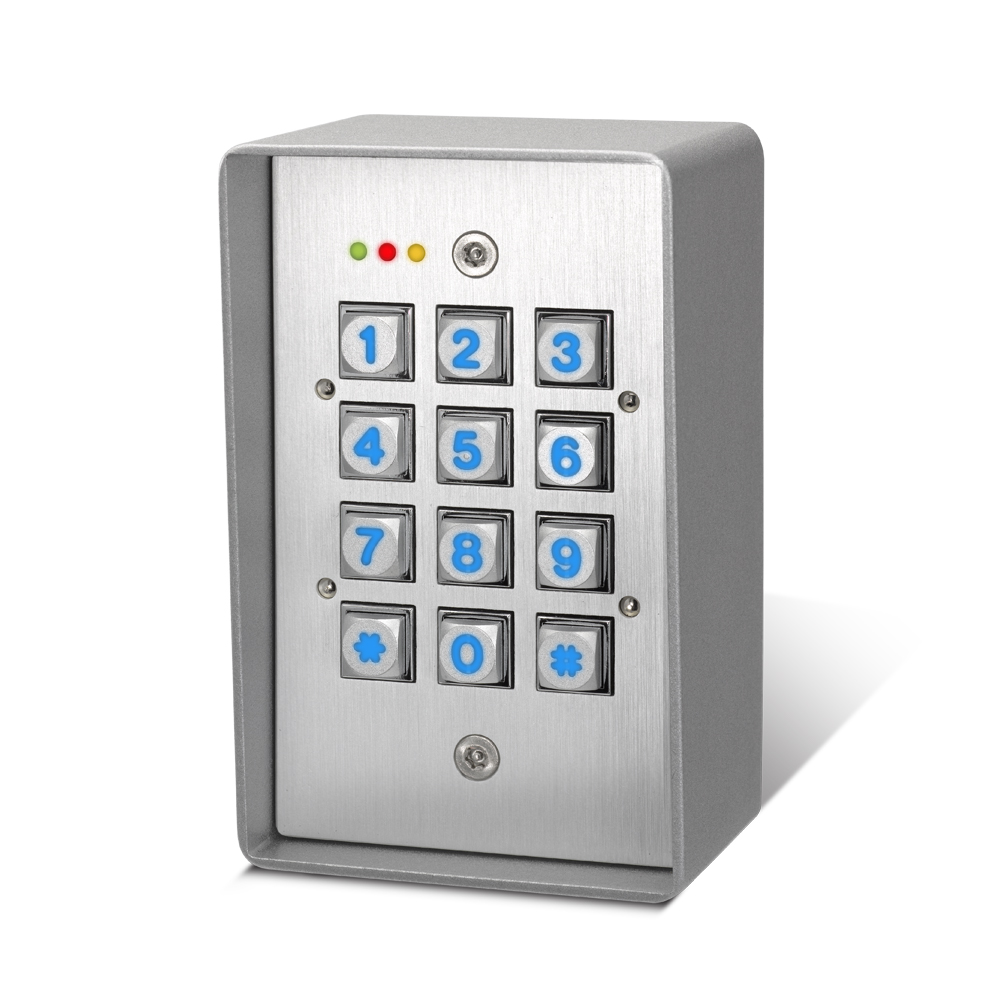

- Die-cast Aluminium
- Allows up to 20+1 PIN codes
- Backlit keypad
- Dual relays output for multi-control
- Weather resistant
- Vandal resistant
- 3 LED displays: Red, Yellow and Green
- With audible indication
- Current draw: Average 15mA, Peak 100mA@12Vdc.
- Input: 2 x Request-to-exit, timeout reed switch contact.
- Output: Dual relays, N.O./N.C/Com. Output (volt free contact).
- Relays Rating: 2A MAX@30Vdc., 0.4A@120Vac.
- Fully programmable via keypad and master code.
- Factory master code: 12345.
- Invalid PIN Lock-out: The system will shut down for 60 seconds while 30 codes of incorrectly Master Codes enrolled or Pin codes attempted (None beeper signal of keypad activations).
- Memory Volume: 20+1 PIN codes.
Relay 1 is controlled by *01~*20 user slots.
Relay 2 is controlled by *21 user slots. - Dimensions 123 × 77 × 64 mm
