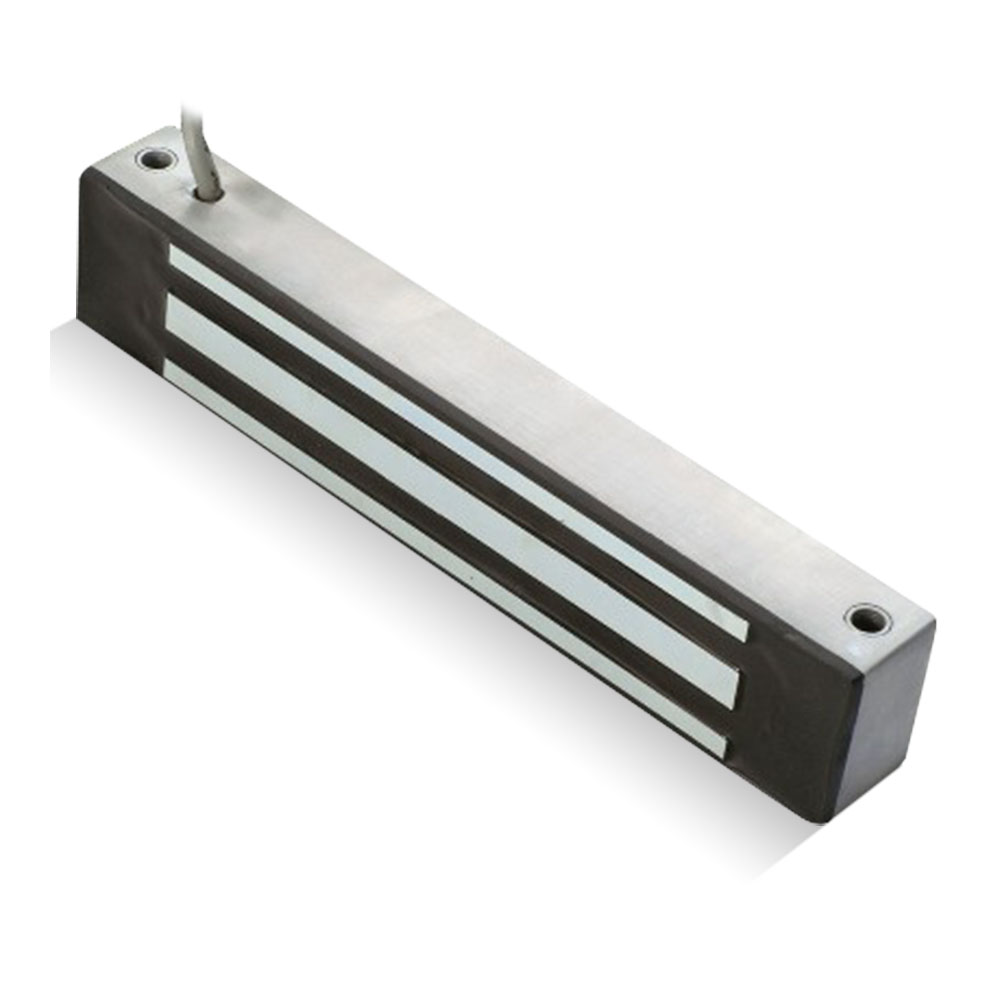

- Operating voltage 12Vdc
- Monitored
- Stainless Steel housing
- Holding force up to 600lbs (272Kg)
- Weather resistant: IP65
- Vandal resistant
- Standard fix
- Voltage tolerance: ±15%.
- Current draw: 340mA at 12Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
- Humidity: 0~95% non-condensing.
- Special Zinc finishes for magnet and armature plate.
- Weight: 3.5kg (approx).
- Dimensions 218 × 44 × 27.5 mm
