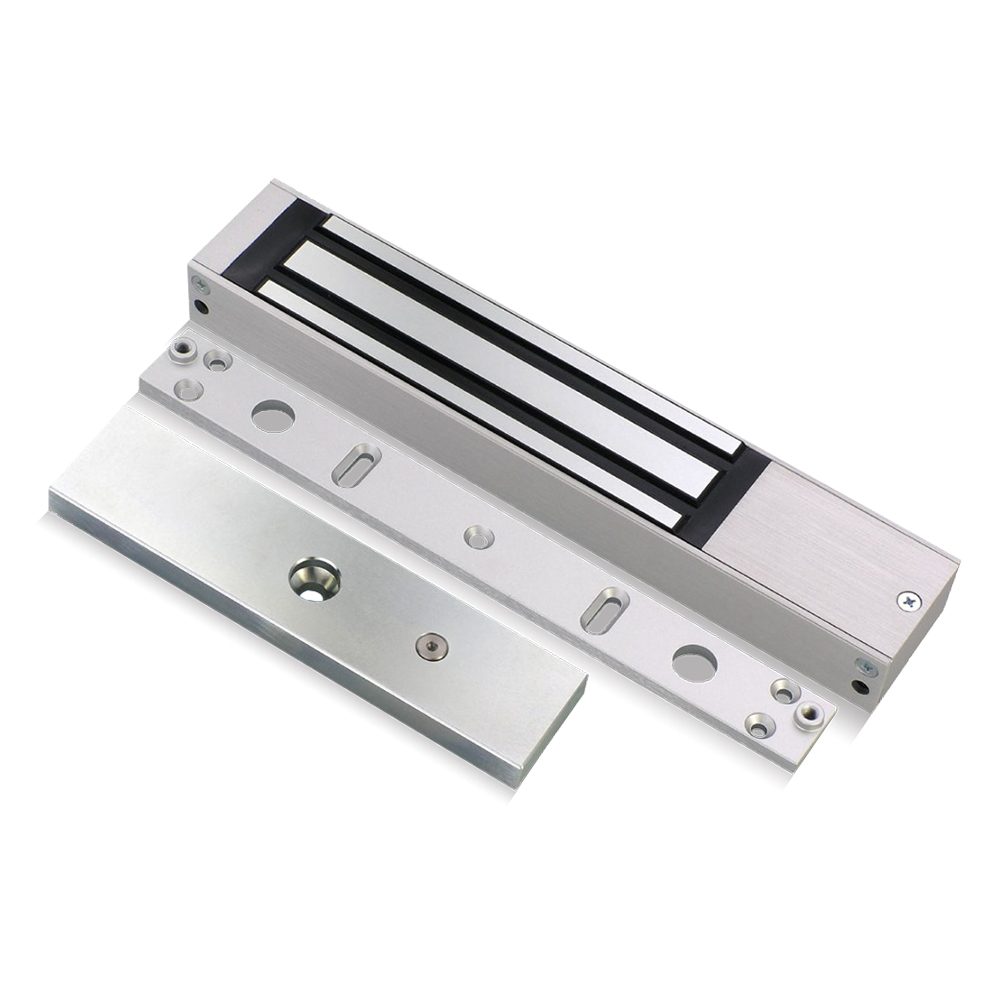

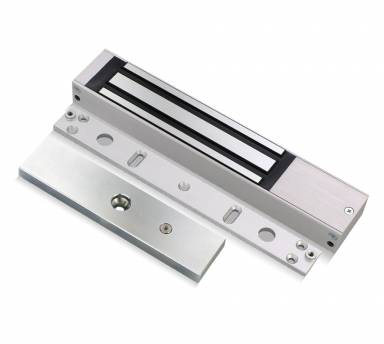

12-24Vdc, 800lbs, Single Midi Maglock – Monitored with Large LED at Rear

• Operating voltage 12~24Vdc
• Aluminium
• Fail-Safe (Power-to-Lock)
• Holding force up to 800lbs (363Kg)
• Surface mount
• Status LED: RED and GREEN
• Voltage tolerance: ±15%.
• Current draw: 500mA at 12Vdc, 250mA at 24vdc (at temperature 20°C).
• Operating temperature: -10~55°C (14 to 131°F).
• Lock’s surface temperature: Current temperature ±20% (when power is on).
• Magnetic bond sensor monitor remotely monitors the door lock or unlock status. (N.C. Output-door opened; N.O. Output-door closed) (SPDT rated 3A at 12Vdc)
• Humidity: 0~95% non-condensing.
• Special Zinc finishes for magnet and armature plate.<
• Weight: 5.0kg (approx).
• Dimensions 265 × 49 × 29 mm
