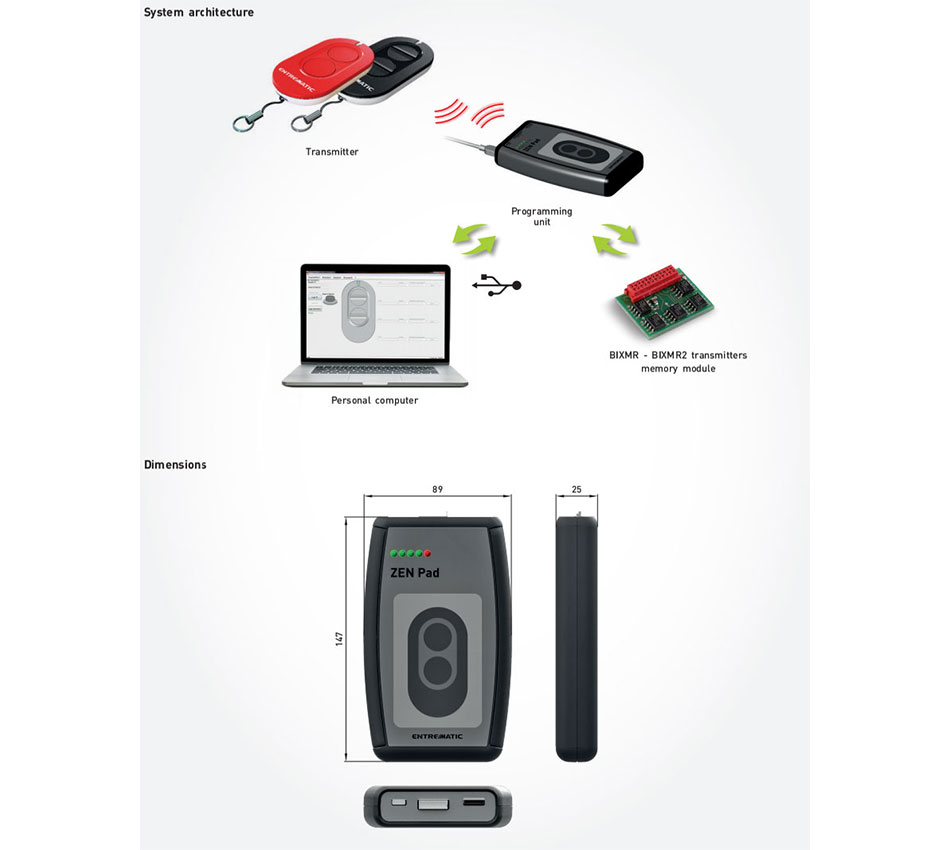

Programming unit for 433 MHz / 868 MHz ZEN transmitters that allows rapid programming of memory modules.
Protected mode, for business protection:
Thanks to the ZENPAD programming unit it is possible to assign a unique installation code to a memory module that will be associated with all the remote control units that belong to such module (protected mode). In this way it is possible to create transmitters that are already programmed and ready for use that will be added, or that will replace, or cancel, existing transmitters
ZEN MANAGER is a complete software solution that enables installation management at three levels:
Transmitter menu:
- Display the factory model and code
- Read the configuration
- New configuration
- Restore the factory configuration
- Configure a multi-protocol remote control: each key can be configured independently using a different language (fixed code, rolling code, encrypted AES 128-bit, protected mode).
Transmitter (BIXMR / BIXMR2) memory module menu:
- Check the list of authorisations of associated transmitters
- Read the data and list of the transmitters with the possibility to add a new transmitter, change the channel configuration, transfer the list to an archive or a memory module backup and create a database of remote control units on a PC.
- Write a new list of remote controls into a memory module
- Reset
- Organize memory modules by installation to which they belong
Installation menu:
- Total management of each installation
- Installation information: date of installation, description, location, etc.
- Display of plants on an interactive map.
- Registration of maintenance interventions on the plant
- Generate CSV report
SYSTEM REQUIREMENTS:
Compatibility with a Windows 7, 8 or 10 operating system Framework .NET version 4.5 or later Administrator rights are necessary to carry out the SW installation
ZEN MANAGER is available in the download area of www.ditecentrematic.com site
