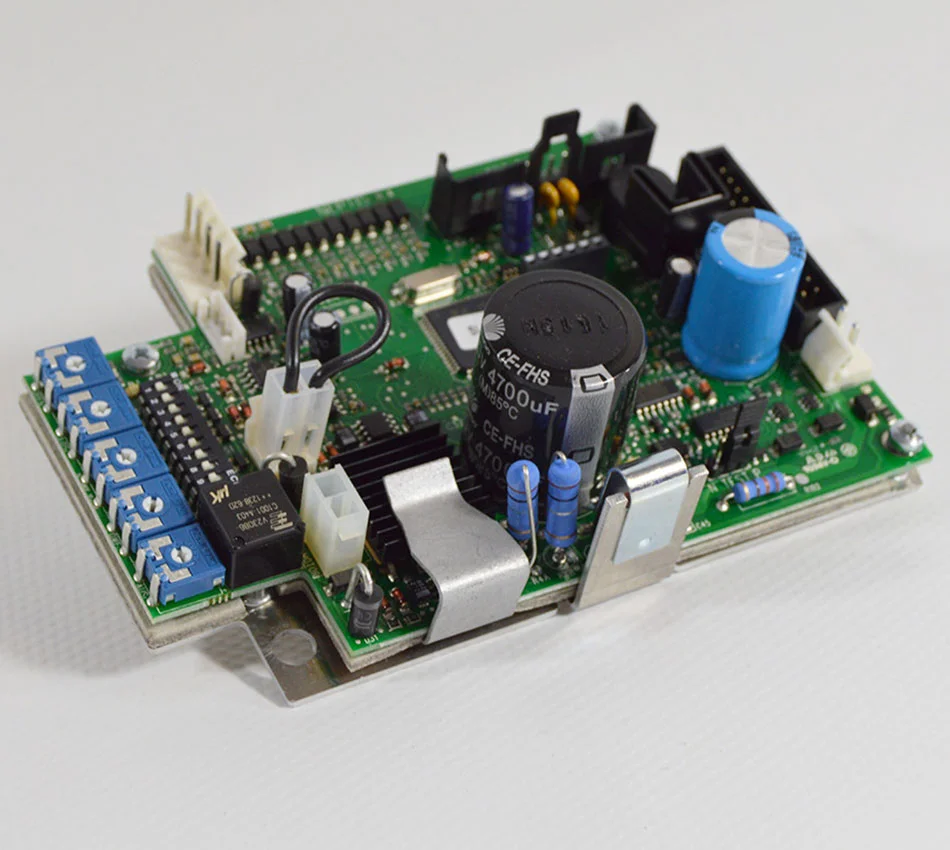

QE99 Control Panel for use with the Ditec Entrematic WEL S & WEL M Fully Automatic Operators.
Wiring provisions on QE99 Control Panel
- 24V dc Motor with Encoder
- Opening limit switch, for slow down trigger or safety cut off
- Battery backup
- Lock output, 24Vdc / 1.2A maximum
- Accessory output, 24Vdc / 0.5A maximum
- N/O Automatic closing trigger
- N/O Internal Opening trigger
- N/O Closing trigger
- N/C Opening Safety trigger
- N/C Closing Safety trigger
- N/C Emergency Stop trigger
- Reset trigger
- Terminals for PC connection or COM selector
Potentiometers include
- VA – Opening speed
- VC – Closing speed
- TC – Hold open time
- RF – Motor thrust
For the WEL E Low Energy Operator, Click here to navigate to the EL12E Control Panel
