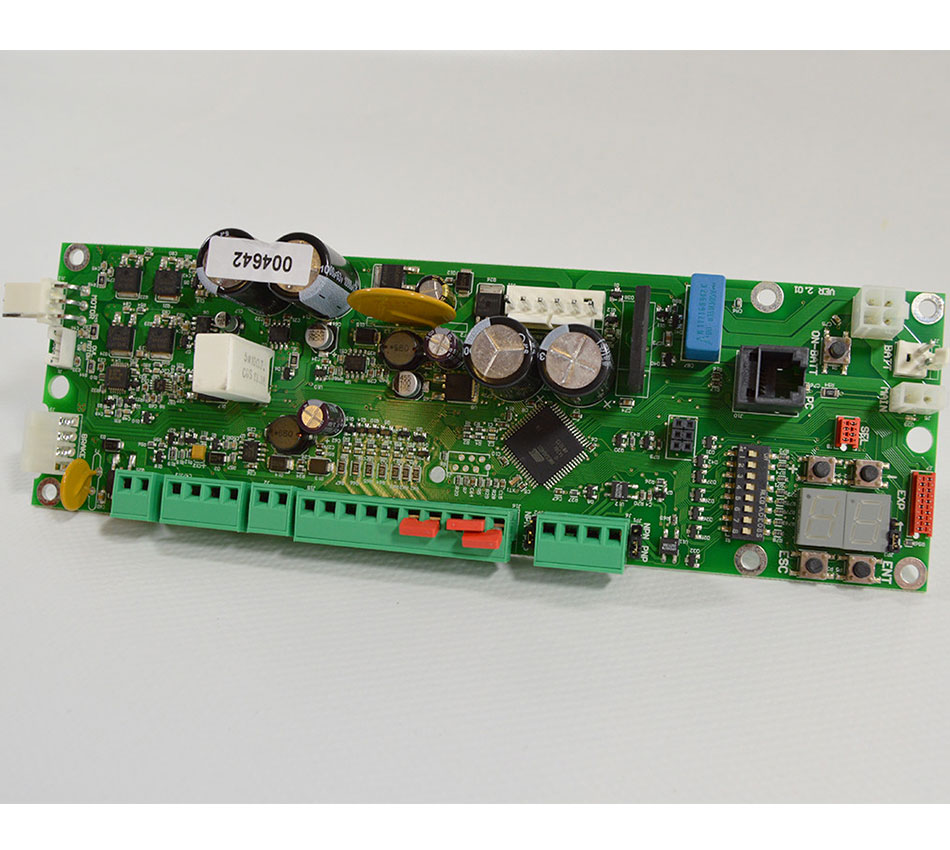

Type 95 / 1950 Control Panel for use with the Ditec Entrematic TRANSIT Fully Automatic Operator.
Wiring provisions on Type 95 / 1950 Control Panel
- 24V dc Motor
- Opening & closing limit switches
- Lock output, 24Vdc / 1.2A maximum
- Accessory output, 24Vdc / 0.5A maximum
- N/O Opening trigger
- N/C Opening Safety trigger
- N/C Closing Safety trigger
Potentiometers include
- TA – Opening command duration
- TC – Hold open time
- VA – Opening speed
- VC – Closing speed
- RA – Opening speed slow down (when triggered by limit switch)
