NeoS+ 600 – 24 V DC Intensive Use Gear Motor Up To 600kg

From : Ditec Entrematic

£746.85 ex vat

The Ditec NeoS+ adds advanced functions and exclusive technical characteristics including an evolutionary control panel for a more accurate adjustment of all the supplementary parameters and terminal points facilitating cabling operations and other functions.

In addition to the self-learning process, there are three pre-defined configurations for residential and condominium use and a removable memory where operational parameters can be saved for use on another operating unit.

Thanks to the dedicated terminal point it is possible to make a simple and quick connection of two Ditec NeoS+ operating units in a master/slave configuration for synchronised control of double-wing or interlocked automation systems.

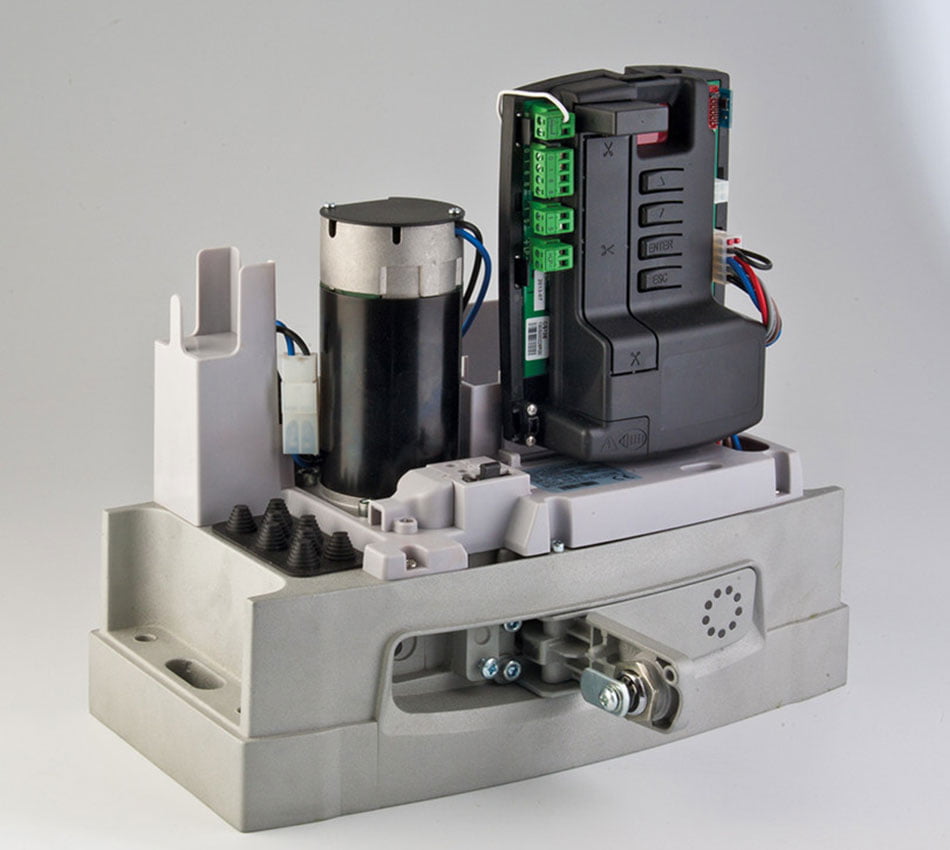

Intensive-use 24 V DC gear motor, for gates up to 600 kg, with built-in magnetic limit switches.

Trade Customer?

Register today and you'll gain access to savings of up to 50% off listed price.

Register Now
Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Contact Us
Part code: NES600EHP Category:
  • Includes a fast-self-learning procedure
  • Continuous electronic control of impact forces and instantaneous obstruction detection
  • It is possible to adapt the automation system to any context by regulating approach distance and speed during opening and closure and initial triggering
  • External LEDs allow you to easily monitor the status of the operating device without opening the cover
  • Resettable counter for the partial and total number of operations which can be used to set a threshold for programmed maintenance
  • 433 MHz as the standard frequency and 868 MHz in the case of frequency disturbance or interference
  • High-quality materials and the internal layout of components were selected to last and to withstand humidity, dust and insects
  • ITT tests passed with active and passive safety edges in accordance with the EN 12453 standard. EN ISO 13849-1 and EN ISO 13849-2 (functional safety) certified by TÜV Rheinland

Technical

DescriptionNeoS+ 600
Electromechanical actuatorfor sliding gates  up to  400 kg
Stroke controlLimit Switch + Virtual encoder
Capacity600 kg
Maximum opening20 m
Service index4 – intensive
Intermittent operationS2 = 30 min
S3 = 50%
Power absorption230 V AC
50/60 Hz
Motor power supply24 V DC
Power input1.5 A
Thrust600 N
Opening and closing speed0.1 – 0.24 m/s
Release system for manual openingkey-operated
Operating temperature-20°C / +55°C
(-35°C / +55°C with NIO enabled)
Protection levelIP 24D
Product dimensions (mm)335x220x325
Control panelCS12E – CS12M
(built-in)
