Ditec Arc 1BH – Automatic Swing Gate Opener, Up to 5m, 500 kg
From : Ditec Entrematic
£527.15 ex vat
Extremely Robust Electromechanical actuator for swing gates up to 500kg or 5 meters.
Irreversible electromechanical actuator, for intensive use, 24 V DC motor,
for up to 5 m wing.
- Suitable for large pillars that may even be out of plumb.
- Safe: Immediate detection of instructions.
- Sturdy: Suitable for gates up to 5m wide or weighing up to 500kg. (500 kg x 3 m, 250 kg x 5 m)
- Versatile: Able to open up to an angle of 130 °c, emergency battery powered options available.
Technical
| Ditec Arc 1BH | |||
|---|---|---|---|
| Electromechanical actuator | irreversible for up to 5 m wide wing | ||
| Stroke control | rotary limit switch (optional) | ||

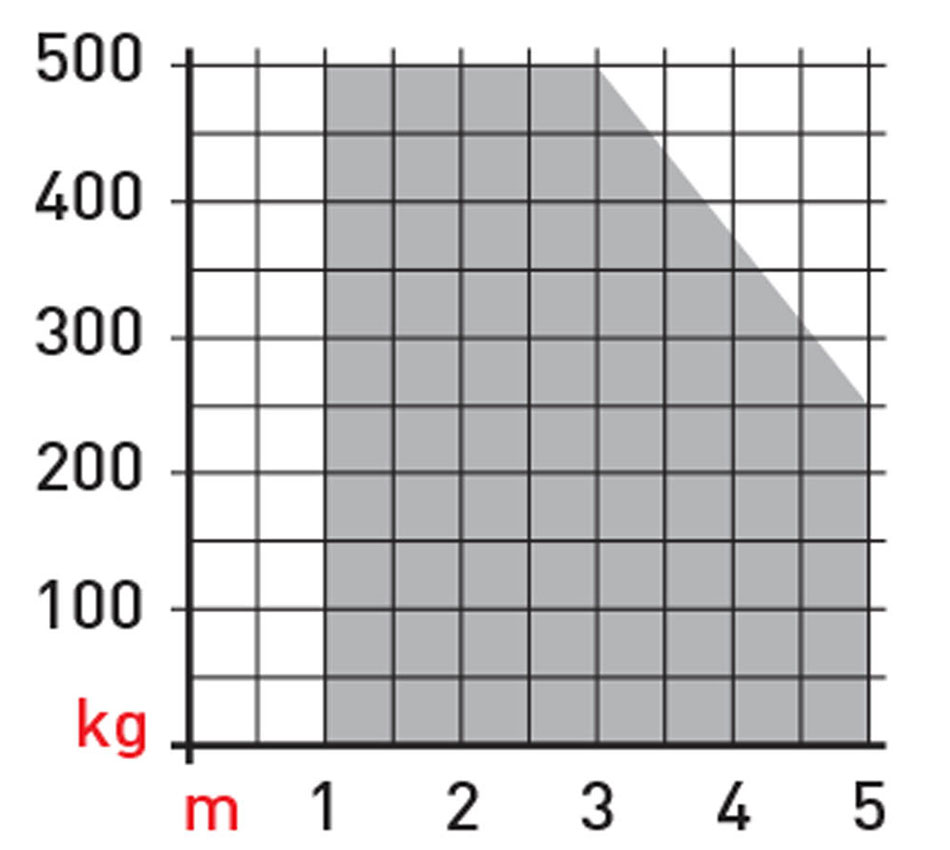

| Maximum capacity | 500 kg x 3 m 250 kg x 5 m | ||
| Service index | 4 – intensive | ||
| Intermittent operation | S2 = 30 min S3 = 50% | ||
| Power absorption | 24 V DC | ||
| Power input | 12 A | ||
| Torque | 300 Nm | ||
| Opening time | 09÷50 s/90° | ||
| Actuator maximum opening | 130° | ||
| Release system for manual opening | key-operated | ||
| Operating temperature | -20°C / +55°C (-35°C / +55°C with NIO enabled) | ||
| Protection level | IP 54 | ||
| Product dimensions (mm) | 374x130x150 | ||
| Control panel | LCU40H | ||
