Ditec Arc BH, Automatic Swing Gate Opener, up to 2.5m 200 kg

From : Ditec Entrematic

£391.30 ex vat

Robust Electomechanical actuator for swing gates up to 200kg or 2.5 meters. Designed for intensive use.

Trade Customer?

Register today and you'll gain access to savings of up to 50% off listed price.

Register Now
Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Contact Us
Part code: ARCBH Category:

Irreversible electromechanical actuator, for intensive use, 24 V DC motor,
for up to 5 m wing.

  • Suitable for large pillars that may even be out-of-plumb.
  • Safe: The 24 V DC motor with a virtual encoder provides constant adjustment of the force of impact and immediate detection of obstructions.
  • Sturdy: Suitable for gates with wing up to 2.5 m wide or weighing up to 200 kg.

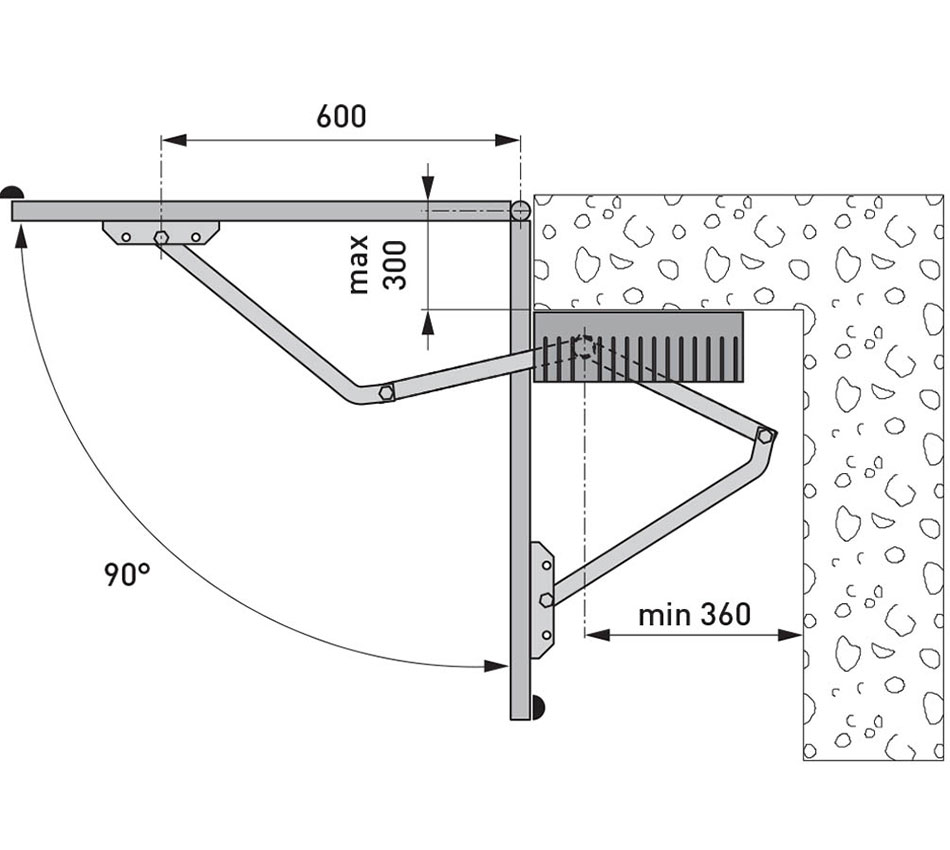

  • Versatile: the automation system is suitable for opening to an angle of up to 130° it has an optional remote-operated release system and an optional plate for lateral installation.

Technical

Ditec Arc BH
Electromechanical actuatorirreversible for up to 2.5 m wide wing
Stroke controlrotary limit switch (optional)
Maximum capacity200 kg x 2 m
150 kg x 2.5 m
Service index4 – intensive
Intermittent operationS2 = 30 min
S3 = 50%
Power absorption24 V DC
Power input3 A
Torque150 Nm
Opening time12÷100 s/90°
Actuator maximum opening130°
Release system for manual openingkey-operated
Operating temperature-20°C / +55°C (-35°C / +55°C  with NIO enabled)
Protection levelIP 54

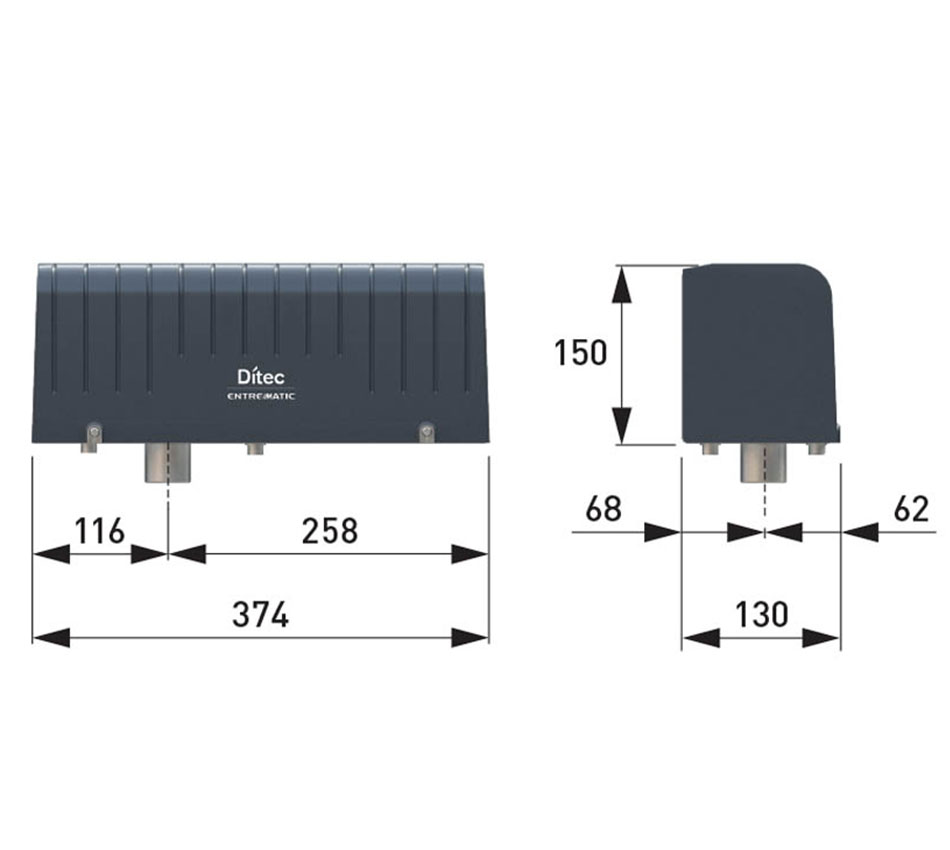

Product dimensions (mm)374x130x150
Control panelLCU40H
LCU40H
