| EAGLE ARTEK | |
|---|---|
| Technology | microwave |
| Transmitter frequency | 24.15 GHz |
| Transmitter radiated power | < 20 dBm EIRP |
| Transmitter power density | < 5 mW/cm² |
| Detection mode | motion |
| Max. detection range | Wide: 4m x 2m Narrow: 2m x 2.2m Based on installation height of 2.2m |
| Min. detection speed | 5 cm/s |
| Supply voltage | 12V to 24V AC ±10%; 12V to 24V DC +30% / -10% |
| Mains frequency | 50 to 60 Hz |
| Max power consumption | < 1 W |
| Output | solid state relay (free of polarity) Max. switching voltage: 30V AC/ 42V DC Max. switching current: 100mA (resistive) |
| Mounting height | from 1.8 m to 4 m; |
| Degree of protection | IP54 |
| Temperature range | from -20 °C to + 55 °C |
| Dimensions | 120 mm (L) x 50 mm (H) x 50 mm (W) |
| Tilt angles | 0° to 90° vertical; -30° to +30° lateral |
| Material | ABS |
| Weight | 120 g |
| Cable lenght | 2.5 m |
| Norm conformity | This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information. |

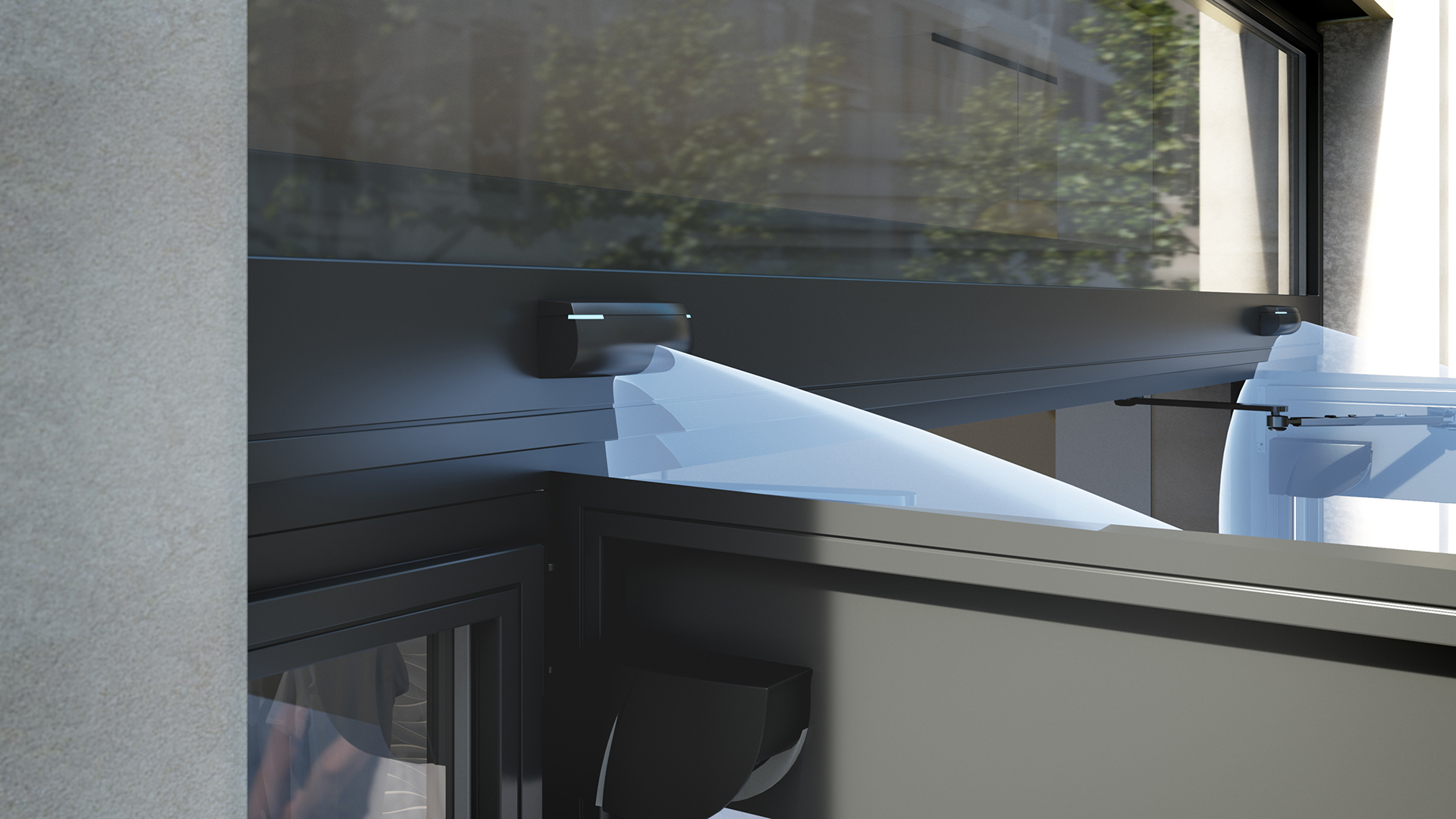

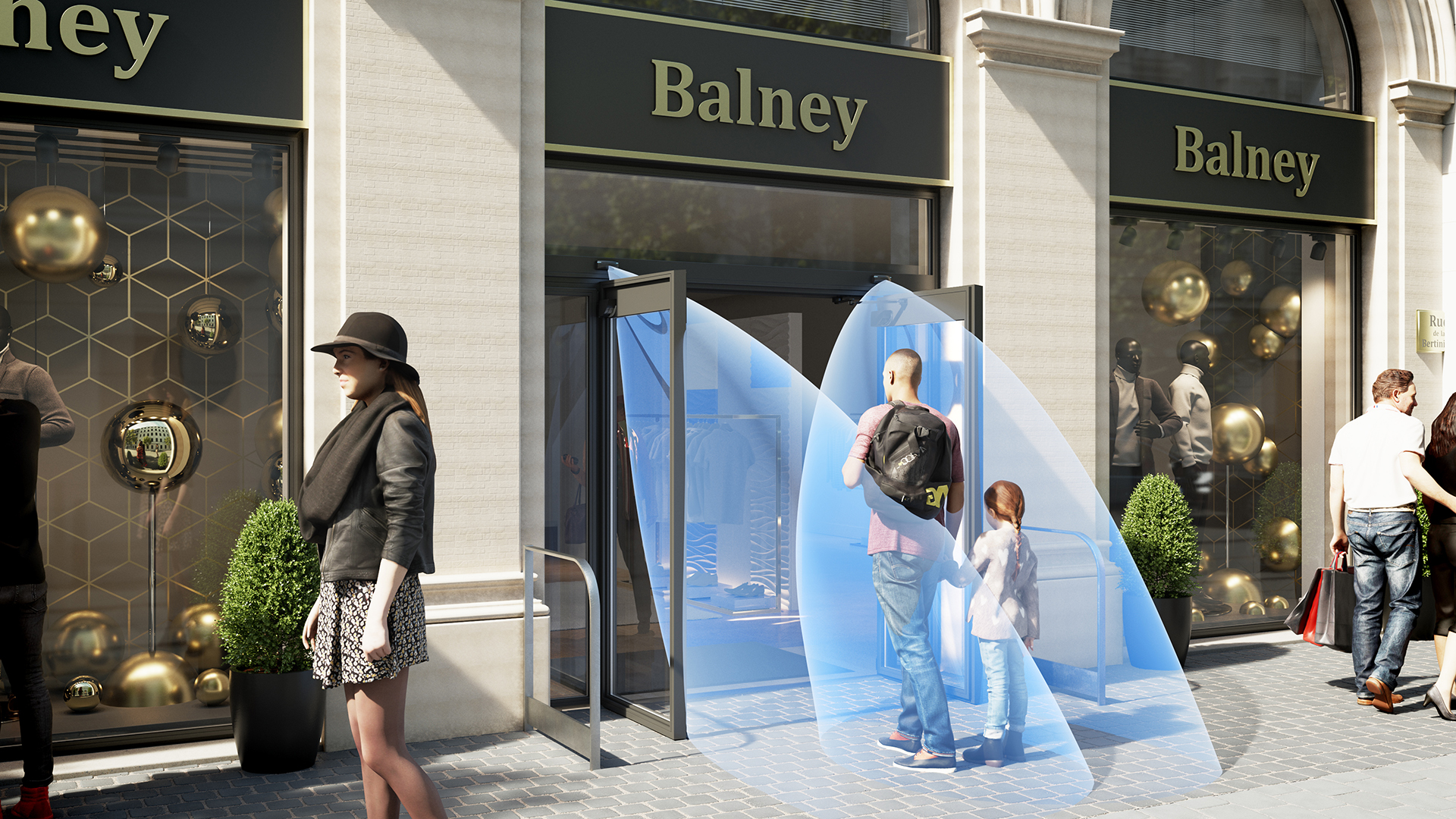

The EAGLE ARTEK is a microwave sensor that can be installed on all types of automatic doors, regardless of the environment. Slim and compact, it is designed to fit the most discreet door operating systems. It offers one-way opening and optimises door opening and closing cycles.
Setting the parameters is flexible and easy using push buttons.
The detection field can be adjusted very simply without changing the antenna manually, as everything is handled electronically.
Stability & reliability
The EAGLE ARTEK benefits from ARTEK radar technology developed by BEA. Based on the performance of EAGLE ONE, this antenna inherits the stability and flexibility of our radar sensors.
Compact design
EAGLE ARTEK’s slim lines and compact dimensions permit discreet integration with all types of operating systems, even the thinnest ones. Because it uses the same installation references as the EAGLE ONE, the EAGLE ARTEK can easily replace an existing installation.
Flexibility
The EAGLE ARTEK offers full electronic management of the radar field. You no longer need to change the antenna to adjust the detection field; shape and size can be quickly adapted using push buttons.
Optimization of cross traffic rejection
Thanks to the improvement of cross traffic rejection, the EAGLE ARTEK better filters out parallel movements at the door that can cause unwanted detections.

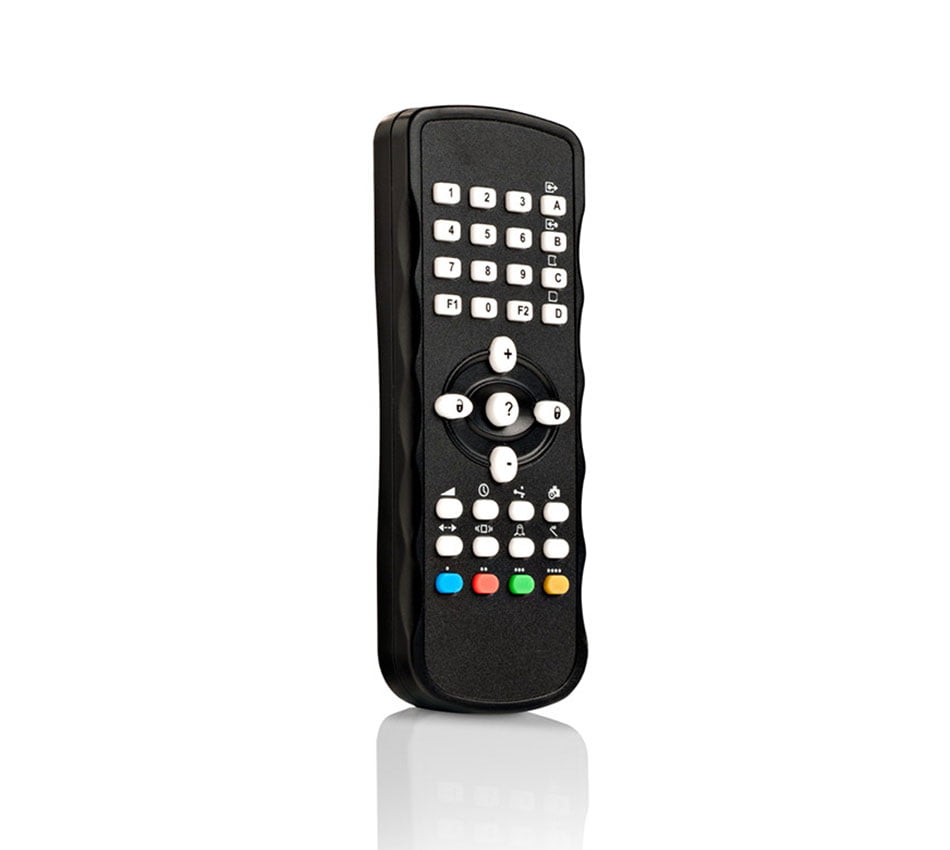

BEA REMOTE CONTROL
Universal remote control for the adjustments of BEA sensors.

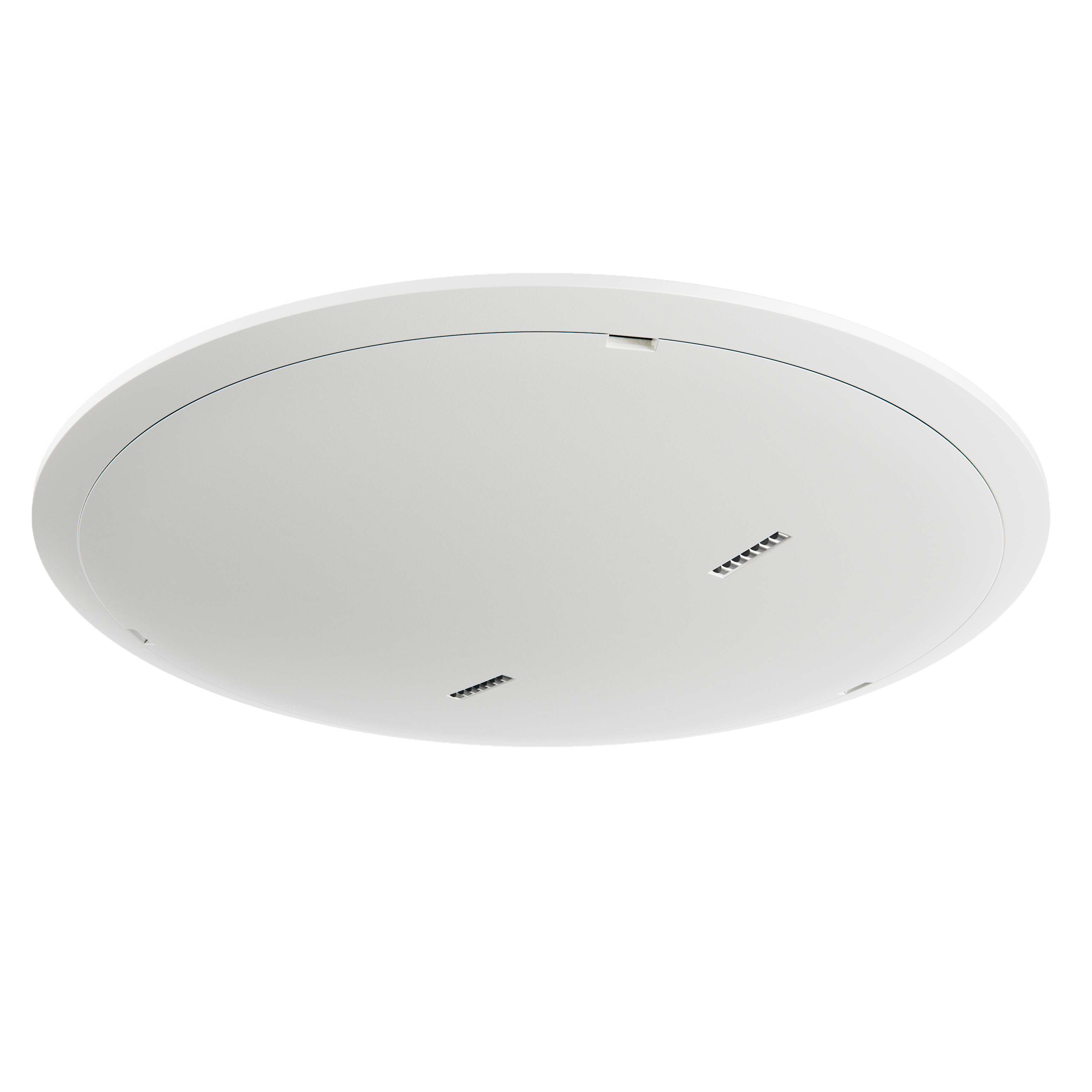

EAGLE ARTEK CA
Ceiling Accessory for the EAGLE ARTEK
EAGLE ARTEK BA
Bracket Accessory for the EAGLE ARTEK

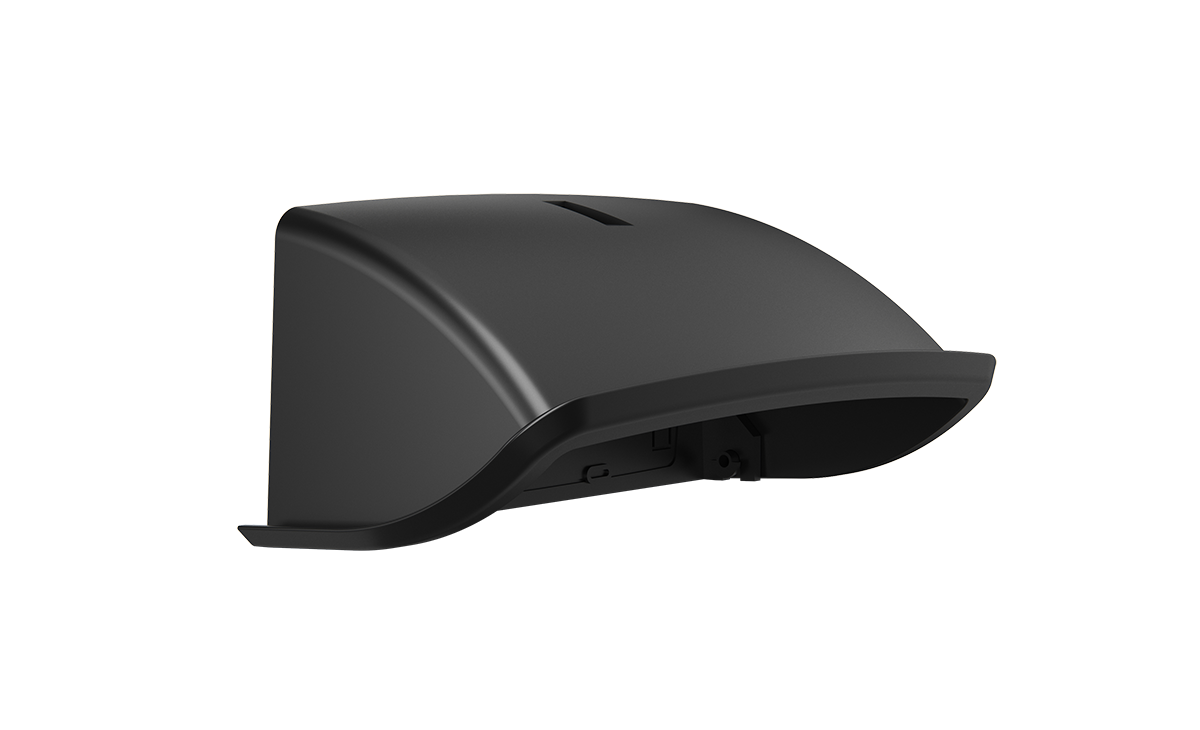

EAGLE ARTEK RA
