The EAGLE is a microwave sensor which can be mounted on all types of automatic doors, irrespective of the surroundings. The EAGLE ONE is a unidirectional motion sensor for standard automatic doors. The EAGLE ONE HM can be used for high mounting up to 5 m. The EAGLE THREE-N is a unidirectional motion sensor specially designed for self-monitored escape route doors. Configuration of parameters is flexible and easy via the remote control or push buttons.

Energy-saving

Improvement of the energy efficiency of buildings thanks to the unidirectional radar, which detects approaching movements and filters out movements moving away: the door closes earlier and reduces heat loss.

Flexibility

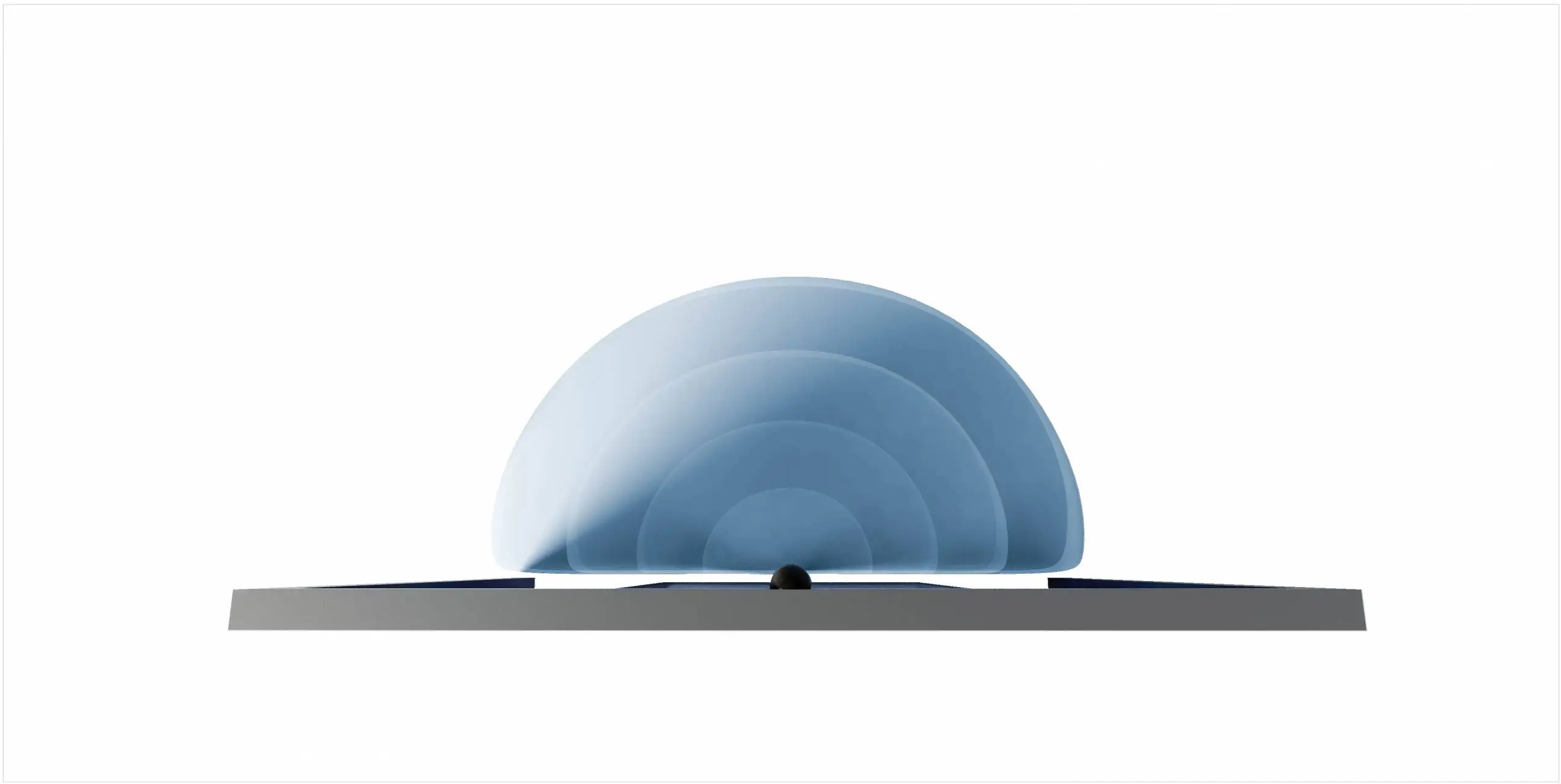

The size and shape of the detection fields can be adapted according to your environment and application.

Stability & reliability

Thanks to the BEA planar antenna and its unidirectional detection mode, the EAGLE offers an high level of stability and reliability.

Alternative mounting possibilites

Possibility to mount the sensor in the floor or in the ceiling. When placed above the hinges of a swing door, the sensors ignores the closing movement of the doors.

 EAGLE ONEEAGLE ONE HMEAGLE THREE-N
Technology

microwave and microprocessor

Transmitter frequency

24.150 GHz

Transmitter radiated power

< 20 dBm EIRP

Transmitter power density

< 5 mW/cm²

Detection mode

motion
Min. detection speed

5 cm/s

Supply voltage

12V to 24V AC ±10%; 12V to 24V DC +30% / -10%

Mains frequency

50 to 60 Hz

Max power consumption

< 2 W

Outputrelay (free of potential change-over contact)
Max. contact voltage: 42V AC/DC
Max. contact current: 1A (resistive)
Max. switching power: 30W (DC) / 42VA (AC)
In no detection status (current source ON)
Max. open-circuit voltage : 6.5V
Output voltage available at 10mA: 3V min.
Typical load: up to 3 optocouplers connected in series, free of potential
Mounting height

from 1.8 m to 4 m;from 4 m to 5 mfrom 1.8 m to 4 m
Degree of protection

IP54
Temperature range

from -20 °C to + 55 °C

Dimensions120 mm (L) x 80 mm (H) x 50 mm (W)

Tilt angles

0° to 90° vertical; -30° to +30° lateral

MaterialABS
Weight215 g

Cable lenght

2.5 m

Norm conformity

This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information.

EAGLE ONE

unidirectional sensor for all types of doors

EAGLE ONE HM

unidirectional sensor for high mounting

EAGLE THREE-N

unidirectional sensor for escape route doors

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
    BEA Remote

    BEA REMOTE CONTROL

    Universal remote control for the adjustments of BEA sensors.

    BEA Eagle Ceiling Mount

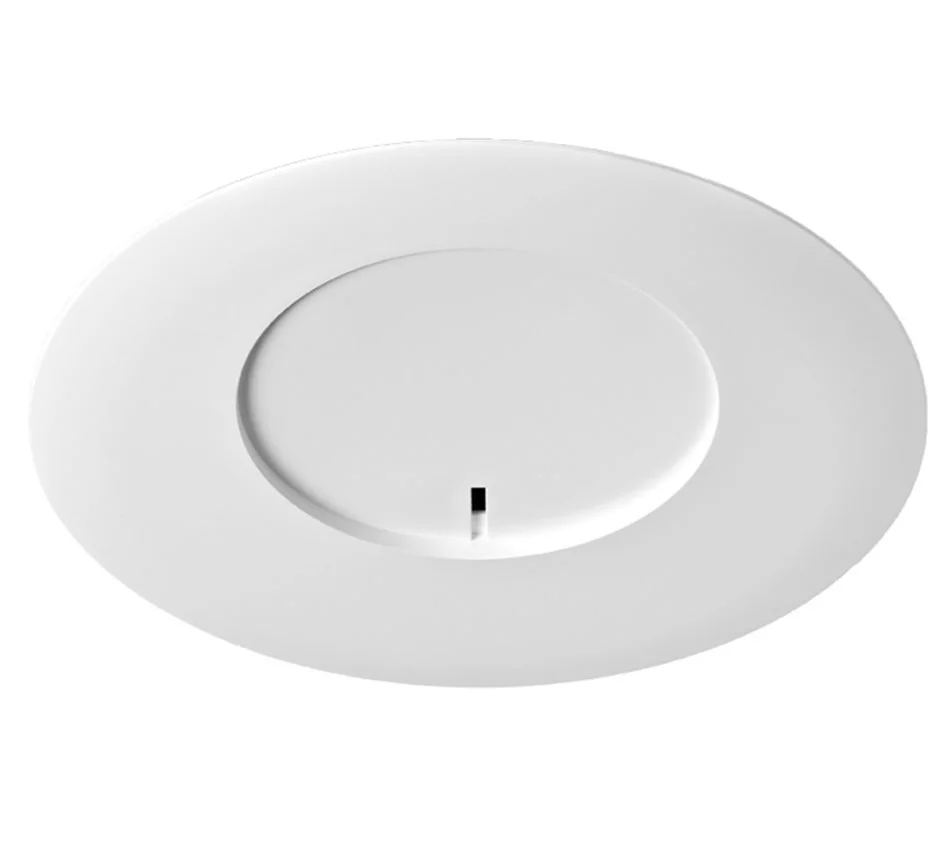

    EAGLE CA

    Ceiling Accessory for the EAGLE

    BEA Eagle Bracket Accessory

    EAGLE BA

    Bracket Accessory for the EAGLE

    BEA Eagle Rain Cover

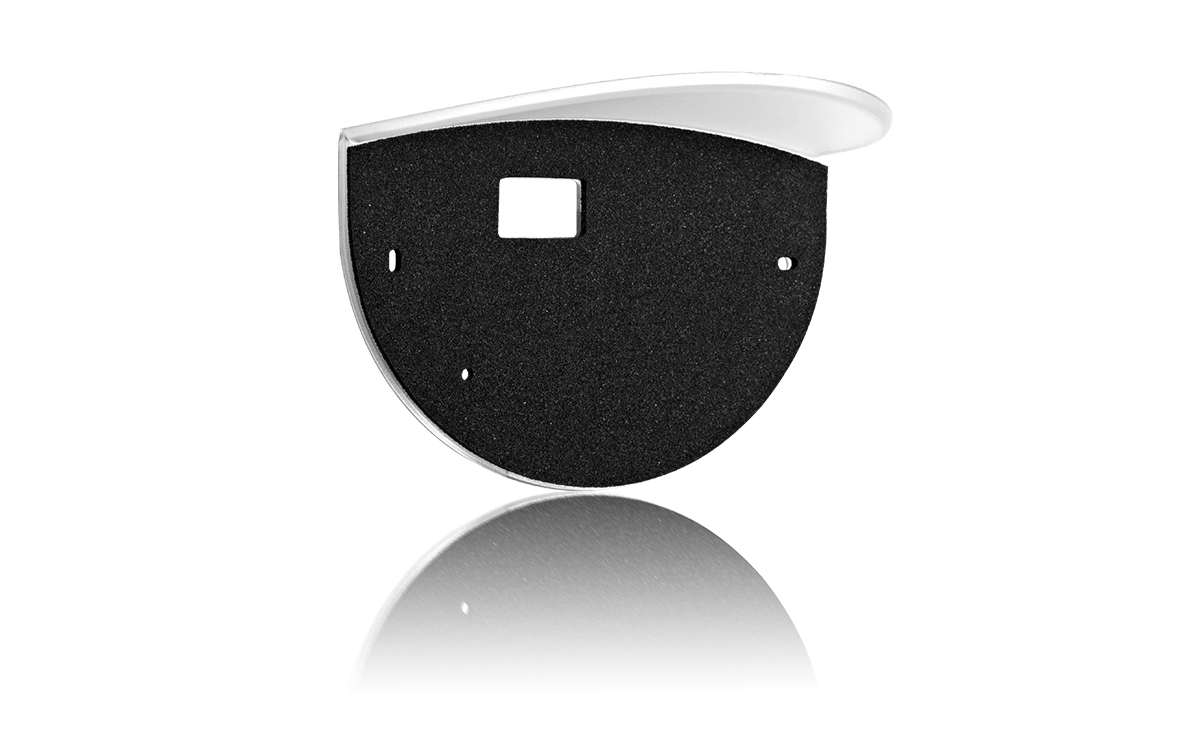

    ORA

    Rain Accessory for EAGLE

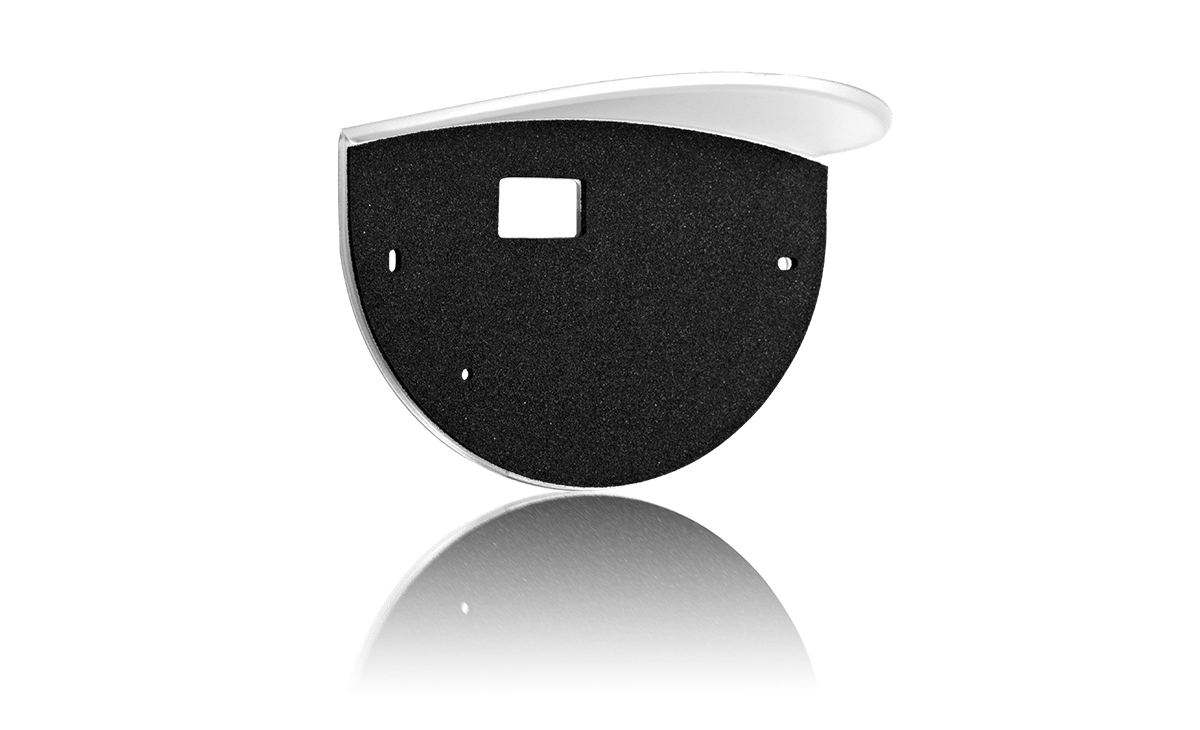

    ERA
