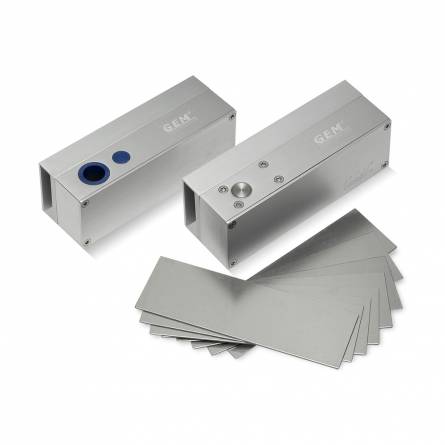

Electric Bolt – Surface – 12VDC
£153.80 ex vat
- FD30 + FD60 Rating
- Operating voltage 12Vdc
- Fail-Safe (Power to Lock)
- Glassdoor applications
- Auto-relocking timer delay: 0, 3, 6 or 9 seconds
- Fire rated: BS EN1634:1
- 1 Hour UK fire certificate
- Voltage tolerance: ±10%.
- Current draw: Pull in 0.9A, Holding 0.3A at 12Vdc (at temperature 20°C).
- Operating temperature: -10~45°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Door position status output indicates door opened or closed status (Reed rated 0.25A at 30Vdc).
- Humidity: 0~95% non-condensing.
- Horizontal or vertical installation.
- Tested to 500,000 cycles.
- Weight: 1.2kg (approx).
- Dimensions 166 × 56 × 32 mm
| Fire Rated | Yes |
|---|
