Kit Includes:
- 1 x FACIL3EH actuator with built-in control panel and radio receiver
- 1 x FACIL3H actuator
- 2 x Rolling code remote control 2-Ch (1xZEN2 + 1xZEN2W)
- 2 x LIN2 photocells
- 1 x E109B warning panel
Ditec Facil – Double Swing Gate Kit Up To 2.3m + 2.3m
From : Ditec Entrematic
£945.75 ex vat
The Ditec Facil is an articulated-arm automation system designed for gates up to 2.3m or weighing up to 300 kg, can be installed on medium and large sized pillars that may even be out-of-plumb.
The 24 Volt DC motor with a virtual encoder allows for constant adjustment of the force of impact and immediate detection of obstructions.
Easy to install: can be installed in just two steps thanks to the motor’s brackets that can be attached very quickly without any welding.
24 V DC kit with a 433 MHz radio
Technical
| Description | Facil 3EH |
| Electromechanical actuator | irreversible for up to 2.3 m wide wing |
| Stroke control | rotary limit switch (optional) |

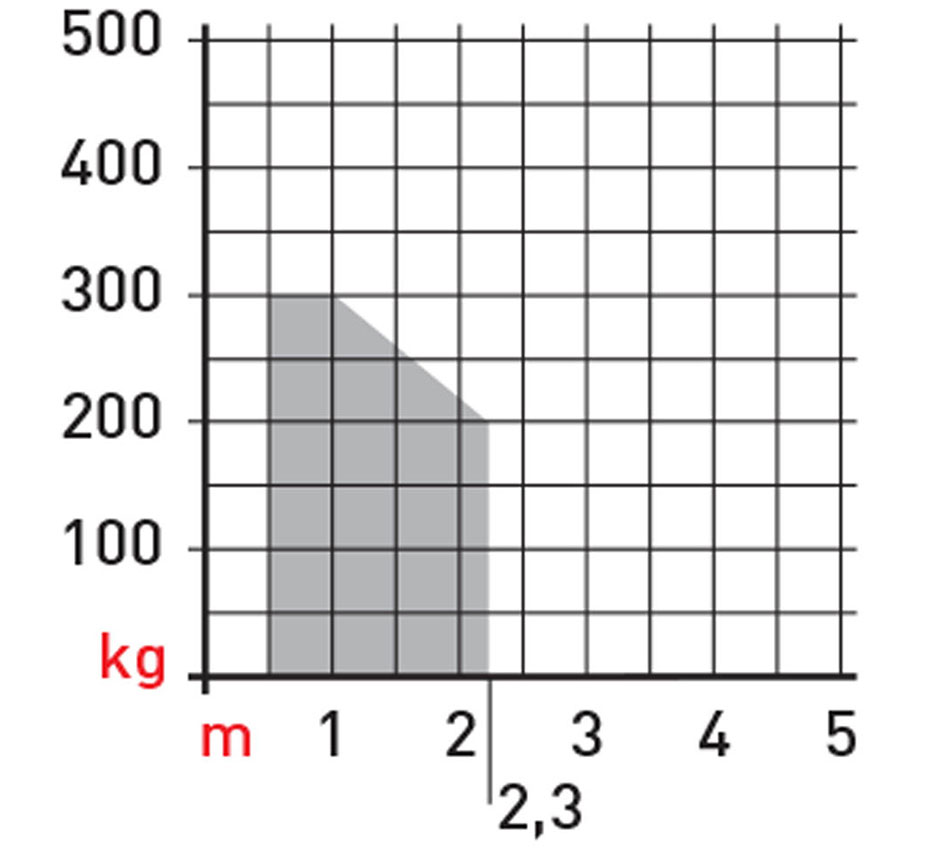

| Maximum capacity | 200 kg x 2.3 m 300 kg x 1 m |
| Service index | 3 – frequent |
| Intermittent operation | S2 = 30 min S3 = 50% |
| Power absorption | 24 V DC |
| Power input | 6 A |
| Torque | 200 Nm |
| Opening time | 10÷55 s/90° |
| Actuator maximum opening | 110° |
| Release system for manual opening | key-operated |
| Operating temperature | -20°C / +55°C (-35°C / +55°C with NIO enabled) |
| Protection level | IP 54 |

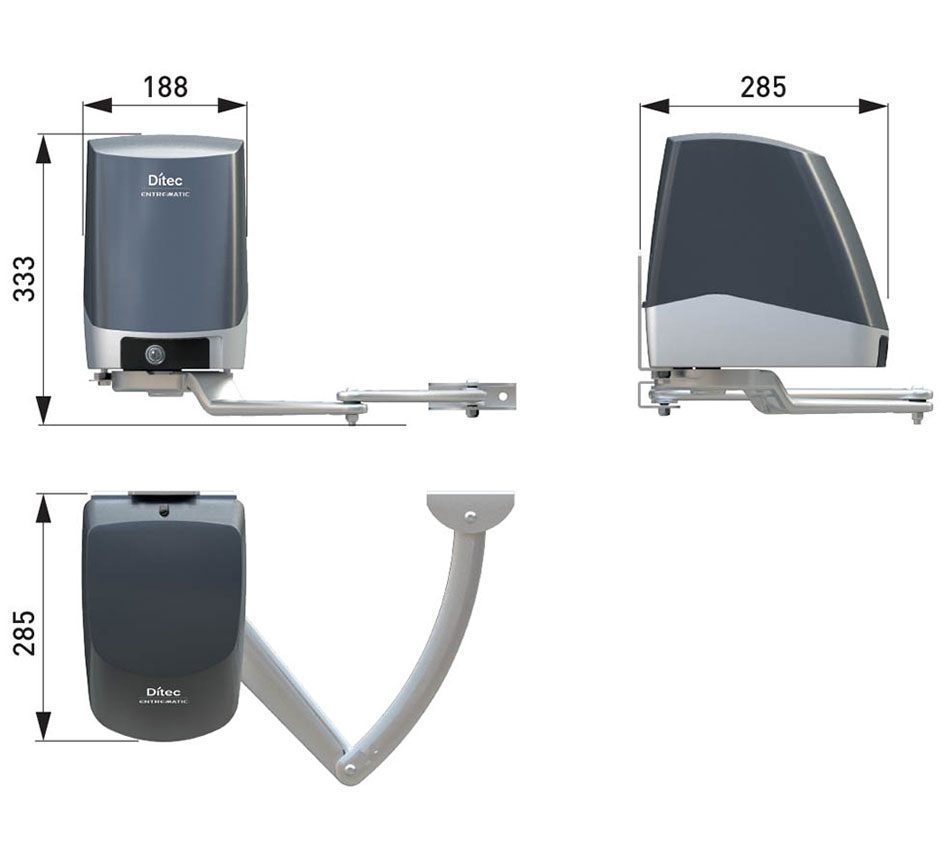

| Product dimensions (mm) | 188x285x332 |
| Control panel | LCU30H (built-in) |
