CUBIC6H – Underground Gate Opener, 24V DC Actuator
From : Ditec Entrematic
£414.38 ex vat
Underground automatic gate opener. Designed for swing gates upto 800kg.
Ditec Cubic is the underground automation system for swing gates with wing up to 4 m or a weight up to 800 kg. Designed for intensive use.
- Underground system for when interference with style, aesthetics and elegance must be avoided.
- Can handle an opening angle of up to 180°
- Allows for constant adjustment of the force of impact and immediate detection of obstructions.
- Limit switch as standard or optional magnetic limit switch.
- Foundation casing is available with a protective anti rust treatment or in stainless steel. (Sold separately).
24 V DC irreversible electromechanical actuator for swing gates:
800 kg x 2 m
350 kg x 2 m
Technical
| Description | Cubic 6H |
| Electromechanical actuator | Irreversible for up to 4 m wide wing |
| Stroke control | Magnetic limit switch (optional) |

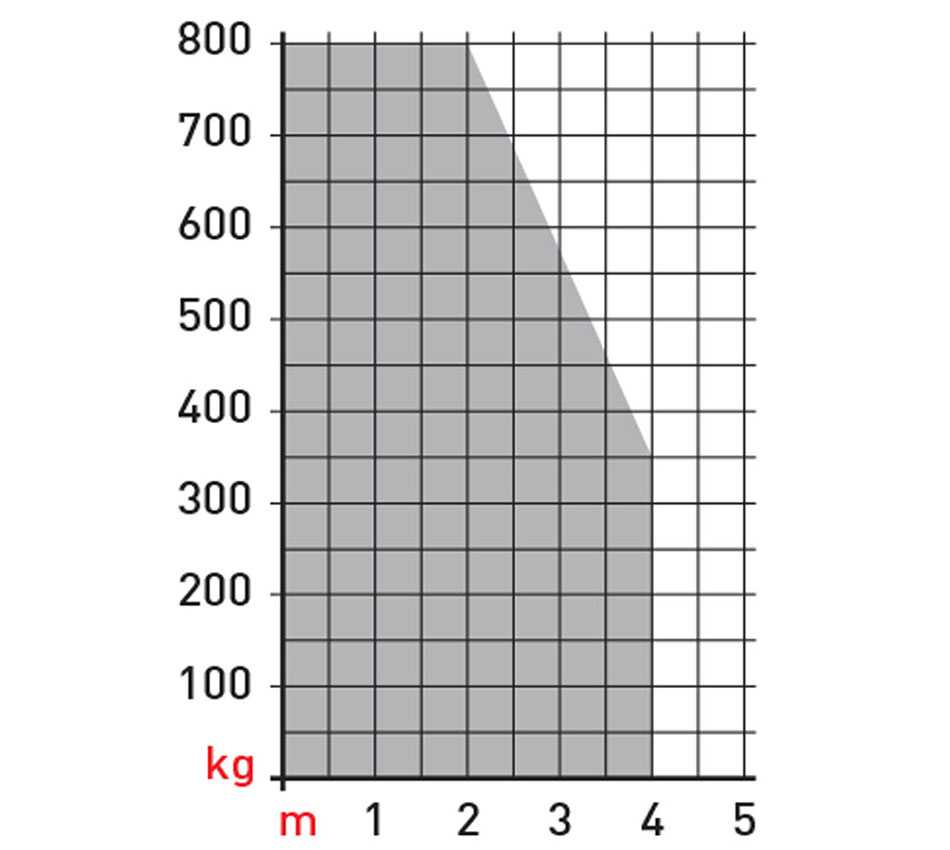

| Maximum capacity | 800 kg x 2 m 350 kg x 4 m |
| Service index | 4 – Intensive |
| Intermittent operation | S2 = 30 min S3 = 50% |
| Power supply | 24 V DC |
| Power input | 12 A |
| Torque | 340 Nm |
| Opening time | 12÷45 s/90° with CUBIC6L 15÷55 s/90° with CUBIC6LG |
| Actuator maximum opening | 110° or 180° |
| Release system for manual opening | key-operated |
| Operating temperature | -20°C / +55°C (-35°C / +55°C with NIO enabled) |
| Protection degree | IP 67 |
| Control panel | LCU40H |
