BEA Magic Switch Contactless Switch

Name: BEA Magic Switch Contactless Switch
SKU: Magic Switch
Price: 91.96 GBP
Availability: OutOfStock

From : BEA

£91.96 ex vat

The MAGIC SWITCH is an alternative contactless solution to push-buttons, pull-cords and other manual activators. It embeds a radar reacting to every intentional motion approaching and allowing to activate the door without any physical contact with the sensor. In addition to the comfort of use, the MAGIC SWITCH offers a hygienic opening solution for the retail, pharmaceutical, chemical and healthcare sectors (operating theatres).

Trade Customer?

Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Out of stock

Part code: Magic Switch Category: Accessories

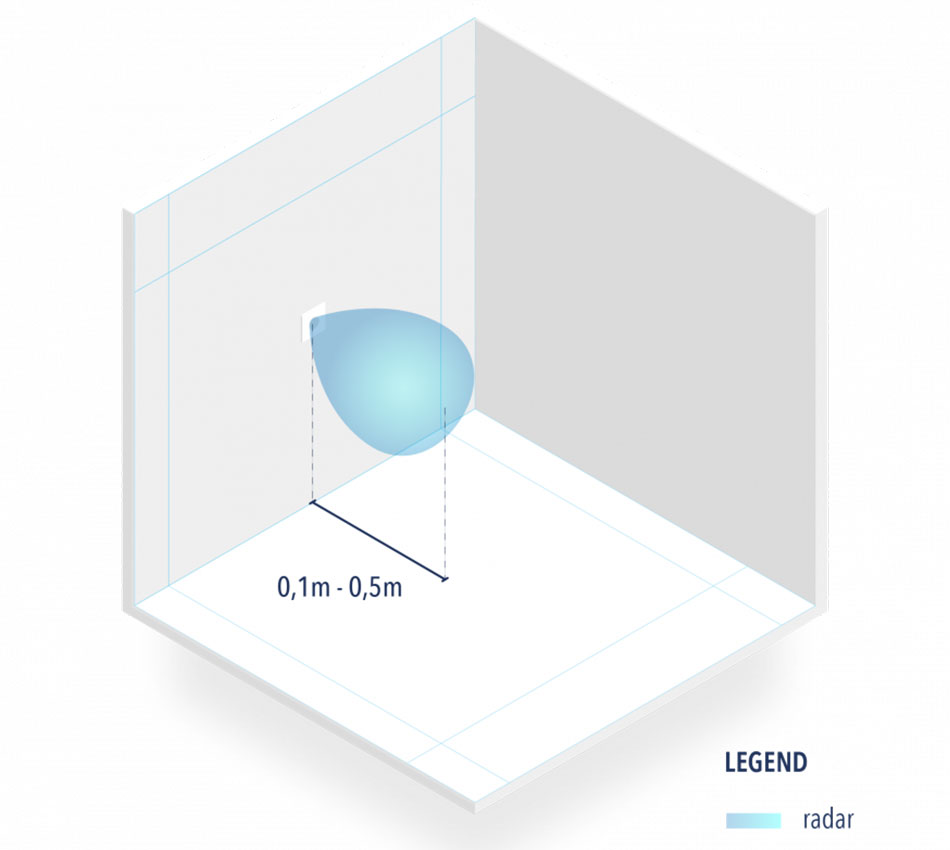

Microwave module with an adjustable detection area from 10 to 50 cm
Ideal hygenic solution for the retail, pharmaceutical, chemical and healthcare sectors
Efficient alternative to push-buttons and manual solutions
The microwave technology allows to hide the sensor behind every type of non-metallic material for aesthetics and protection against detergent products
Flush mounted or surface mount backbox (available separately here)

Technical

Technology:	Microwave motion sensor
Radiated frequency:	24.150 GHz
Radiated power density:	< 5 mW/cm²
Detection range:	+/- 10 to 50 cm if movement towards sensor at 90° (adjustable
Detection mode:	Motion (bidirectional)
Speed of target to create detection:	Min. 5Hz or +/- 3 cm/s, Max. 200 Hz or +/- 1.2 m/s
Supply voltage:	12V – 24V AC ± 10 %; 12V – 30V DC -5%/+10%
Mains frequency:	50 – 60 Hz
Power consumption:	< 1.2 W
Output: Max. voltage: Max. current: Max. switching power:	Relay with switch-over contact (free of potential) 48 V AC – 60 V DC 1A (resistive) 30 W (DC) / 48 VA (AC)
Output hold time:	0.5 s (in PULSE mode)
Degree of protection:	IP 30 with cable connected, IP40 flush-mounted without front face, IP52 flush-mounted with front face and silicone seal mounted in surface mount box
Material:	ABS/PC
Colour:	White
Recommended wiring cable:	Stranded cable up to 16 AWG – 1.5 mm²
Norm conformity:	EN 300 440-2 V1.4.1, EN 301 489-1 V1.9.2, EN 301 489-3 V1.6.1, EN 62311, EN 62479
