The LABEL NEXT range of swing door operators are the latest operator from Label SpA. Featuring the same characteristics as the NEPTIS range, yet being the most compact model on the market at only 420/520 (L) x 60 (H) x 74 (D) mm.

Available in three different versions, with doors weights up to 150Kg, the LABEL NEXT is undoubtedly one of the most powerful operators of it’s size.

Label Logo

The NEXT range has been designed to control the opening and closing of internal, external and fire rated swinging doors up to 150kg in weight wide, offering maximum safety for the user and complies with the European standard EN 16005.

The covering guard is made of anodized aluminium that enhances the look of the automation, the extremely small dimensions (only 60 mm of height for mounting on the door transom) make NEXT range suitable for most types of environments.

The arms which control the motion of the leaf are of two types, pull-type with sliding track and push-type (articulated), both featuring a slim and elegant design.

NFC Slimline Selector

The new slimline function selector from LABEL allows the end user to modify the work program with a simple touch. Work programs that aren’t required can now be disabled easily allowing simpler control for your customers.

Programming can also be carried out via this slimline selector, either via the LCD screen or by an NFC-equipped android device, allowing for quick and easy adjustments and diagnostics.

Once the settings have been input using your mobile device, the data is uploaded into the memory of the automation control unit in a rapid and completely secure fashion, simply by bringing the device into proximity with the NFC selector.

NFC Slimline Selector

The new slimline function selector from LABEL allows the end user to modify the work program with a simple touch. Work programs that aren’t required can now be disabled easily allowing simpler control for your customers.

Programming can also be carried out via this slimline selector, either via the LCD screen or by an NFC-equipped android device, allowing for quick and easy adjustments and diagnostics.

Once the settings have been input using your mobile device, the data is uploaded into the memory of the automation control unit in a rapid and completely secure fashion, simply by bringing the device into proximity with the NFC selector.

The APP can be downloaded from the Google Play store.
* Apple iOS version due end of 2022

Inside the automation NEXT range there is a brushless motor with encoder that ensures very low wear due to the absence of brushes and durability over time, an electronic control unit with latest generation components, to provide excellent performance and reliability and a switching power supply to ensure efficiency and low power consumption.

Door opening can be controlled by sensors, radio control, or by a simple touch in push & go mode. The door can also be used manually with the possibility of reclosing thanks to the virtual spring function. Door motion is safe thanks to the encoder which detects with precision the position of the door and immediately reverses the motion of the door in the event of an obstacle.

The safety sensors to be installed on the leaf are monitored by the electronic control unit at the beginning of each cycle, as required by the standard EN 16005.

For automation commissioning, the installer must use the digital programmer; Alternatively, it is possible to setup NEXT range by means of the new NFC digital keyboard that allows interfacing and data exchange via a smartphone using the new Label App.

In a few simple steps you can setup the automation and select the desired functions.

Brushless Technology

At the heart of the system is the new digital brushless motor, offering far superior durability, reliability and efficiency when compared to a standard motor. For this reason, LABEL are offering 6 year warranty for the gearmotor assembly.

Brushless Technology

At the heart of the system is the new digital brushless motor, offering far superior durability, reliability and efficiency when compared to a standard motor.

Available in three versions depending on needs

NEXT 75

motor open, motor close
  • for internal doors
  • up to 75 kg weight
  • 60 (H) x 72 (D) x 420 (W) mm

NEXT 120S

motor open, spring close
  • for internal & external doors
  • Fire rated up to 120min
  • up to 120 kg weight
  • Spring for self closing
  • 60 (H) x 72 (D) x 520 (W) mm

NEXT 150

motor open, motor close
  • for internal doors
  • up to 150 kg weight
  • 60 (H) x 72 (D) x 420 (W) mm

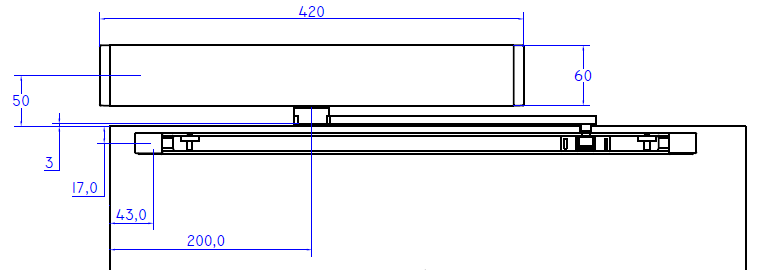

BDT Sliding PULL Arm

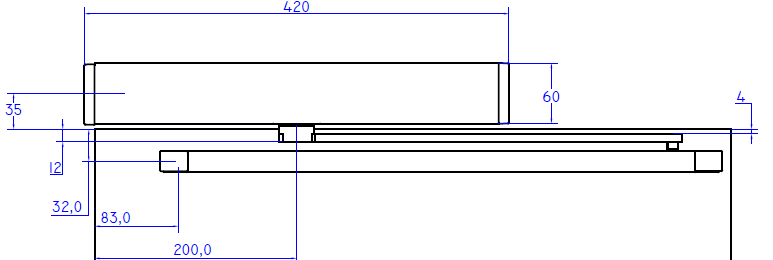

BDS Sliding PUSH Arm

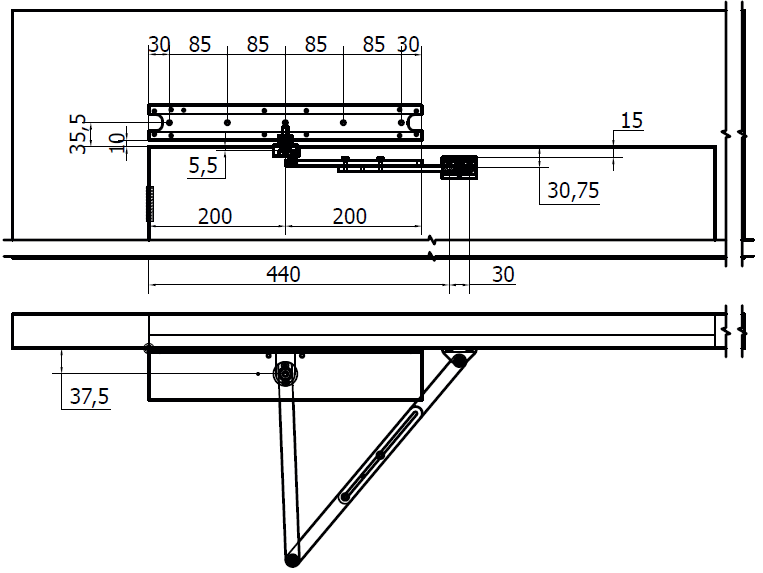

BAS Articulated PUSH Arm

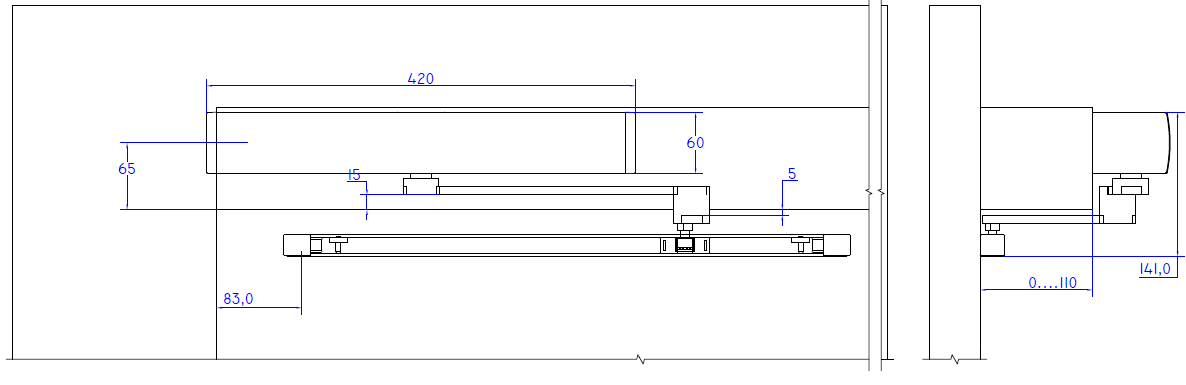

B150 Jointed Sliding PULL Arm

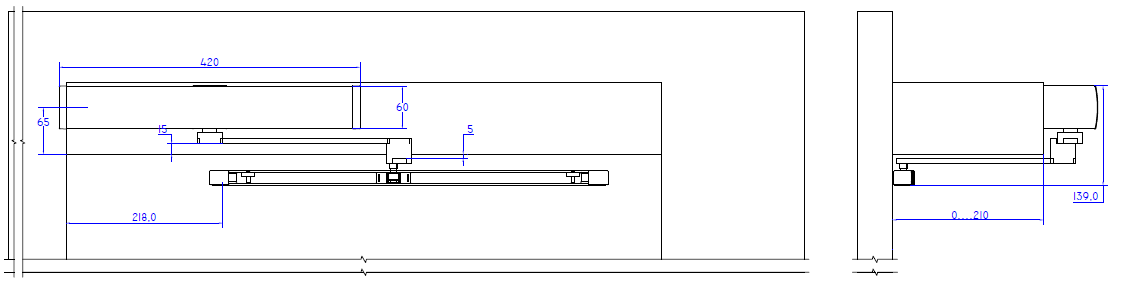

B250 Jointed Sliding PULL Arm

NEXT75NEXT120SNEXT150
Max weight of the leaf75 kg120 kg150 kg
Max width of the leaf1500mm
Drive systemMotor Open
Motor Close
Motor Open
Spring Close
Motor Open
Motor Close
Fire Rating120 mins using the BDT or BDS arm systems
Built in batteryProvided as standardOptional
(NEXT120SB can be supplied with battery built-in)
Provided as standard
Dimensions
(HxDxW)
60 x 74 x 420 mm60 x 74 x 520 mm60 x 74 x 420 mm
Dimensions with built-in battery
(HxDxW)
60 x 74 x 420 mm

Battery does not take up any extra space
60 x 74 x 520 mm

Battery does not take up any extra space
60 x 74 x 420 mm

Battery does not take up any extra space
Power supply115/230 Vac 50-60Hz
Max. Power consumption40W
Standby consumption5W
Power output for accessories24 Vdc @ 1.0A24 Vdc @ 0.8A
Electric Lock supplyClean contact or 24Vdc (shared with accessory supply)
Motor24Vdc brushless motor with hall effect encoder
Protection ratingIP32
Frequency of use100% continuous
Operating temperature-15° C + 50° C
Opening speed2 - 12secs adjustable
Closing speed4 - 12secs adjustable
