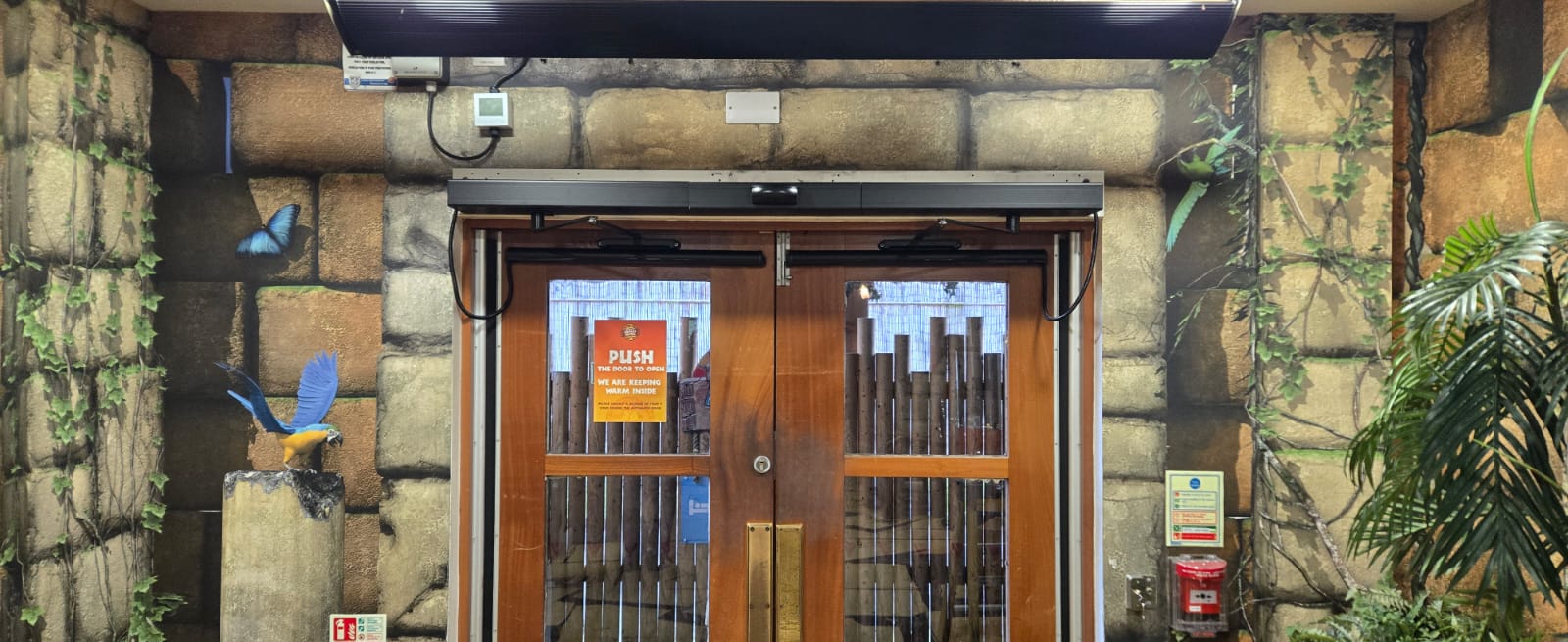

Powerful – Low Maintenance – Versatile
- Powerful and strong, can open and close doors up to 300kg
- Slimmer and space saving: only 70mm height, easy fitting into challenging wall ceiling installations
- A single spring with an embedded system ensures the final kick/latch.
- Automation complete with black or silver anodized aluminum cover.
- Built-in display for easy programming without additional hardware or programmer
- New B9115 Brushless motor with 7 Years warranty
SILENT
The mechanism features a simplified gear reduction, enhanced smoothness, and optimized materials for better acoustics.
POWERFUL CONTROL
The control includes as standard a wide range of native functions, an integrated display, configurable terminals, an USB port and a the remote control inteface.
LOW MAINTENANCE COSTS
The automation is designed to be robust and reliable. The low speed brushless motor has a service life 10 times longer than a traditional motor.
COMPACT
A single spring with an embedded system ensures the final kick/latch. The slimmer design allows easy installation in tight spaces. It features a thinner B9115 brushless motor, with redesigned SW70SA sliding and SW70AA articulated arms.The brushless motor minimizes needing of maintenance, noise and wear, with a service life that is ten times longer than a traditional DC motor.
USER FRIENDLY
A new, easy pre-charging system for the closure spring. The CB20 control unit features a seamless interface, a joystick, and a 1.8” LCD for easy navigation.

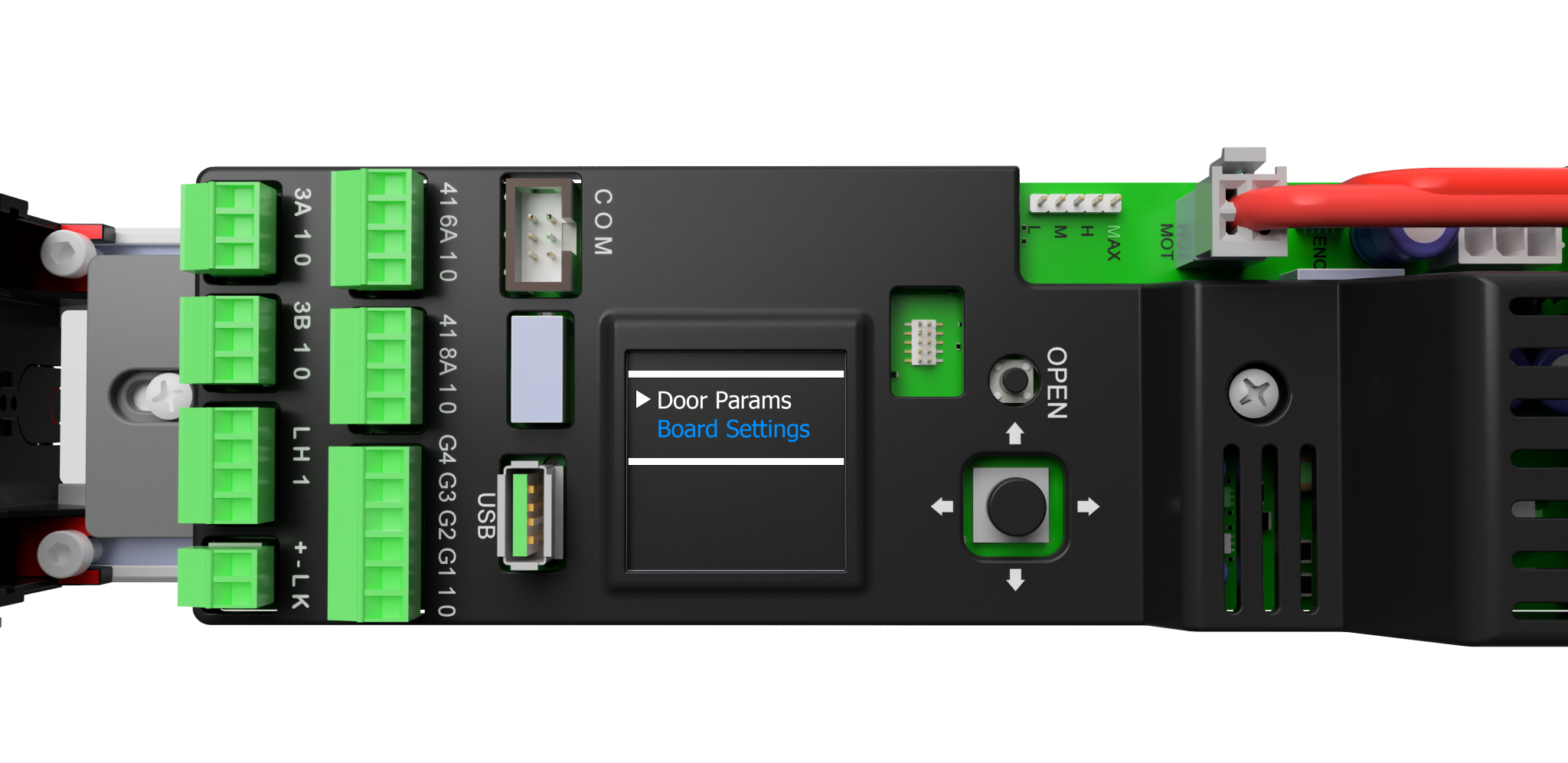

Control Board
- Advanced electronic control board equipped with a 32 bit microcontroller that perfectly controls and manages the movement of the motor
- Practical 1.8″ LCD display with joystick for easy adjustments, providing clear and detailed diagnostic information even at a distance.
- Extended range power supply 100 240 V (50/60 Hz) with Switch Mode technology that guarantees high efficiency and reduction in energy consumption
- Simple connection to power supply via a practical standard plug cable
- Standard pre setting that satisfies almost all projects. The parameters can be easily modified for any specific need.
- A terminal board for each accessory designed according to current European regulations that guarantees an easy connection of control and safety devices.
- USB memory where the parameters and the operating information of the door are stored and allows to replicate or restore the same settings on similar systems them in case of replacement of the electronic control unit

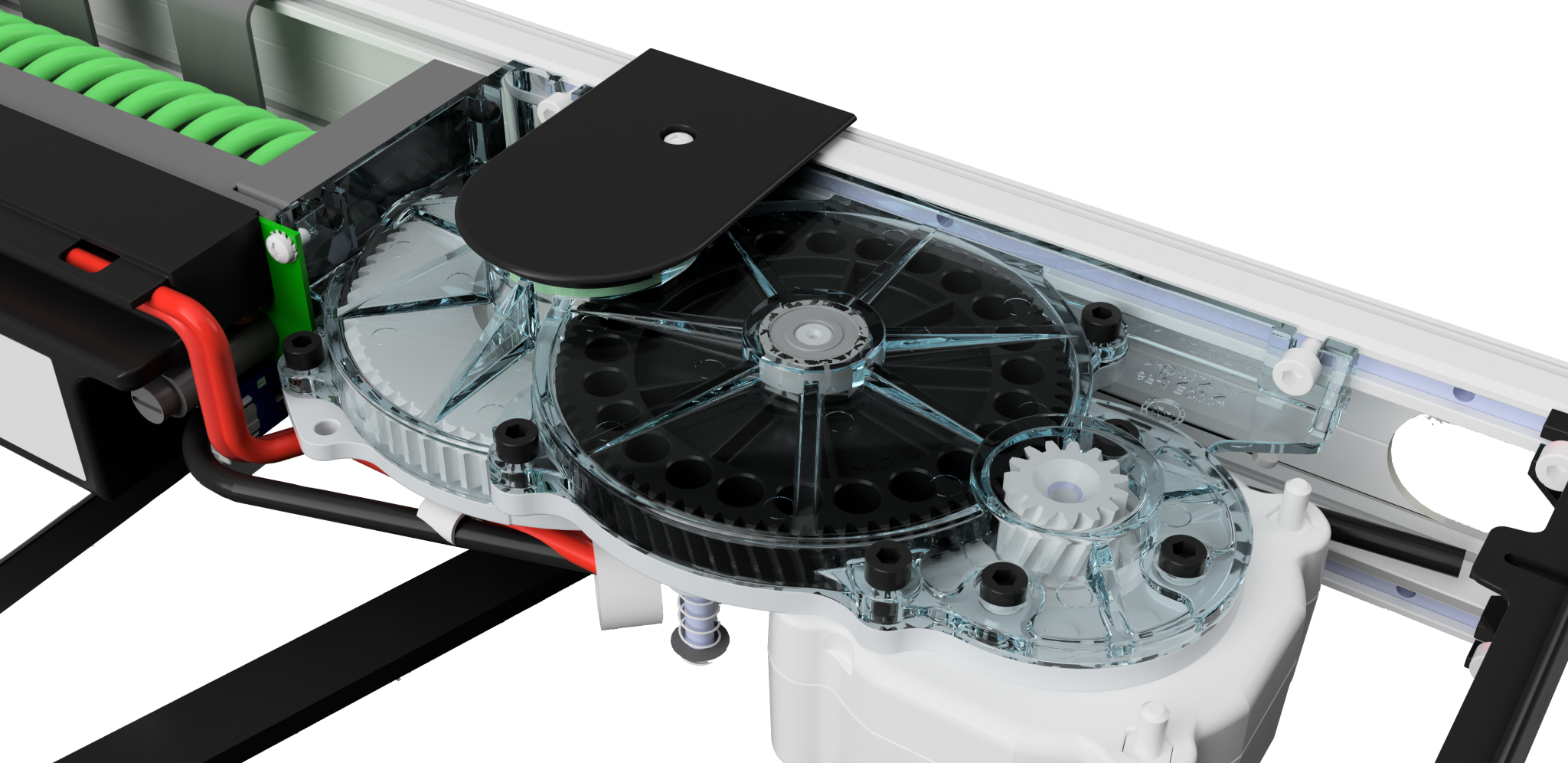

Gearbox Unit
- Together with the Brushless motor it generates a high force in order to move heavy doors and to contrast strong wind conditions.
- It is designed to ensure maximum performance and total reversibility. It is considerably silent.
- It can be moved manually.
- The system provides smooth and controlled movement, allowing opening angles of up to 170°.
- The powerful B9115 brushless motor is the 2nd generation of motors developed by FACE, offering increased torque, higher efficiency and over 40% more power that previous motors.

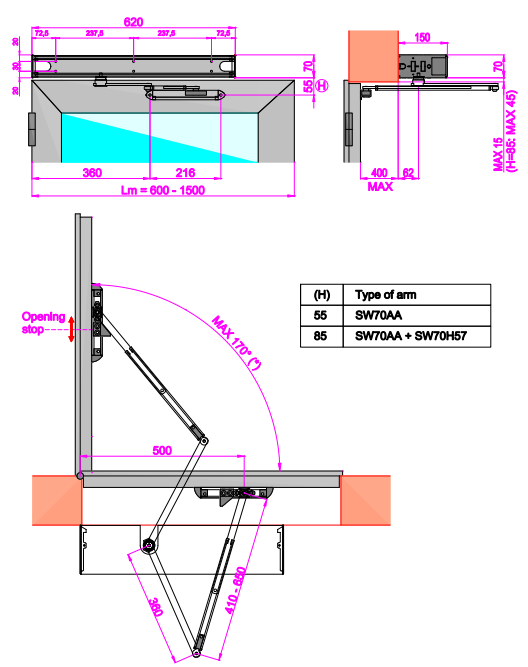

SW70AA
ARTICULATED PUSH ARM

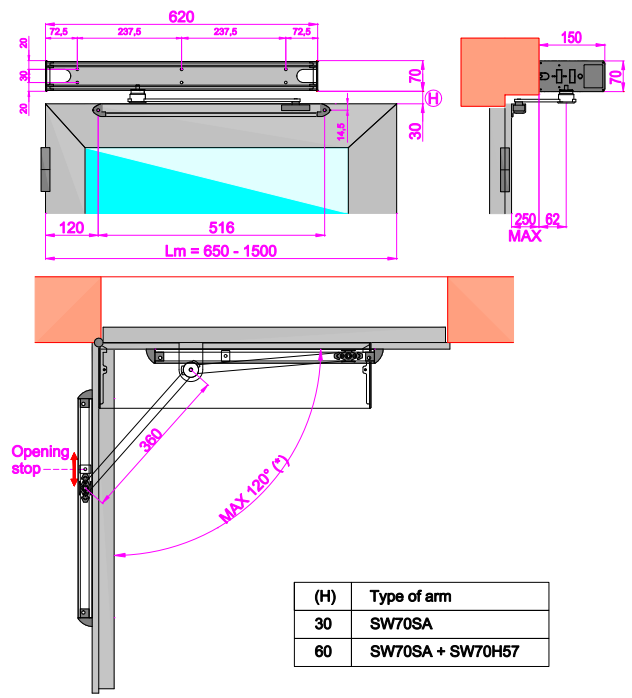

SW70SA
SLIDING PULL ARM

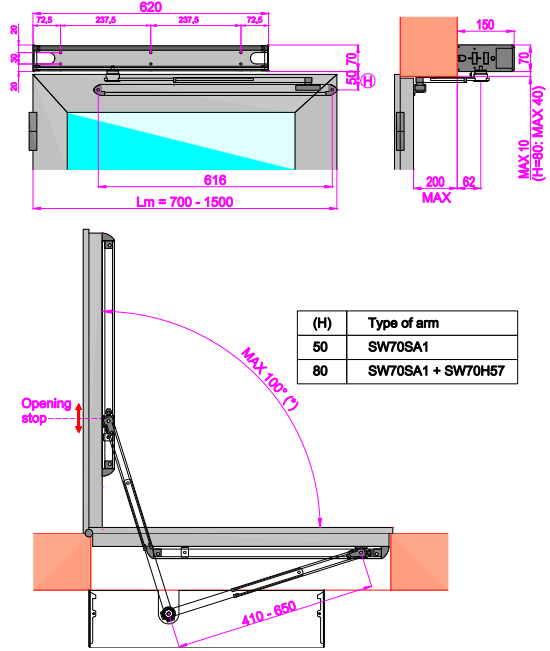

SW70SA1
SLIDING PUSH ARM
| SW70S | |
|---|---|
| Drive system | Automatic swing doors with self-closing spring |
| Reference standards | EN 16005 |
| Dimensions | 70 x 150 x 620 mm |
| Max loading capacity | 300 kg @ 0.8m 200 kg @ 1.0m 100 kg @ 1.4m |
| Power supply | 100/240 Vac 50-60Hz |
| Power consumption | 70W |
| Standby consumption | 5W |
| Electric Lock supply | 12 Vdc @1a max 24 Vdc @ 1a max |
| Protection rating | IP20 |
| Operating temperature | -15° C + 50° C |
| Type of use | Intensive use 100% |
| Opening / Closing time | 2 - 6 seconds |
| Interlock system | Configuration for two face automatic doors with interlock system |
| Firmware update | USB. Latest firmware freely available from website |
