NEOS – The intelligent, safe and versatile automation
Ditec NeoS is the operating device for residential, commercial and industrial applications, designed to work even under intense use and in demanding environmental conditions.
Fast to install and easy to maintain, it’s available in 4 versions for gates of 300 kg, 400 kg, 600 kg and 1000 kg and comes with a control panel with display built in to the operating device. Two different performance levels are available: Ditec NeoS and Ditec NeoS+.
COMPLETE PEACE OF MIND:

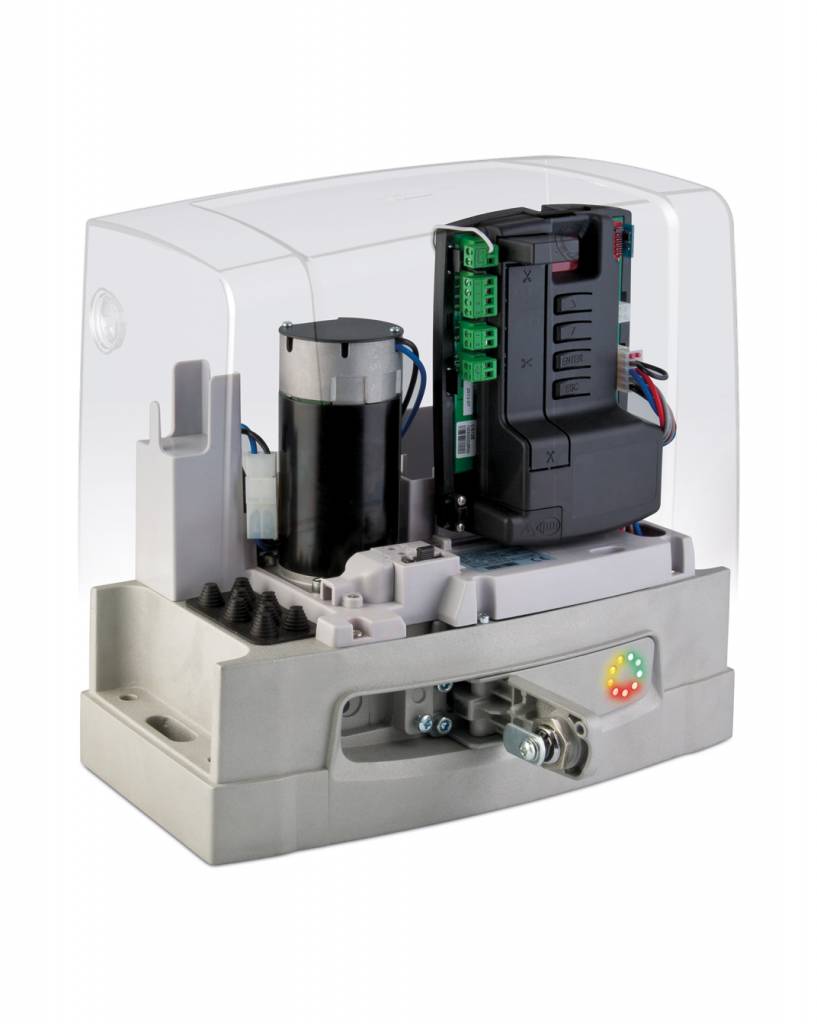

- sturdy, durable and reliable over time single-block, die-cast aluminium base provides unmatched stability
- special high-quality, self-levelling grease keeps screws and crowns constantly lubricated
- the temperature sensor fine-tunes the gear motor’s performance in the event of cold, ice and snow (NIO – No Ice Option – function).
INSTALL AND CONFIGURE the operating device more quickly
- steel plates of different thickness and design allow for correct installation in all circumstances and levelling screws can be used to adjust the operating device to the millimetre
- IP24D protection rating prevents all contact with live parts

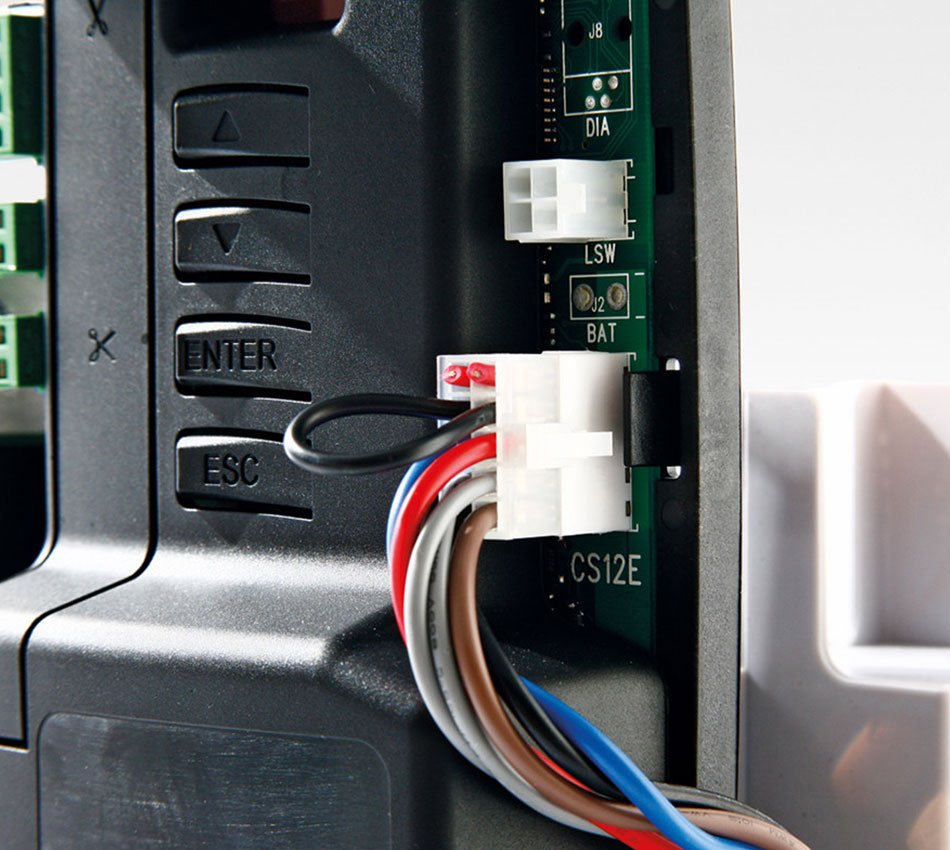

- the self-learning procedure is made easy by the display, navigation pushbuttons and a specific remote control, for installation of the motor in just two steps
- here are three predefined configurations for residential and condominium use. But that’s not all: removable storage allows operating settings to be saved and copied to another operating device
- 433 MHz and 868 MHz frequencies are available
UNIQUE PERFORMANCE
- Ditec NeoS+ offers you an advanced control panel for more precise adjustment of all settings and additional terminals for more convenient wiring operation
- Check the status of your operating device! LEDs allow you to easily monitor the status of the operating device without opening the ASA cover.
| NeoS 300 | NeoS 400 NeoS+ 400 | NeoS 600 NeoS+ 600 | NeoS+ 1000 | |
|---|---|---|---|---|
| Max. leaf weight | 300 kg | 400 kg | 600 kg | 1000 kg |
| Stroke control | virtual encoder | limit switch + virtual encoder | ||
| Maximum opening width | 12 m | 20 m | ||
| Duty class | 4 - heavy duty | |||
| Intermittent operation | S2 = 30 min S3 = 50% | |||
| Power supply | 230 V AC / 50/60 Hz | |||
| Motor power supply | 24 V DC | |||
| Power input | 1.2 A | 1.5 A | 2 A | |
| Thrust | 300 N | 400 N | 600 N | 1000 N |
| Opening and closing speed | 0.1 - 0.25 m/s | 0.1 - 0.24 m/s | 0.1 - 0.19 m/s | |
| Protection degree | IP 24D | |||
| Operating temperature | -20°C / +55°C (-35°C / +55°C with NIO enabled) | |||
| Control panel | CS12E | CS12M | CS12E | CS12M |
| NeoS 300 - 400 - 600 | NeoS+ 400 - 600 - 1000 | |
|---|---|---|
| Control panel | ref. CS12E with integrated radio receiver | ref. CS12M with incorporated radio receiver |
| Radio frequency | 433.92 MHz standard - 868.65 MHz (with GOL868R4) | |
| Batteries | (optional) | |
| Solar-energy ready (ready) | (ready) | |
| Accessories power supply | 24 V DC/ 0.3 A | 24 V DC/ 0.5 A |
| Flashing light | 24 V DC | |
| Automation-system status indicator output | ||
| Courtesy light output (up to 400 W) | ||
| Micro USB connection for PC diagnostics | ||
| Automatic closure activated by external timer | ||
| 8.2 KΩ-resistance safety rib | (with GOPAV system) | |
| Force and speed setting | via display | |
| ODS - Obstruction Detection System | ||
| Braking/slowing down | via display | |
| Partial opening control | (only with remote control) | (with with remote control and selector) |
| Open/close control | ||
| Timer controlled automatic closing | ||
| Hold-to-run control | ||
| Emergency stop/reverse | ||
| Safety-test function | ||
| Soft Start | ||
CATG
1/2” chain coupling
CAT1
1/2” chain – 5 m sections.
NES100CKT
traction kitw with chain
NES100FCM
magnetic limit switches.

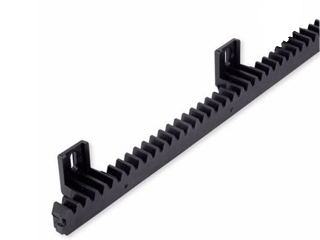

CR4N4
black rack 1000 mm, Module 4, in PA6 nylon and fiberglass with steel core, 4 fixing points with buttonhole, for sliding gates up to 500 Kg
CR4N6
grey rack 1000 mm, Module 4, in PA6 nylon and fiberglass with steel core, 6 fixing points with buttonhole, for sliding gates up to 800 Kg
CROSSCRI
galvanised steel rack, module 4, complete with mountings and screws
NES100PSU
steel plate for heavy applications.
NES100WSP
adjustable support for lifting off the ground.
NES100RFK
steel plate for retrofit installations.
SBU
card for recharging batteries from the mains or from photovoltaic panels (not included). Complete with cables and mountings.
