The automation system designed to last

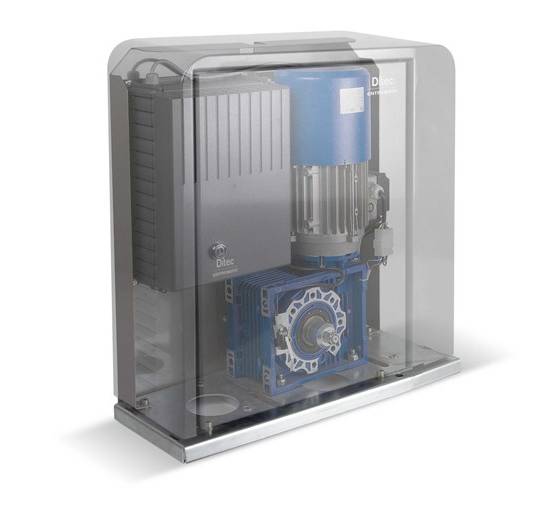

Ditec Cross 30 is the automation system for sliding gates up to 20 m wide, weighing up to 3000 kg. The ideal solution for round-the-clock operation. The three-phase motor has built-in magnetic limit switches and control panel.
Reliable and sturdy
- steel worm screw; cemented, tempered and adjusted with a bronze crown
- high-reliability control panels with sturdy contacts
- irreversible geared motor to avoid installation of electro-mechanical locks
- Safety-Test function
- electric brake and electronic clutch
- sturdy lever-release devices, easy to access when the inspection door is open
- inspection window
- vertical levelling screws (additional adjustment spacers included in the package).
Powerful
Three-phase electronics 400 V guarantee maximum performance even under adverse conditions, thanks to greater dynamic thrust during the initial phase of operation.
| CROSS 30 | |
|---|---|
| Electromechanical actuator | for sliding gates up to 3000 kg |
| Stroke control | magnetic limit switch |
| Capacity | 3000 kg |
| Maximum opening width | 20 m |
| Service index | 5 - heavy duty |
| Intermittent operation | S3 = 100% |
| Power supply | 400 V AC / 50 Hz |
| Power input | 2.1 A |
| Thrust | 3000 N |
| Opening and closing speed | 0.16 m/s |
| Release system for manual opening | key operated |
| Operating temperature | -20°C / +55°C (-35°C / +55°C with NIO enabled) |
| Protection level | IP 45 |
| Product dimensions (mm) | 530x275x588 |
| Control panel | E1T (built-in) |
CROSSCR6
galvanised steel rack – module 6 – 30x30x1000 mm for CROSS30E
