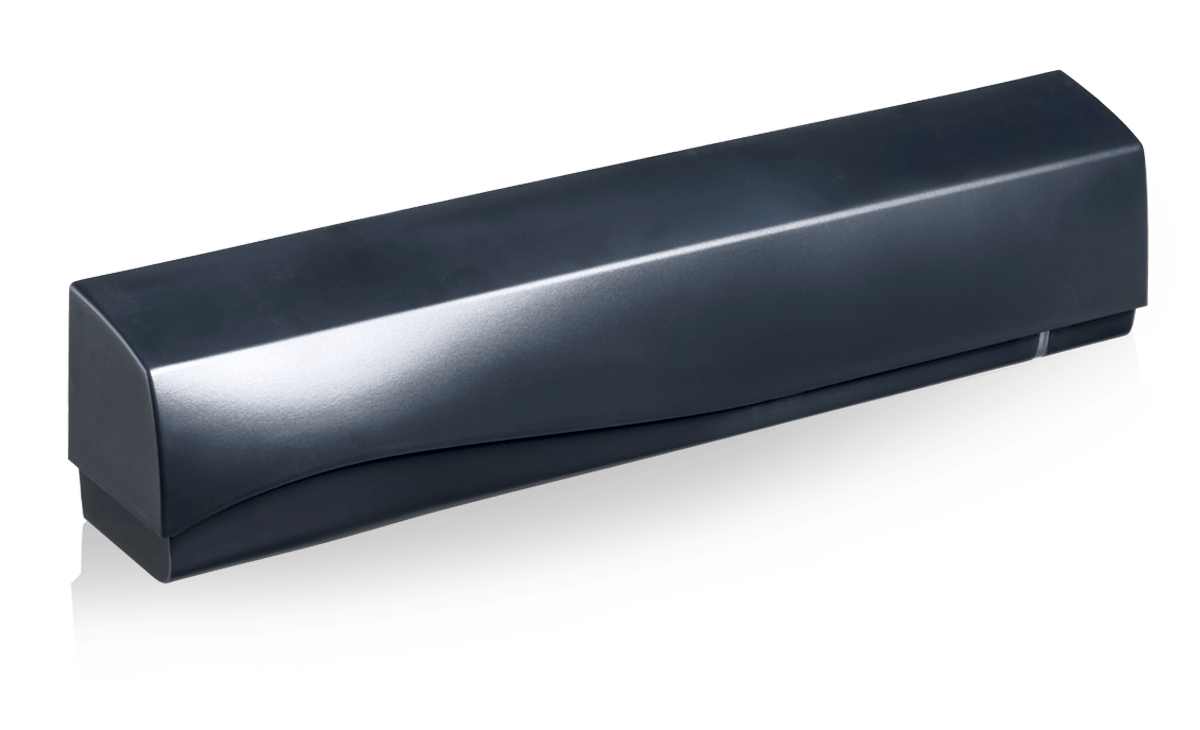

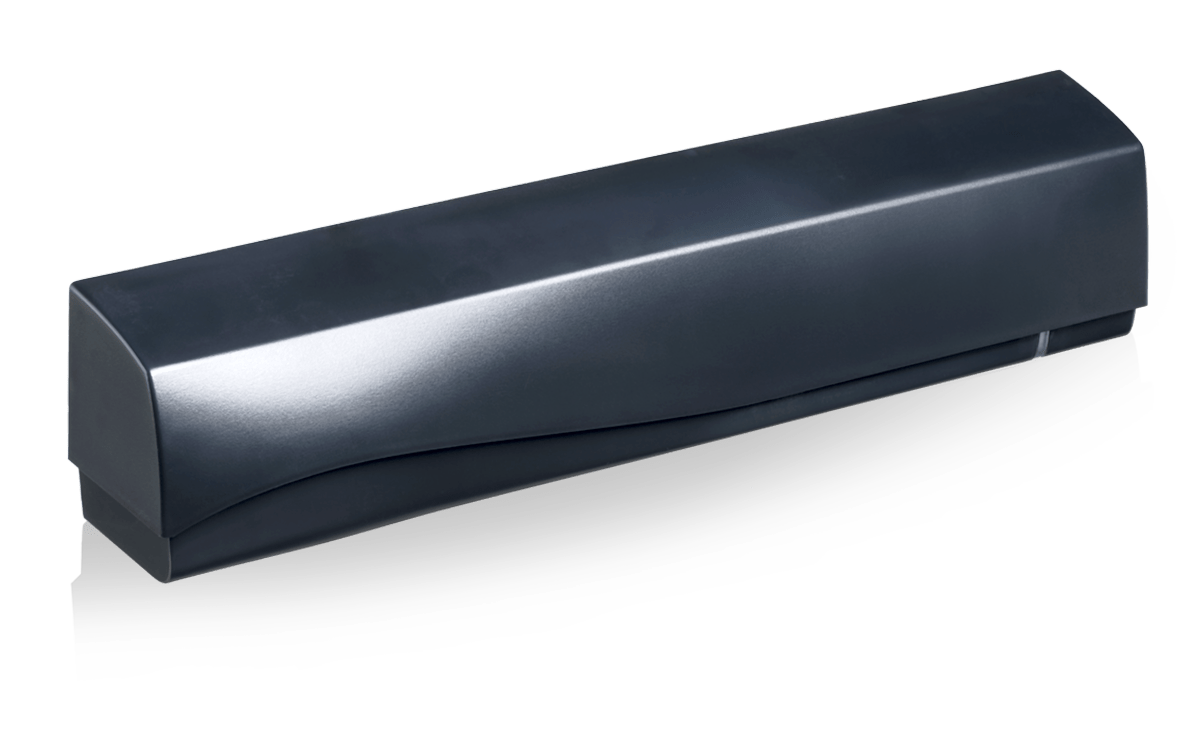

BEA VIO-ST
| Supply voltage: | 12 V - 30 V DC -5%/+10% (to be operated from SELV compatible power supplies only) |
| Power consumption: | < 1.6 W |
| Mounting height: | 1.8 m to 3 m |
| Sensitivity of the test input: | < 1 V : Log. L; > 10 V: Log. H (max. 30 V) |
| Temperature range: | -25 °C to +55 °C |
| Degree of protection: | IP54 |
| Noise | < 70 dB |
| Expected lifetime: | 20 years |
| Norm conformity: | EN 16005:2012; EN 12978:2009; EN IEC 62061:2005 SIL2; EN 61496-1:2012 ESPE Type 2; EN ISO 13849-1:2008 Pl «c» CAT.2 (under the condition that the door control system monitors the sensor at least once per door cycle) |
| Detection mode: | Presence Typical response time: <256 ms Max. presence time: 30 sec |
| Technology: | Active infrared with background analysis Spot diameter: 0.1 m (typ) Number of spots: 24 Number of curtains: 2 |

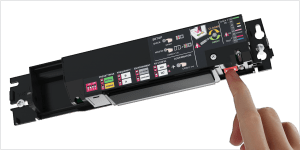

| Angle: | From -4 ° to +4 ° (adjustable) |
| Output: | Solid-state-relay (free of potential, free of polarity) Max. contact current: 100 mA Max. contact voltage: 42 V AC/DC |
| Hold time output signal: | 0.3 s to 1 s (not adjustable) |
| Response time on test request: | This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information. |
